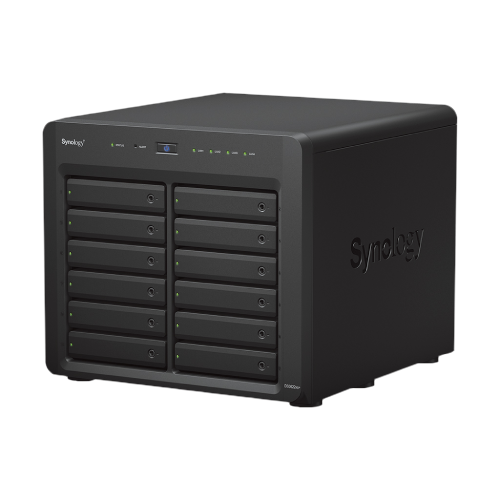

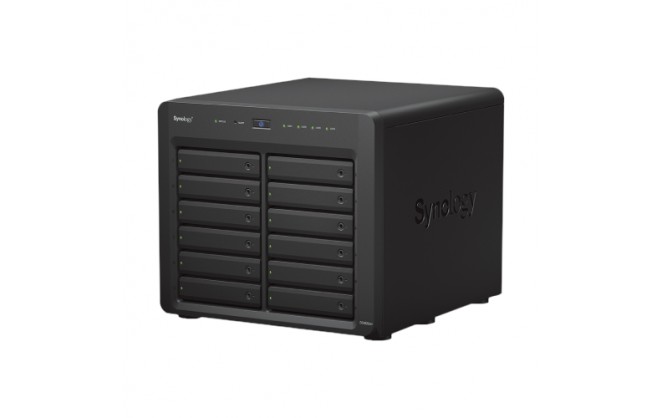

Synology DS3622xs+ 12-Bay NAS Enclosure

  • Part Number: DS3622xs+
  • Manufacturer: Synology
  • Quickfind Code: 603070
  • Stock: Out Stock

£2,511.49 ex. vat
£3,013.79 inc. vat

Product Features:
  • Condition:
  • Capacity Diskless
  • Number of Bays 12
  • Main Colour Black
+ Read More Information

Share:

Product Description

Synology DS3622xs+ DiskStation 12-Bay Network Storage Enclosure

The Synology DS3622xs+ DiskStation 12-Bay Network Attached NAS Storage device is a powerhouse NAS capable of fitting into small and medium business environments with intensive and multi-user workloads. Its high capacity, scalability, and processing power make it ideal for VM and container storage, for lightning-fast file sharing, and as a network video recorder for large surveillance deployments. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video.

Key Features

  • Un-populated twelve (12) bay network attached NAS storage device.
  • Features a six-core Intel Xeon D-1531 processor.
  • 4,719 MB/s sequential read and 260,691 4K random read IOPS.
  • 16 GB DDR4 ECC memory, expandable to 48 GB.
  • Expand to thirty-six (36) drives with two (2) DX1222 expansion units (sold separately).
  • Empower your workforce to collaborate, share files, and communicate from anywhere.
  • Synology DiskStation Manager (DSM) streamlines provisioning for and management of virtual machines.

Dependable storage for many scenarios

This Synology NAS is a versatile storage platform that fits perfectly in file server, block storage, or application server roles that require high availability, reliability, and leading-edge storage technology.

  • Multi-purpose NAS storage
    Keep digital assets accessible locally or remotely with easy-to-maintain shared file storage, backed by fast SMB file serving, powerful RAID options, efficient backup tools, and granular permission management.
  • SAN infrastructure for SMBs
    Deploy certified block storage with minimal disruption thanks to easy management plugins, and leverage free snapshots paired with built-in high-availability options to maximise service availability.
  • Versatile business applications
    Host business solutions privately and on your own terms, including a powerful backup server to protect all business assets from a centralised platform or a full-fledged surveillance platform to safeguard physical premises with transparent licensing.

Faster performance

Enjoy a smooth experience even with multiple users running demanding applications. See the numbers that make the DS3622xs+ more efficient.

  • Sequential Throughput
    • Read - 4.7K+ MB/s
    • Write - 2.4K+ MB/s
  • 4K Random IOPS
    • Read - 260K+ IOPS
    • Write - 97K+ IOPS

Built to maximise uptime

The DS3622xs+ is built to keep mission-critical data and services accessible, so that businesses can continue to perform even when disaster strikes.

  • Out-of-band (OOB) management
    Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.
  • High-availability solution
    Create an active-passive cluster with minute-level failover by pairing the DS3622xs+ with an identical unit using Synology High Availability.

Rise to the challenge

Prepare your DS3622xs+ for the heaviest workloads or upgrade flexibly as your business continues to grow. Use add-in cards (sold separately) to add bandwidth, fast SSD cache, or both.

  • Maximise bandwidth
    Handle heavier I/O and serve more users with dual-port Synology 10 or 25GbE network interface cards. Integrate with any FC SAN using compatible Fibre Channel adapters.
  • Accelerate storage performance
    Enable SSD caching to speed up HDD arrays with an M.2 NVMe SSD adapter card and SNV3000 series SSDs, or install SAT5200 SATA SSDs in drive bays to increase performance.
  • Do both with one card
    Add both 10GbE connectivity and M.2 NVMe SSD slots for SSD cache with a single combination NIC and adapter card.

Out-of-the-box data protection

Protect your data with professional backup software for your Synology NAS, other devices, and applications.

Consolidate backups to your NAS

  • Active Backup Suite
    • Securely back up Windows clients and servers, Microsoft 365 and Google Workspace accounts, file servers, and VMware and Hyper-V virtual machines with the Active Backup Suite.
    • Leverage built-in deduplication technology to reduce backup sizes and multi-versioning to allow flexible restoration.
  • Implement a 3-2-1 backup strategy
    • Combine local and remote backup strategies to achieve fully redundant protection of your IT infrastructure using Synology and third-party solutions.

Back up your NAS to other devices

  • Hyper Backup
    • Back up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage, public cloud platforms, USB devices, file servers, local folders, or other Synology NAS.
    • Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning.
  • Snapshot Replication
    • Snapshot Replication enables configurable point-in-time snapshots of shared folders and virtual machines with an RPO as low as 5 minutes and recovery within seconds.

Efficient collaboration and communication

Empower your workforce to collaborate, share files, and communicate from anywhere.

  • Synology Drive
    Host your own private cloud behind the safety of your NAS with 100% data ownership and no subscription fees.
  • Synology Office
    Collaborate in real time on documents, spreadsheets, and slides for greater synergy and productivity.
  • Synology MailPlus
    Improve team efficiency with an on-premises email solution that ensures data ownership, security, and reliability.

Certified virtual machine storage

Synology DiskStation Manager (DSM) streamlines provisioning for and management of virtual machines with full certification for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack virtualisation environments.

Synology Storage Console for VMware or Windows platforms lets you manage storage directly from your hypervisor. VMware VAAI integration and Windows ODX help offload storage operations and speed up data transfer, and a Kubernetes CSI driver lets you provision and manage volumes directly from the K8s CLI.

Centralised surveillance for your business

Transform the DS3622xs+ into a powerful network video recorder with Synology Surveillance Station.

  • Secure and private
    Footage stored locally is protected by industry-standard AES-256 encryption.
  • Scale up any time
    Connect up to 90 IP cameras from a wide selection of over 7,900 validated models.
  • Real-time analytics
    Take advantage of intelligent monitoring features and receive automatic alerts of security events.

Get more with DiskStation Manager

Take advantage of a whole host of native productivity, management, and security solutions available on the web-based Synology DSM operating system.

  • Data Protection
    Keep your business safe from data loss and minimise service downtime.
  • User Management
    Manage user accounts and devices throughout your business with powerful directory services.
  • Security
    Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.
  • File Management
    Manage, sync, and share files from multiple devices through a centralised platform.
  • System Administration
    Manage the health of your deployments and centrally administer updates with ease.
  • Surveillance
    Protect your home or business with intelligent monitoring and video management tools.
Technical Specification

Synology DS3622xs+ 12-Bay NAS Enclosure

Hardware Specifications

CPU

CPU Model

  • Intel Xeon D-1531

CPU Quantity

  • 1

CPU Architecture

  • 64-bit

CPU Frequency

  • 6-core 2.2 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine (AES-NI)

  • Yes

Memory

System Memory

  • 16 GB DDR4 ECC SODIMM

Memory Module Pre-installed

  • 16 GB (8 GB x 2)

Total Memory Slots

  • 4

Maximum Memory Capacity

  • 48 GB (8 GB x 2 + 16 GB x 2)

Notes

  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays

  • 12 (un-populated)

Maximum Drive Bays with Expansion Unit

  • 36 (2 x DX1222 - sold separately)

Compatible Drive Type

  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD

Maximum Single Volume Size

  • 200 TB (32 GB memory required)
  • 108 TB

Hot Swappable Drive

  • Yes

Notes

  • It is strongly recommended that you only install drives listed on your device's compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB).

External Ports

RJ45 1GbE LAN Port

  • 2 (with Link Aggregation / Failover support)

RJ45 10GbE LAN Port

  • 2 (with Link Aggregation / Failover support)

Management LAN Port

  • 1

USB 3.2 Gen 1 Port

  • 2

Expansion Port

  • 2

Notes

  • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

PCIe Expansion

  • 1 x Gen3 x8 slot (x8 link)

File System

Internal Drives

  • Btrfs
  • EXT4

External Drives

  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT

Notes

  • exFAT Access can be installed for free from Package Centre in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Centre.

Appearance

Dimensions (H x W x D)

  • 270 x 300 x 340 mm

Weight

  • 9.8 kg

Others

System Fan

  • 120 mm x 120 mm x 2 pcs

Fan Speed Mode

  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode

Easy Replacement System Fan

  • Yes

Power Recovery

  • Yes

Noise Level

  • 25 dB(A)

Scheduled Power On / Off

  • Yes

Wake on LAN / WAN

  • Yes

Power Supply Unit / Adapter

  • 550 W

AC Input Power Voltage

  • 100 V to 240 V AC

Power Frequency

  • 50/60 Hz, Single Phase

Power Consumption

  • 94.42 W (Access)
  • 54.33 W (HDD Hibernation)

British Thermal Unit

  • 322.39 BTU/hr (Access)
  • 185.51 BTU/hr (HDD Hibernation)

Notes

  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s) (sold separately).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 metre away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%

Environment

Operating Temperature

  • 0°C to 40°C (32°F to 104°F)

Storage Temperature

  • -20°C to 60°C (-5°F to 140°F)

Relative Humidity

  • 5% to 95% RH

Certification

Certification

  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • KC
  • UL

RoHS Compliant

  • Yes

Software Specifications

DSM Specifications

Storage Management

Maximum Internal Volume Number

  • 256

SSD Read / Write Cache (White Paper)

  • Yes

SSD TRIM

  • Yes

RAID Group

  • Yes

Supported RAID Type

  • RAID F1
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10

RAID Migration

  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6

Volume Expansion with Larger HDDs

  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10

Volume Expansion by Adding a HDD

  • RAID F1
  • JBOD
  • RAID 5
  • RAID 6

Global Hot Spare Supported RAID Type

  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10

File Services

File Protocol

  • SMB/AFP/NFS/FTP/WebDAV

Maximum Concurrent SMB/AFP/FTP Connections

  • 4,000

Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)

  • 10,000

Windows Access Control List (ACL) Integration

  • Yes

NFS Kerberos Authentication

  • Yes

Notes

  • Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
  • During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration.
  • The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.

Account & Shared Folder

Maximum Local User Accounts

  • 16,000

Maximum Local Groups

  • 512

Maximum Shared Folder

  • 512

Maximum Shared Folder Sync Tasks

  • 32

Hybrid Share

Hybrid Share Folder Number

  • 8

High Availability

Synology High Availability

  • Yes

Log Centre

Syslog Events per Second

  • 3,000

Virtualisation

VMware vSphere with VAAI

  • Yes

Windows Server 2016

  • Yes

Windows Server 2019

  • Yes

Citrix Ready

  • Yes

OpenStack

  • Yes

General Specifications

Networking Protocols

  • SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Supported Browsers

  • Google Chrome
  • Firefox
  • Microsoft Edge
  • Safari

Supported Language

  • English
  • German
  • French
  • Italian
  • Spanish
  • Danish
  • Norwegian
  • Swedish
  • Dutch
  • Russian
  • Polish
  • Hungarian
  • Portuguese (Brazil)
  • Portuguese (Europe)
  • Turkish
  • Czech
  • Thai
  • Japanese
  • Korean
  • Chinese (Traditional)
  • Chinese (Simplified)

Add-on Packages

Antivirus by McAfee (Trial)

  • Yes

Central Management System

  • Yes

Synology Chat

Maximum Users

  • 4,000

Notes

  • The number of concurrent HTTP connections for Synology Chat was configured to the maximum.
  • For tested models with expandable memory, the maximum amount of RAM was installed.

Document Viewer

  • Yes

Download Station

Maximum Concurrent Download Tasks

  • 80

SAN Manager

Maximum iSCSI Target Number

  • 256

Maximum LUN

  • 512

LUN Clone/Snapshot, Windows ODX

  • Yes

Synology MailPlus / MailPlus Server

Free Email Accounts

  • 5 (Licences required for additional accounts)

Maximum Number of Concurrent Users

  • 800

Maximum Server Performance

  • 4,235,000 emails per day, approx. 129 GB

Notes

  • Models with more than 4 bays were installed with two SSDs for SSD cache.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • The performance of the mail system will slightly decrease in high-availability mode due to data synchronisation between the two servers.
  • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).

Media Server

DLNA Compliance

  • Yes

Synology Photos

Facial Recognition

  • Yes

Snapshot Replication

Maximum Snapshots per Shared Folder

  • 1,024

Maximum of System Snapshots

  • 65,536

Surveillance Station

Maximum IP cam (Licences required)

  • 90 (including 2 Free Licence)

Total FPS (H.264)

  • 2700 FPS @ 720p (1280x720)
  • 2250 FPS @ 1080p (1920x1080)
  • 1500 FPS @ 3M (2048x1536)
  • 900 FPS @ 5M (2591x1944)
  • 550 FPS @ 4K (3840x2160)

Total FPS (H.265)

  • 2700 FPS @ 720p (1280x720)
  • 2700 FPS @ 1080p (1920x1080)
  • 2250 FPS @ 3M (2048x1536)
  • 1500 FPS @ 5M (2591x1944)
  • 1080 FPS @ 4K (3840x2160)

Notes

  • Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
  • The maximum channel number also includes devices installed on Virtual DSM.
  • Total FPS may be affected by other services running at the same time (e.g., archive tasks performed by Archive Vault).

Synology Drive

Recommended Number of Hosted Files

  • 50,000,000 (applies to files indexed or hosted by Synology Drive.)

Recommended Number of Concurrent Sync Clients

  • 1,800 (the number of connections that can be maintained when the recommended number of hosted files was reached)

Notes

  • Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
  • Utilising SSD cache can significantly improve performance.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.

Synology Office

Maximum Users

  • 2,900

Notes

  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM

Video Station

  • Yes

Virtual Machine Manager

Recommended Virtual Machine Instances

  • 12

Recommended Virtual DSM Number (Licences required)

  • 12 (including 1 Free Licence)

Notes

  • The specifications vary depending on system configuration and memory size.

VPN Server

Maximum Connections

  • 60

Package

Package Content

  • 1 x Synology DS3622xs+
  • 1 x Accessory Pack
  • 1 x AC Power Cord
  • 2 x RJ45 LAN Cable
  • 1 x Quick Installation Guide

Recently Viewed

Fast Next Day Delivery

Over 20 years of Supply, Service & Support

We Source Hard to Find and Legacy Computer Parts

Free Technical Support
