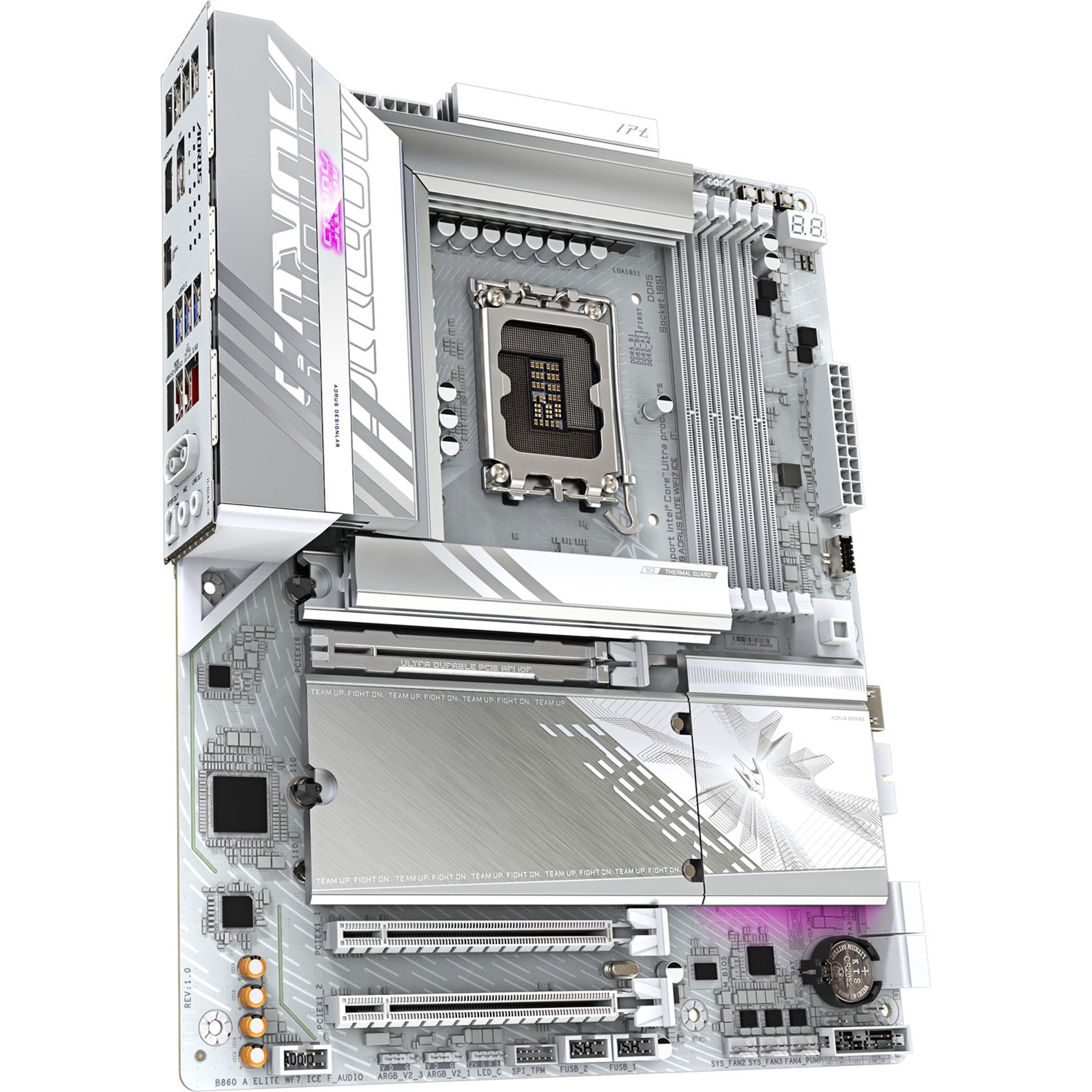

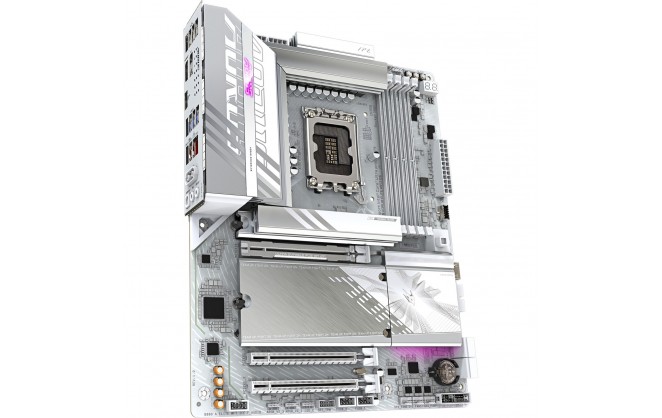

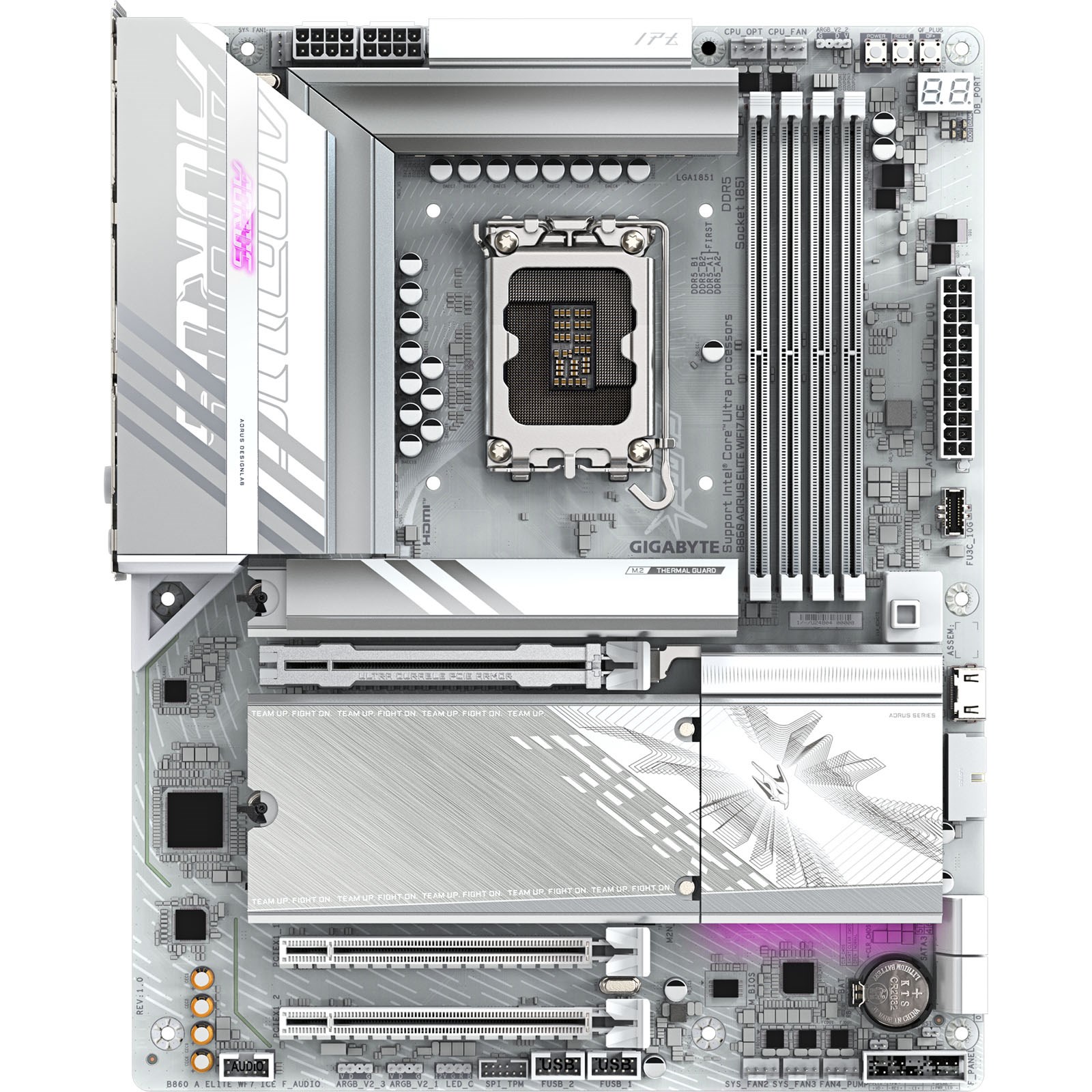

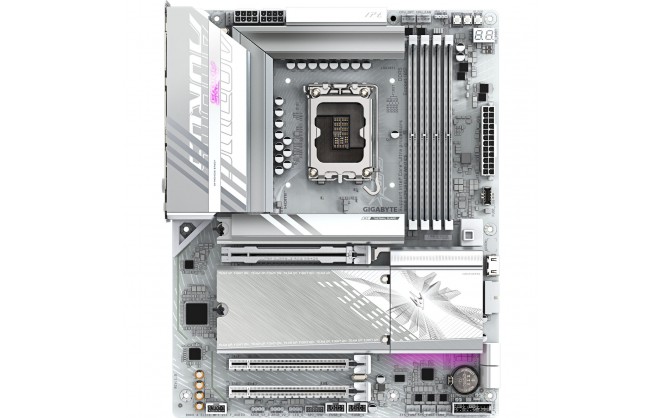

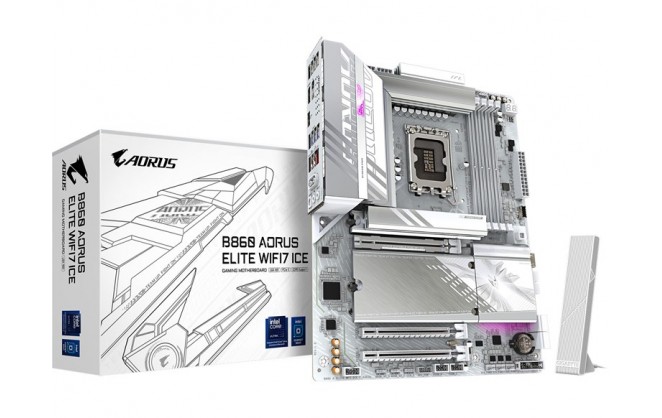

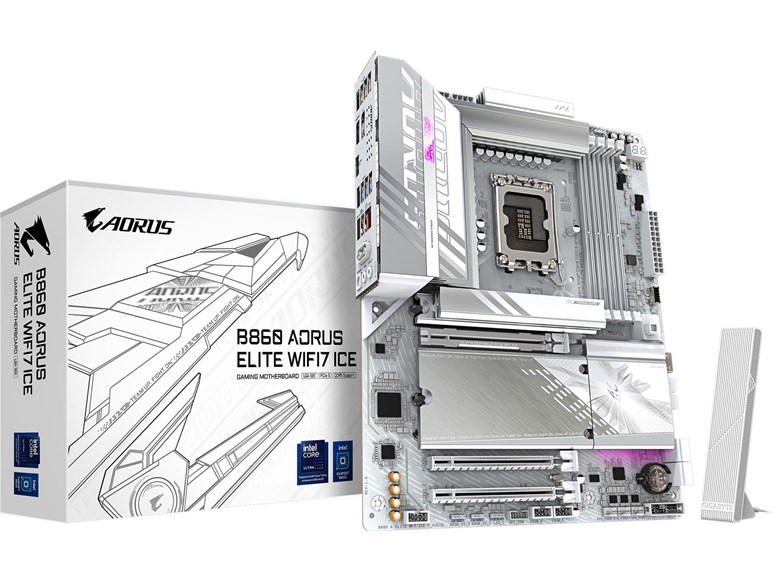

Gigabyte B860 AORUS ELITE WIFI7 ICE Socket 1851 ATX Motherboard

£164.55 ex. vat
£197.46 inc. vat

Wireless Communications

Bluetooth

Yes

Key Features

Socket	LGA1851
Installed Processors (Max)	0 (1)
Integrated Graphics Supported	Yes
Maximum RAM	256 GB
RAID Supported	Yes
RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Number of PCI Express Slots	3 slot(s)
Main Colour	White
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	11 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Memory Type	DDR5
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	Intel B860
Thunderbolt	No
Motherboard Model	Gigabyte B860 AORUS ELITE WIFI7 ICE
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	Gigabyte RGB Fusion
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	6400 MT/s
Max Memory Speed Supported (overclocked)	9200 MT/s
CPU Power Pins (female)	16
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No

CPU

CPU Socket	Socket 1851
CPU Brand	Intel

Warranty

1 Year
