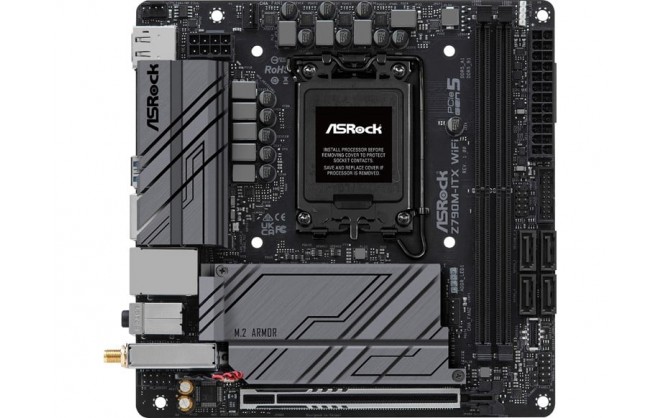

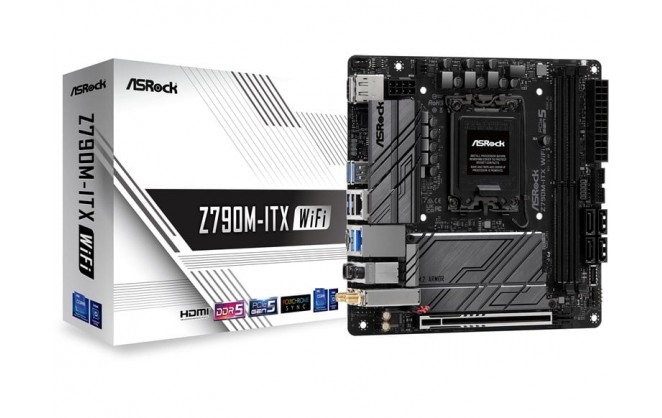

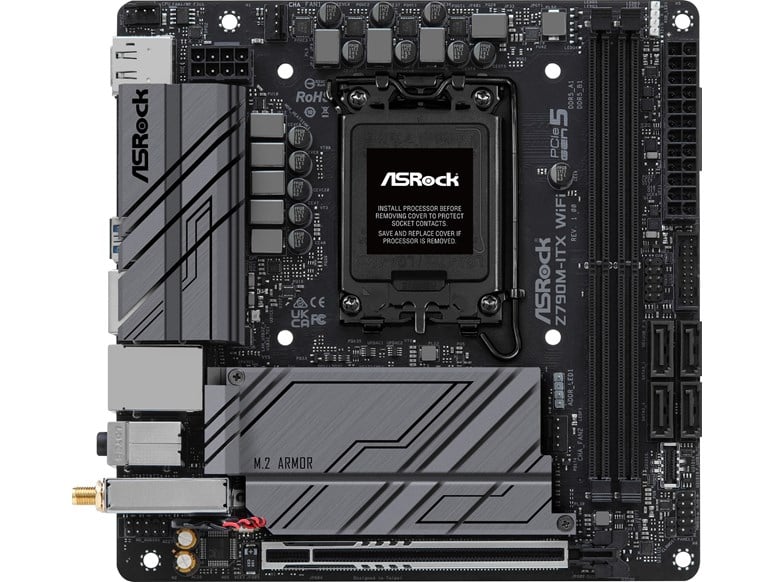

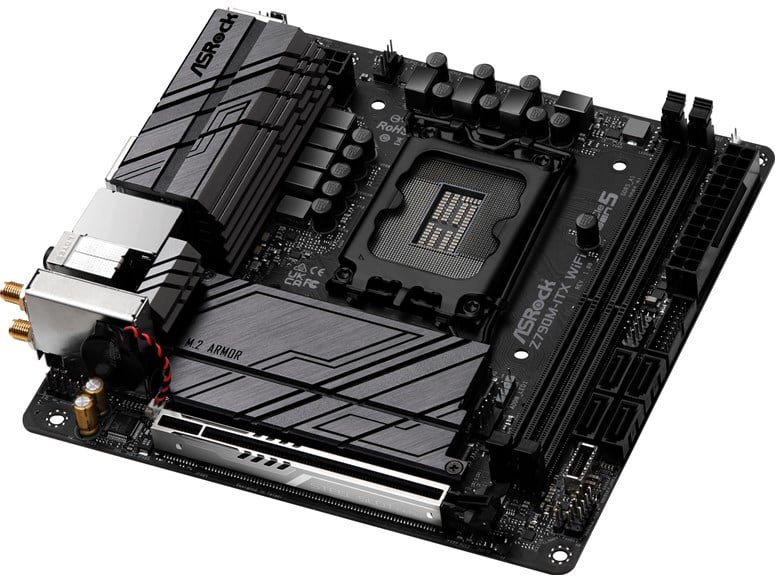

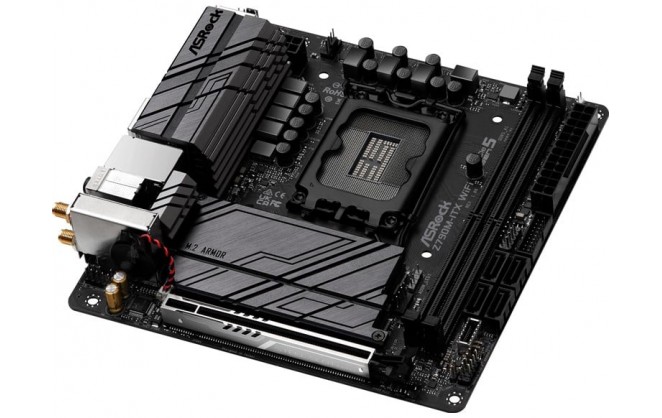

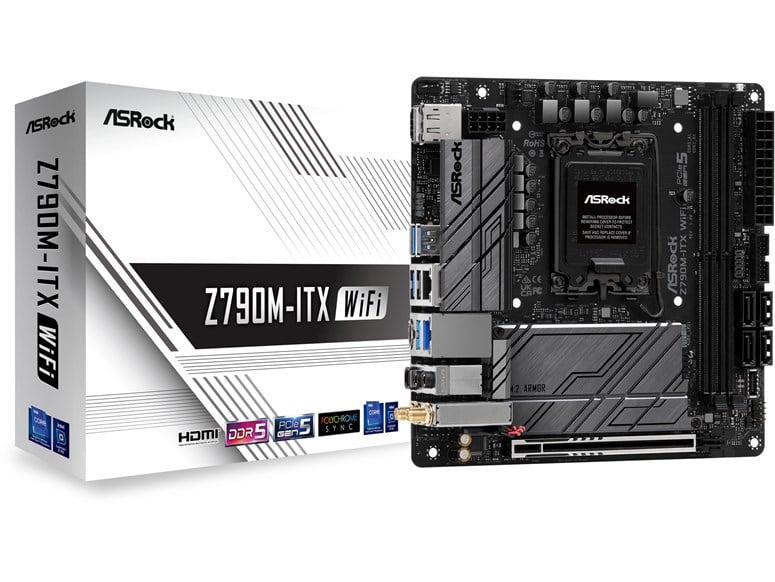

ASRock Z790M-ITX WiFi ITX Motherboard Intel Socket LGA1700

  • Part Number: 90-MXBKE0-A0UAYZ
  • Manufacturer: Asrock
  • Quickfind Code: 136025
  • Stock: In Stock

£145.62 ex. vat
£174.74 inc. vat

Product Features:
  • Condition: New
  • Socket Type 1700
  • Chipset B760
  • Form Factor mITX
  • Memory Type DDR5
  • CPU Type Intel
+ Read More Information

Share:

Product Description

Main Features

  • Supports 13th Gen & 12th Gen Intel Core Processors
  • Dr.MOS Phase Power Design
  • 2 x DDR5 DIMMs, supports
  • 1 PCIe 5.0 x16
  • Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3
  • 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2x2 Type-C (Rear), 4 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 3 USB 2.0 (1 Rear, 2 Front)
  • Intel 2.5G LAN, Intel 1G LAN
  • 802.11ax Wi-Fi 6E + Bluetooth
Technical Specification

ASRock Z790M-ITX WiFi ITX Motherboard Intel Socket LGA1700

CPU

CPU SocketSocket 1700
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported Processors13th Gen & 12th Gen Intel Core Processors
64-bit SupportYes
SocketLGA1700

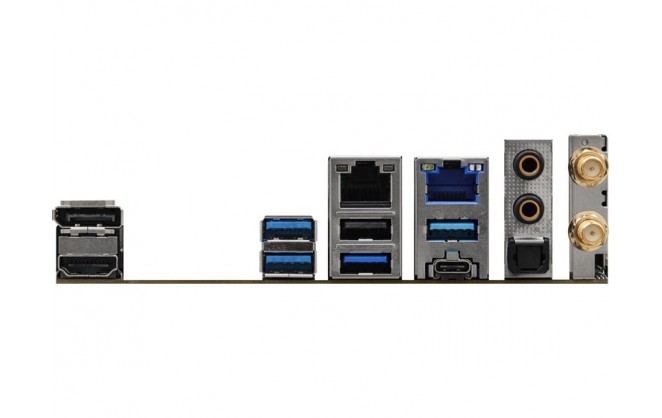

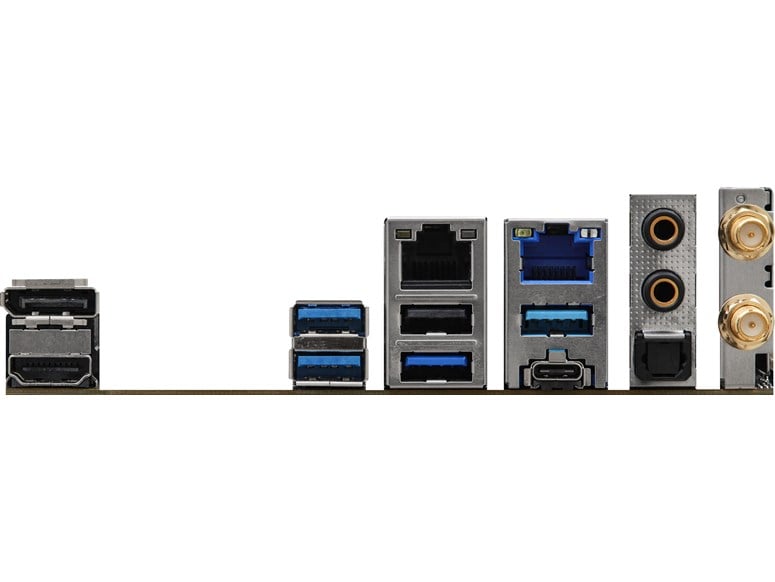

Rear Panel I/O Ports

USB Ports1 x USB-C 3.2
4 x USB 3.1
1 x USB 2.0
DisplayPorts1 x DisplayPort 1.4
HDMI Port1 x HDMI 2.1
RJ-45 Ports2 x RJ-45
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack
S/PDIF Port1 x S/PDIF Optical Out
Antenna Connector(s)2 x SMA Antenna

Internal I/O Connectors

SATA Connectors4 x SATA III
USB Connectors1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header (supports 1 port)
1 x CPU/Water Pump fan header
2 x Chassis fan headers
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2280 (PCIe Gen4 or SATA)
1 x 3-pin ARGB LED header
1 x 4-pin RGB LED header
1 x eDP Signal header

Memory

Memory Bus SpeedUp to 6800+ (OC) MHz
Memory TypeDDR5
Maximum RAM64 GB
Memory Slot2 x DIMM

Motherboard

NorthbridgeZ790
RAID SupportedYes
RAID FormatRAID 0, 1, 5, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 5.0 x16 slot

Graphics Device

Integrated Graphics SupportedYes

Sound

Integrated SoundRealtek ALC897

Warranty

Warranty3 Years

Network

Integrated NetworkIntel I226V
Intel I219V
Network Speeds SupportedI226V: Up to 2.5 Gbps
I219V: Up to 1 Gbps
Wireless LANYes (Wi-Fi 6E)
Wireless Network SpeedUp to 2.4 Gbps
BluetoothYes
Bluetooth Version5.2

System Requirements

Operating Systems SupportedMicrosoft Windows 11 64-bit

System

BIOS128Mb AMI UEFI Legal BIOS with GUI support
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorITX Motherboard
In The BoxMotherboard
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 Sockets
Width170 mm
Length170 mm

Key Features

Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless NetworkYes
Chipset ManufacturerIntel
Number of PCI Slotsslot(s)
Number of PCI-X Slotsslot(s)
Main Colour
Socket(s)
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports6 port(s)
SATA III SupportYes
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactorITX
Wake on LAN
Motherboard Power Connectors8-Pin
Motherboard ChipsetIntel Z790
ThunderboltNo
Motherboard ModelASRock Z790M-ITX WiFi
WiFi Speed2400 Mbps
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
Cooler Heightmm
M.2 SupportYes
On-board RGB ControlASRock RGB LED
Memory Speed6800 MHz
Skip Audio Test
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
Radiator Lengthmm
Microsoft Processor List
Power Requirement (auto)30 W
Cooler count
Max Memory Speed Supported (Non-overclocked)4800 MHz
Max Memory Speed Supported (overclocked)6800 MHz
CPU Power Pins (female)8
PCI Express Power Pins (female)
Total M.2 Slots2
Maximum NVMe M.2 ports2
Maximum SATA M.2 ports1
PCI-e slots
SATA ports4
No. of front USB2.0 ports supported2
No. of front USB3.0 ports supported2
No. of front USB-C ports supported1

Graphics

Graphics Chipset

Item Details

ManufacturerASRock
Manufacturer Code90-MXBKE0-A0UAYZ
Alternative Part NumberZ790M-ITX WIFI
EAN4710483941054
ConditionNew
