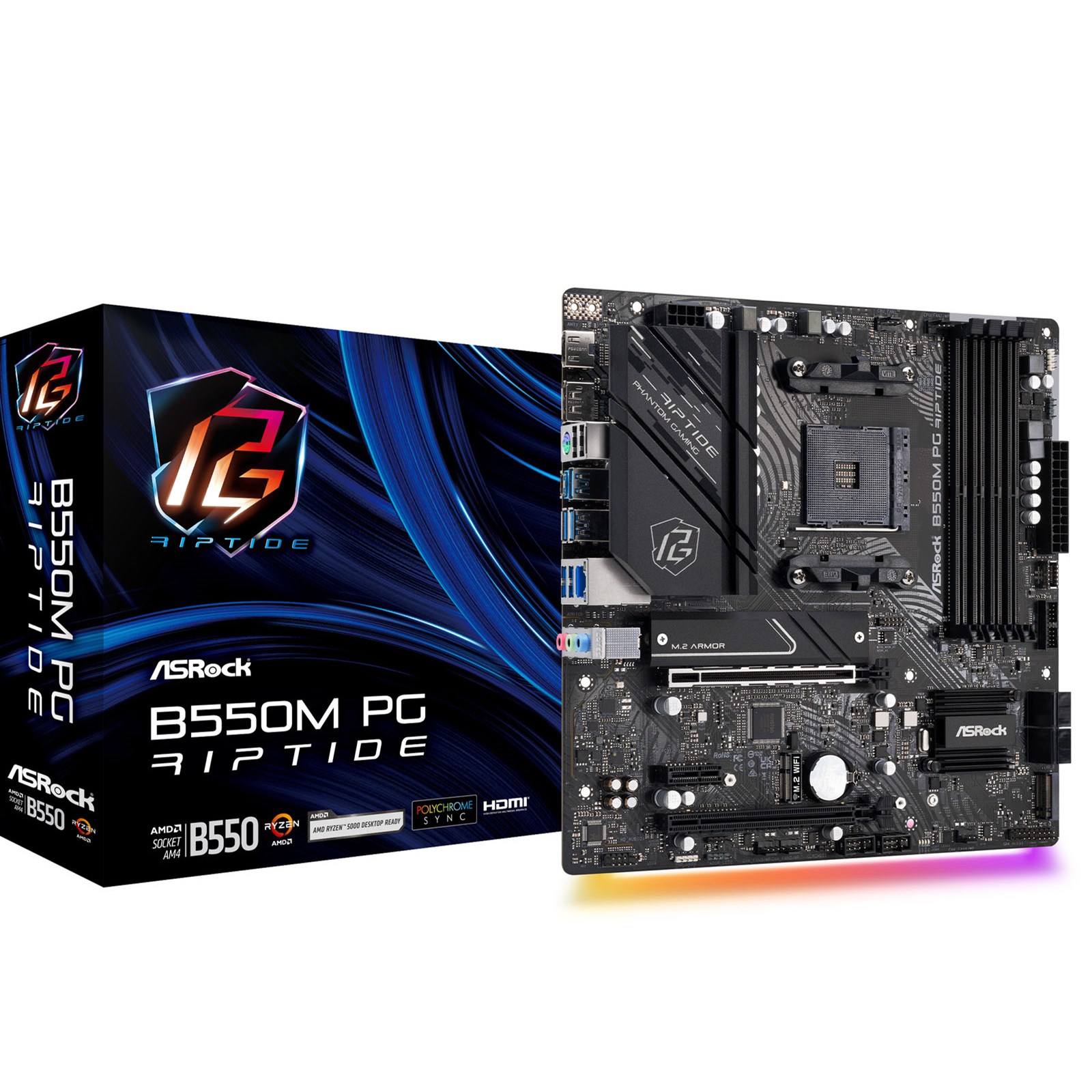

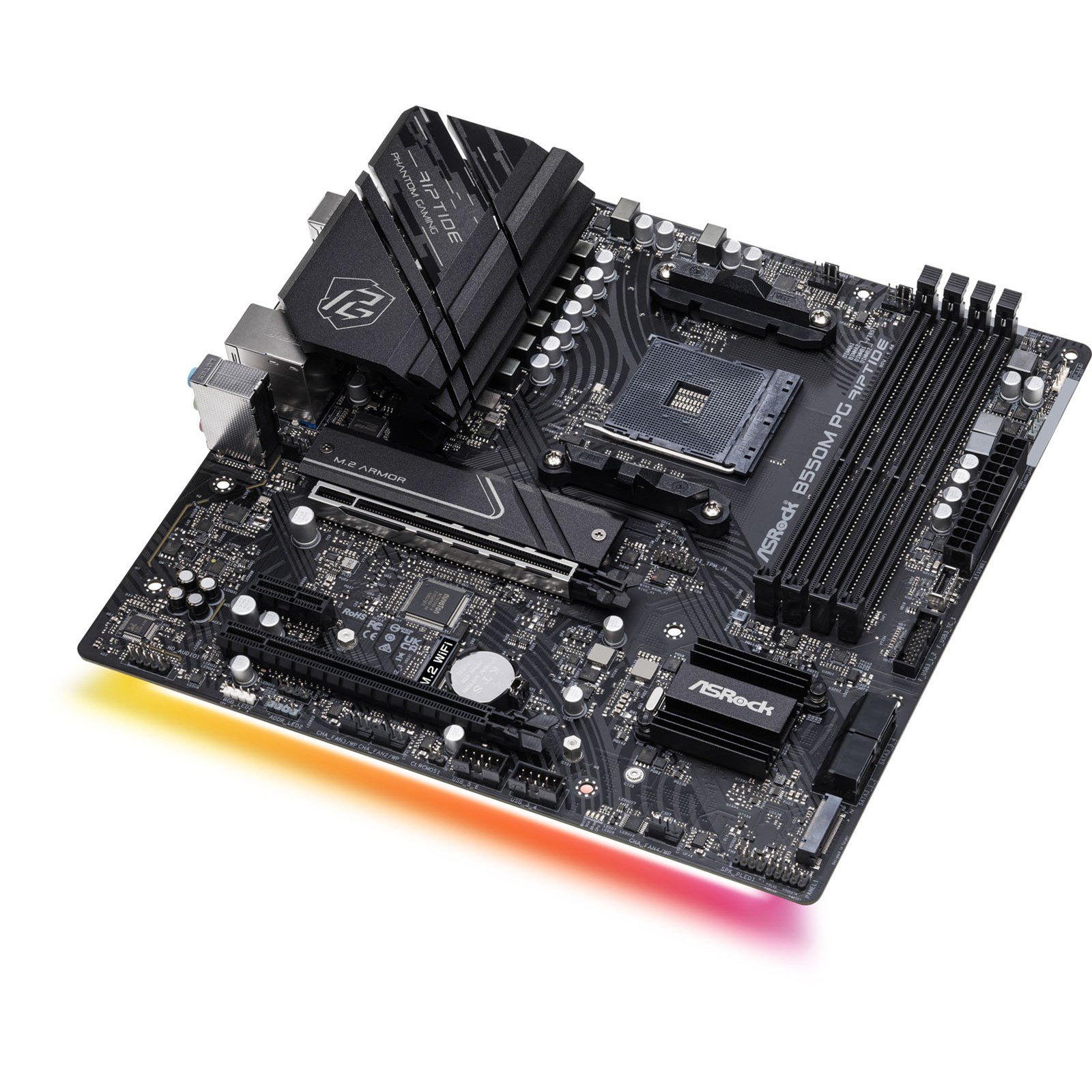

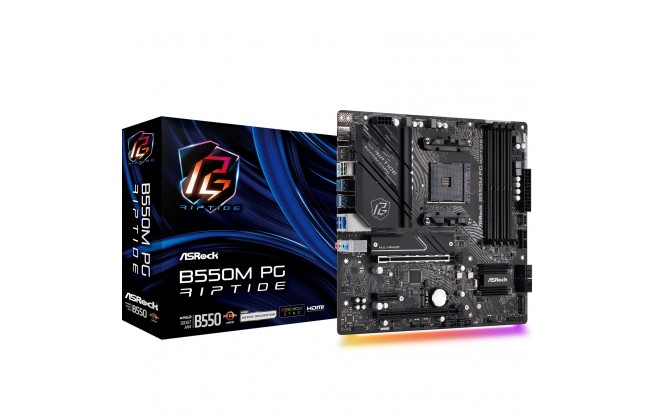

ASRock B550M PG Riptide mATX Socket AM5 Motherboard

Part Number: 90-MXBI90-A0UAYZ
Manufacturer: Asrock
Quickfind Code: 136172

Stock: In Stock

£93.86 ex. vat
£112.63 inc. vat

Product Features:

Condition: New
Socket Type AM5
Chipset B650
Form Factor mATX
Memory Type DDR5
CPU Type AMD

+ Read More Information

Product Description

Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.

Main Features

Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 Series Desktop Processors
8 Phase, Digi Power, Dr. MOS
Supports DDR4 4733+ (OC)
1 PCIe 4.0 x16 Slot, 1 PCIe 3.0 x16 Slots, 1 PCIe 3.0 x1 Slot, 1 M.2 Key E for Wi-Fi
Graphics Outputs: 1 HDMI, 1 DisplayPort
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
2 Rear USB 3.2 Gen2 (Type-A + Type-C), 1 Front USB 3.2 Gen1 Type-C, 6 USB 3.2 Gen1 (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)

Technical Specification

ASRock B550M PG Riptide mATX Socket AM5 Motherboard

CPU

CPU Socket	Socket AM4
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
64-bit Support	Yes
Socket	AM4

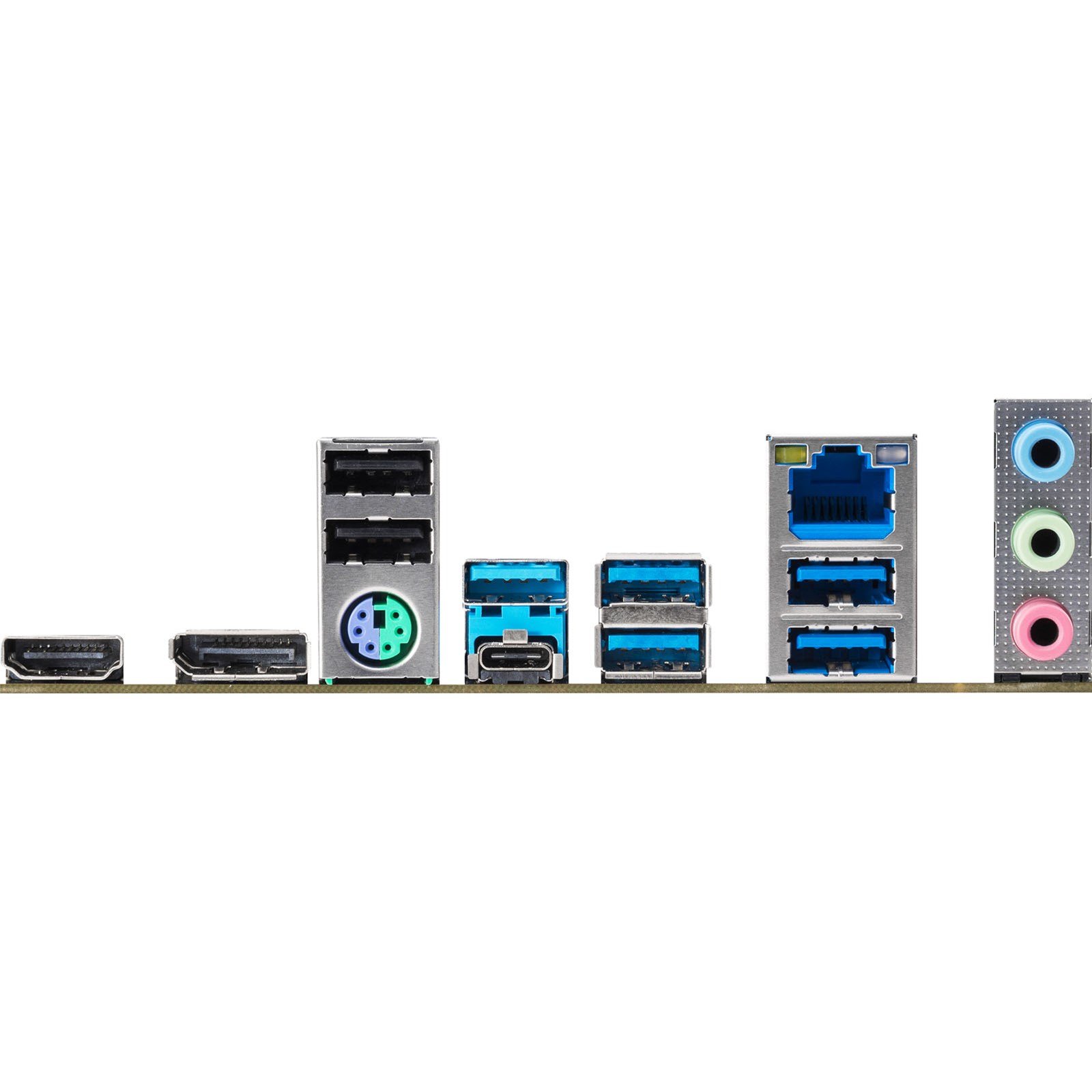

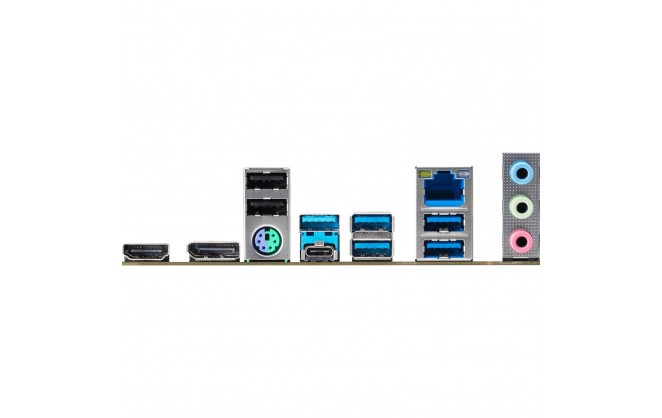

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.1 1 x USB 3.1 4 x USB 3.0 2 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI
Keyboard/Mouse Combo Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.0 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Speaker	1 x Speaker header
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU/Water Pump fan header 4 x Chassis/Water Pump fan headers
TPM Header	1 x SPI TPM header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen3 or SATA) 2 x 3-pin ARGB LED headers 2 x 4-pin RGB LED headers

Memory

Memory Bus Speed	Up to 4733 MHz
Memory Type	DDR4
Maximum RAM	128 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	AMD B550
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x16 slot (@ x4)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC897

Network

Integrated Network	Dragon RTL8125BG
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	No
Bluetooth	No

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	mATX Motherboard
In The Box	Motherboard Quick Installation Guide Support CD I/O Shield 2 x SATA Data Cables 3 x Screws for M.2 Sockets Standoff for M.2 Socket
Width	244 mm
Length	244 mm

Key Features

Wireless Network	No
Motherboard Width	244 mm
Motherboard Height	244 mm
mSATA Supported	No
U.2 Supported	No
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	8 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	mATX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	AMD B550
Thunderbolt	No
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASRock RGB LED
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	60 W
Max Memory Speed Supported (Non-overclocked)	3200 MT/s
Max Memory Speed Supported (overclocked)	4733 MT/s
CPU Power Pins (female)	8
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
Maximum SATA M.2 ports	1
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
