WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

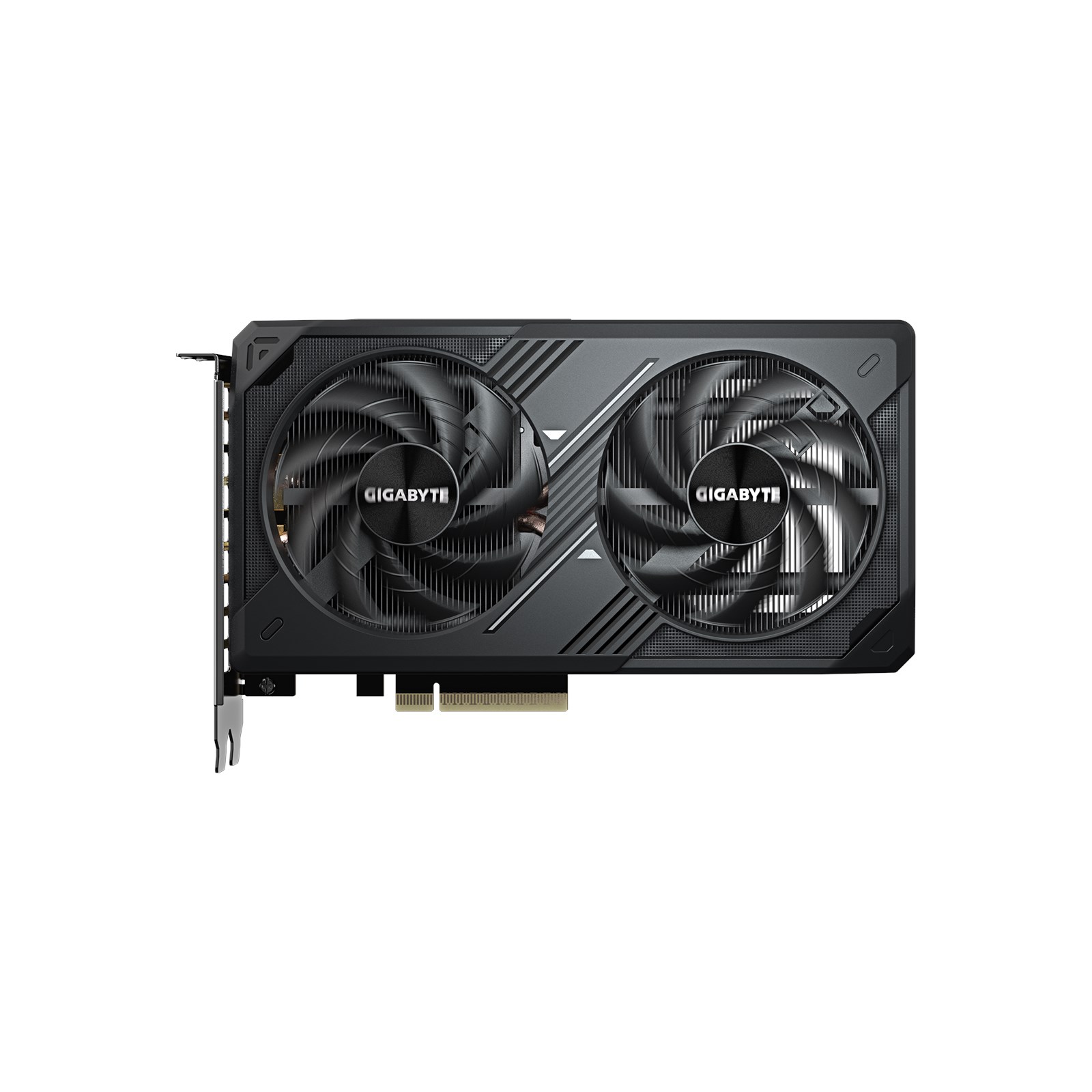

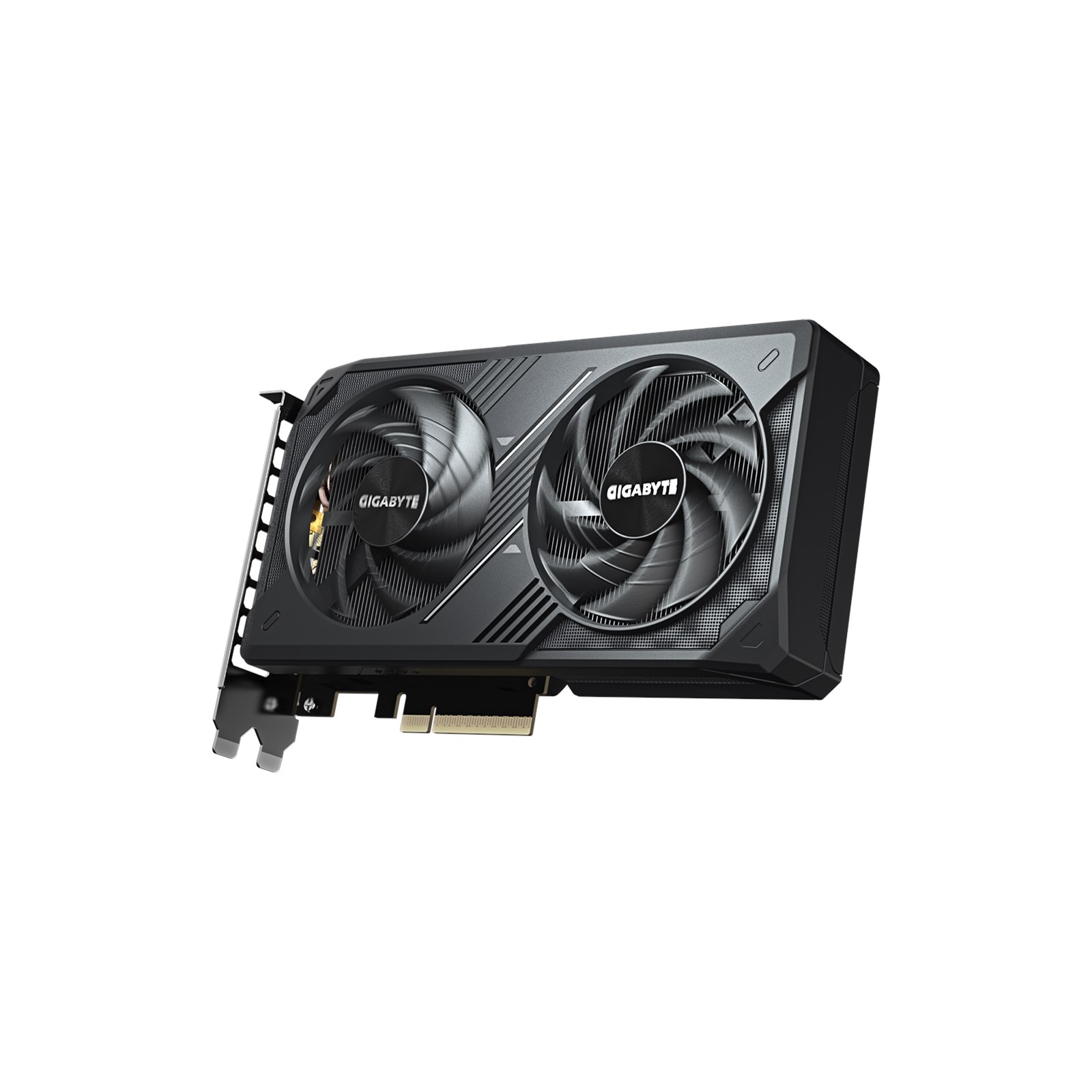

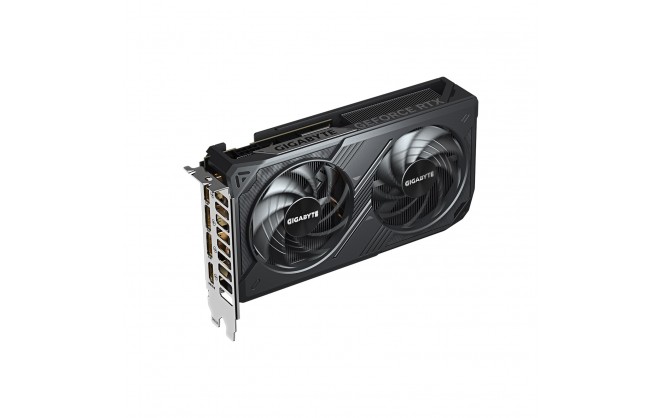

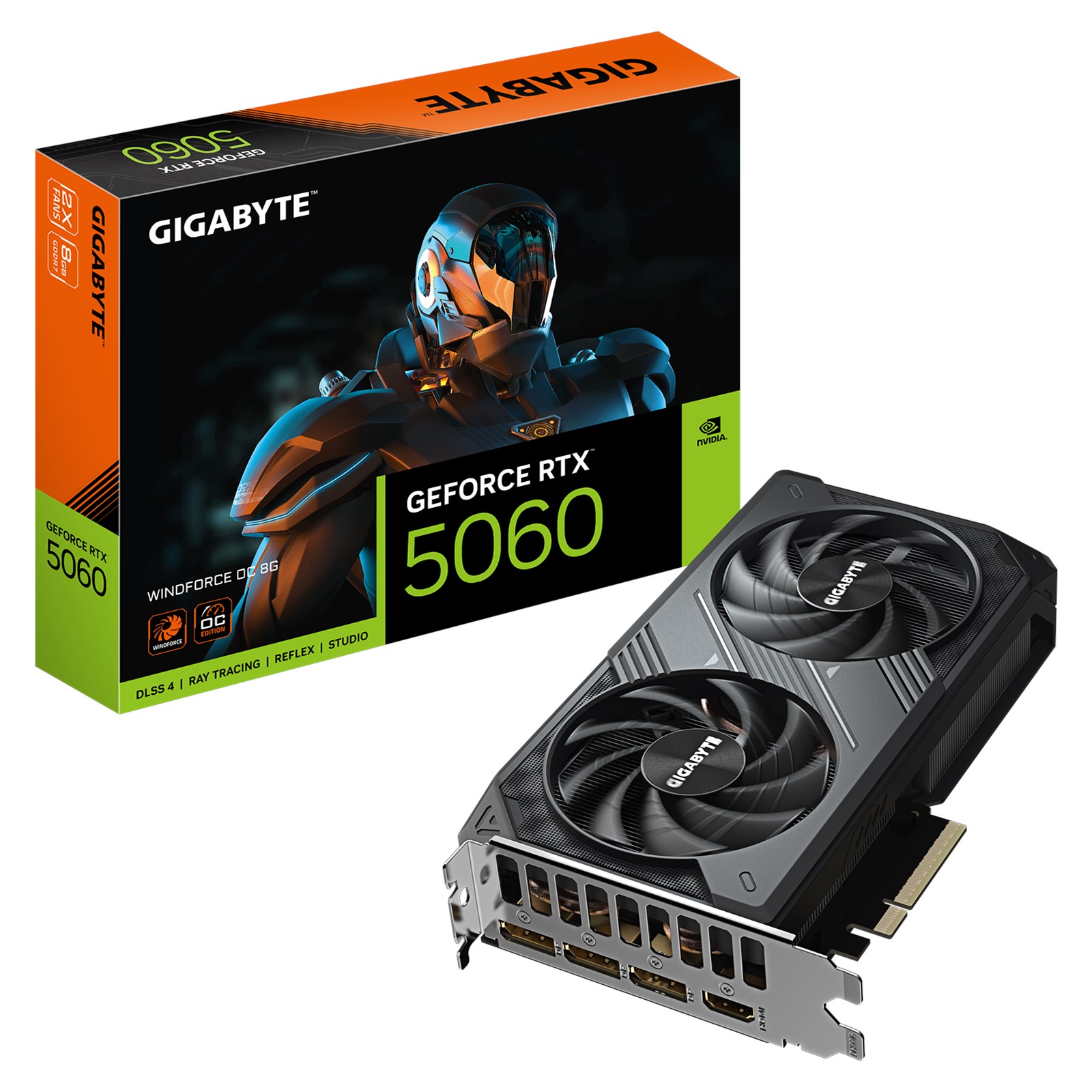

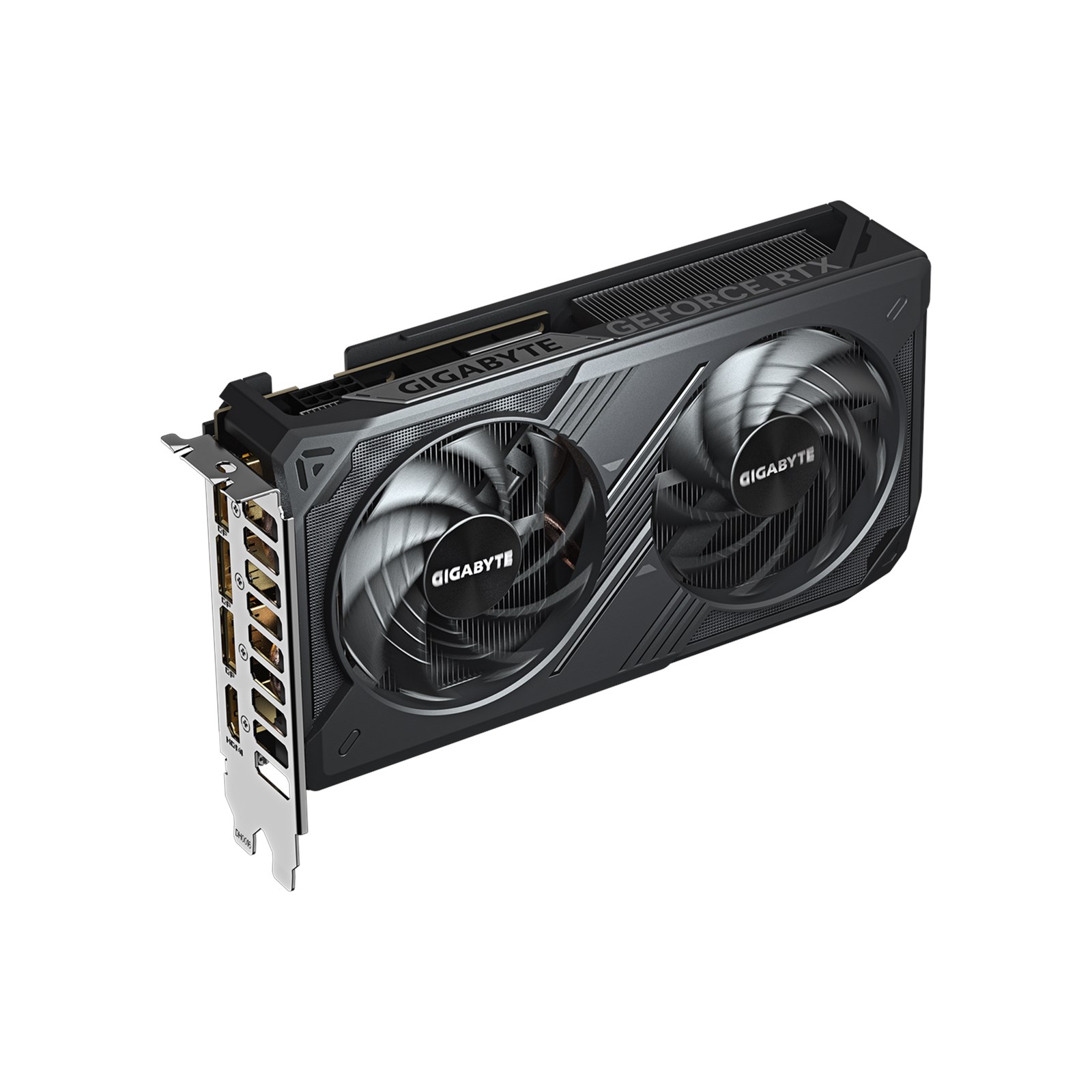

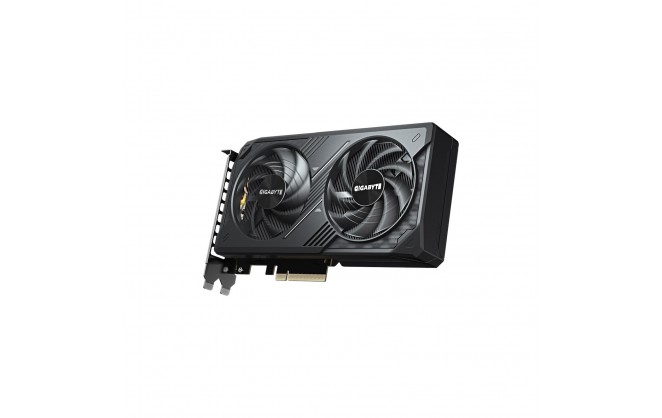

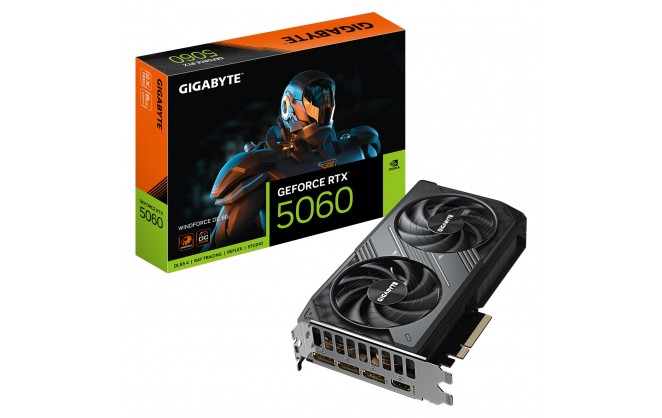

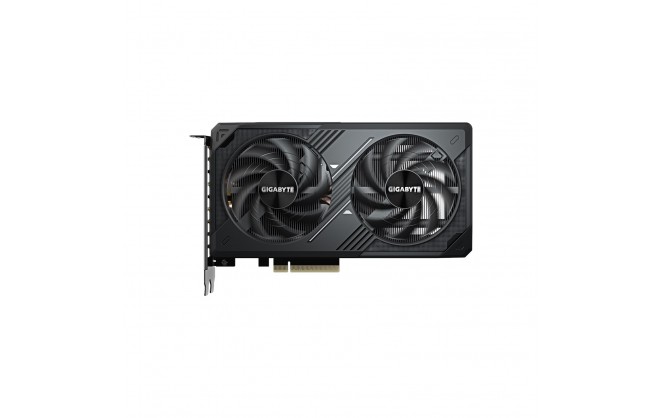

Gigabyte NVIDIA GeForce RTX 5060 WINDFORCE OC 8GB DDR7 Graphics Card
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 5060 |
| Chipset Additional Information | WINDFORCE OC |
| Boost Chip Clock | 2512 MHz |
| Graphics Core | CUDA |
| Number of Cores | 3840 |
Memory
| Memory Size | 8192 MB |
| Memory Clock | 28 Gbps |
| Memory Type | GDDR7 |
| Memory Width | 128 bit |
| Memory Bandwidth | 448 GB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 5.0 x8 |
| HDMI Port | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1b |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 |
System Requirements
| System Requirements | 1 x PCI Express 5.0 x16 slot |
Electrical
| Power Connector | 1 x 8-pin PCIe |
| Power Consumption | 145 W |
| Recomended Power Supply | 450 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Guide |
| Width | 40 mm (Dual Slot) |
| Depth | 199 mm |
| Height | 116 mm |
| Weight | 0.49 kg |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 5.0 x8 |
| Config Gaming x8 (CB/CCL) | Yes |
| Graphics Memory Type | GDDR7 |
| Main Colour | Black |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan Inc. 0dB Mode |
| Low Profile | No |
| NVIDIA GeForce | RTX 5060 |
| PCIe Pin Type | 6+2-Pin |
| Cooling Technology | Dynamic Fan Inc. 0dB Mode |
| VR Ready | NVIDIA |
| GPU Length | 199 mm |
| Card Width | 2 |
| Power Requirement (auto) | 145 W |
| GPU Power (TDP) | 145 W |
| Graphics card count | 1 |
| PCI Express Power Pins (female) | 8 |
| PCIe Physical Slot required | 16 |
| 12VHPWR 16-pin Connector | No |
Graphics
| Graphics Chipset | GeForce RTX 5060 |
Graphics Device
| G-Sync | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-N5060WF2OC-8GD |
| EAN | 4719331356323 |
