Vapor chambers are essentially large, flattened heatpipes with high thermal conductance. In the ASSASSIN IV VC series, the heat is extracted through the coldplate, which starts the cooling process in the planar chamber. The heat gets equalized and sent up the heatpipes to get cooled further by the fin stacks. This solution raises the cooling capacity to an astounding 300W of TDP!

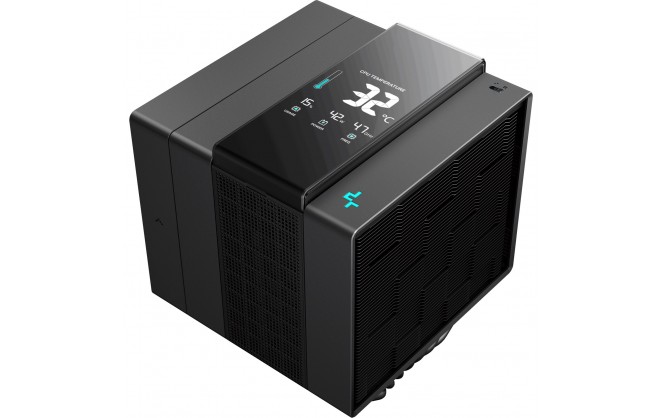

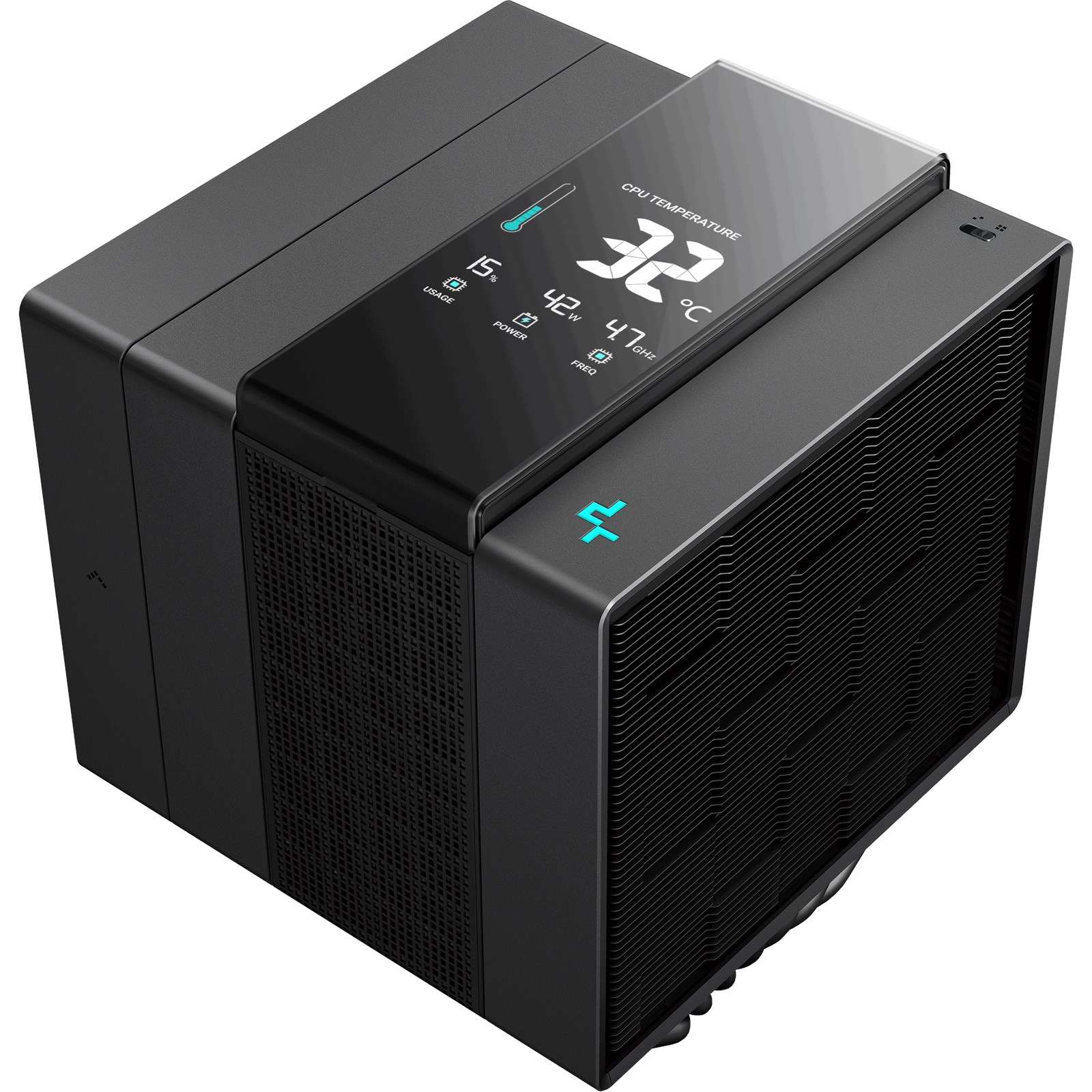

The standout addition of the ASSASSIN IV VC VISION is the enhanced quad-segmented display that monitors the temperature, usage, wattage, and frequency of your CPU. The digital panel is magnetized, so installation and adjustments are extremely simple. The display is controlled via DeepCool software and only requires an open USB 2.0 header.
A temperature warning alert system has been integrated with a color-coded visual thermometer indicator: under 80 °C, the indicator will stay green; between 80 °C and 90 °C, it will be a bright orange; when things get warm above 90 °C, it will go red, and you will start to see flashes.
With a simple slide of a switch, the ASSASSIN IV VC VISION can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.
The ASSASSIN IV VC VISION's case is clean, sleek, and helps channel air through the fin towers, while the relocatable 120mm fan provides unobstructed clearance for high-profile RGB RAM.
A key factor in the ASSASSIN IV VC VISION's extremely silent operation is the use of three-phase, six-slot, four-pole fan motors with low voltage and power consumption. The high-end true FDB bearings in each of the fans are the gold standard, and for good reason. DeepCool is so confident in our new design that the ASSASSIN IV VC VISION comes with 6 years of limited warranty coverage!

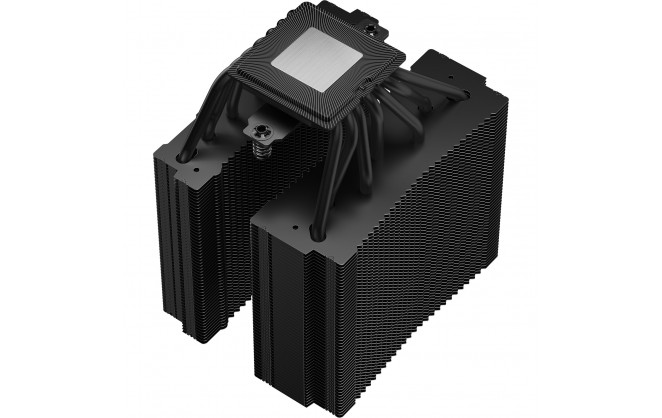

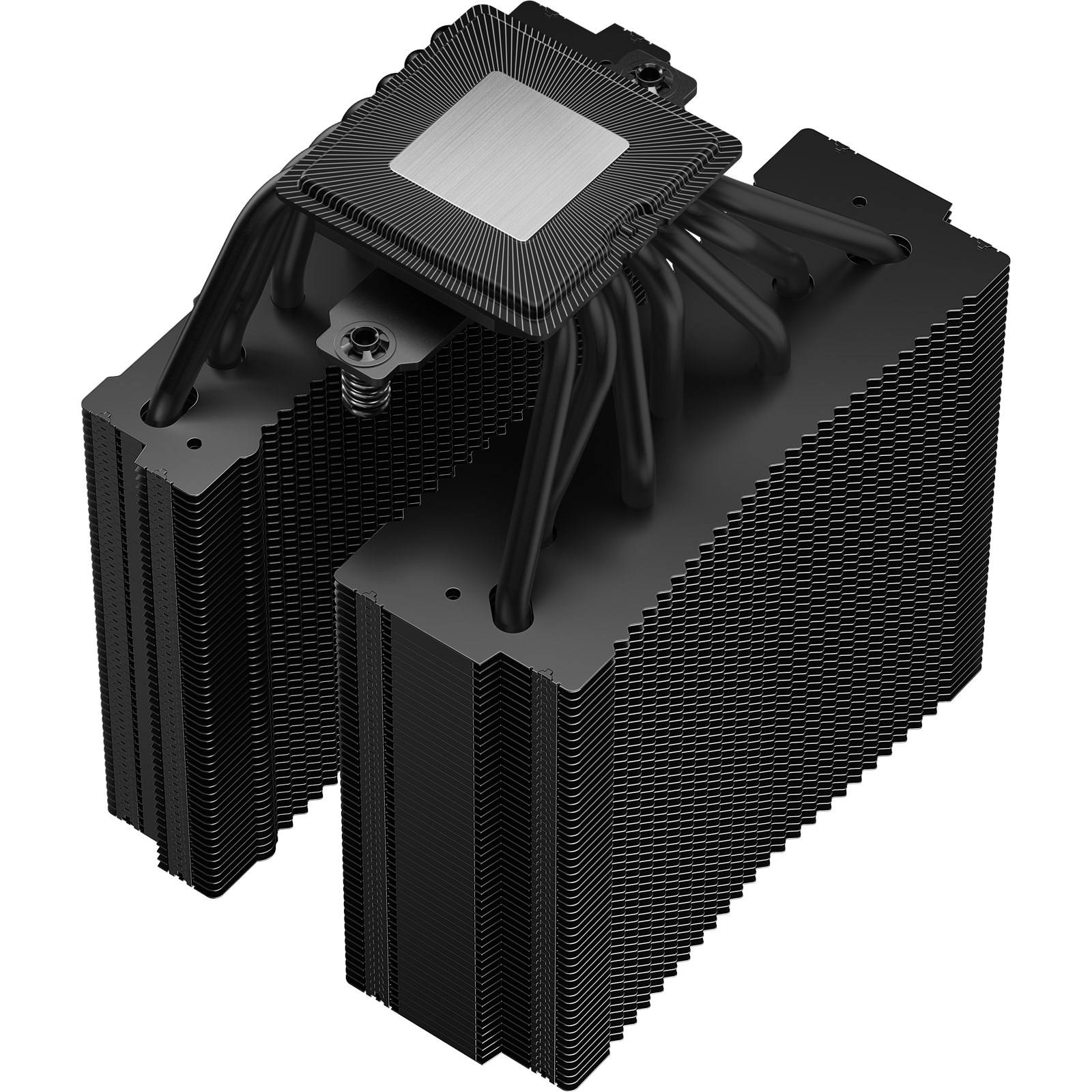

Featuring a vapor chamber-enhanced base and seven heat pipes that deliver extremely efficient heat transfer through two fin-array heat sink towers for another level of high heat dissapation. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
Due to the center 140mm fan sitting deep into the heart of the ASSASSIN IV VC VISION, there is a lower flow of air that provides additional cooling to the toasty surrounding VRMs.
Installing larger air coolers can be difficult, which is a prime reason the hardware and installation were designed to be extremely user-friendly with the 172mm tall ASSASSIN IV VC VISION. Even the magnetic display panel and main fan sliding design were crafted with ease of installation in mind.
The ASSASSIN IV VC VISION supports virtually all modern mainstream CPU sockets from AMD and Intel, including the LGA1700 and AM5.

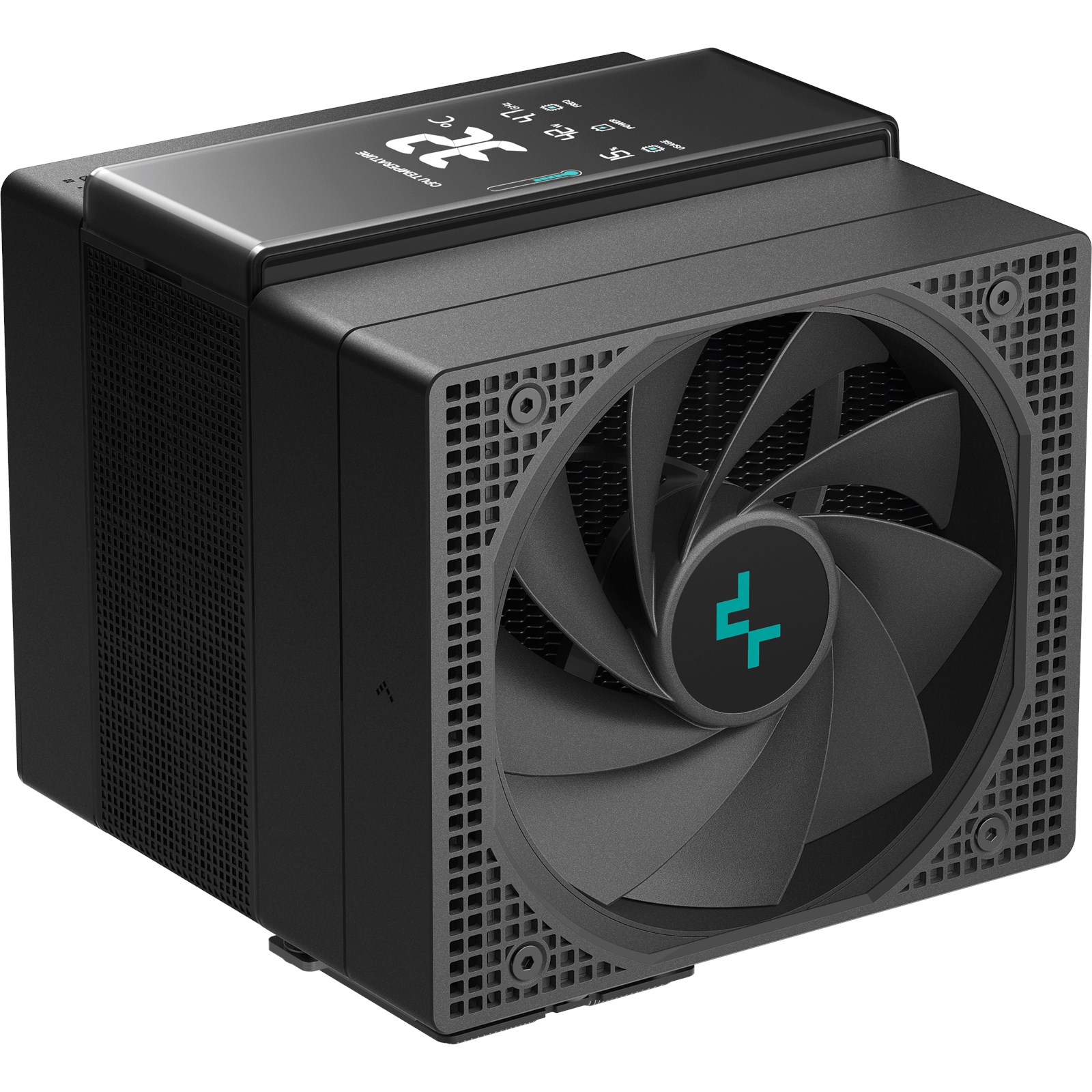

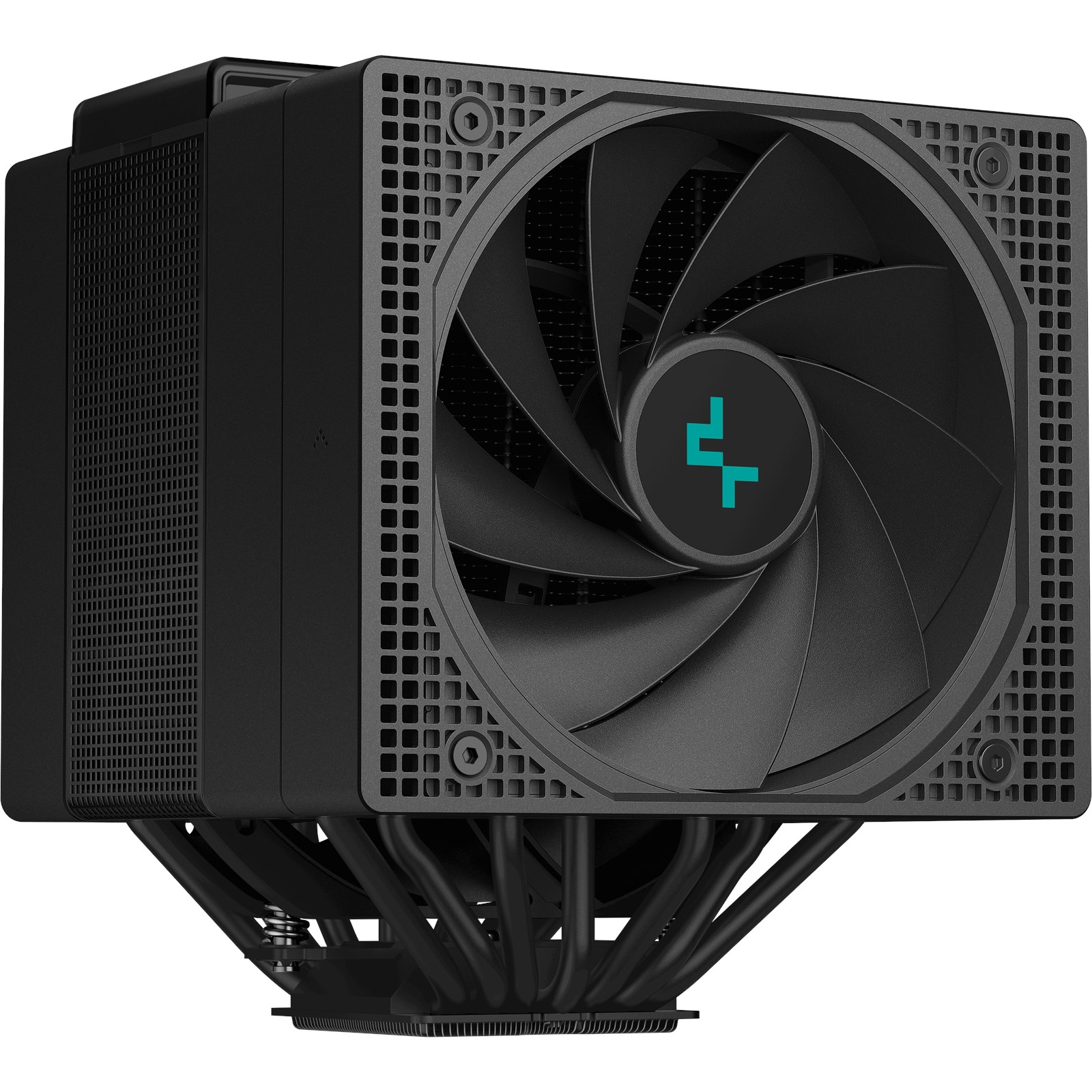

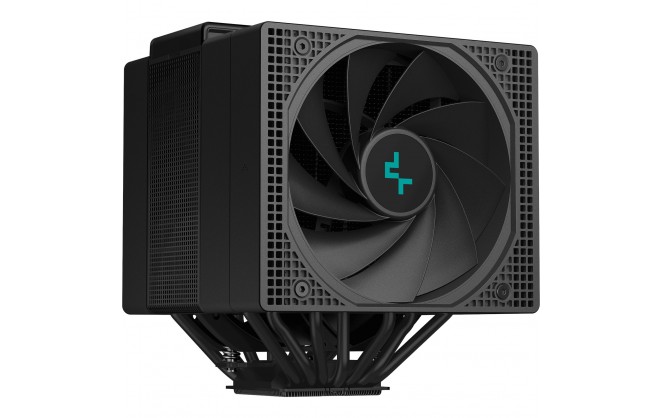

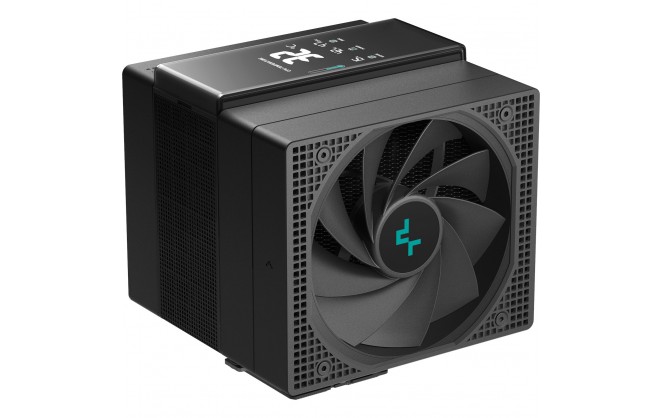

DeepCool ASSASSIN IV VC VISION CPU Tower Cooler
CPU Types
| Socket | Intel: LGA2066/2011-v3/2011/1851/1700/1200/1150/1151/1155 AMD: AM5/AM4 |
Fan
| Fan Bearing Type | FDB |
| Fan Speed | 500 ~ 1800 RPM |
| Fan Noise Level | <= 29.3 dBA |
| Fan Air Pressure | 3.76 mmAq |
| Airflow | 61.25 CFM |
Fan Speed Controller
| Connector | 4-pin PWM |
| Allowable Power | 4.8 W |
| Voltage | 12 V |
| Current | 0.2 A |
Physical
| Form Factor | CPU Cooler |
| Case Colour | Black |
| Base Material | Copper |
| Heatsink Material | Aluminium |
| Width | 144 mm |
| Depth | 147 mm |
| Height | 172 mm |
| Weight | 1.78 kg |
| Fan Width | 140 mmm |
| Fan Depth | 140 mm |
| Fan Height | 25 mm |
| Heatsink Width | 110 mm |
| Heatsink Height | 140 mm |
| Heatsink Depth | 160 mm |
Warranty
| Warranty | 6 Years |
Key Features
| Main Colour | Black |
| Includes Fan | Yes |
| Socket 2066/2011 | Yes |
| Socket 115x | Yes |
| L.E.D Fan | No LED |
| Liquid Cooler | No |
| Compatible with Socket 1150 | Yes |
| Watercooler | No |
| Socket AM5/AM4 | Yes |
| Cooler Height | 172 mm |
| Socket 1200 | Yes |
| RGB Software Type | None |
| Socket 1700 | Yes |
| Power Requirement (auto) | 5 W |
| Cooler count | 1 |
| Our Cooling Rating (TDP) | 253 W |
| Create Your Own Gaming PC (CCL) | No |
| Socket 1851 | Yes |
| Bundle Config - Home (CB) | No |
Item Details
| Manufacturer | DeepCool |
| Manufacturer Code | R-ASN4-BKNVMD-G |
| EAN | 6933412729136 |
