With new hardware releases demanding more cooling capacity and internal space, the XT-series is designed to deliver just that. And it delivers extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 10x 120 mm fan locations, support for 140 mm fans, and dedicated radiator space in the top of the chassis.
The XT-Series further innovates to bring support for the latest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the mid-plate that provide direct cooling.
UNLOCK THE ZERO-CABLE SETUP - ATX mainboards with hidden connectors on the rear side are fully supported by the XT chassis.

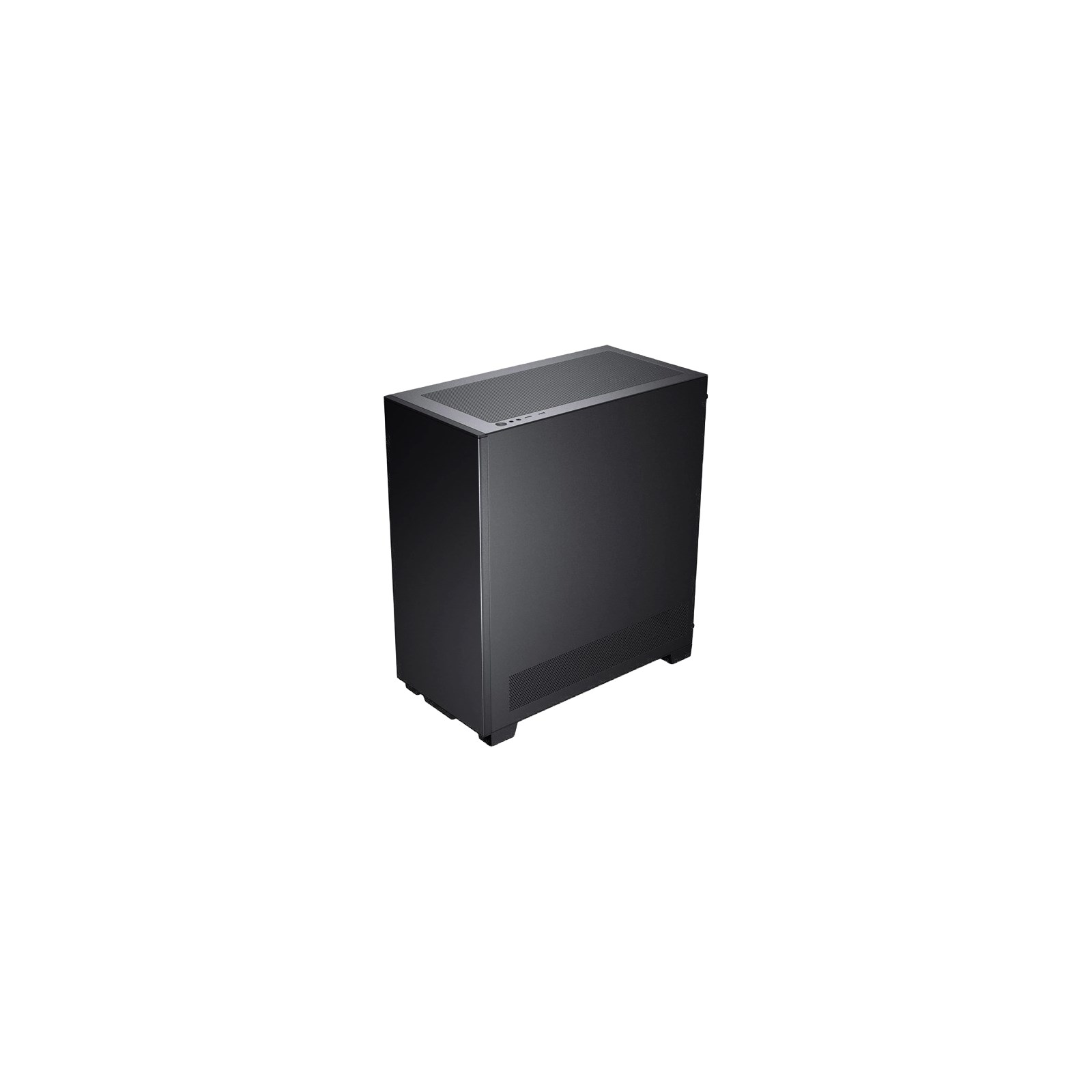

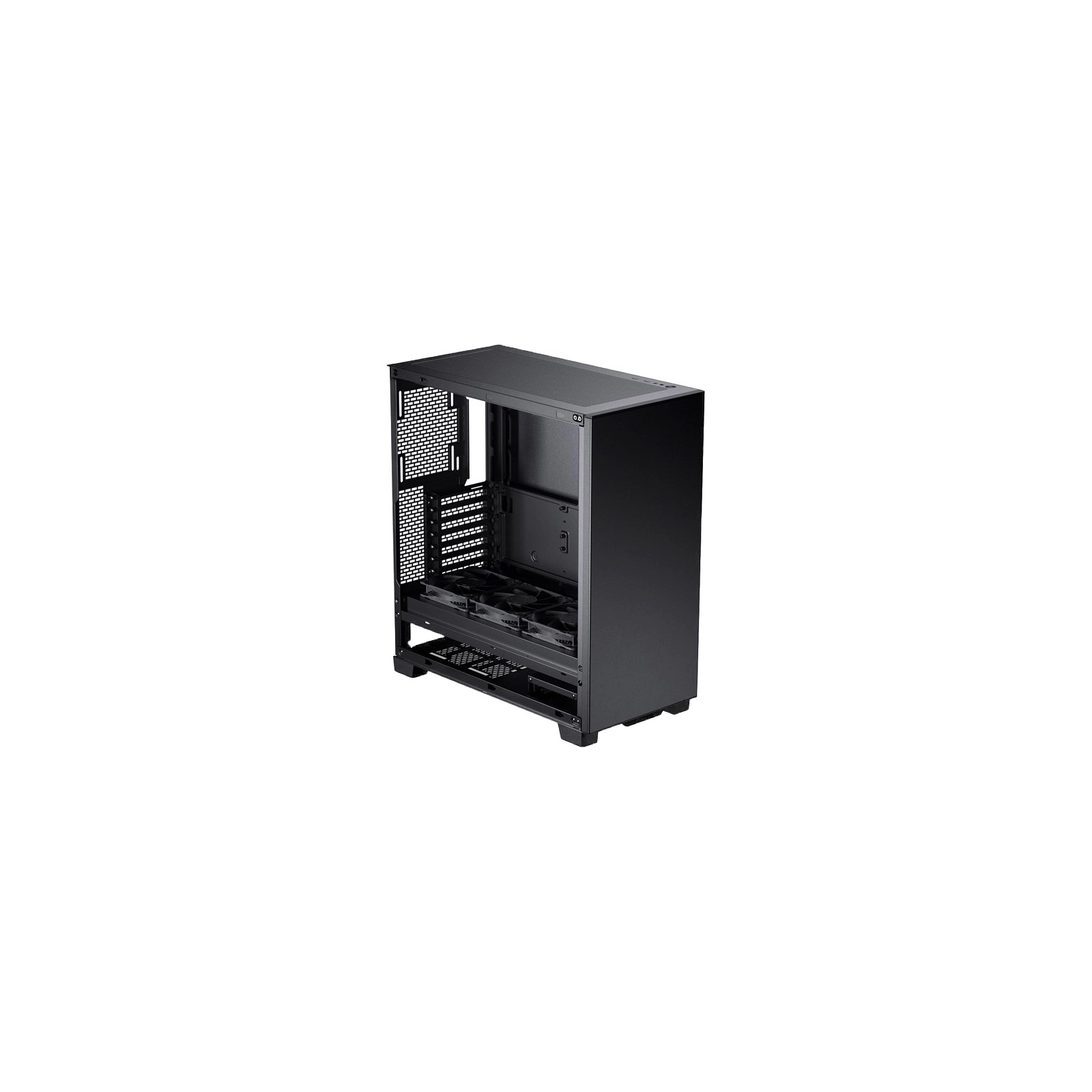

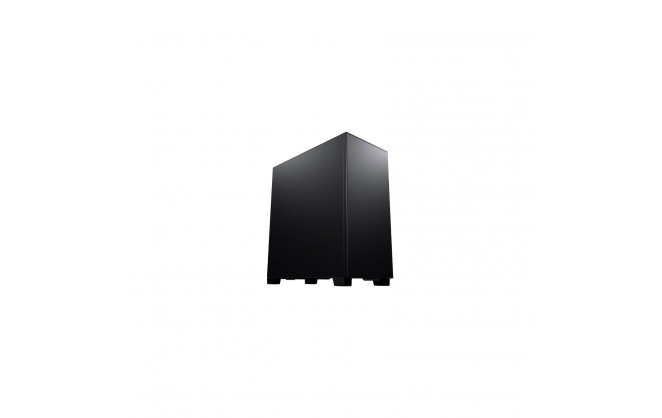

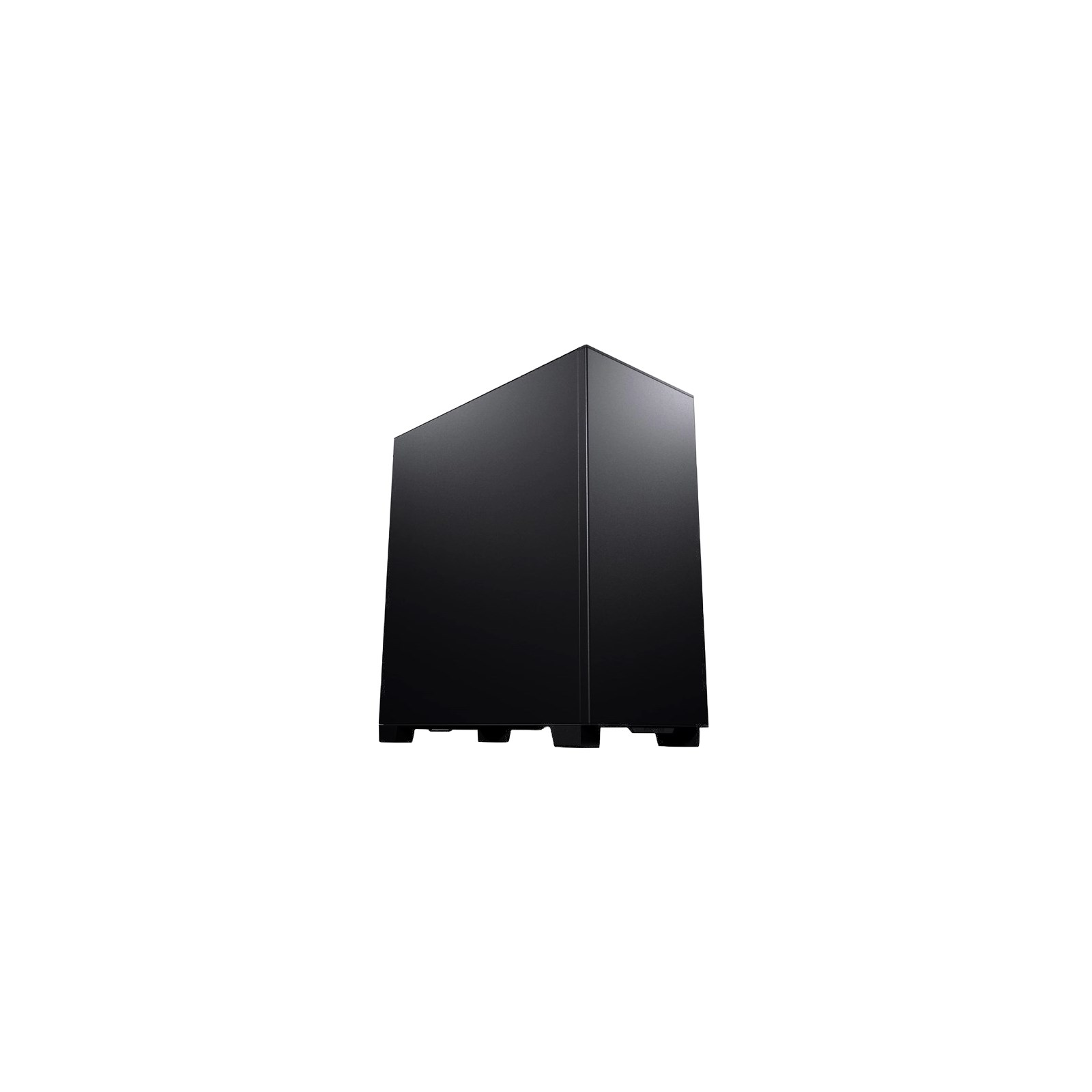

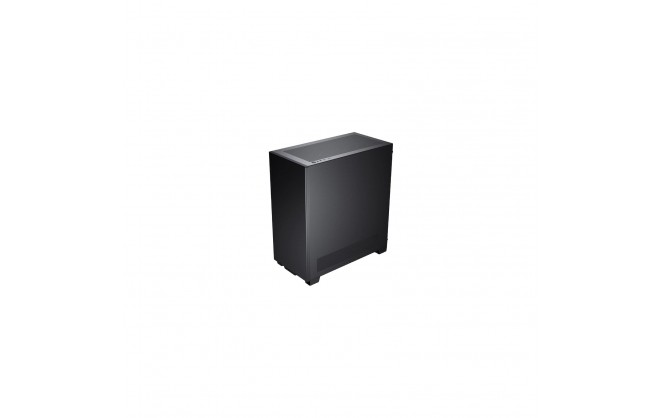

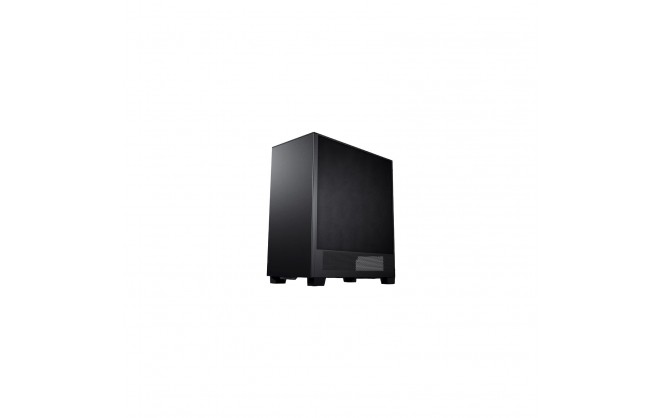

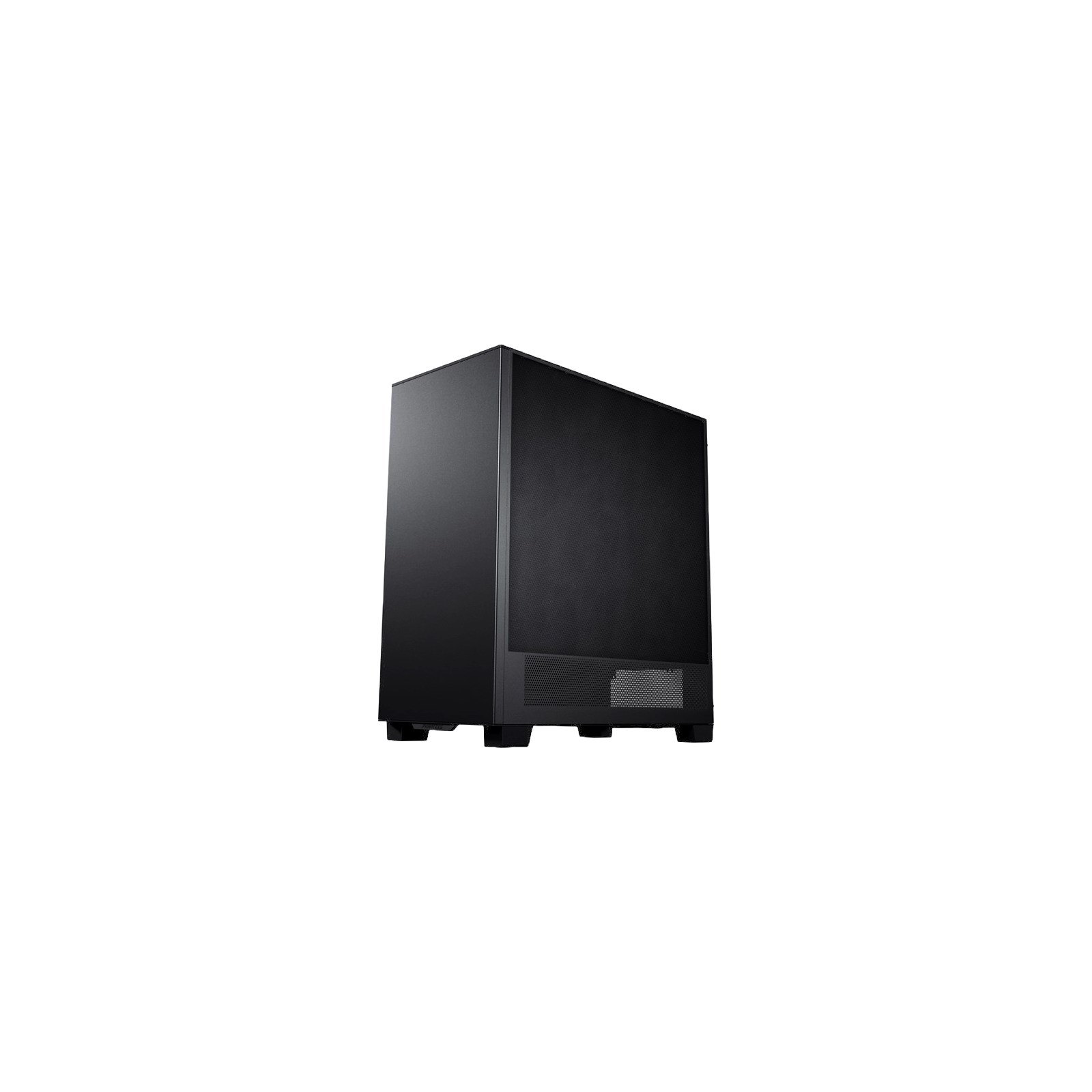

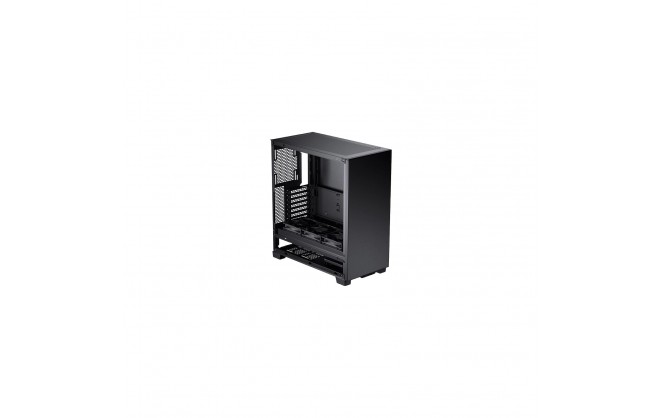

Phanteks XT Silent Mid Tower Case Black
User Controls
| User Controls | Power Reset |
Storage
| Internal Expansion Bays | 5 x 2.5" + 1 x 3.5" OR 3 x 2.5" + 2 x 3.5" |
Expansion
| Expansion Slots | 7 x Full Height |
Interfaces/Ports
| USB Ports | 1 x USB-C 3.0 1 x USB 3.0 |
| Headphone Ports | 1 x 3.5mm COMBO Jack |
| Microphone In Port | Shared with Microphone |
Electrical
| Cooling System | Top: Supports 2 x 140mm or 3 x 120mm fans Rear: Supports 1 x 140mm or 120mm fan Midplate: Supports 3 x 120mm fans |
| Power Supply | ATX Power Supply supported |
Physical
| Form Factor | Mid Tower Case |
| Case Colour | Black |
| Material | Steel ABS Plastic |
| Motherboard Compatibility | E-ATX (up to 280mm) ATX mATX Mini-ITX |
| In The Box | Case Accessory Pack |
| Width | 230 mm |
| Depth | 450 mm |
| Height | 500 mm |
| Weight | 7.6 kg |
Warranty
| Warranty | 5 Years |
Key Features
| Max Motherboard Width | 280 mm |
| Max Motherboard Height | 305 mm |
| Supports AIO Cooler | Yes |
| Main Colour | Black |
| Case Type | Tower |
| Case Form Factor | Mid Tower |
| Power Supply Included | No |
| Optimised for | Business |
| 80Plus Rated | No |
| PSU Form Factor | ATX |
| Illuminated | No |
| L.E.D Fan | No LED |
| Max 3.5" Drives | 2 |
| Max 2.5" Drives | 5 |
| ATX | Yes |
| Micro-ATX | Yes |
| ITX | Yes |
| E-ATX | Yes |
| Cooler Height | 184 mm |
| Built-in Card Reader | No |
| USB Type-C Support | Yes |
| Side Panel Type | Solid |
| GPU Length | 415 mm |
| PSU Depth | 270 mm |
| RGB LED Controller Included | No |
| LED Strip(s) Included | No |
| Maximum Motherboard Size Supported | E-ATX |
| RGB Software Type | None |
| Total 2.5" + 3.5" drive bays | 5 |
| USB3.0 ports | 1 |
| USB-C ports | 1 |
| Low profile expansion | No |
| Max Supported Radiator Length | 360 mm |
| Create Your Own Gaming PC (CCL) | Yes |
| Back Connect Support | Yes |
Item Details
| Manufacturer | Phanteks |
| Manufacturer Code | PH-XT523PSC_BK01 |
| EAN | 0886523303541 |
