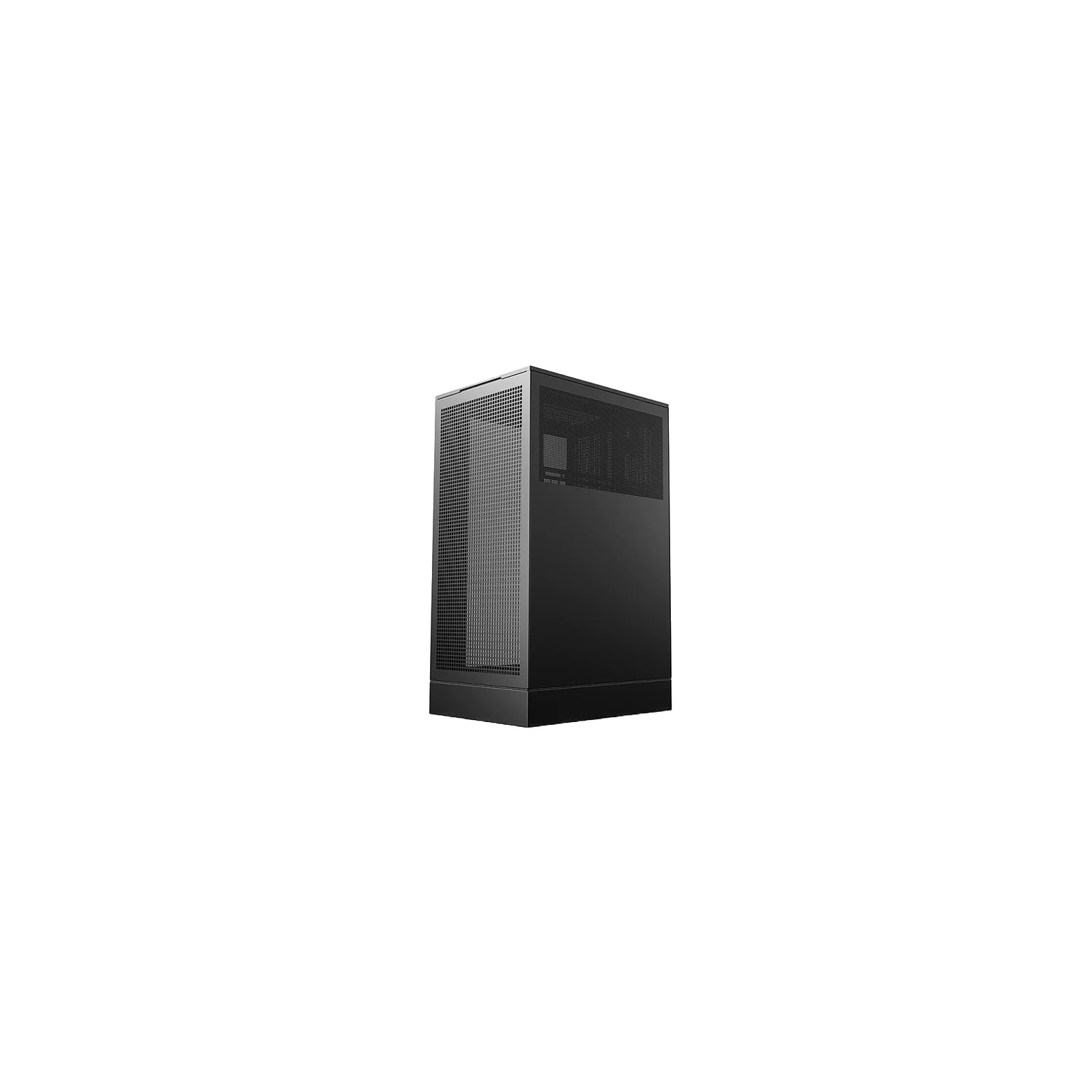

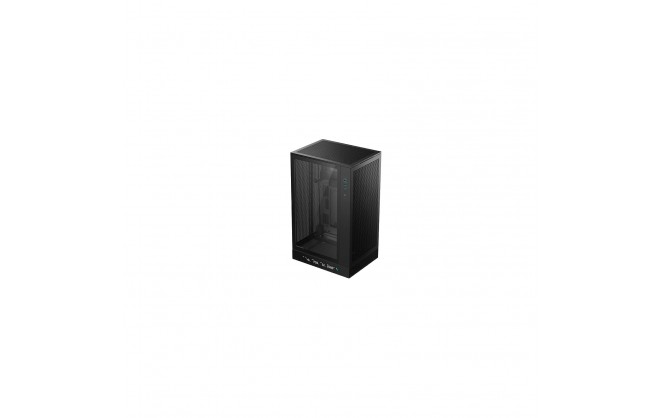

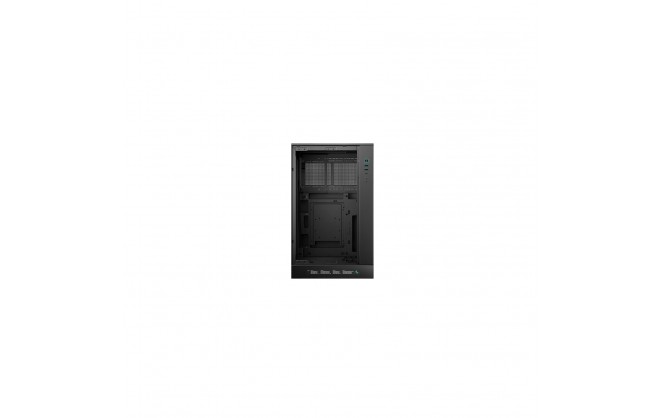

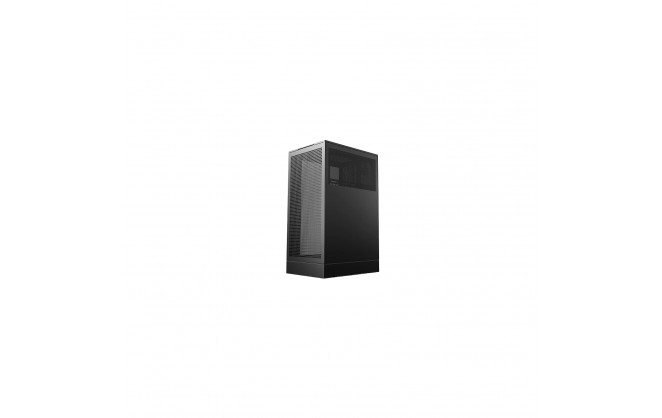

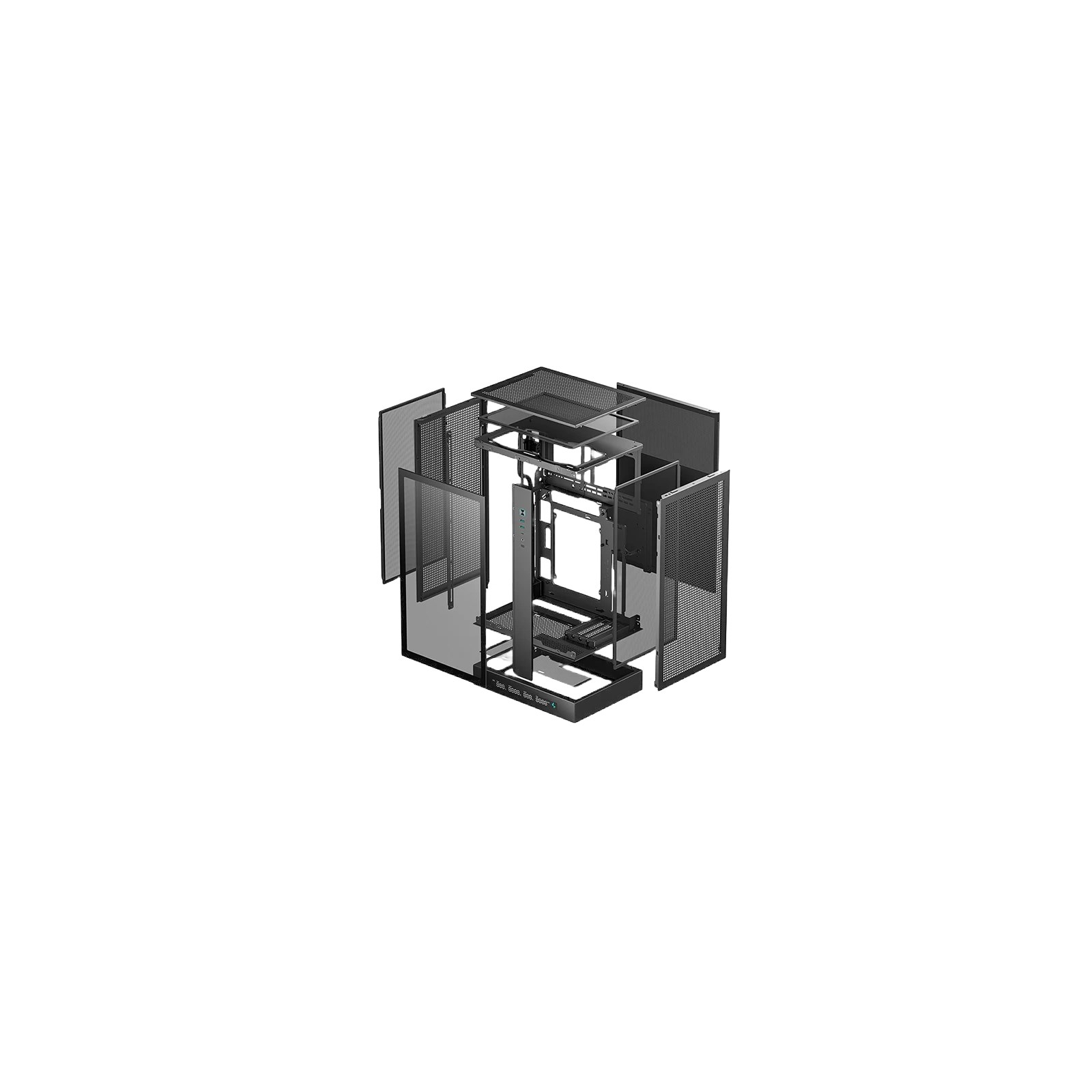

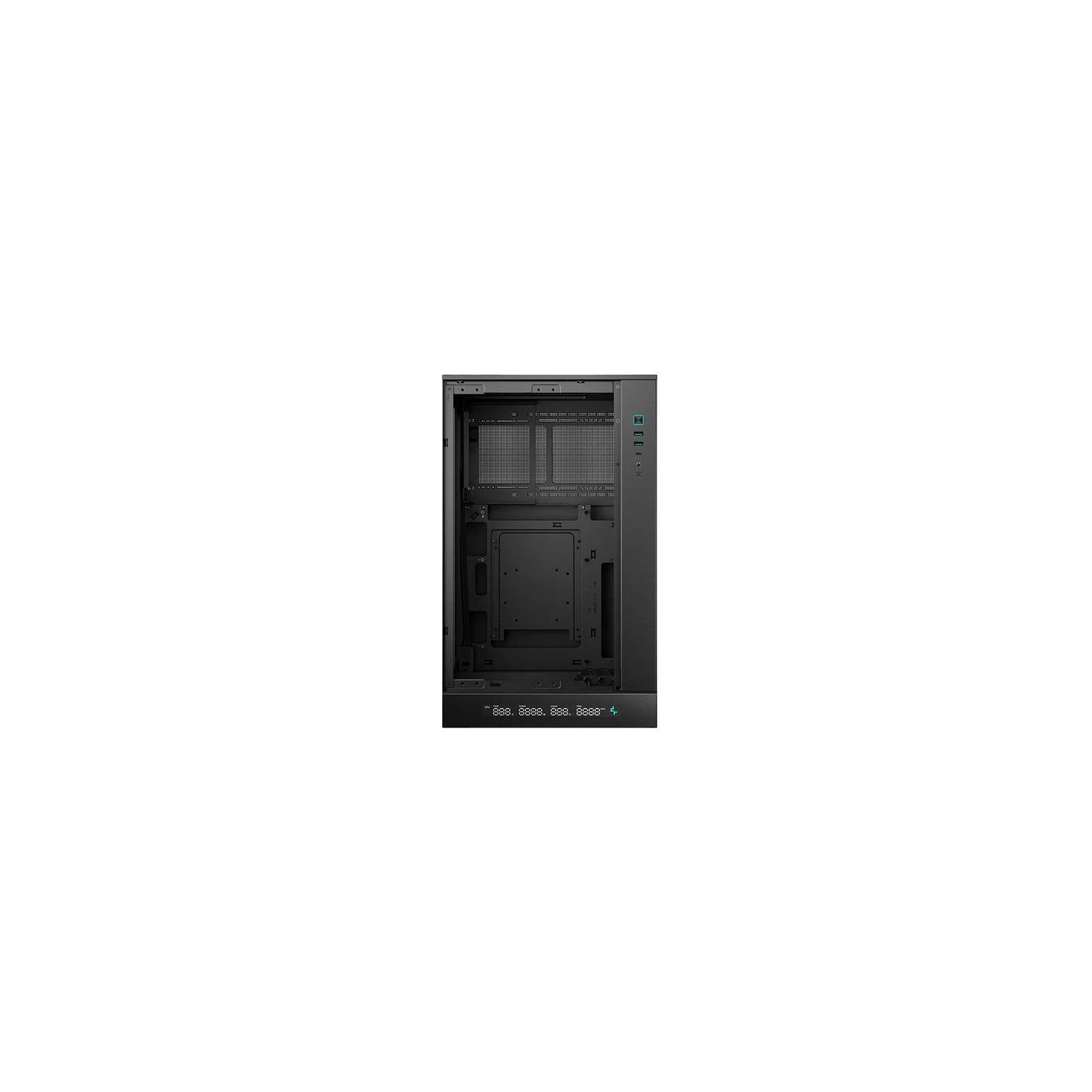

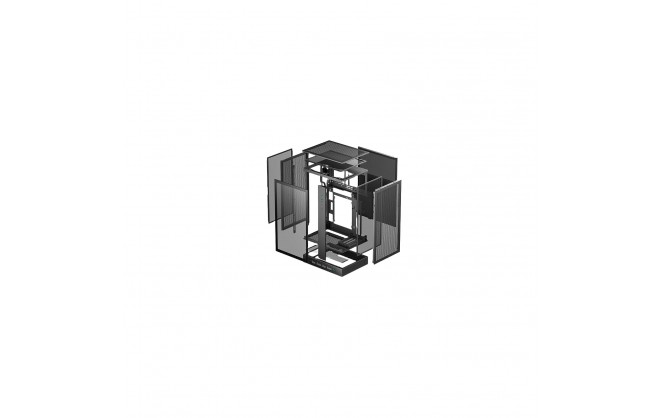

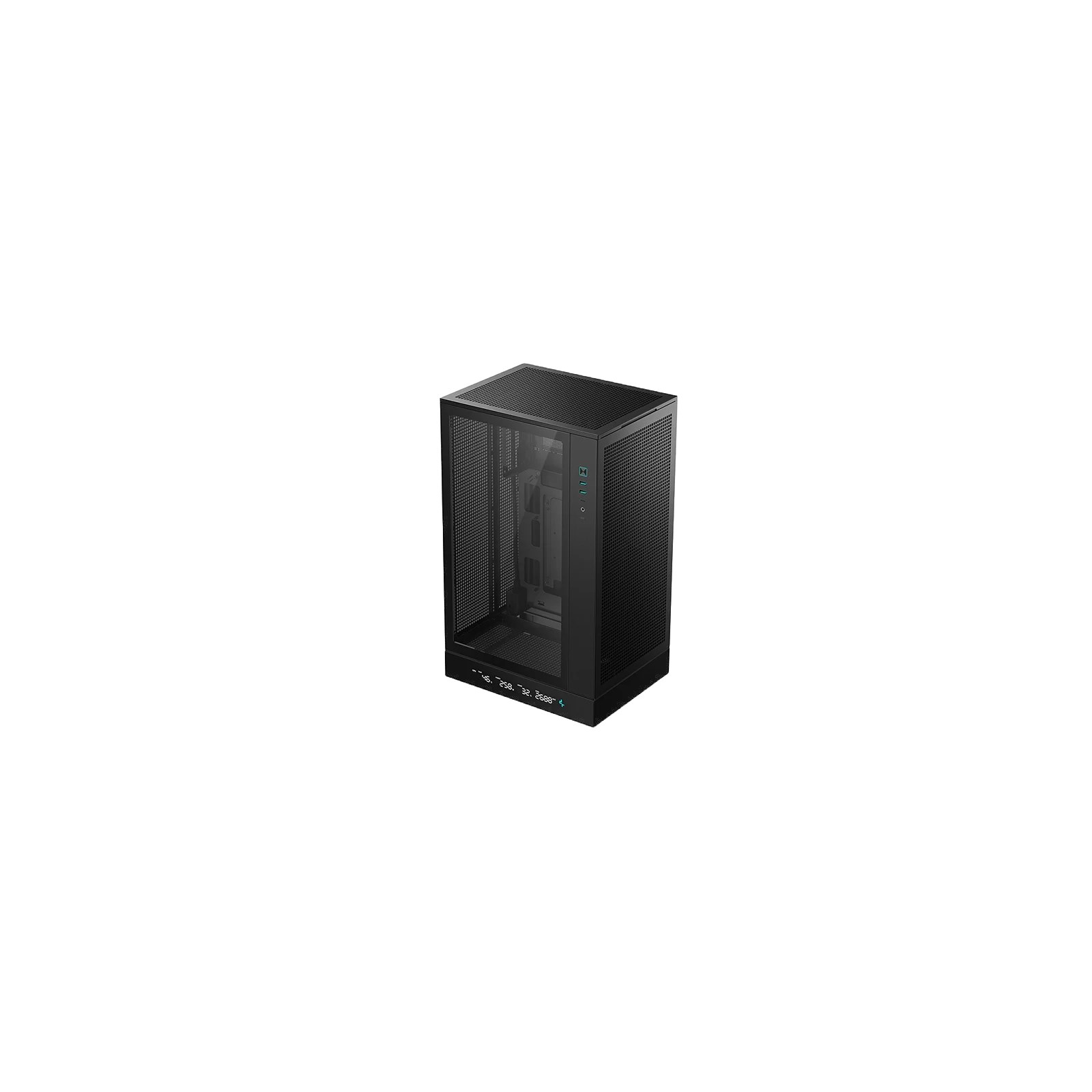

DeepCool CH270 DIGITAL Mini Tower Case Black

Part Number: R-CH270-BKNDM0-G-1
Manufacturer: Deepcool
Quickfind Code: 106007

Stock: In Stock

£54.89 ex. vat
£65.87 inc. vat

Product Features:

Condition: New
Form Factor mATX
Main Colour Black
Side Panel Tempered Glass

+ Read More Information

GO MICRO

The Micro Form Factor CH270 DIGITAL comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits. The case also meets the rising demands for rear connector motherboards with a wider clearance in the backplane.

DIGITAL VERTICAL BASE

A digital display bar is integrated at the base of the case to monitor your system vitals in real time. The status mode can switch between CPU, GPU, and PSU.

SMALL SIZE OUTSIDE, FULL SIZE INSIDE

Upgraded on the precedent CH170 series, the CH270 DIGITAL now gives expanded options in key components compatibility that supports full-size GPU up to 388mm in length or goes even longer to 413mm without fan placement on the top. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.

UNCOMPROMISED VENTILATION

The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on the side or a 174mm high tower heat sink on the CPU.

ENHANCED BUILDING EXPERIENCE

Tool-free access to the top panel.
Modern I/O features two USB 3.0 plus one Gen2 Type-C port, and an Audio/Mic combo jack.
Four removable dust filters for easy cleaning.
Four independent and reusable PCI-e baffles.

Technical Specification

DeepCool CH270 DIGITAL Mini Tower Case Black

Storage

Internal Expansion Bays

1 x 2.5"
1 x 3.5"

Expansion

Expansion Slots

4 x Full Height

Interfaces/Ports

USB Ports	1 x USB-C 3.1 2 x USB 3.0
Headphone Ports	1 x 3.5mm COMBO Jack
Microphone In Port	Shared with Headphone

Electrical

Cooling System	Top: Supports 2 x 120mm fans Side: Supports 2 x 140mm or 3 x 120mm fans Bottom: Supports 1 x 120mm fan
Power Supply	ATX or SFX Power Supply supported

Physical

Form Factor	Mini Tower
Case Colour	Black
Material	ABS SPCC Tempered Glass
Motherboard Compatibility	mATX Mini-ITX
Width	225 mm
Depth	296 mm
Height	486 mm
Weight	5.8 kg

Warranty

2 Years

Key Features

Max Motherboard Width	244 mm
Max Motherboard Height	244 mm
Supports AIO Cooler	Yes
Main Colour	Black
Case Type	Tower
Case Form Factor	Mini Tower
Power Supply Included	No
80Plus Rated	No
PSU Form Factor	ATX
Illuminated	No
L.E.D Fan	No LED
Max 3.5" Drives	1
Max 2.5" Drives	1
ATX	No
Micro-ATX	Yes
ITX	Yes
E-ATX	No
Cooler Height	174 mm
Built-in Card Reader	No
USB Type-C Support	Yes
Side Panel Type	Tempered Glass
GPU Length	388 mm
PSU Depth	150 mm
RGB LED Controller Included	No
LED Strip(s) Included	No
Maximum Motherboard Size Supported	mATX
RGB Software Type	None
Total 2.5" + 3.5" drive bays	2
USB3.0 ports	2
USB-C ports	1
Low profile expansion	No
Max Supported Radiator Length	360 mm
Create Your Own Gaming PC (CCL)	Yes
Back Connect Support	Yes
