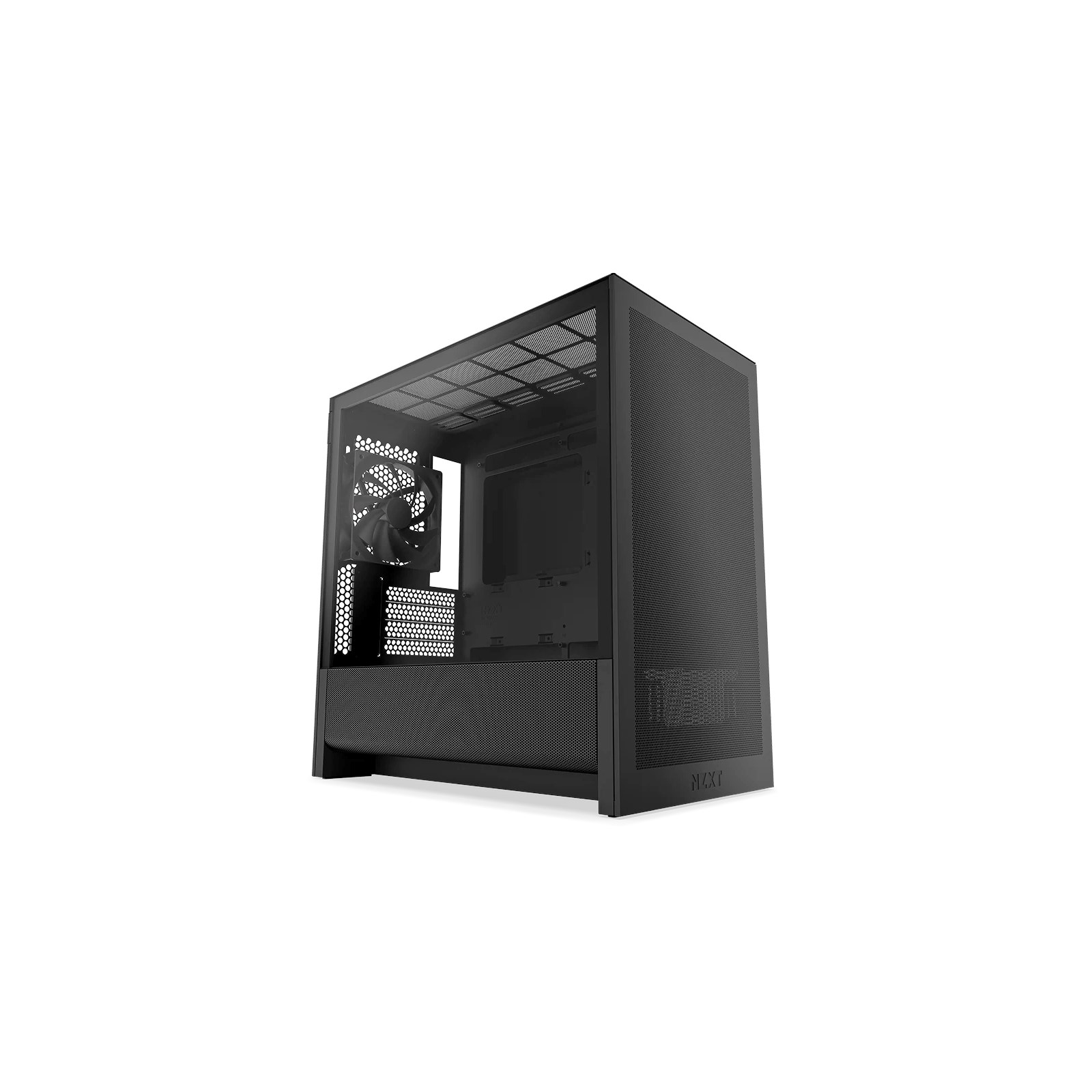

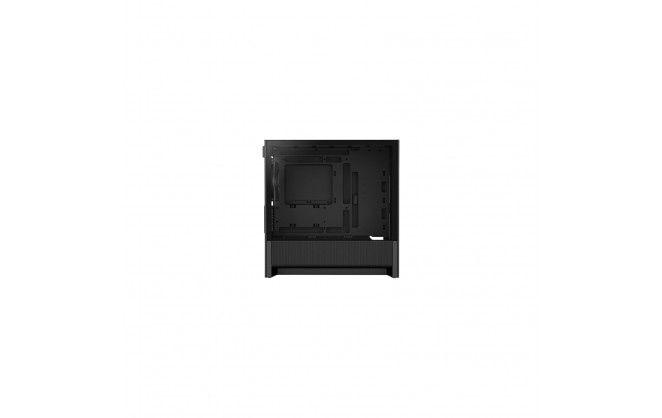

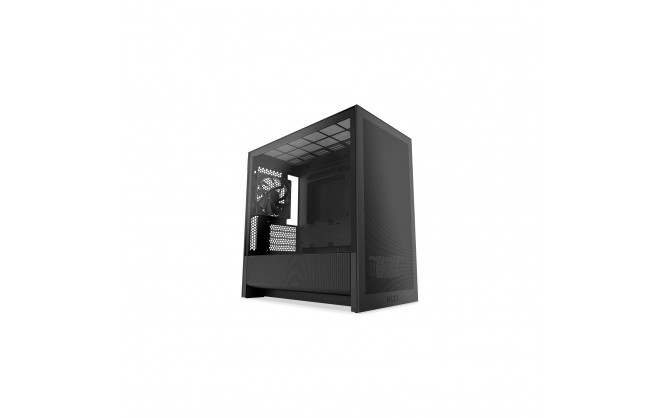

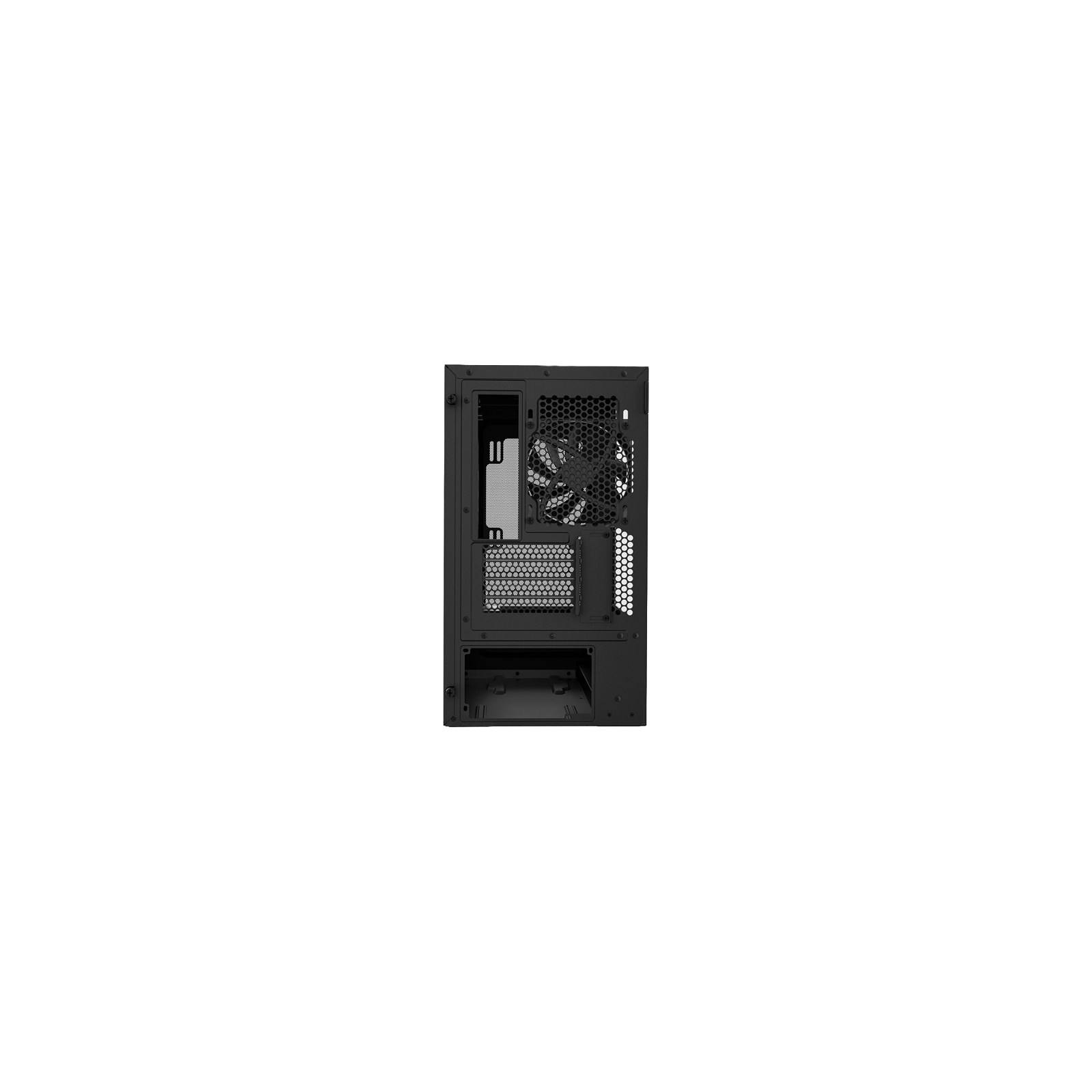

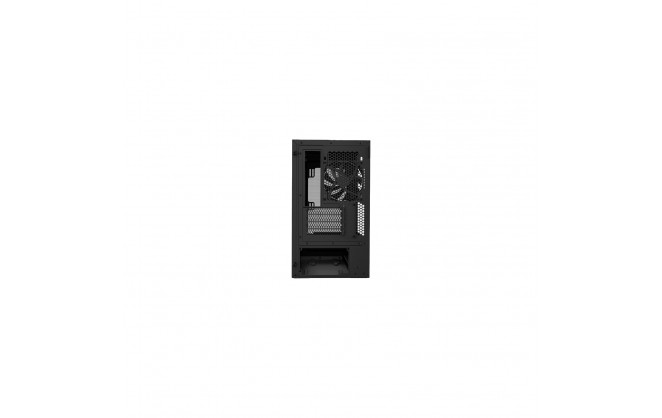

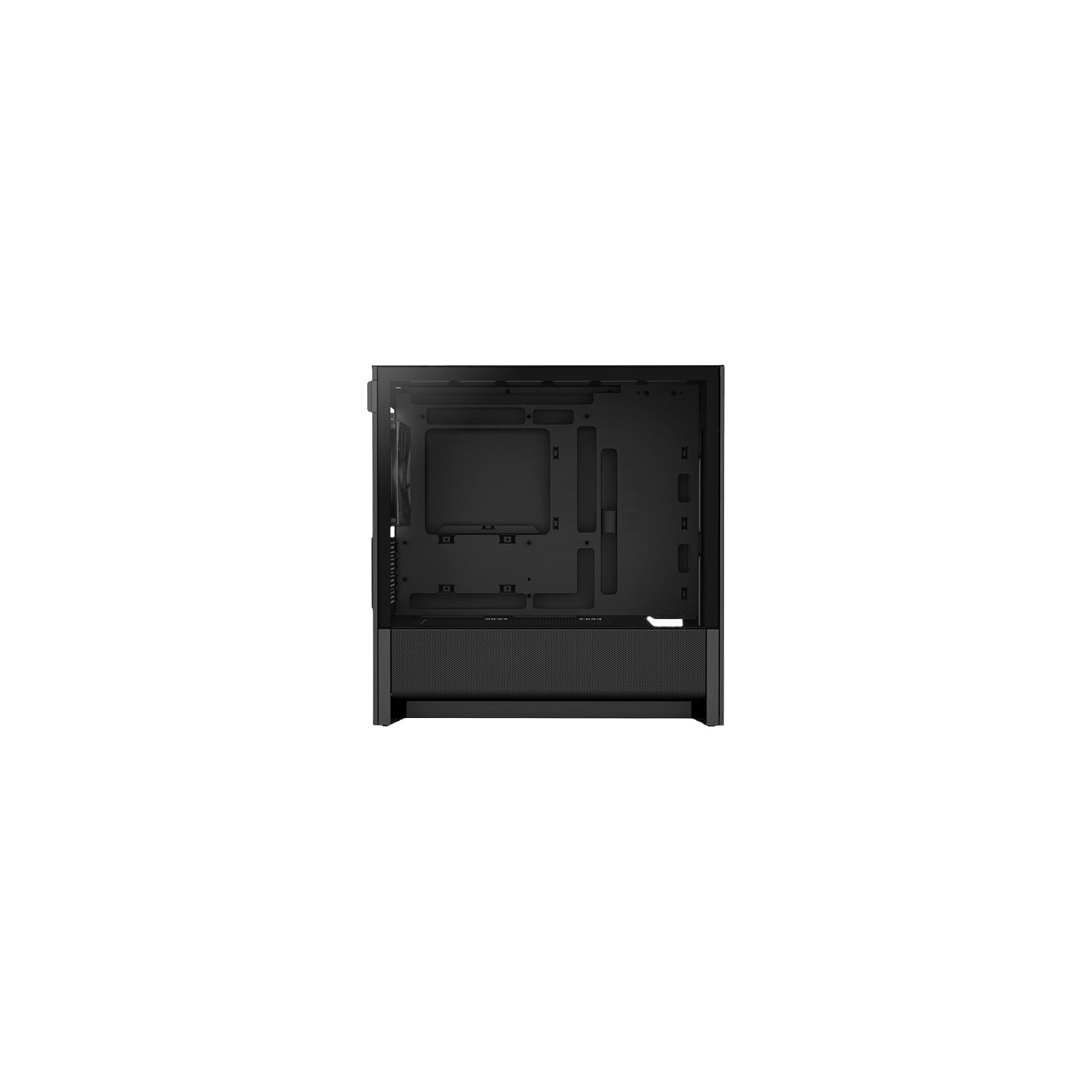

NZXT H3 Flow Mid Tower Case Black

Part Number: CC-H31FB-01
Manufacturer: NZXT
Quickfind Code: 106046

Stock: In Stock

£49.99 ex. vat
£59.99 inc. vat

Product Features:

Condition: New
Form Factor mATX
Main Colour Black
Side Panel Tempered Glass

+ Read More Information

Sized Down. Powered Up.

The H3 Flow delivers high-performance airflow in a space-efficient micro-ATX footprint. With fine mesh panels, a ventilated PSU shroud, and support for large components, it keeps powerful parts cool without taking over your desk.

Space-Saving Design

The micro-ATX form factor fits into smaller spaces, maximizing desk space without compromising on performance.

Optimised Airflow

Ultra-fine mesh on the front, top, and sides enhances cooling while filtering dust. The ventilated PSU shroud optimizes intake from bottom-mounted fans.

Full-Size GPU Support

Max length of 377 mm (no front fans), 352 mm (with fans), 317 mm (with fans & radiator).

7-Fan Capacity

Supports up to 140 mm fans (two front, two top) and 120 mm fans (two bottom, one rear).

Radiator Ready

Supports a 280 mm front radiator and a 240 mm top radiator for versatile cooling setups.

Back-Connect Ready

Compatible with ASUS BTF and MSI Project Zero motherboards for a clean, cable-free build.

Tool-Free Access

Easily remove panels for building, upgrading, or cleaning.

Easy Cable Management

Integrated cable channels and tie-down points make routing clean and simple.

Main Features

Space-Saving Size: A space-efficient micro-ATX chassis that accommodates high-performance components without compromise.
High-Airflow Design: Ultra-fine steel mesh panels and a ventilated PSU shroud maximize airflow while effectively filtering out dust.
Extensive Cooling Support: Supports up to a 280 mm radiator in the front, a 240 mm radiator on top, and up to seven fans for powerful, customizable cooling performance.
Full-Size GPU Support: Fits graphics cards up to 377 mm (without front fans), 352 mm (with front fans), or 317 mm (with front radiator and fans installed).
Pre-Installed Rear Fan: Includes one F120Q (CV) fan at the rear to provide efficient exhaust airflow straight out of the box. CV = Case Version (3-pin DC)
Simplified Cable Management: Integrated cable channels and multiple tie-down points make it easy to route and organize cables for a clean, organized build.
Back-Connect Motherboard Compatible: Ready for rear-connector motherboards like ASUS BTF and MSI Project Zero, enabling a clean, cable-free aesthetic.
Tool-Free Access: Removable top, front, and side panels allow for easy upgrades and cleaning-no tools required.

Technical Specification

NZXT H3 Flow Mid Tower Case Black

Storage

Internal Expansion Bays

2 x 2.5"
1 x 2.5"/3.5"

Expansion

Expansion Slots

4 x Full Height

Interfaces/Ports

USB Ports	1 x USB-C 3.2 1 x USB 3.0
Headphone Ports	1 x 3.5mm COMBO Jack
Microphone In Port	Shared with Headphone

Electrical

Cooling System	Front: Supports 2 x 140mm or 120mm fans Top: Supports 2 x 140mm or 120mm fans Bottom: Supports 2 x 120mm fans Rear: Supports 1 x 120mm fan (included)
Power Supply	ATX Power Supply supported

Physical

Form Factor	Mid Tower
Case Colour	Black
Material	SGCC Steel Tempered Glass
Motherboard Compatibility	mATX Mini-ITX
Width	225 mm
Depth	389 mm
Height	400 mm
Weight	4.8 kg

Warranty

2 Years

Key Features

Max Motherboard Width	244 mm
Max Motherboard Height	244 mm
Supports AIO Cooler	Yes
Main Colour	Black
Case Type	Tower
Case Form Factor	Mid Tower
Power Supply Included	No
80Plus Rated	No
PSU Form Factor	ATX
Illuminated	No
L.E.D Fan	No LED
Max 3.5" Drives	1
Max 2.5" Drives	3
ATX	No
Micro-ATX	Yes
ITX	Yes
E-ATX	No
Cooler Height	170 mm
Built-in Card Reader	No
USB Type-C Support	Yes
Side Panel Type	Tempered Glass
GPU Length	377 mm
PSU Depth	185 mm
Number of Fans	1 fan(s)
RGB LED Controller Included	No
LED Strip(s) Included	No
Fan Connector	3-pin DC
Maximum Motherboard Size Supported	mATX
RGB Software Type	None
Total 2.5" + 3.5" drive bays	3
Power Requirement (auto)	3 W
USB3.0 ports	1
USB-C ports	1
Low profile expansion	No
Max Supported Radiator Length	240 mm
Create Your Own Gaming PC (CCL)	Yes
Back Connect Support	Yes
