The CH560 WH provides exceptional airflow from all sides of the case, from the high airflow front to the hybrid tempered glass side panel, cool air is always available for the modern power-hungry components.
A unique tempered glass and mesh hybrid side panel provides a crystal-clear view into the heart of your system while also supplying modern GPUs with additional ventilation: a functional yet elegant design.
The CH560 WH has a plethora of cooling configurations, from the ability to mount 360mm radiators on the top and front to the three included 140mm ARGB fans up front and a 120mm ARGB at the rear—the cooling configurations are endless.
With the ability to support up to E-ATX motherboards, 175mm tall CPU coolers, 380mm GPUs, and 170mm PSUs, the CH560 WH can be configured with a wide range of modern components.
Three luminous PWM enabled 140mm ARGB fans come pre-installed on the front of the CH560 WH and introduce an abundant amount of fresh air into the chassis, these fans are mounted outside of the main compartment to provide maximum clearance for the largest of GPUs while maintaining a smaller footprint. The rear 120mm ARGB fan is also PWM enabled and will exhaust the warm air out of the chassis.
Building and maintaining the CH560 WH is a breeze: the magnetic hybrid panel with an optional security screw, magnetic air filters, integrated GPU support arm, and 26mm of cable management space behind the motherboard tray make life with a computer a little bit easier.
Everything necessary for daily routines is within reach with a Type-C, USB 3.0 port, and a hybrid audio port, all conveniently located on the case I/O panel.

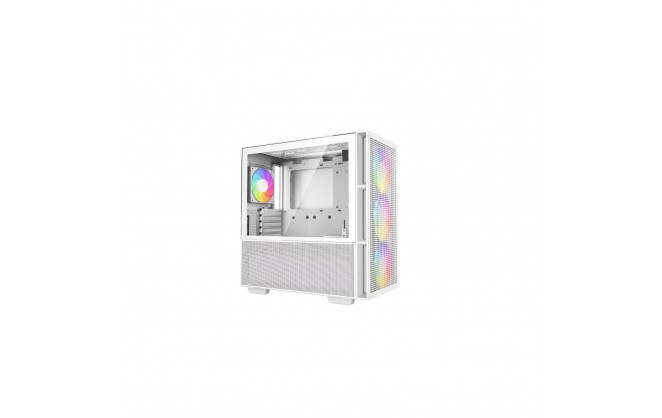

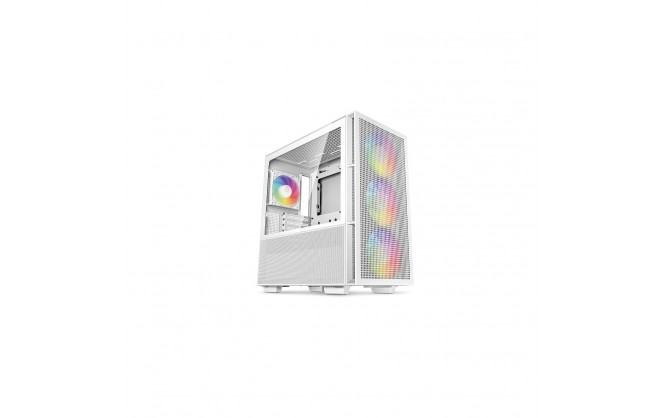

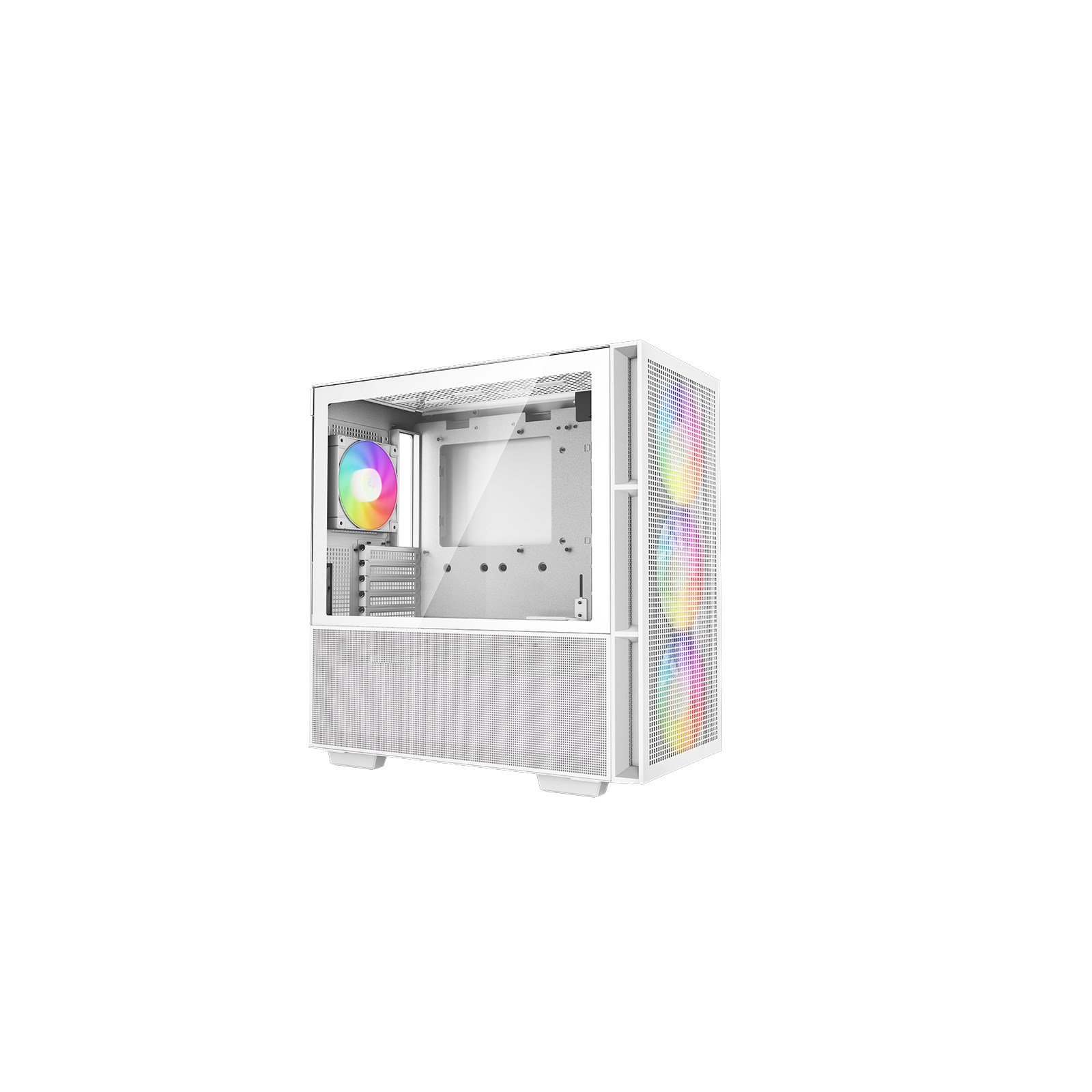

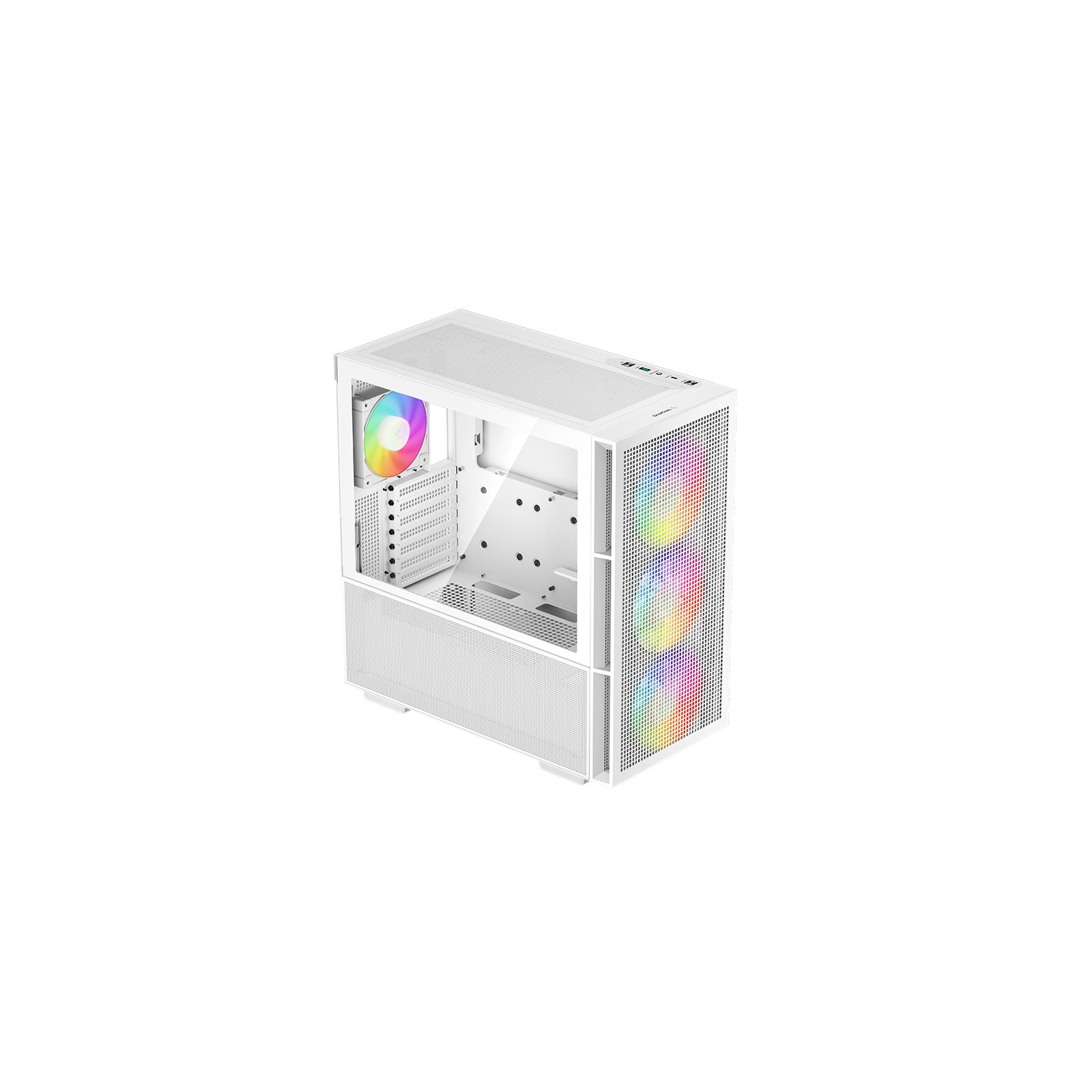

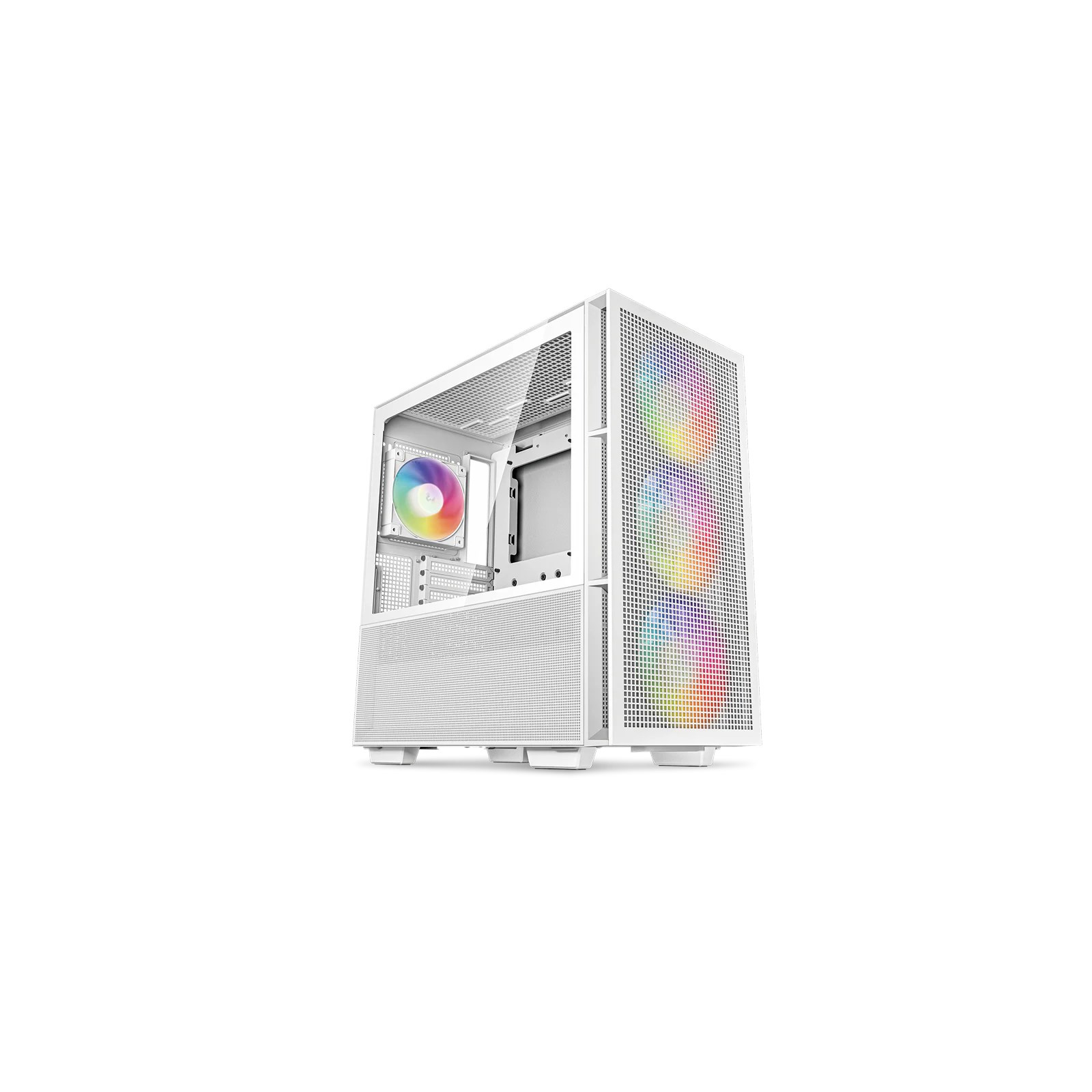

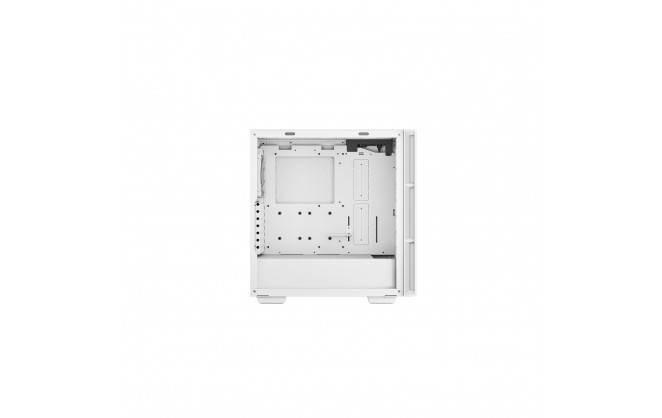

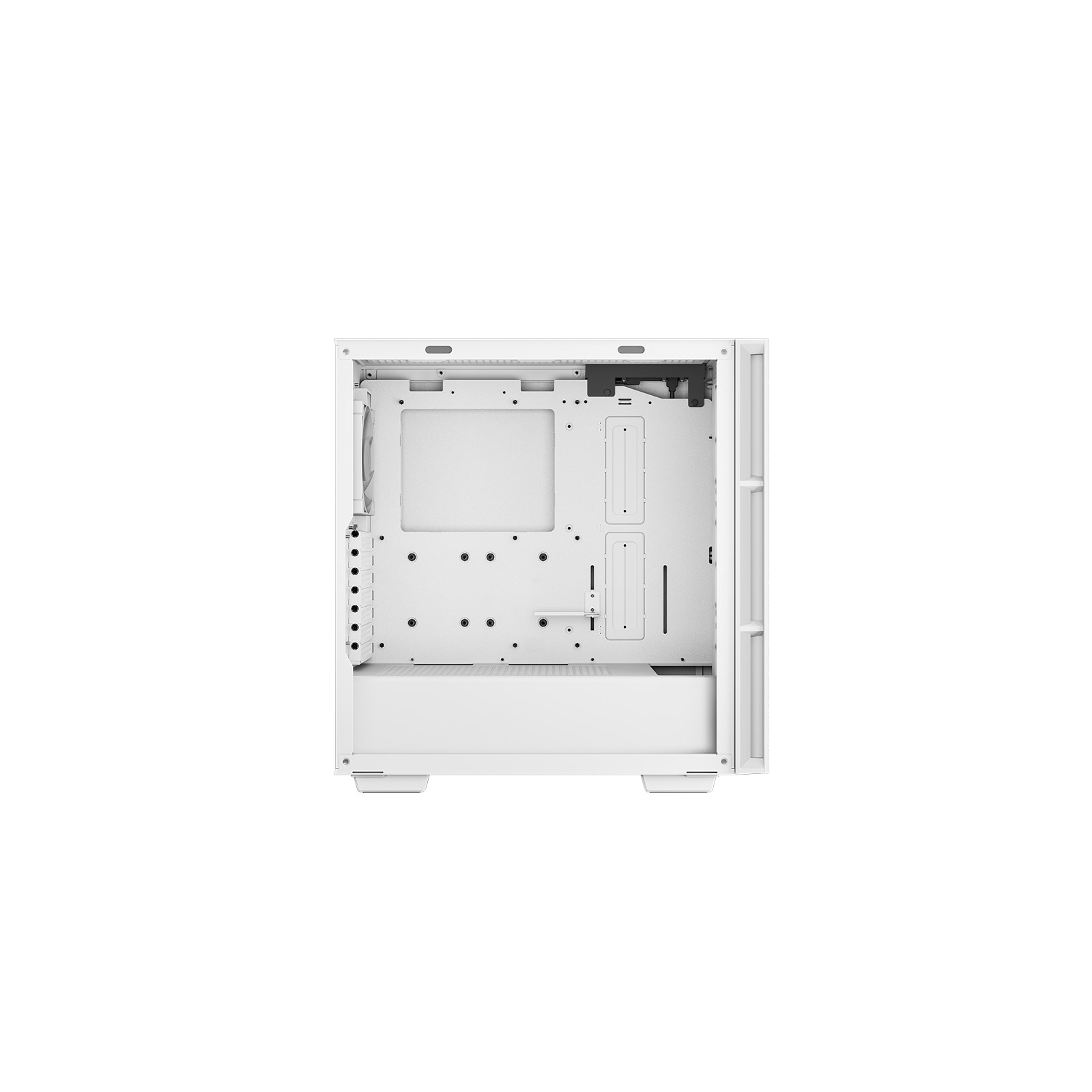

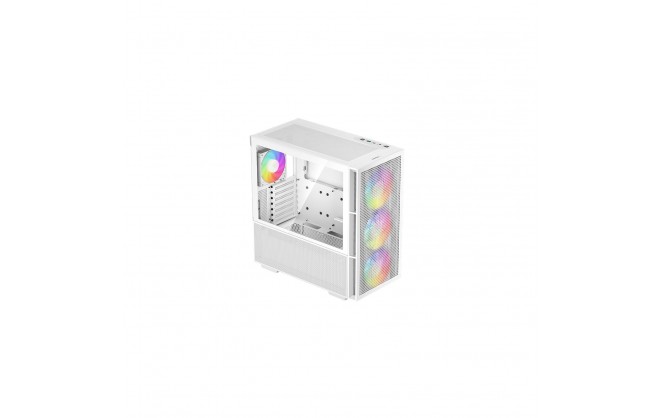

DeepCool CH560 WH Mid Tower Case White
Storage
| Internal Expansion Bays | 2 x 2.5" 2 x 3.5" |
Expansion
| Expansion Slots | 7 x Full Height |
Interfaces/Ports
| USB Ports | 1 x USB-C,br>1 x USB 3.0 |
| Headphone Ports | 1 x 3.5mm Jack, shared with Microphone |
Electrical
| Cooling System | Front: Supports 3 x 140mm or 120mm fans (3 x 140mm ARGB LED fans included) Top: Supports 2 x 140mm or 3 x 120mm fans Rear: Supports 1 x 140mm or 120mm fans (120mm ARGB LED fan included) |
| Power Supply | ATX Power Supply supported |
Warranty
| Warranty | 1 Year |
Physical
| Form Factor | Mid Tower Case |
| Case Colour | White |
| Material | ABS SPCC Tempered Glass |
| Motherboard Compatibility | E-ATX ATX mATX Mini-ITX |
| Width | 230 mm |
| Depth | 458 mm |
| Height | 471 mm |
| Weight | 7.7 kg |
Key Features
| Max Motherboard Width | 330 mm |
| Max Motherboard Height | 305 mm |
| Main Colour | White |
| Case Type | Tower |
| Case Form Factor | Mid Tower |
| Power Supply Included | No |
| 80Plus Rated | No |
| PSU Form Factor | ATX |
| Illuminated | No |
| L.E.D Fan | ARGB |
| Max 3.5" Drives | 2 |
| Max 2.5" Drives | 2 |
| ATX | Yes |
| Micro-ATX | Yes |
| ITX | Yes |
| E-ATX | Yes |
| Cooler Height | 175 mm |
| Built-in Card Reader | No |
| USB Type-C Support | Yes |
| Side Panel Type | Tempered Glass |
| GPU Length | 380 mm |
| PSU Depth | 170 mm |
| Number of Fans | 4 fan(s) |
| RGB LED Controller Included | No |
| LED Strip(s) Included | No |
| Maximum Motherboard Size Supported | E-ATX |
| RGB Software Type | None |
| Total 2.5" + 3.5" drive bays | 4 |
| Power Requirement (auto) | 12 W |
| USB3.0 ports | 1 |
| USB-C ports | 1 |
| Low profile expansion | No |
| Vinyl Position - Top | No |
| Vinyl Position - Front | No |
| Vinyl Position - Left | No |
| Vinyl Position - Right | Yes |
| Max Supported Radiator Length | 360 mm |
| Create Your Own Gaming PC (CCL) | No |
| Back Connect Support | No |
Item Details
| Manufacturer | DeepCool |
| Manufacturer Code | R-CH560-WHAPE4-G-1 |
| EAN | 6933412774907 |
