The Phanteks Eclipse G370A is all about performance without frills. High airflow mesh throughout the chassis with 7x 120 mm fan positions and dedicated top 360 radiator clearance provides ample fresh airflow to unlock even the most demanding workstation-grade systems.
Extensive mainboard support up to and including SSI-EEB mainboards makes the G370A punch way above its weight.
To operate the D-RGB lighting, it must be connected to a Phanteks controller or an A-RGB equipped mainboard. We strive to make it as easy to use and compatible as possible.

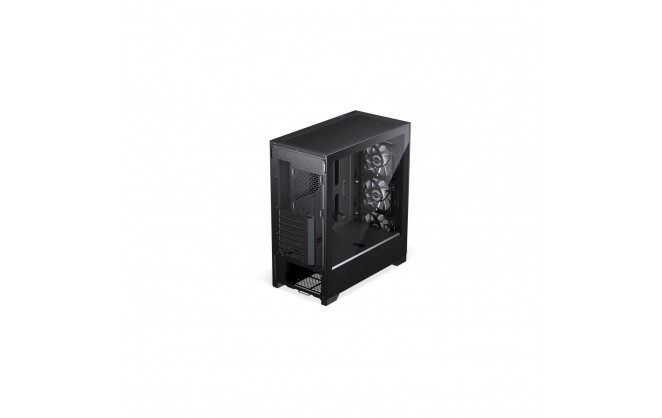

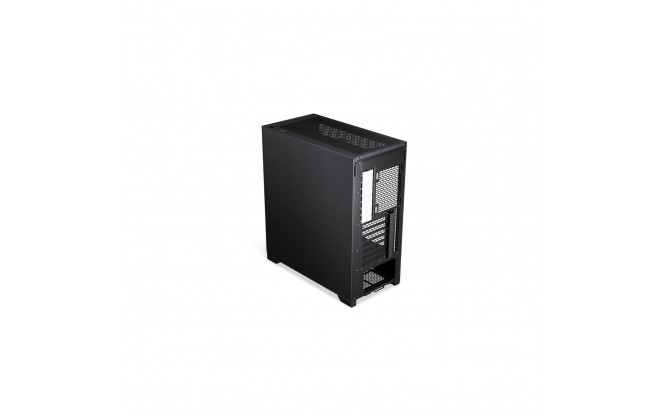

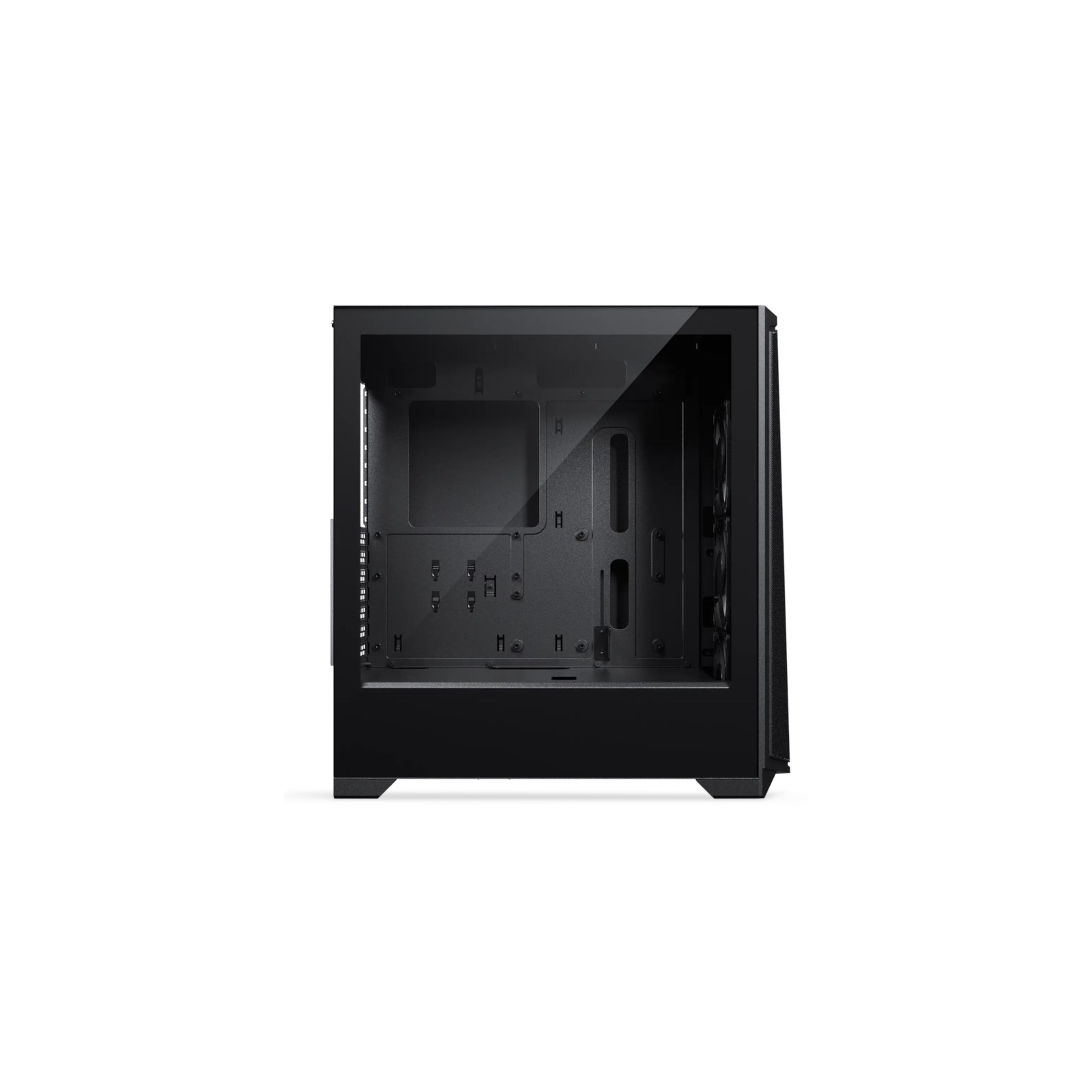

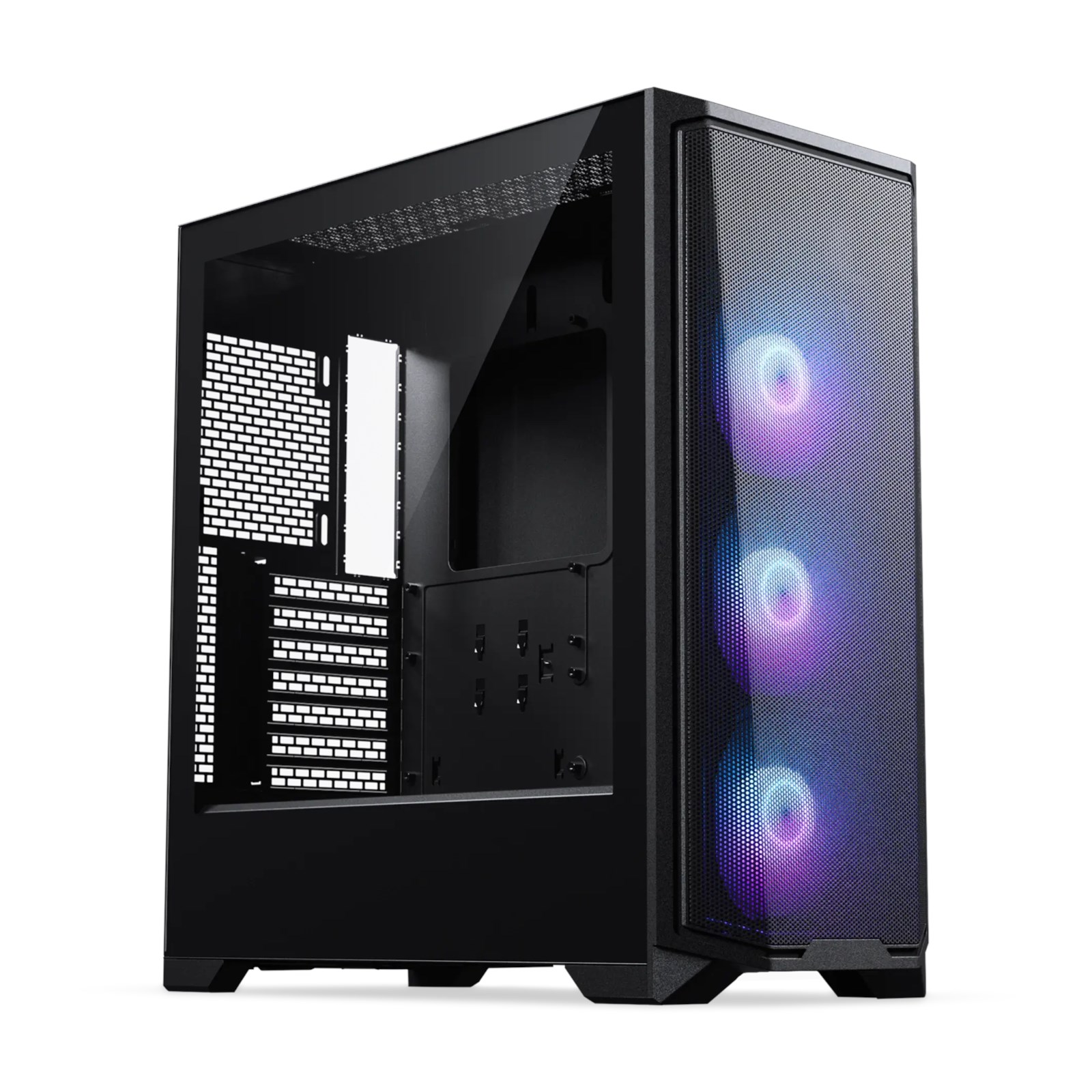

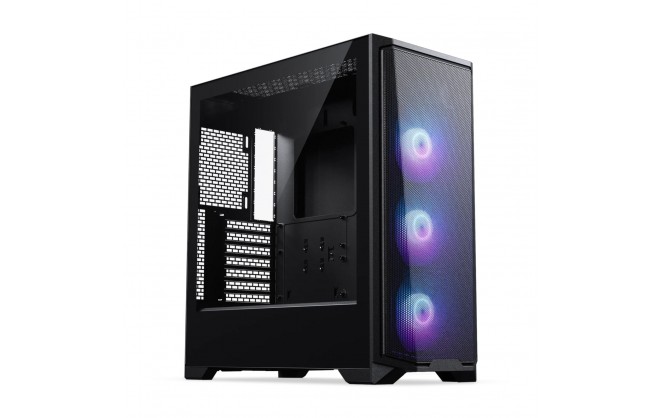

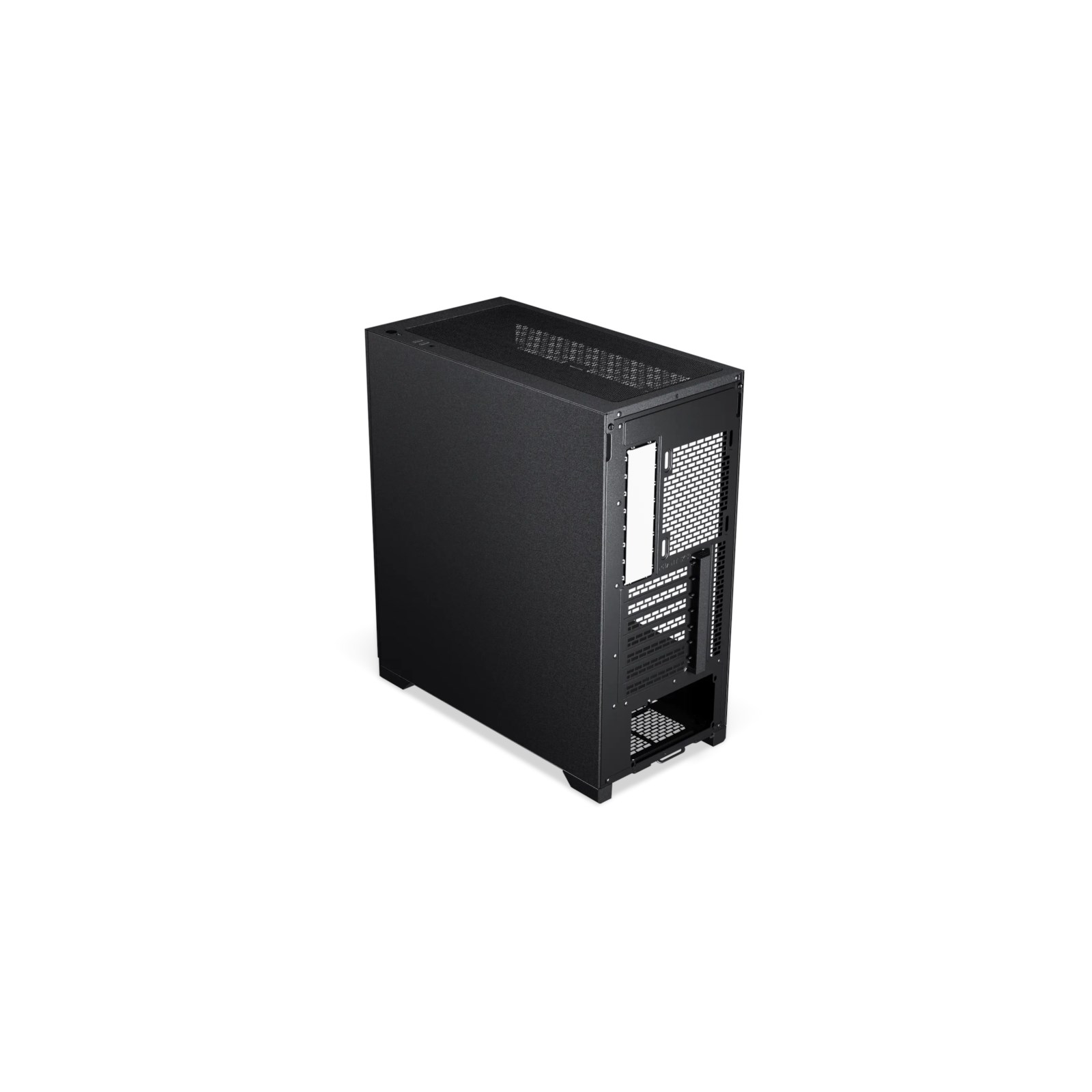

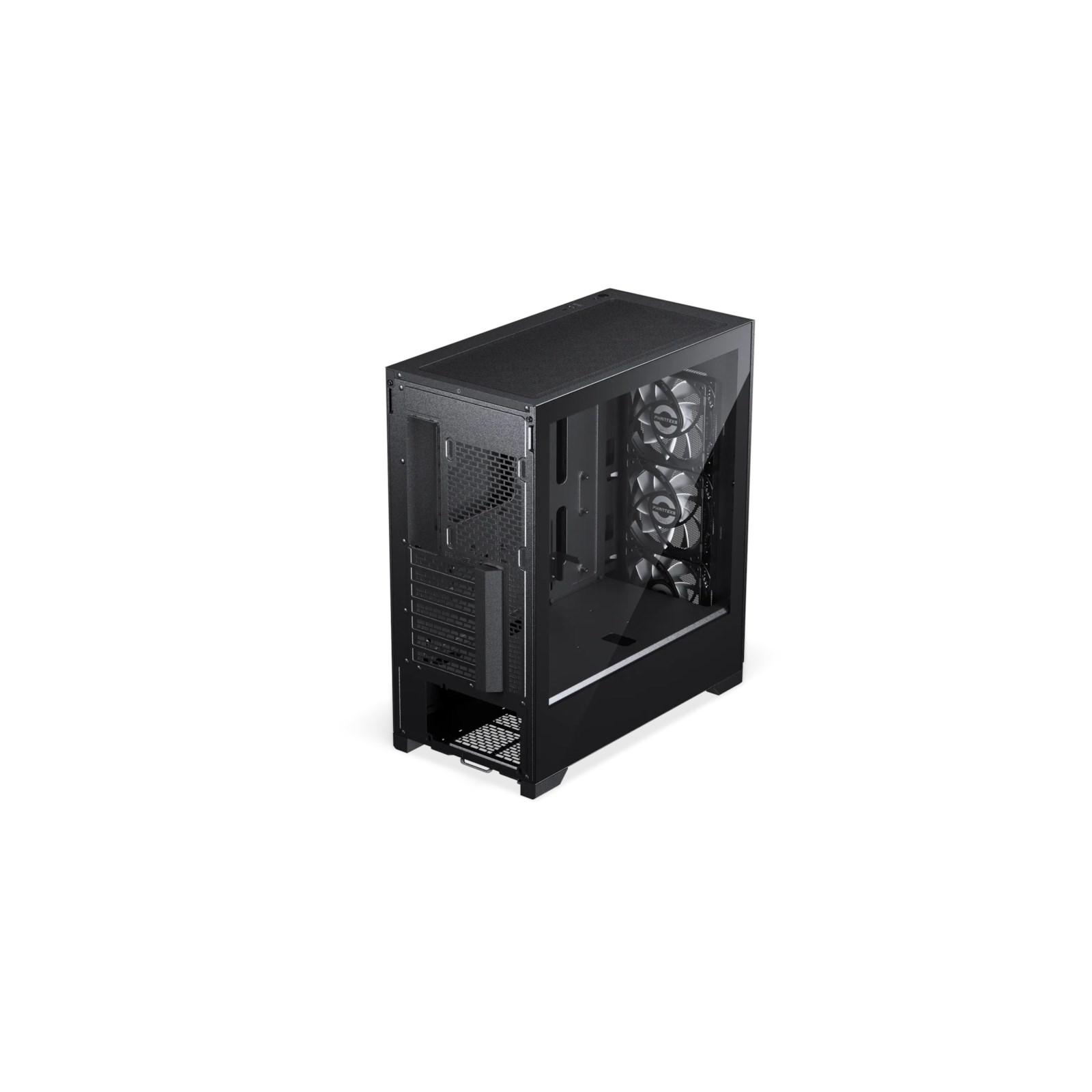

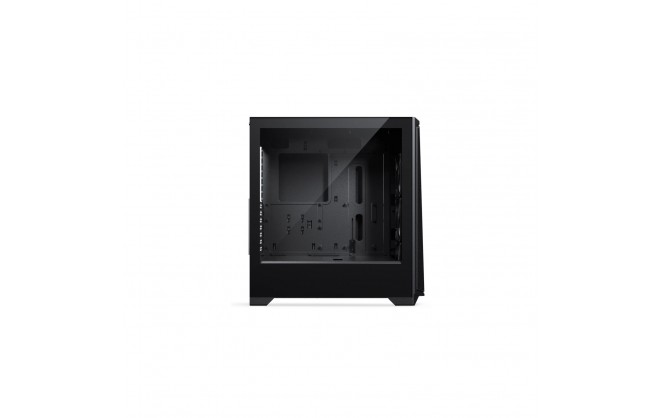

Phanteks Eclipse G370A Mid Tower Gaming Case Black
User Controls
| User Controls | Power Reset |
Storage
| Internal Expansion Bays | 2 x 2.5" or 1 x 3.5" |
Expansion
| Expansion Slots | 7 x Full Height |
Interfaces/Ports
| USB Ports | 1 x USB-C 3.0 1 x USB 3.0 |
| Headphone Ports | 1 x 3.5mm COMBO Jack |
| Microphone In Port | Shared with Headphone |
Electrical
| Cooling System | Front: Supports 3 x 120mm fans (3 x ARGB fans included) Top: Supports 3 x 120mm fans Rear: Supports 1 x 120mm fan |
| Power Supply | ATX Power Supply supported |
Physical
| Form Factor | Mid Tower Case |
| Case Colour | Black |
| Material | Steel ABS Plastic Tempered Glass |
| Motherboard Compatibility | SSI-EEB E-ATX ATX mATX Mini-ITX |
| In The Box | Case Accessories |
| Width | 220 mm |
| Depth | 465 mm |
| Height | 476 mm |
| Weight | 6.43 kg |
Warranty
| Warranty | 2 Years |
Key Features
| Max Motherboard Width | 330 mm |
| Max Motherboard Height | 305 mm |
| Supports AIO Cooler | Yes |
| Main Colour | Black |
| Case Type | Tower |
| Case Form Factor | Mid Tower |
| Power Supply Included | No |
| Optimised for | Gaming |
| 80Plus Rated | No |
| PSU Form Factor | ATX |
| Illuminated | No |
| L.E.D Fan | ARGB |
| Max 3.5" Drives | 1 |
| Max 2.5" Drives | 2 |
| ATX | Yes |
| Micro-ATX | Yes |
| ITX | Yes |
| E-ATX | Yes |
| Cooler Height | 170 mm |
| Built-in Card Reader | No |
| USB Type-C Support | Yes |
| Side Panel Type | Tempered Glass |
| GPU Length | 375 mm |
| PSU Depth | 200 mm |
| Number of Fans | 3 fan(s) |
| RGB LED Controller Included | No |
| LED Strip(s) Included | No |
| Fan Connector | 4-pin PWM |
| Maximum Motherboard Size Supported | E-ATX |
| RGB Software Type | None |
| Total 2.5" + 3.5" drive bays | 2 |
| Power Requirement (auto) | 9 W |
| USB3.0 ports | 1 |
| USB-C ports | 1 |
| Low profile expansion | No |
| Max Supported Radiator Length | 360 mm |
| Create Your Own Gaming PC (CCL) | Yes |
| Back Connect Support | No |
Item Details
| Manufacturer | Phanteks |
| Manufacturer Code | PH-EC370A_DBK01 |
| EAN | 0886523303930 |
