Discover Hidden Potential
The ASUS A23 PLUS is a PC case crafted for minimalist mainstream DIY PC builders, with support for a variety of AIO coolers and graphics cards, and the four pre-installed ARGB fans provide plenty of airflow potential to keep things running smoothly.
HIDDEN CONNECTORS
In addition to supporting conventional mini-ITX and micro-ATX motherboards, the A23 PLUS is also compatible with the TUF GAMING B760M-BTF WIFI, whose innovative connectors and headers are located on the underside to maximize clean cable management.
BROAD COMPATIBILITY
Despite being a micro-ATX case, the A23 PLUS still supports up to 360 mm radiators, graphics cards up to 380 mm long, and CPU coolers up to 165 mm tall, giving builders plenty of options to assemble their next PC.
Support
360 mm
Radiator
380 mm
Graphics Card Length
165 mm
CPU Cooler Height
STANDOFF-MOUNTED TEMPERED-GLASS FRONT PANEL
The ASUS A23 series showcases rounded tempered glass with increased thickness and exceptional scratch resistance. This enlarged window design allows users to fully enjoy the captivating visuals of the front ARGB fans.

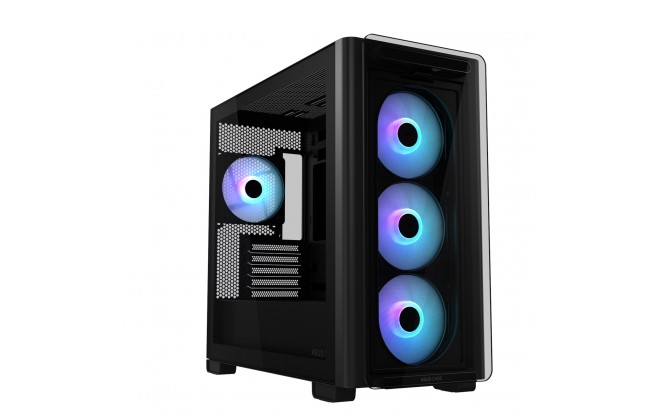

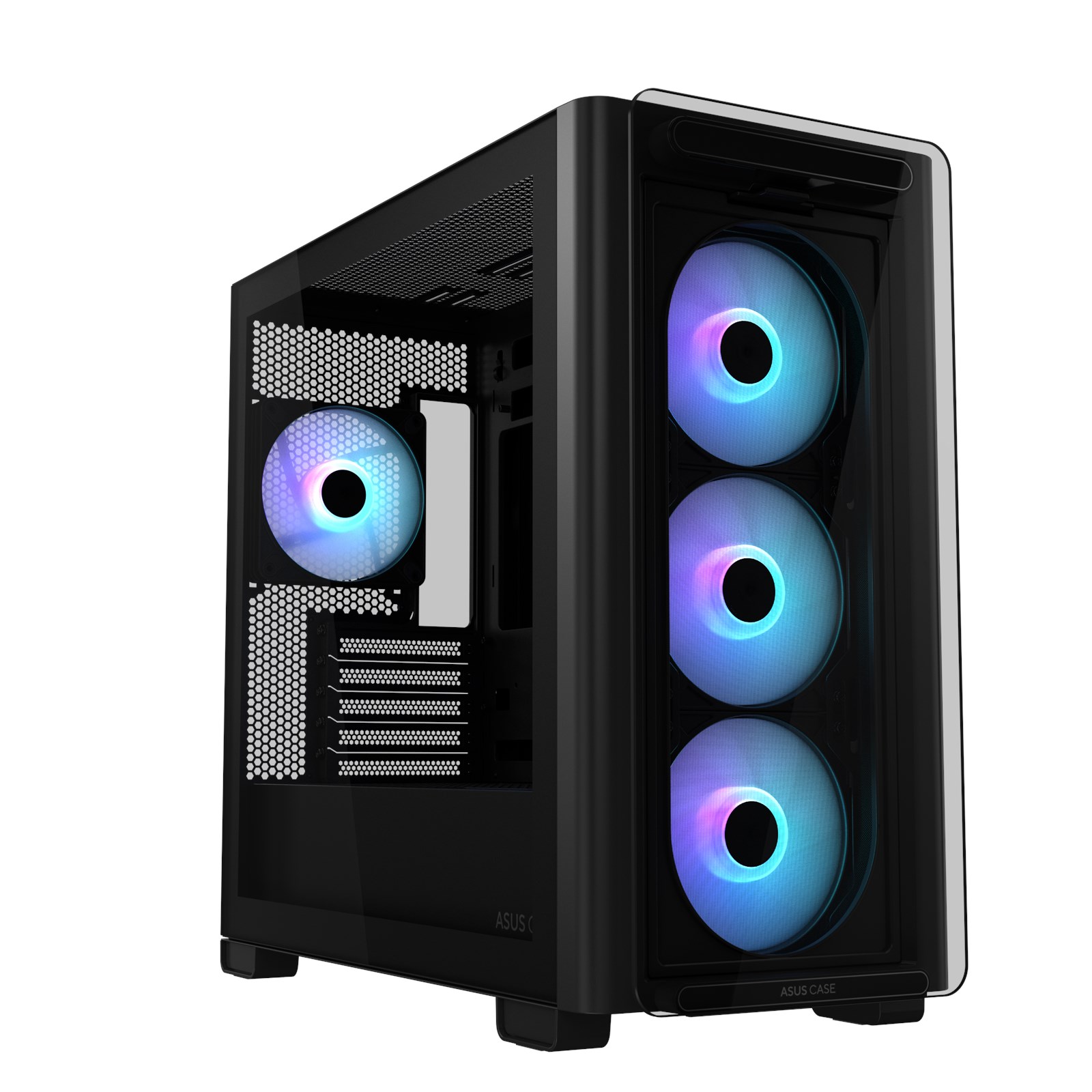

FOUR PRE-INSTALLED ARGB FANS
Experience premium cooling and dynamic lighting with four pre-installed ARGB fans. This mesmerizing display of vibrant lighting enhances both functionality and aesthetics.
AMPLE CABLE MANAGEMENT

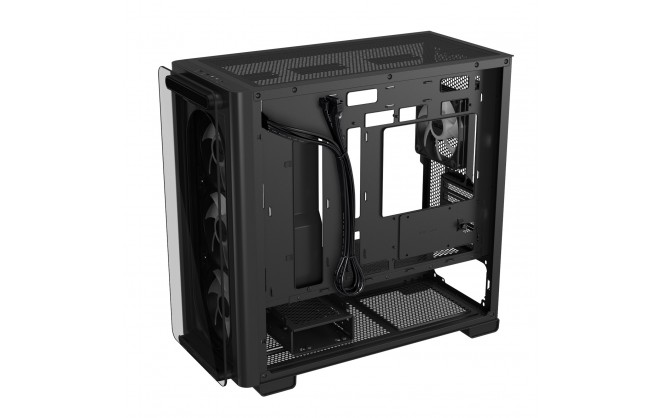

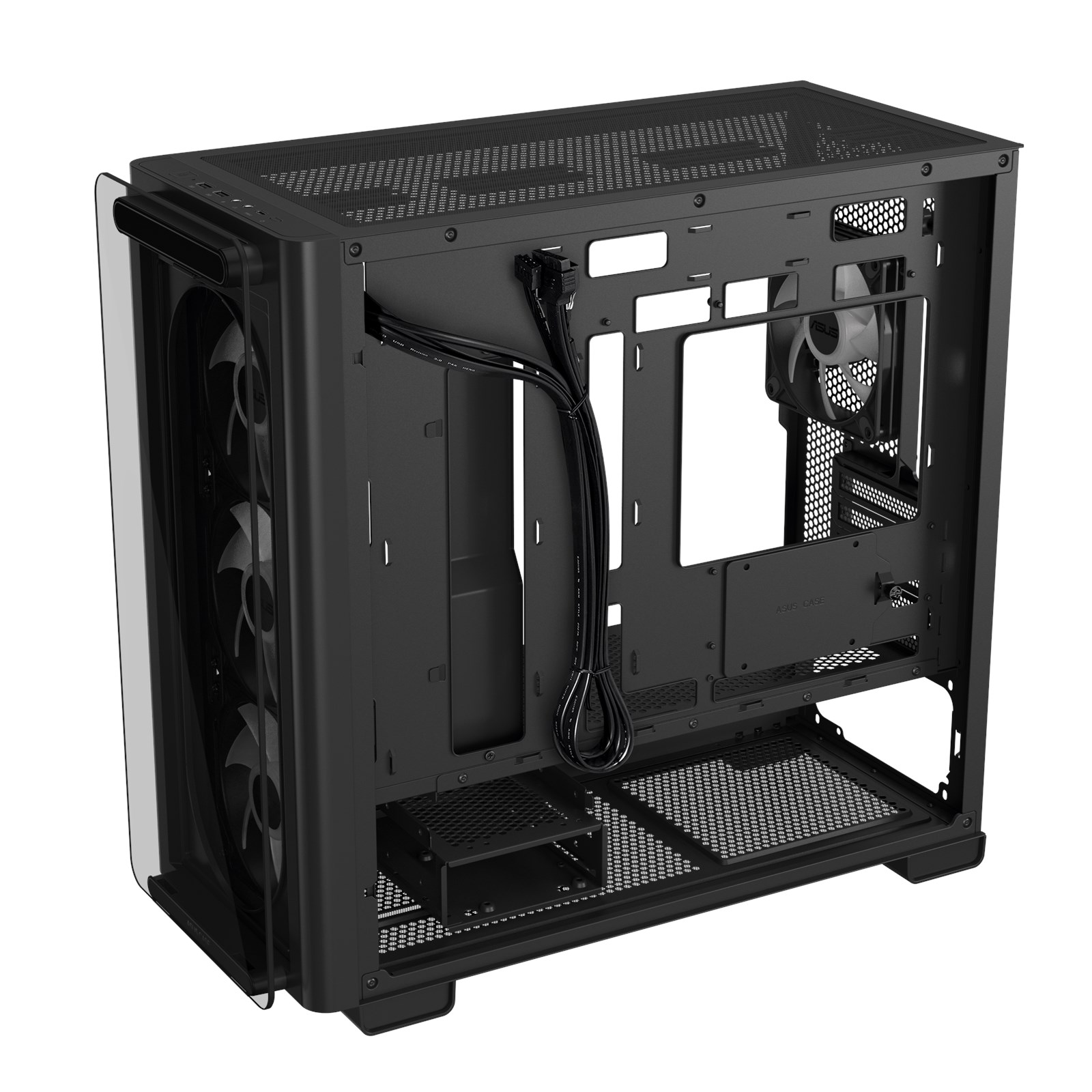

The A23 PLUS provides a compartment behind the motherboard that is 33 mm wide to help you keep your wiring tucked away and tidy.
COLOR-COORDINATED BUILDS
Both variants of the A23 PLUS come with color-coordinated black or white internal I/O cables to compliment your build theme.
ASUS A23 PLUS Mid Tower Gaming Case Black
Storage
| Internal Expansion Bays | 1 x 2.5" 2 x 2.5"/3.5" |
Expansion
| Expansion Slots | 5 x Full Height |
Interfaces/Ports
| USB Ports | 1 x USB-C 3.1 2 x USB 3.0 |
| Headphone Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
Electrical
| Cooling System | Front: Supports 2 x 140mm or 3 x 120mm fans (3 x 120mm ARGB fans included) Top: Supports 2 x 140mm or 120mm fans Rear: Supports 1 x 120mm fan (ARGB fan included) |
| Power Supply | ATX Power Supply supported |
Physical
| Form Factor | Mid Tower |
| Case Colour | Black |
| Motherboard Compatibility | mATX Mini-ITX |
| Width | 220 mm |
| Depth | 479 mm |
| Height | 450 mm |
| Weight | 8.9 kg |
Warranty
| Warranty | 2 Years |
Key Features
| Max Motherboard Width | 244 mm |
| Max Motherboard Height | 244 mm |
| Supports AIO Cooler | Yes |
| Main Colour | Black |
| Case Type | Tower |
| Case Form Factor | Mid Tower |
| Power Supply Included | No |
| Optimised for | Gaming |
| 80Plus Rated | No |
| PSU Form Factor | ATX |
| Illuminated | No |
| L.E.D Fan | ARGB |
| Max 3.5" Drives | 2 |
| Max 2.5" Drives | 3 |
| ATX | No |
| Micro-ATX | Yes |
| ITX | Yes |
| E-ATX | No |
| Cooler Height | 165 mm |
| Built-in Card Reader | No |
| USB Type-C Support | Yes |
| Side Panel Type | Tempered Glass |
| GPU Length | 380 mm |
| PSU Depth | 210 mm |
| Number of Fans | 4 fan(s) |
| RGB LED Controller Included | No |
| LED Strip(s) Included | No |
| Maximum Motherboard Size Supported | mATX |
| RGB Software Type | None |
| Total 2.5" + 3.5" drive bays | 3 |
| Power Requirement (auto) | 12 W |
| USB3.0 ports | 2 |
| USB-C ports | 1 |
| Low profile expansion | No |
| Max Supported Radiator Length | 360 mm |
| Create Your Own Gaming PC (CCL) | Yes |
| Back Connect Support | Yes |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90DC00K0-B19010 |
| EAN | 4711387701133 |
