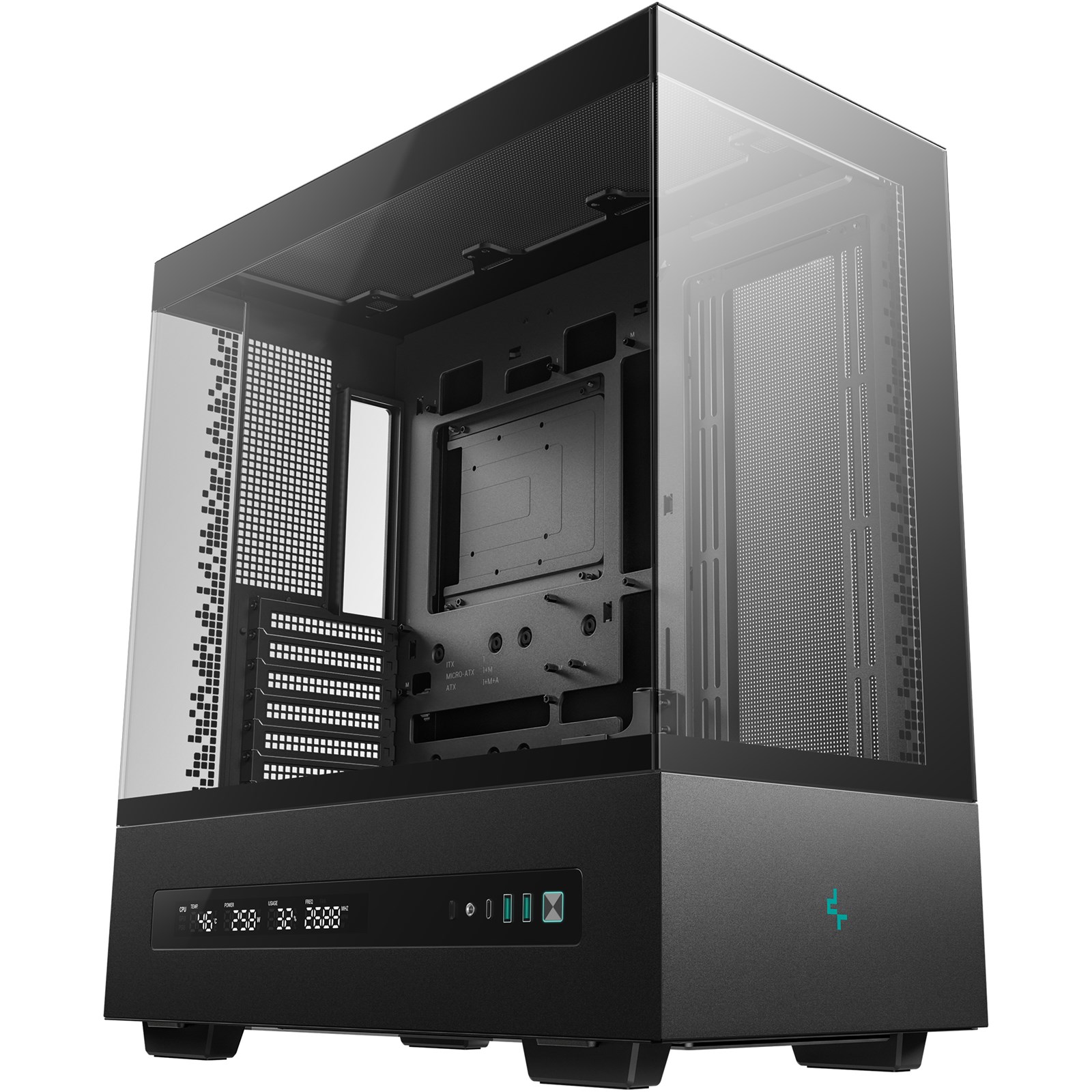

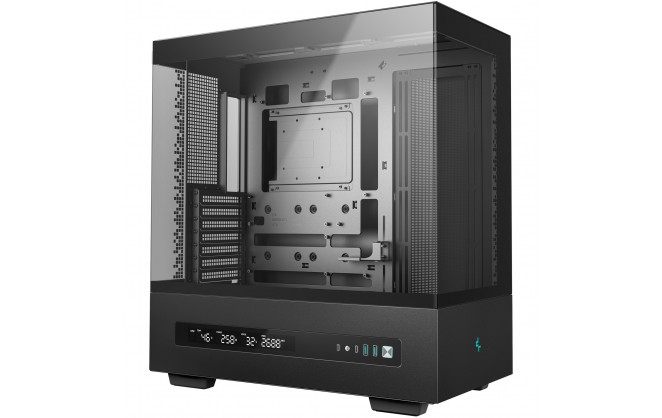

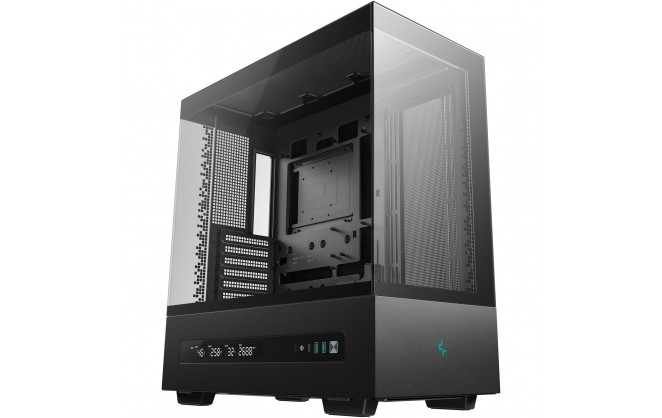

The CH690 DIGITAL is designed with beauty and adaptability in mind, featuring a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow. Additionally, the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere, blending aesthetics with functionality for a truly personalized setup.
The CH690 DIGITAL is engineered for exceptional versatility, accommodating a 180mm PSU and a 450mm GPU with ease. It features up to 8 individual removable expansion slots, providing flexibility for various configurations. Storage options include 1 x 3.5" drive bay and 2 x 2.5" drive bays, ensuring ample space for data needs. This case is designed to support a wide range of components, making it an ideal choice for either gaming and professional setups.

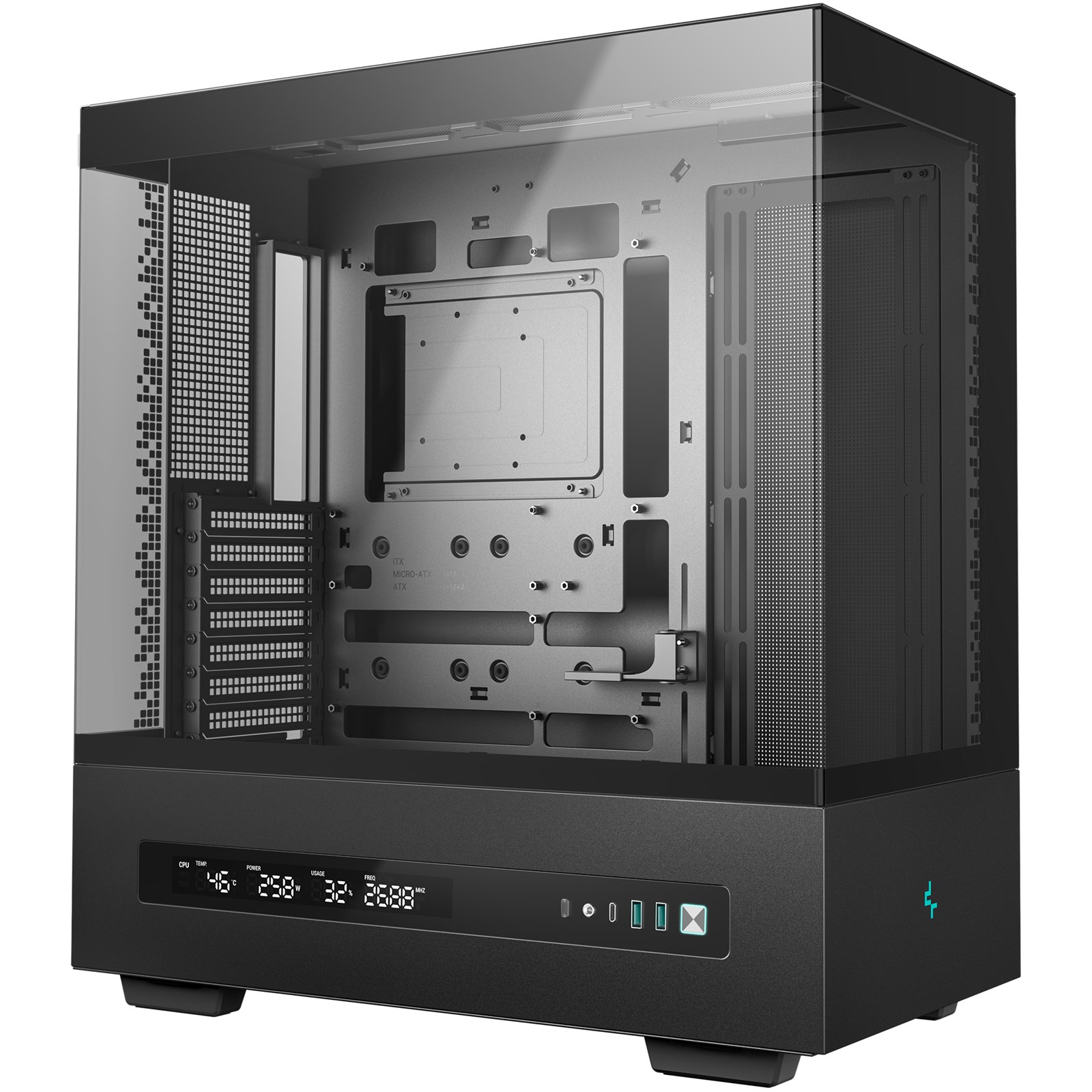

The CH690 DIGITAL case features a cutting-edge digital display that offers real-time monitoring of system's vital statistics. With switchable modes for CPU, GPU, and PSU, effortlessly track temperature in Fahrenheit or Celsius, power consumption, usage, and frequency. The CPU mode also includes fan speed monitoring, while the PSU mode provides additional insights into fan performance. This sophisticated display transforms the system into a high-tech command center, allowing optimal performance and efficiency at a glance.
The CH690 DIGITAL is designed to adapt to versatile configurations, ensuring efficient heat dissipation through its innovative mesh-designed PSU shroud that creates a vertical airflow channel. It accommodates a wide range of radiator sizes, including up to 420mm on the top, 280mm on the side, and 360mm within the PSU shroud. Additionally, it supports various fan configurations, allowing for up to 3×140mm fans on the top, side, and PSU shroud, along with a 140mm fan at the rear. With the capability to support CPU coolers up to 182mm in height, the CH690 DIGITAL is engineered to maintain optimal temperatures for high-performance systems.
The CH690 DIGITAL is designed for convenience and durability, featuring an adjustable GPU holder that provides essential support to prevent GPU sagging resulting to motherboard damage. Its front I/O ports include USB dual 3.0, Audio Jack, and USB Type-C, ensuring easy access to external devices. The CH690 DIGITAL also supports rear connector motherboards with a generous 36.5mm width for cable management for effortless organization. Additionally, the bottom of the case is equipped with a magnetic air filter pad, offering easy cleaning and effective dust prevention.
DeepCool CH690 DIGITAL Mid Tower Gaming Case Black
Storage
| Internal Expansion Bays | 2 x 2.5" 1 x 2.5"/3.5" |
Expansion
| Expansion Slots | 8 x Full Height |
Interfaces/Ports
| USB Ports | 1 x USB-C 3.1 2 x USB 3.0 |
| Headphone Ports | 1 x 3.5mm COMBO Jack |
| Microphone In Port | Shared with Headphone |
Electrical
| Cooling System | Top: Supports 3 x 140mm or 120mm fans Side: Supports 3 x 140mm or 120mm fans PSU Shroud: Supports 3 x 140mm or 120mm fans Rear: Supports 1 x 140mm or 120mm fan |
| Power Supply | ATX Power Supply supported |
Physical
| Form Factor | Mid Tower Case |
| Case Colour | Black |
| Material | ABS SPCC Tempered Glass |
| Motherboard Compatibility | ATX mATX Mini-ITX |
| Width | 240 mm |
| Depth | 481 mm |
| Height | 516 mm |
| Weight | 9.8 kg |
Warranty
| Warranty | 2 Years |
Key Features
| Max Motherboard Width | 244 mm |
| Max Motherboard Height | 305 mm |
| Supports AIO Cooler | Yes |
| Main Colour | Black |
| Case Type | Tower |
| Case Form Factor | Mid Tower |
| Power Supply Included | No |
| Optimised for | Gaming |
| 80Plus Rated | No |
| PSU Form Factor | ATX |
| Illuminated | No |
| L.E.D Fan | No LED |
| Max 3.5" Drives | 1 |
| Max 2.5" Drives | 3 |
| ATX | Yes |
| Micro-ATX | Yes |
| ITX | Yes |
| E-ATX | No |
| Cooler Height | 182 mm |
| Built-in Card Reader | No |
| USB Type-C Support | Yes |
| Side Panel Type | Tempered Glass |
| GPU Length | 450 mm |
| PSU Depth | 180 mm |
| RGB LED Controller Included | No |
| LED Strip(s) Included | No |
| Maximum Motherboard Size Supported | ATX |
| RGB Software Type | None |
| Total 2.5" + 3.5" drive bays | 3 |
| USB3.0 ports | 2 |
| USB-C ports | 1 |
| Low profile expansion | No |
| Max Supported Radiator Length | 420 mm |
| Create Your Own Gaming PC (CCL) | No |
| Back Connect Support | Yes |
Item Details
| Manufacturer | DeepCool |
| Manufacturer Code | R-CH690-BKNNA0D-G-1 |
| EAN | 6933412774037 |
