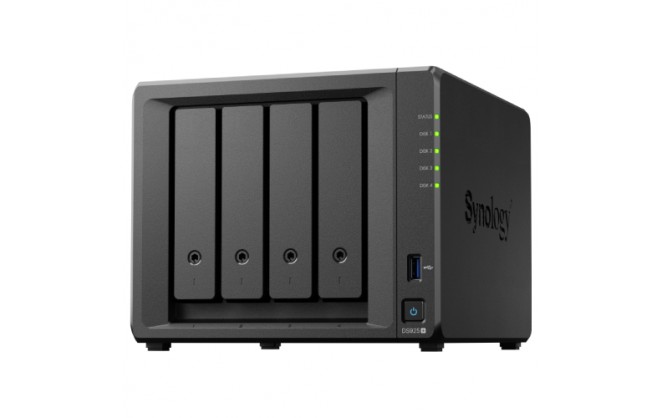

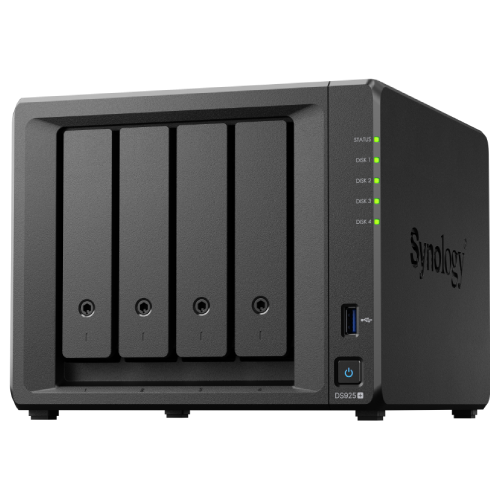

Synology DS925+ 4-Bay NAS Enclosure

  • Part Number: DS925+
  • Manufacturer: Synology
  • Quickfind Code: 603073
  • Stock: Out Stock

£583.89 ex. vat
£700.67 inc. vat

Product Features:
  • Condition:
  • Capacity Diskless
  • Number of Bays 4
  • Main Colour Black
+ Read More Information

Share:

Product Description

Synology DS925+ 4-Bay NAS Enclosure



Please note: This NAS is only compatible with Synology branded HDDs. Please ensure compatibility before purchasing.



The Synology DS925+ 4-Bay NAS is a capable NAS solution that can adapt to growing storage demands, with support for up to nine (9) drives when combined with an expansion unit (sold separately). It also features two (2) M.2 NVMe slots for caching, and built-in 2.5GbE. Powered by Synology DiskStation Manager (DSM), it offers a flexible all-in-one solution for data sharing, synchronisation, backup, and surveillance.

Key Features

  • Dependable Performance
    Up to 522/565 MB/s sequential read/write throughput supports stable data transfers.
  • Fast and Flexible Networking
    Two (2) 2.5GbE ports provide fast network transfer speeds and increased redundancy.
  • Versatile Network Storage
    Leverage built-in file and photo management, data protection, virtualisation, and surveillance solutions.
  • Capacity Expansion
    Add five (5) extra drive bays for up to 180TB of storage with a DX525 expansion unit (sold separately).

Versatile Storage for Any Purpose

The DS925+ offers intuitive and comprehensive file management, media organisation, and backup options right out of the box. Its capable performance and compact size make it perfect for users with space constraints, including IT enthusiasts, creative professionals, and businesses of all sizes. It is an ideal edge device for branch offices or retail locations for small firms or large enterprises.

  • Up to 522 MB/s sequential read and 565 MB/s sequential write performance enables fast file sharing, syncing, streaming, and backup for multiple users.
  • Two (2) 2.5GbE ports offer fast networking, with Link Aggregation supporting failover and load balancing capabilities.
  • Supports four (4) 2.5" SATA SSDs and 3.5" SATA HDDs (sold separately). Synology hard drives and SSDs are designed to integrate seamlessly with Synology systems, delivering exceptional reliability.
  • Expandable to nine (9) drives with Synology DX525 expansion unit (see accessories tab).
  • Two (2) built-in M.2 slots provide SSD caching capability without occupying drive bays.

Ease of Use and Security Features

A suite of convenience and security features, combined with DSM's intuitive UI, ensures a seamless experience for users of all levels of expertise.

  • Easily access your system from any web browser via QuickConnect.
  • Adaptive Multi-Factor Authentication (AMFA) triggers upon suspicious external logins, providing an additional layer of security.
  • Improve management efficiency with customisable delegation roles, allowing admins to quickly assign roles to non-admin users while restricting access to critical system settings.
  • Active Insight, Synology’s cloud-based fleet monitoring solution, leverages machine learning to detect malware and other malicious activity and automatically creates immutable snapshots to protect your data.

Built-in Data Protection Solutions

Licence-free solutions help protect data and configurations on your Synology system, ensure maximum system uptime, and back up and restore all your devices, VMs, and cloud applications.

  • Synology Active Backup Suite consolidates backup tasks and offers rapid restoration of Windows and Linux endpoints, VMs, Synology NAS, and SaaS applications.
  • Hyper Backup backs up your Synology system data to multiple destinations securely and efficiently with integrity checks and powerful deduplication, compression, and versioning options.
  • Snapshot Replication provides schedulable, near-instantaneous data protection with version control, ensuring that all shared folders and LUNs on your Synology system remain safe and available.
  • C2 Storage for Hyper Backup offers a dedicated secure public cloud destination for Synology NAS backup data.

A Collaboration, Communication, and Organisation Hub

Synology provides a private cloud solution for on-site and remote workers, as well as home users, to concurrently edit documents, share files, manage emails, send instant messages, manage photos, and more.

  • Synology Drive serves as a centralised hub to keep your files labelled and organised for easy access, offering granular file sharing permissions and customisable security features to ensure file safety.
  • Synology Photos provides a comprehensive solution for storing, organising, and sharing photos and videos, with powerful features suitable for both personal and professional use.
  • Synology Office enables users to collaborate on documents, spreadsheets, and presentation slides in real time, supported by convenient options such as file versioning for easy restoration and password protection.
  • Synology Chat brings teams together with one-on-one chats, group chats, and encrypted private channels over multiple platforms.
  • Synology MailPlus provides a secure, reliable, and private email server.
  • Synology Calendar helps teams keep track of priorities with convenient calendar sharing and scheduling.
  • Synology Hybrid Share enhances multi-site teamwork with a global hybrid cloud file system which combines the scalability of the cloud with the fast local access provided by Synology systems.

Private Video Surveillance

Synology Surveillance Station transforms any Synology system into a powerful network video recorder (NVR).

  • 8,700+ supported camera models.
  • ONVIF support for a broader selection of cameras.
  • Private, subscription-free storage of recordings.
  • Access through web browsers, desktop clients, and mobile apps.
  • Event-based rules to trigger specific actions.
  • Email, SMS, and push notification options.
  • Simultaneous recording to the cloud with C2 Backup for Surveillance for an extra layer of data protection and more convenient sharing.
Technical Specification

Synology DS925+ 4-Bay NAS Enclosure

Specifications

CPU

CPU Model

  • AMD Ryzen V1500B

CPU Quantity

  • 1

CPU Architecture

  • 64-bit

CPU Frequency

  • 2.2 GHz

Hardware Encryption Engine

  • Yes

Memory

System Memory

  • 4 GB DDR4 ECC SODIMM

Memory Module Pre-installed

  • 4 GB (4 GB x 1)

Total Memory Slots

  • 2

Maximum Memory Capacity

  • 32 GB (16 GB x 2)
  • Notes: Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

Storage

Drive Bays

  • 4

Maximum Drive Bays with Expansion Unit

  • 9 (requires DX525, sold separately)

Drive types

  • 3.5" SATA HDD (only Synology drives are compatible)
  • 2.5" SATA SSD (only Synology drives are compatible)
  • M.2 2280 NVMe SSD (only Synology drives are compatible)

Hot swappable drives

  • Yes (only Synology drives are compatible)

External Ports

RJ45 2.5GbE LAN Port

  • 2

USB 3.2 Gen 1 Port

  • 2

Expansion Port

  • 1

Appearance

Size (Height x Width x Depth)

  • 166 mm x 199 mm x 223 mm

Weight

  • 2.26 kg

Others

System Fan

  • 92 mm x 92 mm x 2 pcs

AC Input Power Voltage

  • 100V to 240V AC

Power Frequency

  • 50/60 Hz, Single Phase

Temperature

Operating Temperature

  • 0°C to 40°C (32°F to 104°F)

Storage Temperature

  • -20°C to 60°C (-5°F to 140°F)

Relative Humidity

  • 5% to 95% RH

General DSM Specifications

Storage Management

Maximum Single Volume Size

  • 200 TB (32 GB memory required)
  • 108 TB

Maximum Internal Volume Number

  • 32

SSD Read/Write Cache

  • Yes

Supported RAID Type

  • Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

Notes

  • Creating M.2 storage pools requires the use of Synology-verified SSDs, which are rigorously tested under extreme temperature conditions. Thermal parameters for SSDs and NAS units are fine-tuned to ensure optimal management of thermal conditions under I/O-intensive environments.
  • Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
  • Volumes over 108 TB require DSM 7.2-64570 or above and 32 GB of memory or more.

File System

Internal Drives

  • Btrfs, ext4

External Drives

  • Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT

File Services

File Protocol

  • SMB, AFP, NFS, FTP, WebDAV, Rsync

Maximum Concurrent SMB/AFP/FTP Connections

  • 1,000

Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)

  • 2,000

Windows Access Control List (ACL) Integration

  • Yes

NFS Kerberos Authentication

  • Yes

Account & Shared Folder

Maximum Local User Accounts

  • 2,048

Maximum Local Groups

  • 256

Maximum Shared Folder

  • 512

Maximum Shared Folder Sync Tasks

  • 16

Virtualisation

VMware ESXi 6.5 and VAAI

  • Yes

Windows Server 2022

  • Yes

Citrix Ready

  • Yes

OpenStack

  • Yes

Security

Security

  • Firewall, encryption shared folder, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, HTTPS (customisable cipher suite)

General Specifications

Supported Protocols

  • SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberised sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Supported Browsers

  • Chrome, Firefox, Edge, Safari

Supported Language

  • English
  • German
  • French
  • Italian
  • Spanish
  • Danish
  • Norwegian
  • Swedish
  • Dutch
  • Russian
  • Polish
  • Hungarian
  • Portuguese (Brazil)
  • Portuguese (Europe)
  • Turkish
  • Czech
  • Thai
  • Japanese
  • Korean
  • Chinese (Traditional)
  • Chinese (Simplified)

Packages and Applications

Synology Drive

  • Synchronises files across Windows, macOS, Linux, Android and iOS. The built-in cross-platform portal allows access to data anytime and anywhere

Suggested Users

  • 9,300 (the number of connections that can be maintained when the recommended number of hosted files was reached)

Recommended Number of Hosted Files

  • 50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)

File Station

  • Provides virtual drives, remote folders, Windows ACL editor, compression/extraction of archived files, bandwidth control for specific users/groups, creation of sharing links, and transfer logs

Hybrid Share

  • Efficiently synchronises files across sites by keeping shared data on Synology C2 Storage and streaming files to Synology NAS worldwide on request. Frequently requested files are cached at each site for low-latency access C2 Storage for Hyper Backup and Hybrid Share requires purchase of an annual or monthly subscription. A free trial is available for each newly registered device.

SAN Manager

  • Maximum iSCSI Target Number: 128
  • Maximum LUN: 256
  • LUN Clone/Snapshot, Windows ODX: Yes

Virtual Machine Manager

  • Recommended Virtual Machine Instances: 8
  • Recommended Virtual DSM Number: 8 (including 1 free licence, additional licences sold separately)

Hyper Backup

  • Supports local backup, network backup, and data backup to other servers and public clouds, including C2 Storage

Snapshot Replication

  • Maximum Snapshots per Shared Folder: 1,024
  • Maximum of System Snapshots: 65,536

Synology High Availability

  • Reduces service downtime by combining two identical NAS into a high-availability cluster

Synology Chat

  • Suggested Users: 150

Synology Office

  • Suggested Users: 8,600

Synology MailPlus / MailPlus Server

  • A secure, reliable, and private mail solution featuring high-availability, load balancing, security, and filtering options
  • Free Email Accounts: 5 (additional accounts require purchase of licences)
  • Suggested Users: 3,500

Surveillance Station

  • Default Licences: 2 (additional cameras require purchase of licences)
  • Suggested Maximum IP Cameras and Total FPS (H.264):
    • 1080p: 40 channels, 1050 FPS
    • 3M: 40 channels, 600 FPS
    • 5M: 30 channels, 360 FPS
    • 4K: 20 channels, 200 FPS
  • Suggested Maximum IP Cameras and Total FPS (H.265)
    • 1080p: 40 channels, 1200 FPS
    • 3M: 40 channels, 1000 FPS
    • 5M: 40 channels, 600 FPS
    • 4K: 30 channels, 300 FPS

Central Management System

  • Provides a single interface to manage and monitor multiple Synology NAS

VPN Server

  • Maximum Connections: 40

Other packages

  • Additional 3rd-party packages are available in the Package Centre

Environment & Packaging

Environment safety

  • RoHS Compliant

Packaging Content

  • 1 x DS925+ 4-Bay NAS
  • 1 x Accessory Pack
  • 1 x AC Power Adapter
  • 1 x AC Power Cord
  • 2 x RJ45 LAN Cable
