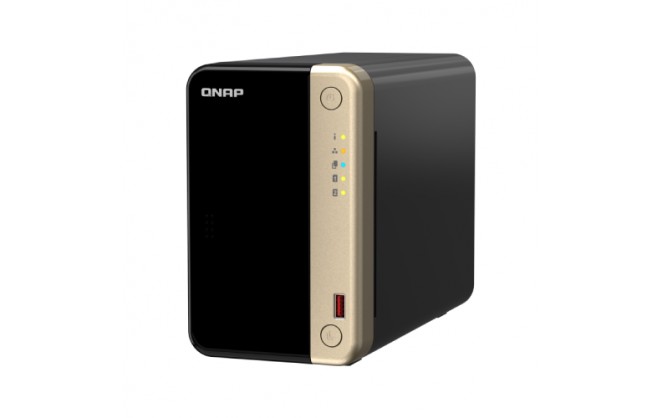

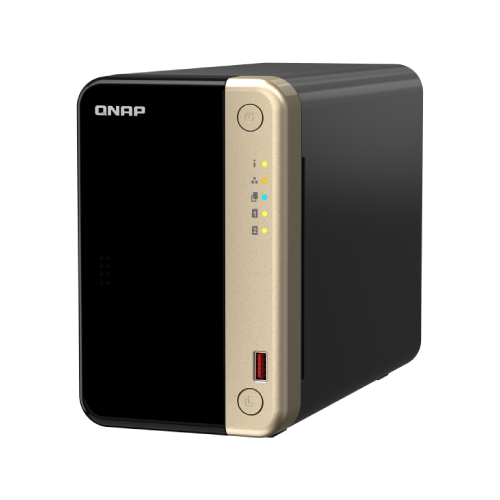

QNAP TS-264 2-Bay NAS Enclosure

  • Part Number: TS-264
  • Manufacturer: Qnap
  • Quickfind Code: 603069
  • Stock: Out Stock

£459.89 ex. vat
£551.87 inc. vat

Product Features:
  • Condition:
  • Capacity Diskless
  • Number of Bays 2
  • Main Colour Black
+ Read More Information

Share:

Product Description

QNAP TS-264 2-Bay 8GB RAM Desktop NAS Enclosure

The QNAP TS-264 2-Bay NAS Enclosure, powered by an Intel Celeron N5095, quad-core processor (burst up to 2.9GHz), features two (2) 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-264 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards (SSDs and PCIe cards sold separately). The TS-264 comes with 8 GB RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.

Key Features

  • Capacity
    Un-populated two (2) bay network attached NAS storage device.
  • 2.5GbE connectivity
    Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two (2) built-in 2.5GbE (2.5G/1G/100M) ports.
  • M.2 SSD caching
    Dual M.2 PCIe Gen 3 slots (SSDs sold separately) enable NVMe SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.
  • CPU and Memory
    Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz, 8 GB on board (non-expandable).
  • PCIe expandability
    Install a PCIe Gen3 x2 card to expand the core functionality of the TS-264, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card (all sold separately, see accessories tab).
  • 4K HDMI
    4K H.264 hardware decoding and real-time transcoding for smooth big screen multimedia experience.
  • Drives Auto-Tiering
    Qtier auto-tiering technology and SSD caching enable constant storage optimisation.
  • Licence-free virtualised environment
    Host multiple containerised apps to run a wide range of applications and services.

Quad-core high performance and 8 GB RAM

The TS-264 is powered by an Intel Celeron N5095 quad-core processor, features two (2) 2.5GbE ports and supports SATA 6 Gb/s drives and up to 8 GB DDR4 memory. The integrated Intel AES-NI encryption engine also helps protect confidential data without impacting system performance.

Accelerate AI–powered image recognition and caching with TPU and PCIe expansion

The TS-264 has two (2) M.2 PCIe Gen3 slots, enabling SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.

Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage

The TS-264 supports SSD caching and features two (2) M.2 slots that support M.2 PCIe NVMe SSDs with 2280 form factors (sold separately) for boosting overall NAS performance. Qtier technology can also be used to empower the TS-264 with auto tiering that helps continuously optimise storage efficiency across all installed storage devices.

Accelerate AI–powered image recognition with TPU

By leveraging a Google Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-264 can perform high-speed face and object recognition. Google Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyse real-time video for instant facial recognition.

SSD caching and auto-tiering enable 24/7 optimised storage efficiency

While SSD prices continue to fall, and SSD capacity and performance continue to increase, organisations can easily take advantage of SSD strengths. The TS-264 supports numerous SSD-aware features that significantly maximise NAS performance with high cost-effectiveness.

  • SSD over-provisioning
    You can add additional SSD over-provisioning (1% ~ 60%) to avoid write amplification and improve SSD random write speeds and endurance. You can potentially attain enterprise-grade SSD performance levels from affordable consumer SSDs!
  • SSD cache acceleration
    Enables SSD caching for increasing IOPS performance and reducing latency for storage volume. This feature is perfect for IOPS-demanding applications including databases and virtualisation. The TS-264 also supports write-only cache to boost write-intensive applications.
  • Qtier for auto-tiering
    Qtier technology drives auto-tiered storage with continuous data optimisation across high-performance SSDs and high-capacity HDDs based on access frequency. I/O-Aware Qtier can reserve a cache-like space in the SSD tiered to handle burst I/O in real time.

Streamline large file transfers and video editing with 2.5GbE

The TS-264 comes with two (2) 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1-Gigabit to 2.5-Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.

Future-proof your IT infrastructure for high-speed networks

The TS-264 is ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches (sold separately) to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters (sold separately) for Windows/Linux workstations, allowing you to easily build a high-speed network environment for productive team collaboration.

Enhance productivity with multiple USB ports

With two (2) USB 3.2 Gen 2 (10Gbps) ports and two (2) USB 2.0 (480Mbps) ports, you can quickly backup and transfer large files to/from the TS-264. UPS and other compatible USB devices can also be connected for greater functionality and application potential.

Abundant I/O capabilities with PCIe expansion

The TS-264 has one (1) PCIe Gen 3 x2 slot that allow for installing various expansion cards (sold separately) for expanding application potential.

  • 2.5/5/10GbE network card
    Enable lightning-fast throughput for bandwidth-demanding tasks (virtualisation, massive data transmission, fast backup/restore).
  • QM2 card
    Add M.2 SSD caching, Edge TPU or 10GbE network connectivity to the NAS for optimise performance and bandwidth.
  • USB 3.2 Gen 2 (10Gbps) card
    Add extra USB ports to the TS-264.
  • Wireless adapter
    Install a QXP-W6-AX200 WiFi 6 wireless adapter (sold separately) to turn the TS-264 into a wireless NAS. Or make the TS-264 a wireless access point by installing the QWA-AC2600 wireless adapter (sold separately) and the WirelessAP Station app.

Direct 4K HDMI output for multimedia and virtual machine display

The TS-264 features Intel UHD Graphics that supports dual-channel hardware decoding and real-time transcoding. The HDMI 2.0 output supports up to 4K, providing great benefits for applications like video production/editing or industrial design that demands high resolution and colour realism as well as intensive media storage, transfer, and display. By connecting the TS-264 to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-264 as a versatile workstation by directly outputting virtual machines from Virtualisation Station or Ubuntu Linux Station.

  • Note: The TS-264’s hardware provides hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.

Faster image identification with integrated Intel OpenVINO AI engine

With integrated Intel OpenVINO AI computing resources, the TS-264 accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.

  • QuMagie photo management
    Easy-to-use photo management solution that integrates AI image recognition and intelligent classification for your collection.

QTS 5, Fast, smooth, and easy-to-use!

The TS-264 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimised user interface, and advanced security features.

  • Brighter and smoother
    When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favourite apps quicker.
  • Get started with the notice board
    When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.
  • Smooth and reactive user interface
    Whether clicking buttons, switching between apps, or expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.

Comprehensive backup and disaster recovery solution

The TS-264 supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

  • PC/Laptop backup
    For Windows, install NetBak Replicator to back up your PC to QNAP NAS. In macOS, just set up the built-in Time Machine to secure your data.
  • Remote backup for NAS
    Hybrid Backup Sync makes it easy to back up data from a TS-264 to another QNAP NAS or remote server to fulfil your 3-2-1 backup strategy.
  • VM backup
    Enjoy licence-free VMware and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.
  • SaaS backup
    Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google Workspace and Microsoft Office 365 to the NAS.
    • Note: Minimum memory requirements are 2 GB available and 4 GB installed.
  • Cloud backup for NAS
    Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.
  • QuDedup technology
    Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.

Multi-version snapshots mitigate ransomware threats

The TS-264 supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

  • Volume and LUN snapshots
    Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.
  • Instantly restore snapshots
    Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.
  • Back up snapshots
    Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-264 to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.

All-in-one solution for hosting virtual machines and containers

By running multiple virtual machines and containers on the TS-264, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

  • Virtualisation Station
    Run multiple Windows, Linux, UNIX, Android, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualised server applications on a single NAS without needing additional physical servers.
  • Container Station
    Experience Docker, LXD, and Kata Containers lightweight virtualisation technologies, download apps from the built-in Docker Hub Registry, import/export containers, and create abundant microservices.
  • Linux Station
    Run Linux applications (including apps from the Software Centre) directly on the NAS and remotely access the Linux desktop from a web browser. The open-source Linux platform is also ideal for Internet of Things development.

Comprehensive security and privilege settings

The TS-264 is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.

  • myQNAPcloud secures remote access
    myQNAPcloud allows convenient connection to the TS-264 through the internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.
  • Simplified privilege settings
    The TS-264 supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.
  • QuFirewall protection
    Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.
  • Superior security with QVPN
    A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-264 as a VPN server, and WireGuard VPN service with an easy-to-use interface for setting up a secure connection.
  • QuWAN SD-WAN
    To facilitate digital transformation, multi-site expansion and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms.
  • Security Counselor
    A security portal for the TS-264 to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
  • Malware Remover
    Regularly scan your TS-264 using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.

The best file storage and collaboration centre

The TS-264 integrates rich apps for storing, managing, synchronising, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows, Mac, and Linux/UNIX, and provides the smartest NAS solution for professionally managing your files.

  • File Station
    Manage, access, and share all the files in the TS-264 and view snapshots files – all from your web browser. You can also easily mount remote NAS folders and cloud storage.
  • Qsync
    Make any file uploaded to a TS-264 available to linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.
  • Qsirch
    QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, colour, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.
  • Qfiling
    Automate your file organisation - all you need to do is categorise files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.

Smart surveillance solution for 24/7 security

QVR Elite (licence sold separately) is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-264 and enjoy simplified camera management, storage space allocation, camera live viewing and playback.

Flexible and economical storage expansion

QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-264 storage as needed to accommodate data and business growth.

  • Attach QNAP expansion enclosures
    Connect expansion enclosures (sold separately) to the TS-264, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.
  • Mount cloud storage or remote file servers
    Mount cloud storage or remote file servers to expand the capacity of the TS-264 while also centrally managing files on the NAS, cloud storage, and remote devices.
  • Migrate to a new NAS
    Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
  • Upgrade RAID capacity
    Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.

More productivity-boosting applications

The TS-264 provides an App Centre that includes feature-rich apps to expand your NAS potential.

  • QuObjects
    Run a high-performance S3 compatible development environment on your TS-264 to simplify service development workflows from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.
  • Notification Centre
    Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.
  • Proxy Server
    By using a high-capacity TS-264 as a proxy server, online resources can be efficiently accessed with greater cost-savings and productivity, while network security is also enhanced at the same time.
  • QmailAgent
    The best email backup solution that allows you to easily backup/recover and manage multiple email accounts in their native format with strong security and data integrity.
  • Qcontactz
    Centrally manage all your contacts, import contacts from Google, import/export contact information using CSV or vCard files, and enjoy an always-online database of contact information.
  • QuFTP
    The TS-264 can perform as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.

A health check for your hard drives

Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.

  • S.M.A.R.T. and back block scanning
    If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.
  • DA Drive Analyser
    The DA Drive Analyser leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.
  • Seagate IronWolf Health Management
    When using supported IronWolf or IronWolf Pro hard drives (sold separately), overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.
Technical Specification

QNAP TS-264 2-Bay NAS Enclosure

Hardware Specifications

CPU

  • Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz

CPU Architecture

  • 64-bit x86

Graphic Processors

  • Intel UHD Graphics

Floating Point Unit

  • Yes

Encryption Engine

  • Yes (AES-NI)

Hardware-accelerated Transcoding

  • Yes

System Memory

  • 8 GB on board (non-expandable)

Maximum Memory

  • 8 GB

Flash Memory

  • 4GB (Dual boot OS protection)

Drive Bay (un-populated)

  • 2 x 3.5-inch SATA 6Gb/s

Drive Compatibility

  • 3.5-inch SATA hard disk drives
  • 2.5-inch SATA solid state drives

Hot-swappable

  • Yes

M.2 Slot

  • 2 x M.2 2280 PCIe Gen 3 x1

SSD Cache Acceleration Support

  • Yes

2.5 Gigabit Ethernet Port (2.5G/1G/100M)

  • 2 (2.5G/1G/100M/10M)

5 Gigabit Ethernet Port (5G/2.5G/1G/100M)

  • Optional via PCIe expansion card (sold separately)

10 Gigabit Ethernet Port

  • Optional via PCIe expansion card (sold separately)

Wake on LAN (WOL)

  • Yes

Jumbo Frame

  • Yes

PCIe Slot

  • Slot 1: PCIe Gen 3 x2
    • Note: Card dimensions for PCIe slot: 190 x 68.9 x 18.76 mm / 7.48 x 2.71 x 0.74 in.

USB 2.0 port

  • 2

USB 3.2 Gen 2 (10Gbps) Port

  • 2 x Type-A

IR Sensor

  • Yes (via optional QNAP RM-IR004 remote control, sold separately)

HDMI Output

  • 1 x HDMI 2.0 (up to 4096 x 2160 @ 60Hz)

Form Factor

  • Tower

LED Indicators

  • Power/Status, LAN, USB, HDD1-2

Buttons

  • Power, USB copy, Reset

Dimensions (H x W x D)

  • 168 x 105 x 226 mm

Weight (Net)

  • 1.55 kg

Weight (Gross)

  • 2.68 kg

Operating Temperature

  • 0°C - 40°C (32°F - 104°F)

Storage Temperature

  • -20°C - 70°C (-4°F - 158°F)

Relative Humidity

  • 5% - 95% RH non-condensing, wet bulb: 27°C (80.6°F)

Power Supply Unit

  • 65W adapter, 100-240V

Power Consumption: HDD Sleep Mode

  • 18.288 W

Power Consumption: Operating Mode, Typical

  • 29.086 W (tested with drives fully populated)

Fan

  • 1 x 70mm, 12VDC

System Warning

  • Buzzer

Kensington Security Slot

  • Yes

Max. Number of Concurrent Connections (CIFS) - with Max. Memory

  • 1500

Software Specifications

Operating System

  • QTS 5.0.1

Supported Client Operating Systems

  • Apple Mac OS 10.10 or later
  • Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
  • IBM AIX 7, Solaris 10 or later UNIX
  • Microsoft Windows 7, 8, 10 and 11
  • Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, and 2019

Supported Browsers

  • Apple Safari (latest version)
  • Google Chrome (latest version)
  • Microsoft Edge (latest version)
  • Mozilla Firefox (latest version)

Supported Languages

  • Chinese (Traditional & Simplified)
  • Czech
  • Danish
  • Dutch
  • English
  • Finnish
  • French
  • German
  • Greek
  • Hungarian
  • Italian
  • Japanese
  • Korean
  • Norwegian
  • Polish
  • Portuguese (Brazil)
  • Romanian
  • Russian
  • Spanish
  • Swedish
  • Thai
  • Turkish

Storage Pool

  • Yes

SED Storage Pool

  • Yes

Maximum Pool size

  • 308 TB

Maximum number of storage pool

  • 128

Volume Type

  • Thick, Thin, Static

Maximum volume size

  • 250 TB
    • Note: At least 4 GB RAM is required.

Maximum number of volume

  • 128

Maximum shared folder size

  • 250 TB

Maximum number of shared folder

  • 512

JBOD Expansion

  • Yes

VJBOD / VJBOD Cloud

  • Yes

iSCSI Service

  • Yes

Fibre Channel Service

  • Yes

LUN Type

  • Thick, Thin

File-based iSCSI LUN

  • Yes

Block-based iSCSI LUN

  • Yes

Maximum LUN size

  • 250 TB
    • Note: At least 4 GB RAM is required.

Maximum number of targets LUN

  • 128

LUN feature

  • LUN Mapping (LUN can be moved between iSCSI and FC)
  • LUN Masking
  • WWPN Aliases Import/Export
  • FC Port Group
  • FC Port Binding
  • Multipath IO (MPIO)
  • Online LUN capacity expansion
  • LUN snapshot
  • LUN snapshot replication and clone

Auto Tiering

  • Yes
    • Note: Requires minimum 2GB memory.

RAID Type

  • 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
  • 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
  • 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
  • 2-bay: JBOD, Single, RAID 0, 1

RAID Group

  • Yes
    • Note: To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.

RAID Level Migration

  • Yes

RAID Expansion (by adding Disk)

  • Yes

RAID Expansion (by replacing bigger Disks)

  • Yes

Storage Pool Expansion (by adding RAID Group)

  • Yes

RAID Hot Spare

  • Global, Local

RAID Sync/Rebuild/Scrubbing

  • Yes

Internal drive

  • EXT4

External drive

  • EXT3, EXT4, NTFS, FAT32, HFS+, exFAT

Disk, Enclosure Locate

  • Yes

Disk S.M.A.R.T. Scan

  • Yes

Disk S.M.A.R.T. Data Migration

  • Yes

IronWolf Health Management

  • Yes (drives sold separately)

Secure Erase

  • Yes

SSD Trim

  • Yes

SSD Life Estimation

  • Yes

Disk Roaming

  • Yes

Disk Standby

  • Yes

Volume Snapshot

  • Yes

LUN Snapshot

  • Yes

Maximum Snapshot (Per System)

  • 1024

Maximum Snapshot (Per Volume / LUN)

  • 256

Minimum Snapshot Interval

  • 5 minutes

Snapshot Retention Policy

  • Yes

Self-serve Snapshot Recovery

  • Yes

Application Consisted Snapshot

  • Yes

Snapshot Full Clone

  • Yes

Snapshot Replica / Vault

  • Yes

SSD read-only Cache

  • Yes

SSD read-write cache

  • Yes

SSD write-only cache

  • Yes

SSD Cache Maximum Size

  • 16TB

SSD Cache RAID

  • 0, 1, 5, 6, 10

SSD profiling tool

  • Yes

External Device Management

  • Yes

Mount Smart Phone (MTP)

  • Yes

External RAID Device (QNAP so on) Management (External Device Mode)

  • Yes

External RAID Device (QNAP so on) Management (NAS Mode)

  • Yes

File Server

  • File sharing across Windows, Mac, and Linux/UNIX
  • Microsoft networking (CIFS/SMB)
  • Apple networking (AFP)
  • NFS version 3/4 services

FTP Server

  • QuFTP
  • FTP, SFTP and TFTP protocols
  • FTP over SSL/TLS (explicit FTPS)
  • FXP support

Maximum FTP connection

  • 1024

File Station (Web)

  • Yes

Object Storage

  • Yes

Local user account

  • 4,096

Local group account

  • 512

Domain user/group account

  • 200,000

Domain Security

  • Yes

Domain Controller

  • Yes

Shared folder permission

  • Yes

Advanced folder permission

  • Yes (AFP, CIFS/SMB, FTP, and File Station)

Windows ACL

  • Yes (CIFS/SMB)

User quota

  • Yes

Group quota

  • Yes

Folder quota

  • Yes (Snapshot shared folder)

Home folder

  • Yes

Resource Monitor

  • Yes

SNMP

  • V2, V3

Network recycle bin

  • Recover files deleted using AFP, CIFS/SMB, and File Station
  • Automatic cleanup and file type filter

System Log & Notification Centre

  • Log recording: 3,000 event per second

Smart Fan

  • Yes

Schedule on/off

  • Yes

Internet protocol

  • IPv4, IPv6

Virtual Switch

  • Yes

Port trunking

  • Yes (7 modes)

VLAN

  • Yes

DHCP Server

  • Yes

DDNS (Dynamic Domain Name Service)

  • Yes

Network access protection with auto-blocking

  • SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP

Security Counselor

  • Yes

Malware Remover

  • Yes

AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP

  • Yes

2-step verification

  • Yes

Allow/Deny List

  • Yes

Access Protection

  • Yes

Service binding

  • Yes

Firewall

  • Yes

vSphere Web Client Plug-in

  • Yes

VMware vSphere VAAI for iSCSI

  • Yes

VMware vSphere VAAI for NAS

  • Yes

Windows ODX

  • Yes

Windows/VMware Snapshot Agent

  • Yes

HTTP/HTTPS Connections

  • TLS 1.0/1.1/1.2/1.3

Supports WebDAV Connection

  • Yes

Supports Virtual Hosts

  • 32

Qsync

    • Note: At least 1 GB RAM is required.
  • Management Mode
    • User customisation, Central
  • Qsync client supported platforms
    • Windows, macOS, Ubuntu, Android, and iOS
  • Maximum number of version control
    • 64

HybridMount

    • Note: At least 1 GB RAM is required.
  • File Cloud Gateway
    • Concurrent Connections = 20 Upload & 20 Download
  • Network Drive Mount
  • Free cloud gateway sessions
    • 2

HBS (Hybrid Backup Sync)

    • Note: At least 1 GB RAM is required.
  • NAS to NAS backup
  • Cloud Backup
  • Cloud Sync
  • 2-way and Active Sync
  • Backup Deduplication
  • Apple Time Machine Backup
  • External drive backup
  • Maximum number of backup job
    • 400

Hyper Data Protector

  • Yes

Boxafe

    • Note: At least 4 GB RAM is required.
  • Office 365 Backup
  • Google Workspace Backup
  • Full-text search

Qsirch

    • Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory
  • Previews
    • Photos, music, videos, PDFs, Gmail, and others
  • Integrate Mac Finder
  • Advanced picture search
  • Search filters

QuMagie

    • Note: At least 1 GB RAM is required.
  • Browse photos
  • Virtual and smart albums
  • AI-assisted photo management
    • People, things, places, and others

Antivirus (free)

  • Yes

McAfee (Licence)

  • Yes

QVPN Service

    • Note: At least 1 GB RAM is required.
  • Remote Access
    • PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary)
  • Supported utility and mobile app
    • Windows, macOS, iOS, and Android
  • Supported maximum clients
    • 100

HD Station

  • Yes

LDAP Server

  • Yes

RADIUS

  • Yes

SQL server

  • Yes

Licence Centre

  • Yes

Multimedia Console

  • Yes

Photo Station

  • Yes

Music Station

  • Yes

Video Station

  • Yes

Download Station

  • Yes

Notes Station

  • Yes

Qfiling

  • Yes

Media Streaming add-on

  • Yes

QmailAgent

  • Yes

QuWAN

  • Yes

DA Driver Analyser

  • Yes

Q'centre

  • Yes
    • Note: The application is available in the App Centre and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).

Q'centre Server

  • Yes

Q'centre Agent

  • Yes

Connect to Q'centre

  • Yes

Virtualisation Station

    • Note: At least 4 GB RAM is required.
  • Supports Virtual machine instances
    • Windows, Linux, Unix, and Android
  • VM importing, exporting, cloning, snapshot capturing, backup, and restoration
    • All function is Fine.
  • Virtual switches
    • Can create a virtual switch
  • GPU pass-through
    • Not support GPU
  • Suggested number of virtual machine instances
    • 4
      • Note: The actual number of virtual machine instances may vary by the memory installed on NAS (e.g. 1 VM= 1 thread for 1 vCPU and 1GB memory). Please expand memory if needed.

Container Station

    • Note: At least 1 GB RAM is required.
  • Supported type
    • LXC/LXD and Docker
      • Note: LXD has been supported after Container Station 2.4
  • Docker Hub Registry
  • Container importing and exporting
  • Console mode

Linux Station

    • Note: At least 4 GB RAM is required.
  • Supports Ubuntu versions
    • 18.04, and 20.04

Linux Station Centre

  • Yes

QVR Pro

    • Note: At least 4 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings.
  • Recording Technique
    • Index database based
  • Licence Type
    • Perpetual
  • User-defined trigger events
  • Metadata
  • QVR Pro Client (Desktop)
    • Windows, macOS, and QNAP HybridDesk Station
  • QVR Pro Client (Mobile)
    • Android and iOS
  • Recording camera streams
    • H.264
  • Free built-in camera channels
    • 8

QVR Elite

    • Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings.
  • Recording Technique
    • Standard MP4 file based
  • Licence Type
    • Subscription-based
  • User-defined trigger events
  • QVR Pro Client (Desktop)
    • Windows, macOS, and QNAP HybridDesk Station
  • QVR Pro Client (Mobile)
    • Android and iOS
  • Recording camera streams
    • H.264
  • Free built-in camera channels
    • 2

QVR Pro Client

  • Dynamic View Layout
  • Windows
  • Mac
  • HybridDesktop
  • iOS
  • Android

QVR Centre

    • Note: At least 4 GB RAM is required.
  • Log management
  • Central monitoring across multiple servers

QVR Guard

    • Note: At least 4 GB RAM is required.
  • Failover design
  • Viewing task details
  • Automatic switch between Standby and Takeover modes

QVR Human

  • Yes

QVR Face

  • Yes
    • Note: The maximum number of channels supported varies by NAS model, network configuration, and camera settings.

QVR DoorAccess

  • Yes

Package

Package Contents

  • 1 x TS-264 Enclosure
  • 1 x Ethernet Cable
  • 1 x Power Cord
  • 6 x Flat Head Screw (for 3.5" HDD)
  • 6 x Flat Head Screw (for 2.5" HDD)
  • 1 x AC Adapter
  • 1 x Quick Installation Guide (QIG)

Recently Viewed

Fast Next Day Delivery

Over 20 years of Supply, Service & Support

We Source Hard to Find and Legacy Computer Parts

Free Technical Support
