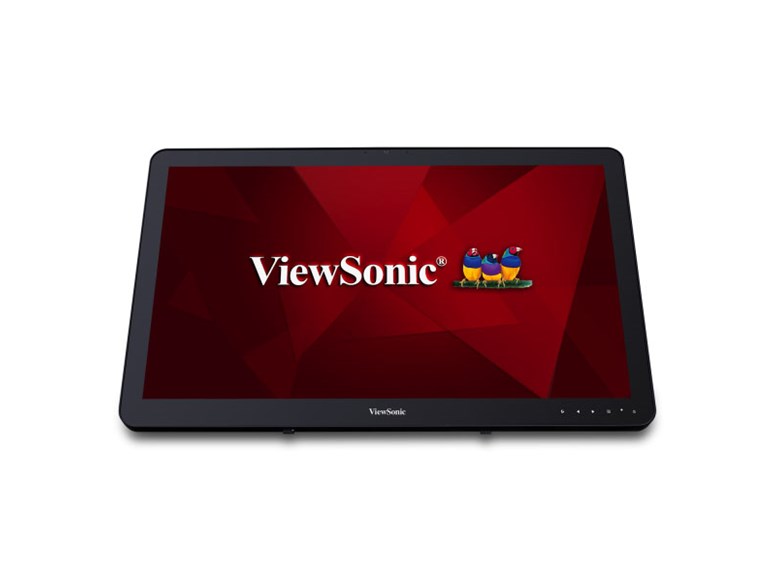

The ViewSonic® VSD243 is a 24” (23.6” viewable) smart display with Full HD 1080p resolution, Quad-Core 1.8GHz processor, 10-point capacitive touch, and Android™ Oreo 8.1 OS. Versatile connectivity options include HDMI (In/Out), multiple USB ports, SD card reader, RJ45 Ethernet, Dual Band 2.4GHz/5GHz Wi-Fi, Bluetooth4.0, 5M pixel webcam with integrated microphone, and 2.5W speakers for video conferencing. With its sleek ID, thin bezel, fan-less design, 7H hardness screen coating, and VESA compatible mounting capabilities, the VSD243 is a flexible solution for information kiosks, public displays, or POS stations in business centers, libraries, or retail environments. The VSD243 can also be operated as a stand-alone PC replacement, or as a traditional 24’’ Full HD touch monitor via HDMI to your PC/Laptop. With a comprehensive set of enhanced features and functions, the VSD243 is perfect for a wide range of applications and commercial kiosk based solutions for business, restaurants, service counters, or retail environments.
Powerful Quad Core Processor
Equipped with a powerful Rockchip 1.8GHz Quad-Core Cortex A17 processor, this smart display provides smooth, lightning-fast computing no matter what applications are running.
Android™ 8.1 Oreo OS
Experience better cloud services and multimedia entertainment with this smart display. It features an Android™ 8.1 Oreo operating system to provide thousands of current Android™ apps.
10-point Multi-touch
With 10-point multi-touch technology and a durable, scratch-resistant surface, this smart display provides outstanding interactive capabilities in public environments. Users can also utilize the smart display as a Full HD touch display to connect to existing PCs, notebooks, or tablets.
Equipped with Wi-Fi, Bluetooth, and RJ45
This smart display includes Dual Band 2.4GHz/5GHz wireless support, Wi-Fi 802.11 b/g/n/ac, Bluetooth 4.0, and RJ45 Ethernet, providing flexible access options for website browsing, cloud access, and data exchange.
Versatile Connectivity

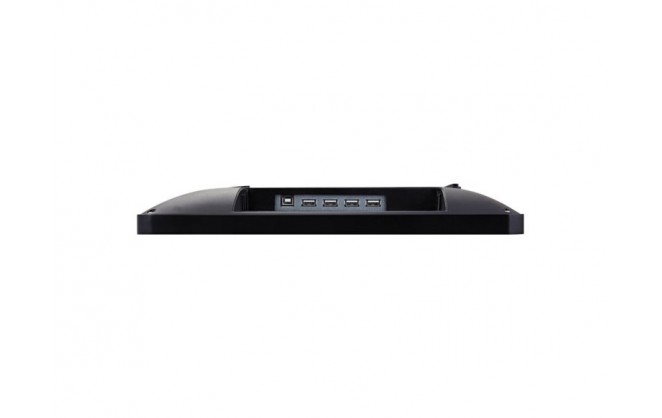

HDMI Input, HDMI Output, SD Card reader, and 4 USB ports deliver versatile connectivity to diversified storage devices, peripherals, and high-definition electronics for enhanced convenience and flexibility.
Optional Kiosk Stand
With the optional ViewSonic STND-042 kiosk stand, you can quickly and easily transform this smart display into an all-in-one interactive kiosk. Advanced ergonomic features allow for portrait or landscape orientations, as well as being raised up and down, and tilted forward or back depending on installation needs. Optional storage attachments for printers, literature, bar code readers, and more are available as well.
Integrated USB Multimedia Player
This display features an integrated media player with a convenient USB playback function. Now photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive – without the need for a PC.
Dual Integrated Speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
ViewSonic VSD243 23.6 inch IPS
Display
| Screen Aspect Ratio | 16:9 |
| Screen Size | 23.6 in |
| Viewable screen size | 23.6 " |
| Screen technology | IPS Panel |
| Brightness | 250 Lumens |
| View Angle (Horizontal - Max) | 178 ° |
| View Angle (Vertical - Max) | 178 ° |
| Anti-Glare / Anti-Static | Anti-Glare |
| Contrast Ratio | 3,000:1 |
| Resolution (Native) | 1920 x 1080 pixels |
| Resolution Type (Native) | Full HD |
| Response time | 16 ms |
| Backlight | Yes (LED) |
| HD Support | Yes |
| Aspect Ratio | 16:9 |
| 3D Display | No |
Physical
| Display Type | 10-point Touchscreen Integrated Media Player Rockchip RK3288W processor 2GB DDR3 RAM, 16GB eMMC Android 8.1 OS |
| Form Factor | Touch Monitor |
| Case Colour | Black |
| In The Box | VSD243 smart display, power adapter and cord, Quick Start Guide |
| Width | 572.9 mm |
| Depth | 47 mm |
| Height | 351.8 mm |
| Weight | 5.6 kg |
Mount
| Wall Mountable | Yes |
| Wall Mount | VESA 100 x 100 mm |
| Tilt (Forward/Backward) | No |
| Swivel (Left/Right) | No |
| Height Adjustable | No |
| Pivot (Rotation) | No |
Camera
| Webcam | Yes |
| Camera Resolution | 5 MP |
| Effective Pixel Resolution | 2560 x 1920 pixels |
Media Adaptor
| Removable Flash Memory Media | Yes |
| Number of Card Slots | 1 slot |
| Secure Digital | SD |
Warranty
| Warranty | 2 Years |
CPU
| CPU Family | Rockchip |
| Processor Number | RK3288W |
Memory
| Memory Size | 2 GB |
| Memory Type | DDR3 |
Storage
| Number of Hard Disks | 1 disk |
| Hard Disk Size | 16 GB |
| Hard Disk Type | eMMC |
Sound
| Speakers | Yes |
Interfaces/Ports
| Audio Line Out Ports | 1 x 3.5mm Jack |
| USB Ports | 1 x Mini USB 1 x USB 2.0 Type-B (upstream) 4 x USB 2.0 Type-A (downstream) |
| Microphone In Port | 1 x 3.5mm Jack |
| DC Power | 1 x DC In |
| HDMI Ports | 1 x HDMI 1.4 in 1 x HDMI 1.4 out |
| RJ-45 Ports | 1 x RJ-45 |
Network (Wired)
| Network Card | Yes |
| Network Card Data Link Protocol | Ethernet |
Network (Wireless)
| Bluetooth | Yes |
| Wireless System | Yes |
| RF Network Standard | 802.11ac |
System
| Plug and Play | Yes |
Electrical
| Electrical Power Consumption | 40 W |
| Electrical Power Consumption Standby | < 2 W |
| Voltage | 100 ~ 240 VAC |
| Power Supply | Yes |
Compliance
| Certifications | cTUVus, FCC-B(including ICES003), FCC-ID, CA IC |
Environmental
| Operating Temperature | 0 ~ 35 °C |
| Operating Humidity | 20 ~ 90 % |
Key Features
| VESA Mountable | Yes |
| Built-in Speakers | Yes |
| Hard Glass Coating | Yes |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Touchscreen | Yes |
| Panel Technology | IPS |
| 3D Ready | No |
| Power Source | Mains Powered |
| LED Backlight | Yes |
| Disk Form Factor | 3.5 |
| Gaming | No |
| Projection Aspect Ratio | 16:9 |
| Display Model in Showroom | No |
| DisplayPort Connection | No |
| Screen Type | Full HD (1080p) |
| FreeSync | No |
| Curved Display | No |
| Thunderbolt Connection | No |
| HDR Support | No |
| Built-in USB Hub | USB 2.0 |
| Refresh Rate | 60 Hz |
Graphics Device
| G-Sync | No |
Item Details
| Manufacturer | ViewSonic |
| Manufacturer Code | VSD243-BKA-EU0 |
| EAN | 766907001303 |
| Condition | New |
