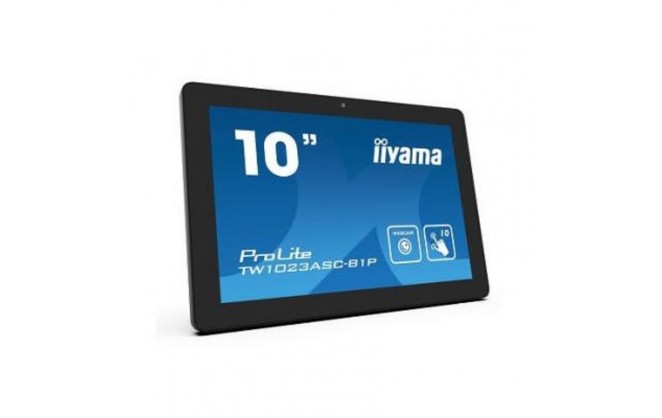

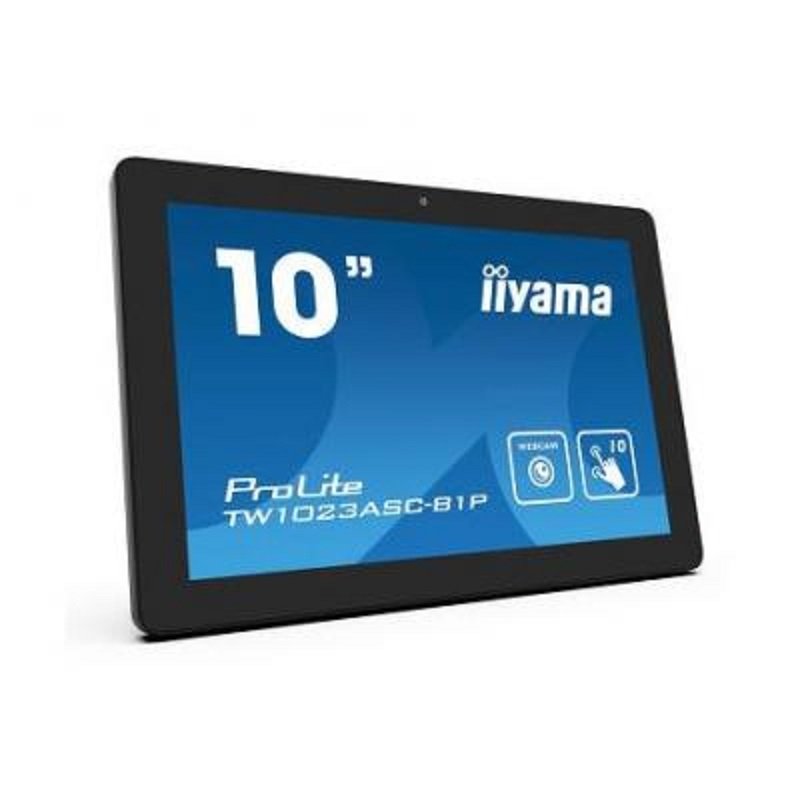

Iiyama ProLite TW1023ASC-B1P - 10.1'' Touch Screen Monitor

  • Part Number: TW1023ASC-B1P
  • Manufacturer: Iiyama
  • Quickfind Code: 520062

  • Stock: In Stock

£167.99 ex. vat
£201.59 inc. vat


Product Features:
  • Condition: New
  • Size 10"
  • Refresh Rate 60HZ
  • Panel Type IPS
  • Resolution 1280 x 800
  • Input Connections mHDMI
  • Main Colour Black
  • Touch Screen Touchscreen
+ Read More Information

Share:

Product Description

Iiyama ProLite TW1023ASC-B1P - 10.1'' Touch Screen Monitor


10.1" ProLite TW1023ASC-B1P Touch Screen Monitor
ProLite TW1023ASC-B1P
10.1" PCAP 10pt touch screen with Android and Power over Ethernet Technology

The ProLite TW1023ASC-B1P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications.

This 10.1" PCAP 10-point touchscreen with Android allows users to directly connect and operate the monitor from any device. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait or face-up orientation. Together with the built-in camera and speakers it offers limitless, interactive installation possibilities.

Key Features
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

POE (Power-Over-Ethernet)
The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.

Touch Technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Anti-Fingerprint Coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
Technical Specification

Iiyama ProLite TW1023ASC-B1P - 10.1'' Touch Screen Monitor

Iiyama ProLite TW1023ASC-B1P - 10.1'' Touch Screen Monitor

Connectivity

InterfacesMini HDMI ¦ USB 2.0 (Type A) ¦ Micro-USB ¦ Network (RJ-45)

General

Display TypeLED-backlit LCD monitor / TFT active matrix
Diagonal Size10.1"
Operating SystemAndroid 8.1
ConfigurationQuad core Rockchip RK3288 1.8GHz, 2GB DDR3, 16GB EMMC Flash
Built-in DevicesSpeaker, capacitive touch screen
Panel TypeIPS
Aspect Ratio16:10
Native Resolution1280 x 800
Pixel Pitch0.1692 mm
Brightness450 cd/m²
Brightness w/touchscreen385 cd/m²
Contrast Ratio1000:1
Colour Support16.7 million colours (8-bit)
Response Time25 ms
Horizontal Viewing Angle160
Vertical Viewing Angle160
Screen Coating7H Hard Coating
Backlight TechnologyLED backlight
FeaturesEdge-to-edge glass, anti-fingerprint, auto-rotation, landscape mode, portrait mode, Face Up mode, 24/7 operating mode
ColourBlack, matte
Dimensions (WxDxH)25.5 cm x 3.05 cm x 17.2 cm
Weight800 g
TypeAndroid PC
Product Form FactorTouch panel PC

Audio

TypeSpeakers - stereo
Output Power / Channel1.5 Watt

Input

TypeTouch-screen - touchscreen
Movement Detection TechnologyProjected capacitive

Mechanical

VESA Mounting Interface75 x 75 mm

Miscellaneous

Included AccessoriesCable cover
Compliant StandardsRoHS, WEEE, REACH, ERP
VESA Mounting Interface75 x 75 mm, VESA

Power

Input VoltageDC 12 V / PoE
Power Consumption (Typical)7 Watt
Device TypePower adapter
Power Consumption Operational7 Watt

Dimensions & Weight (Shipping)

Shipping Width39.8 cm
Shipping Depth6.8 cm
Shipping Height22.3 cm
Shipping Weight1.36 kg

Processor / Chipset

CPURockchip RK3288
Clock Speed1.8 GHz
Number of CoresQuad-Core
CPU Qty1
Max CPU Qty1

RAM

Installed Size2 GB
TechnologyDDR3 SDRAM

Hard Drive

TypeSSD - eMMC
Capacity1 x 16 GB

Optical Storage

TypeNo optical drive

Monitor

Monitor TypeLED - IPS
TouchscreenYes (10-point multi-touch)
Diagonal Size10.1"
Native Resolution1280 x 800 (WXGA)
Widescreen DisplayYes
Image Aspect Ratio16:10
Horizontal Viewing Angle+80 / -80
Vertical Viewing Angle+80 / -80
Pixel Pitch0.1692 mm
Response Time25 ms
Image Brightness450 cd/m²
Image Contrast Ratio1000:1
Monitor FeaturesProjected Capacitive Touch (PCT) technology, Hard Coating (7H), anti-fingerprint (AF) coating

Graphics Controller

Graphics ProcessorARM Cortex-A17
Video InterfacesHDMI

Audio Output

Sound Output ModeStereo
Speakers Included2 x right / left channel

Camera

CameraYes
Resolution (MP)2 Megapixel

Audio Input

TypeMicrophone

Networking

Wireless LAN SupportedYes
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0

Expansion / Connectivity

Interfaces2 x USB 2.0 (OTG) ¦ 1 x Mini-HDMI ¦ 1 x LAN (Gigabit Ethernet) - RJ-45

Operating System / Software

OS ProvidedAndroid 8.1 (Oreo)

Manufacturer Warranty

Service & SupportLimited warranty - pick-up and return - 1 year

Dimensions & Weight

Width25.5 cm
Depth3.05 cm
Height17.2 cm
Weight800 g
