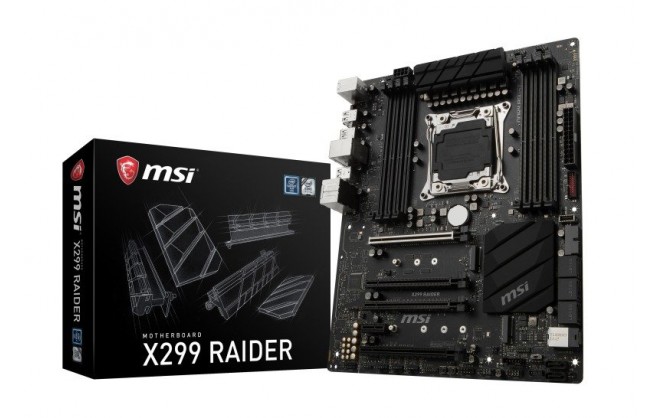

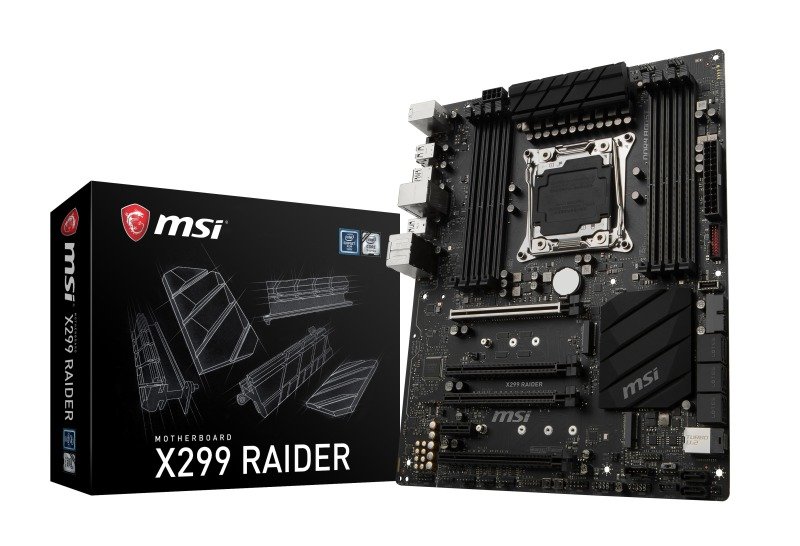

MSI Intel X299 RAIDER Core-X Extreme ATX OEM Motherboard

  • Part Number: X299 RAIDER
  • Manufacturer: MSI
  • Quickfind Code: 446027
  • Stock: Low Stock

£299.99 ex. vat
£359.99 inc. vat

Product Features:
  • Condition: New
  • Legacy Y
  • Form Factor ATX
  • CPU Type Intel
  • Socket Type 2066
  • Chipset X299
  • Memory Type DDR4
+ Read More Information

Share:

"This is a low stock item and may have to be ordered from one of our specialist suppliers.  We will have alternative items in stock that may meet or exceed your requirements, so you may want to click the "Enquire about this item" button prior to ordering and a member of our team will be happy to assist.

Alternatively if you do place an order for this item, please make sure you include a valid telephone number and email address and a member of our team will contact you regarding an ETA"

Product Description

MSI Intel X299 RAIDER Core-X Extreme ATX Motherboard Retail Specifications CPU ? Supports Intel? Core? X-Series Processor Family for LGA2066 Socket * This function will be supported depend on the CPU. Chipset ? Intel? X299 Chipset Main Memory ? 8 x DDR4 memory slots, support up to 128GB ? Quad channel memory architecture with the CPU that supports up to 4-channels DDR4** - X-series processor support DDR4 4133+(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz* ? Dual channel memory architecture with the CPU that supports up to 2-channels DDR4** - X-series processor support DDR4 4500+(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz* ? Supports Intel? Extreme Memory Profile (XMP) * For the latest information about memory, please visit http://www.ms

Technical Specification

MSI Intel X299 RAIDER Core-X Extreme ATX OEM Motherboard

Processor

Supports Intel® Core™ X-Series Processor Family for LGA2066 Socket

Chipset

Intel® X299 Chipset

Memory

  • Intel® Core™ X-series Processors (6-core above CPU 78XX/79XX)
    • 8 x DDR4 memory slots, support up to 256GB
    • Quad channel memory architecture with the CPU that supports up to 4-channels DDR41
  • X-series processor support DDR4 4133+(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz2
  • Intel® Core™ X-series Processors (4 core CPU i7-7740X/i5-7640X)
    • 4 x DDR4 memory slots, support up to 64GB
    • Dual channel memory architecture with the CPU that supports up to 2-channels DDR41
  • X-series processor support DDR4 4500+(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz2
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer the DIMM Slots section for more details.
  2. Please refer Compatibility for more information on compatible memory.

Slots

  • 4 x PCIe 3.0 x16 slots
    • Support x16/x16/x8 mode with the 48/44-lane CPU
    • Support x16/x8/x4 modes with the 28-lane CPU.
    • Support x8/x8/x0, x8/x4/x4 modes with the 16-lane CPU.
  • 1 x PCIe 3.0 x1 slots

Multi-GPU

  • Supports NVIDIA® SLI™ Technology
  • Supports AMD® CrossFire™ Technology

Storage

Intel® X299 Chipset

  • 8 x SATA 6Gb/s ports1
  • 2 x M.2 slot (Key M)
    • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
    • M2_1 slot supports 2242/ 2260 /2280 storage devices
    • M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices
    • Supports Intel® Optane™ Memory Ready for all M.2 slots2
  • 1 x U.2 port3
    • Supports PCIe 3.0 x4 NVMe storage
  • Supports Intel® Smart Response Technology4
  1. M.2 slots and SATA ports share the same bandwidth. Please refer to user manual for U.2, M.2 & SATA combination table.
  2. Please refer to user manual for Intel® Optane™ Memory Configuration.
  3. PCI_E2 shares bandwidth with U2_1. If you install a PCE_E2 device, the U2_1 will be disabled.
  4. The functions will be supported depend on the CPU.

RAID

Intel® X299 Chipset

  • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID1 for M.2 PCIe storage devices1
  1.  M.2 PCIe RAID volume can be created with M.2/Optane Genie. Please refer to user manual for Creating a M.2 PCIe SSD RAID with M.2/Optane Genie.

USB

Intel® X299 Chipset

  • 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
  • 5 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 1 port available through the internal USB connector)

ASMedia® ASM3142 Chipset

  • 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)
  • 1 x USB 3.1 Gen2 Type-C port internal USB connector

USB 2.0 Hub GL850G

  • 3 x USB 2.0 (High-speed USB) ports available through the internal USB connectors.

Audio

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1 x Intel® I219-V Gigabit LAN controller

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 8 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 1 x USB 3.1 Gen2 Type-C port
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin Water Pump connector
  • 4 x 4-pin system fan connectors
  • 2 x Front panel connectors
  • 1 x Front panel audio connector
  • 1 x LED extension connector
  • 1 x TPM module connector
  • 1 x Virtual RAID on CPU connector
  • 1 x Thunderbolt add-on card connector

Back panel ports

  1. Keyboard / Mouse
  2. Clear CMOS Button
  3. USB 3.1 Gen1
  4. Intel® Gigabit LAN
  5. Golden Audio Connectors
  6. USB 2.0
  7. USB 3.1 Gen2 Type-A/C
  8. Optical S/PDIF-Out



Dimensions

  • 12 in. x 9.6 in. (30.5 cm x 24.3 cm)
  • ATX Form Factor
