Product Description

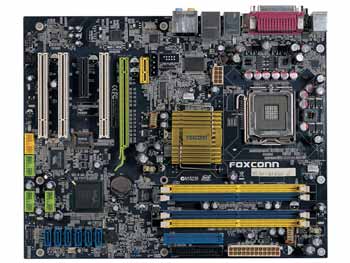

Foxconn P9657AA-8EKRS2H Motherboard Skt 775 Intel Core 2 Extreme/Core 2 Duo Intel 965 Gigabit LAN ATX Socket775 Motherboard -Intel?Core?2Quad,Core?2Extreme,Core?2Duo,Pentium?EE,Pentium?D,Pentium?4,Celeron?Dprocessors,SocketT(LGA775) -1066/800/533MHz(FSB) -DualChannelDDR2800/667x4DIMMs,Max8GB -1xPCIex16,1xPCIex4,1xPCIex1,3xPCI -IDEx1,SATAIIx7withRAID0,1,5,0+1,JBOD -7.1channelAudio,Realtek(HDA) -GbELAN(Marvell) -10USB2.0ports Processor: Intel? Core?2 Quad, Core?2 Extreme, Core?2 Duo, Pentium? EE, Pentium? D, Pentium? 4, Celeron? D processors , Socket T (LGA775) Chipset: Intel P965+ICH8R Front Side Bus: 1066 / 800 / 533 MHz Memory: Dual Channel DDR2 800 / 667 x 4 DIMMs, Max 8GB VGA on Die: N/A Expansion Slots: 1 x PCIe x16, 1 x PCIe x4, 1 x PCIe x1, 3 x PCI IDE: PATA 133 x 1 (To advance IDE transfer speed, you may install JMicron IDE-SATA RAID Drive. You can download the drive by clicking the "drive" icon at the left side.) Serial ATA(SATA)/RAID: 6 x S
