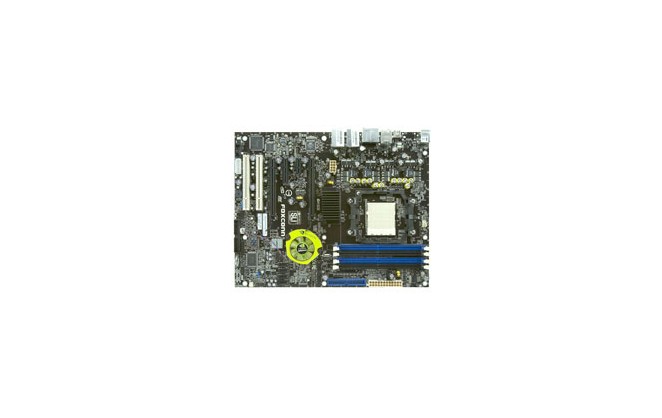

Foxconn C51XEM2AA-8EKRS2H AM2 NVIDIA 590 SLi / DUAL CH DDR2 / SATA(II) RAID / 10CH AUDIO / DUAL Gb LAN / ATX SOCKET 940 MOTHERBOARD

Part Number: C51XEM2AA-8EKRS2H
Manufacturer: Foxconn
Quickfind Code: 445081

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Legacy Y
Socket Type AM2
Form Factor ATX
Memory Type DDR2
CPU Type AMD

+ Read More Information

Product Description

Foxconn C51XEM2AA-8EKRS2H AM2 NVIDIA 590 SLi / DUAL CH DDR2 / SATA(II) RAID / 10CH AUDIO / DUAL Gb LAN / ATX SOCKET 940 MOTHERBOARD PRODUCT SPEC Processor: AMD Sempron?, Athlon? 64, Athlon? 64x2, Athlon? 64FX processors, Socket AM2 Chipset: NVIDIA nForce 590 SLI Front Side Bus: 2000 MT/s HyperTransport? Memory: Dual channel DDR2 800 / 667 / 533 x 4 DIMMs, Max 8GB VGA on Die: N/A Expansion Slots: 2 x PCIe x16, 1 x PCIe x4, 1 x PCIe x1, 2 x PCI IDE: ATA133 x 1 Serial ATA(SATA)/RAID: Serial ATA II x 6 with RAID 0, 1, 0+1, 5, JBOD Audio: 7.1+2 channel, Realtek ALC882D (HDA) LAN: Marvell 88E1121 Dual 10/100/1000 Base T Enthernet PHY IEEE1394: 1394a x 2 (TSB82AA2B), 1394b x 1 (TSB81BA3) Back Panel I/O Ports: 1 x PS/2 keyboard 1 x PS/2 mouse 1 x 1394a 1 x 1394b 6 x USB 2.0 2 x RJ45 1 set 7.1 channel Audio jacks (5 jacks + 1 S/PDIF output) Internal I/O Connectors: 2 x USB 2.0 headers, support 4 ports 1 x Front audio header 1 x COM 1 x Speaker
