MSI Cubi 5 12M Barebone PC with Integrated Intel Core i3-1215U CPU ES

  • Part Number: CUBI 5 12M I3 1215U BB
  • Manufacturer: MSI
  • Quickfind Code: 225022
  • Stock: Out Stock

Contact for availability

Product Features:
  • Condition: New
  • Cores 6
  • CPU Type Intel
  • GPU Manufacturer Intel
  • Memory Type DDR4 SODIMM
  • GPU Intel UHD
  • Kit Type Barebones inc CPU
  • Series Cubi
  • Speed 4.4GHZ
  • Main Colour Black
+ Read More Information

Share:

Product Description

Cubi 5 12M: The Energy Efficient Mini-PC

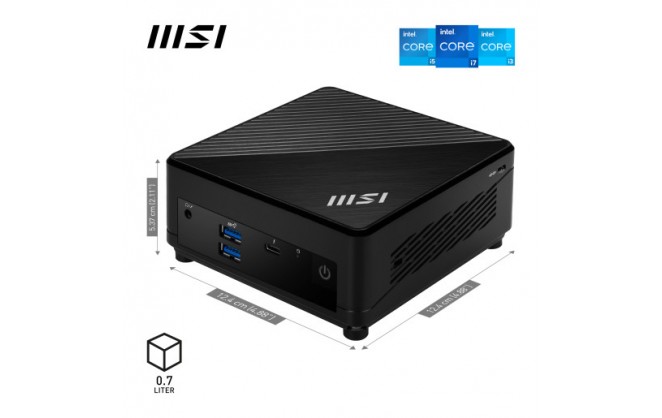

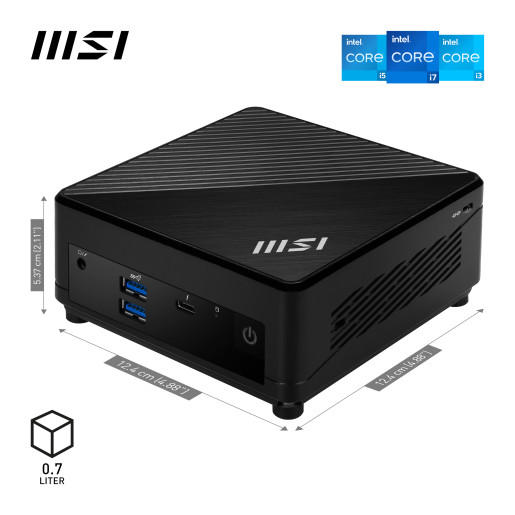

The MSI Cubi 5 12M is a small yet powerful mini-desktop with an incredibly compact 0.7L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).

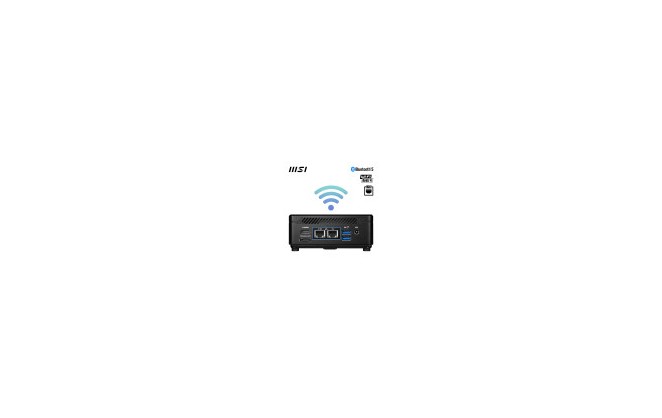

The Cubi 5 12M i3 1215U BB is a barebone system equipped with an Intel 12th Gen Core i3-1215U processor, but does not include required DDR4 memory, storage, or software. Features Intel Wi-Fi 6E & Bluetooth 5.3 connectivity.

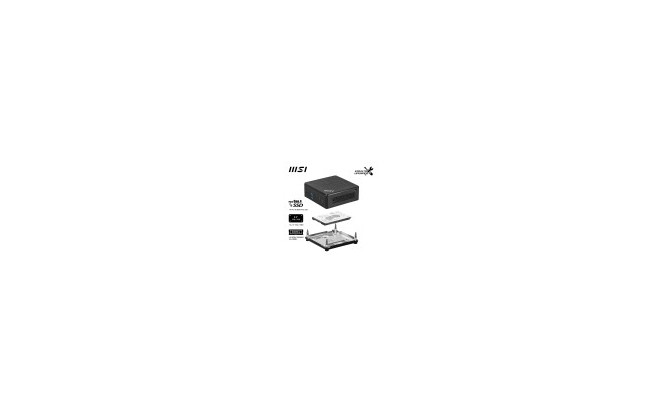

The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2.5-inch SSD storage, as well as up to 64 GB of system memory (2 x DDR4 3200MHz SO-DIMMs), and is VESA-mountable for a cleaner desktop.

Thanks to its cooling-optimized layout and low-noise fan, the MSI Cubi 5 12M is not only an energy-efficient computing solution but is also very quiet, running at a whisper-level 28 dBA while in idle mode.

Technical Specification

MSI Cubi 5 12M Barebone PC with Integrated Intel Core i3-1215U CPU ES

PRODUCT SUMMARY
Brand
MSI
SKU
10393280
Manu Part #
CUBI 5 12M I3 1215U BB
EAN
4711377028394
FEATURES
Up to 12th Gen Intel® Core™ i7 Processors
Support up to 8K UHD Display
Support three displays that allow you to see more and do more
Thunderbolt 4 delivers the fastest, most versatile connection to any dock, display, or data device & NAS
Dual LAN: the best way to back up your file / secure data and prevent the hacker (with MSI exclusive BIOS)
Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
Experience 75% lower latency with WiFi 6E technology(optional)
FW TPM design secures your confidential data with encryption keys
Supports standard VESA-mount
DESIGN
Cable lock slot type
Kensington
VESA mounting
Yes
On/off switch
Yes
Cable lock slot
Yes
Panel mounting interface
75 x 75,100 x 100 mm
Cooling type
Active
LED indicators
System
Product colour
Black
Chassis type
0.66L sized PC
Housing material
Plastic
Product type
Mini PC barebone
PROCESSOR
Processor lithography
7 nm
Built-in processor
Yes
Processor boost frequency
4.4 GHz
Processor model
i3-1215U
Efficient-core boost frequency
3.3 GHz
Processor cores
6
Processor family
Intel® Core™ i3
Processor manufacturer
Intel
Processor threads
8
Processor cache
10 MB
Performance cores
2
Efficient cores
4
Processor frequency
4.4 GHz
Processor generation
12th gen Intel® Core™ i3
Performance-core boost frequency
4.4 GHz
WEIGHT & DIMENSIONS
Depth
124 mm
Package depth
220 mm
Package weight
1.39 kg
Package width
205 mm
Height
53.7 mm
Package height
94 mm
Width
124 mm
Weight
550 g
TECHNICAL DETAILS
Warranty period
2 year(s)
MEMORY
Supported memory clock speeds
3200 MHz
Memory slots type
SO-DIMM
Maximum internal memory
64 GB
Number of memory slots
2
PORTS & INTERFACES
Combo headphone/mic port
Yes
Ethernet LAN (RJ-45) ports
2
DVI port
No
DisplayPort version
1.4
Thunderbolt 4 ports quantity
1
HDMI ports quantity
1
HDMI version
2.0b
DC-in jack
Yes
DisplayPorts quantity
1
STORAGE
Number of storage drives supported
2
Storage drive interface
M.2, Serial ATA III
SSD form factor
2.5"
Supported storage drive types
HDD & SSD
Storage drive sizes supported
2.5,M.2
NVMe
Yes
NETWORK
Bluetooth
Yes
LAN controller
Realtek RTL8111H, Realtek RTL8125-BG, Realtek RTL8125-CG
Ethernet LAN
Yes
WLAN controller model
Intel Wi-Fi 6E AX211
Wi-Fi
Yes
Bluetooth version
5.3
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
PACKAGING CONTENT
Mouse included
No
Display included
No
Power cord included
Yes
AC adapter included
Yes
Drivers included
Yes
Quick start guide
Yes
Keyboard included
No
AUDIO
Built-in speaker(s)
No
POWER
Number of power supply units
1
Power supply
65 W
Power supply type
External AC adapter
PERFORMANCE
Number of processors supported
1
Operating system installed
No
Motherboard form factor
NUC
Motherboard chipset
Intel SoC
GRAPHICS
On-board graphics card
Yes
Graphics card family
Intel
On-board graphics card model
Intel® UHD Graphics
Number of displays supported
3
