The G12 GC Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GC-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GC series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GC units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).
The G12 GC achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.

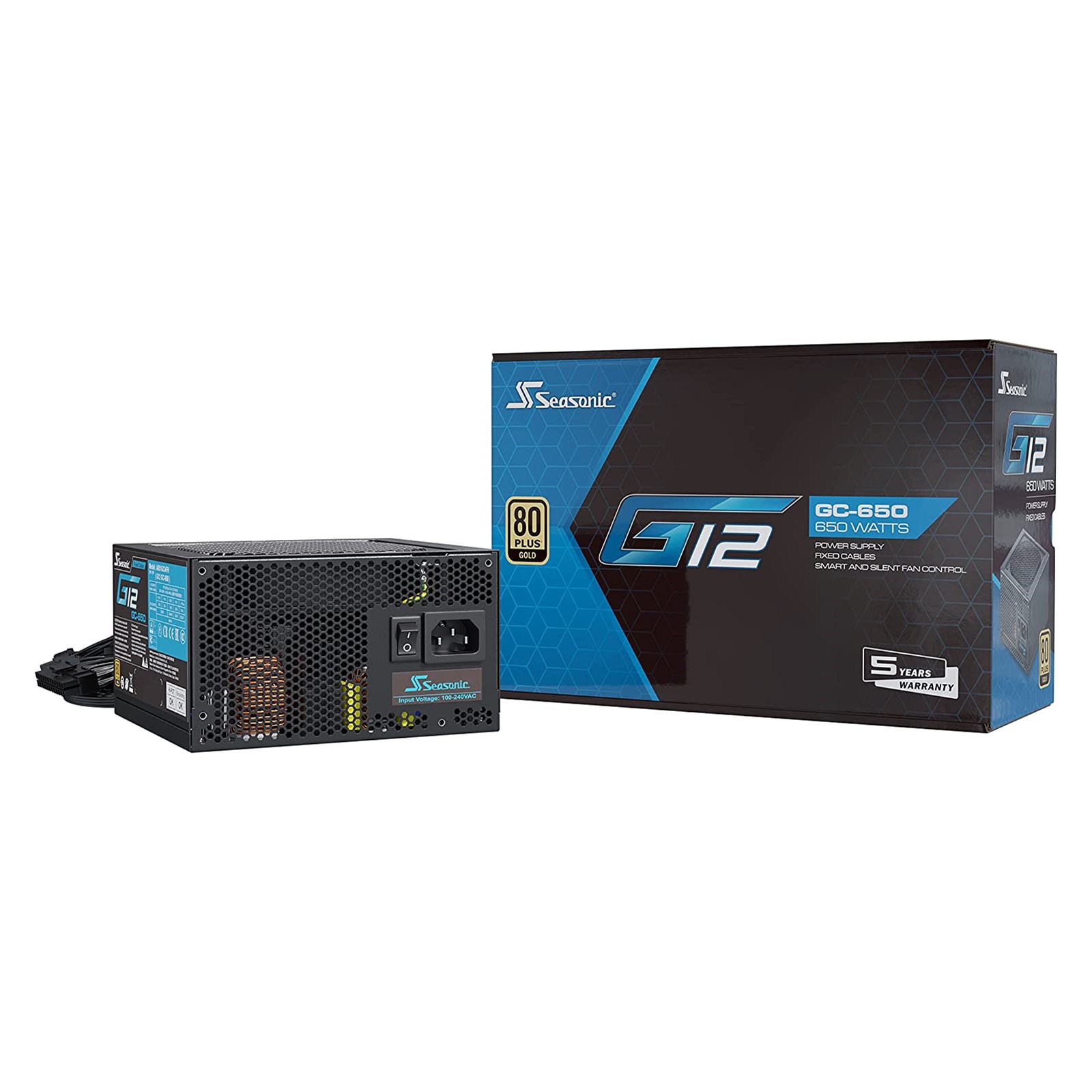

Seasonic G12 GC 650W 80+ Gold PSU
Interfaces/Ports
| SATA Connectors | 3 |
| CPU Connectors | 1 x 4+4-pin EPS |
| PCI Connectors | 4 x 6+2-pin PCIe |
| Motherboard Connectors | 1 x 24-pin ATX |
| Molex Connectors | 3 |
Compliance
| Standards | 80 PLUS Gold Certified cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Safety | OPP, OVP, OCP, SCP |
Electrical
| Voltage | 100 ~ 240 V |
| Power | 650 W |
| Frequency Range | 50 ~ 60 Hz |
| Power Cord | Yes |
Environmental
| Operating Temperature | 0 ~ 50 °C |
Physical
| Form Factor | ATX Power Supply |
| Case Colour | Black |
| In The Box | Power Supply Power Cable |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Warranty
| Warranty | 5 Years |
Key Features
| Modular Cables | No |
| 80Plus Rated | 80 Plus Gold |
| PSU Form Factor | ATX |
| PCI-E Connectors | 4 |
| Motherboard Power Connectors | 4 + 4-Pin |
| PCI-E Pin Type | 6+2-Pin |
| PSU Depth | 140 mm |
Item Details
| Manufacturer | Seasonic |
| Manufacturer Code | G12-GC-650 |
| EAN | 4711173876779 |
| Condition | New |
