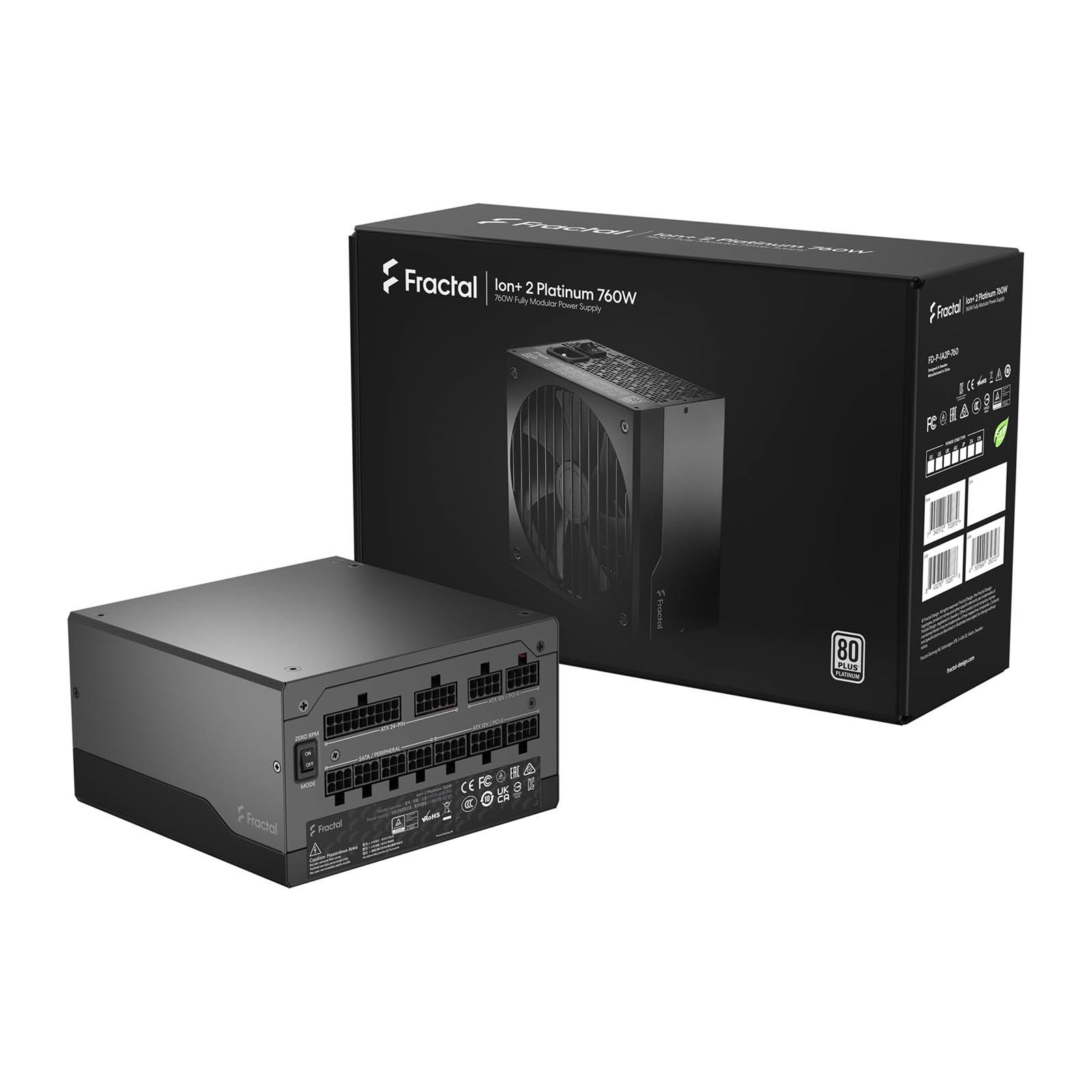

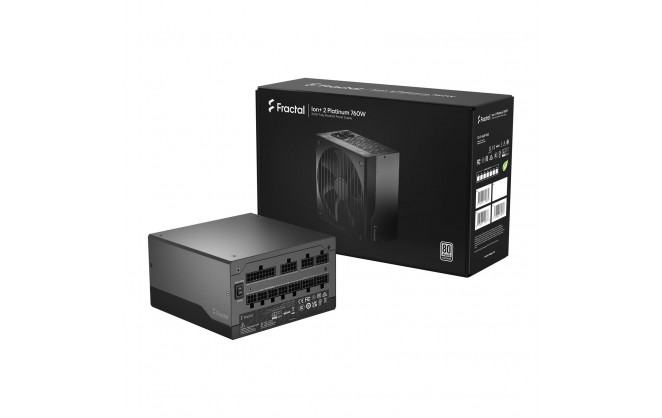

Fractal Design Ion+ 2 Platinum 760W Modular PSU

Part Number: FD-P-IA2P-760
Manufacturer: Fractal Design
Quickfind Code: 140322

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Connection Fully Modular
Certification 80+ Platinum
Capacity 760W
Main Colour Black
Form Factor ATX

+ Read More Information

Product Description

The Ion+ 2 Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality. It ships with two 8-pin ATX12V/EPS cables, ensuring compatibility with new motherboards.

A user selectable semi-passive Zero RPM mode maintains pure silence under light loads, and the custom-tailored 140 mm fan with FDB bearings stays practically whisper-quiet even under heavy load. Revolutionary UltraFlex™ cable with its ultra-high strand count wire and special insulation bends and twists effortlessly to make installation and cable-routing a breeze.

Ion+ 2 Platinum is available in 560, 660, 760 and 860 watt capacities, all with 80PLUS® Platinum Efficiency, 10-year warranty, and a full electrical protection suite for peace of mind.

Main Features

80PLUS Platinum efficiency for optimized electricity use and reduced heat generation
Great electrical output quality with tight voltage regulation and low ripple and noise
Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex (extra bendable soft cables) for better cable management
Equipped with a large high-performance Fractal Design Dynamic GP-14 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed and a true long-life FDB bearing
User selectable semi-passive operation allows for either passive operation in low load situations or continuous low speed fan operation for reduced component stress
Compact 150 mm depth allows for installation in compact cases or provides additional cable management room in larger cases
Premium Japanese 105 degrees C capacitors provide maximum reliability and durability
Extensive 10-year warranty and a full electrical protection suite provides peace of mind
Supports the latest ATX 2.52 standard with improved start-up time and transient load response
Premium storage bags for cables and PSU
All models include two 8-pin ATX12V/EPS cables, ensuring compatibility with new motherboards

Technical Specification

Fractal Design Ion+ 2 Platinum 760W Modular PSU

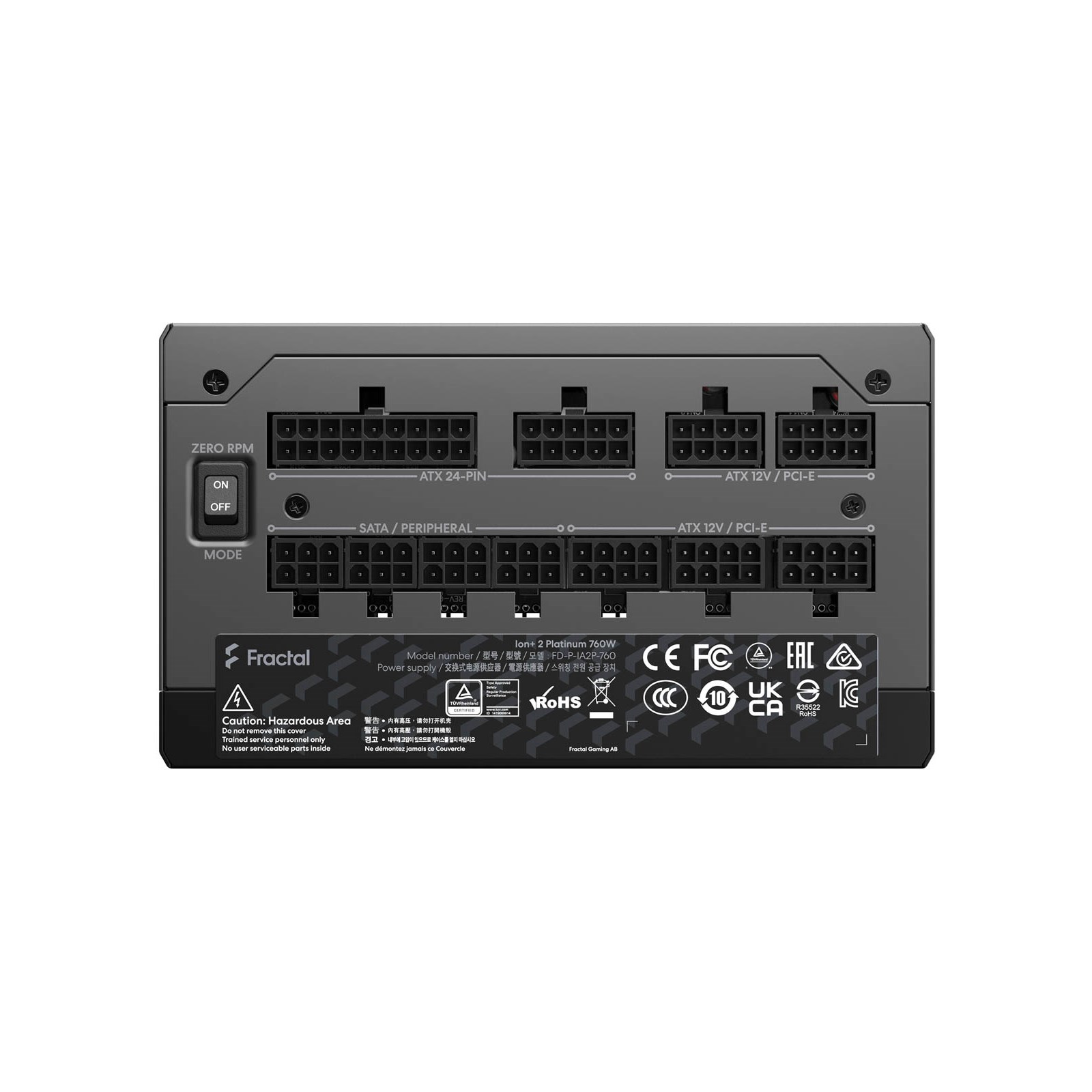

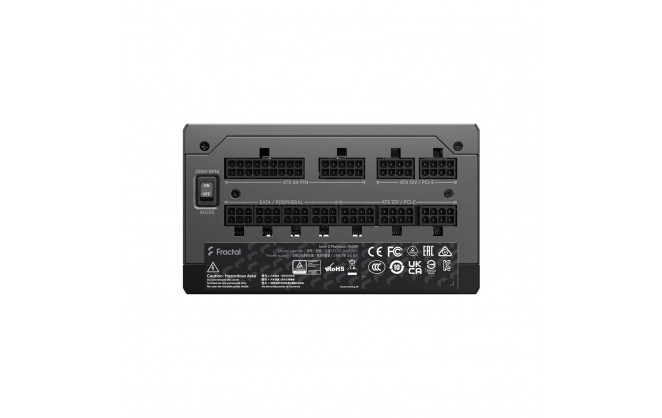

Interfaces/Ports

SATA Connectors	10
CPU Connectors	2 x 4+4-pin EPS
PCI Connectors	6 x 6+2-pin PCIe
Motherboard Connectors	1 x 24-pin ATX
Molex Connectors	4

Compliance

Standards	80PLUS Platinum Certified
Safety	OVP, UVP, OPP, SCP, OCP, OTP

Electrical

Voltage	100 ~ 240 V
Power	760 W
Frequency Range	50 ~ 60 Hz
Power Cord	Yes

Environmental

Operating Temperature

0 ~ 50 °C

Physical

Form Factor	ATX Power Supply
Case Colour	Black

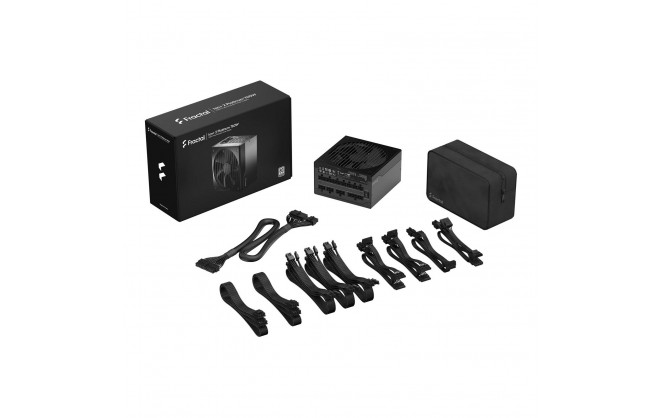

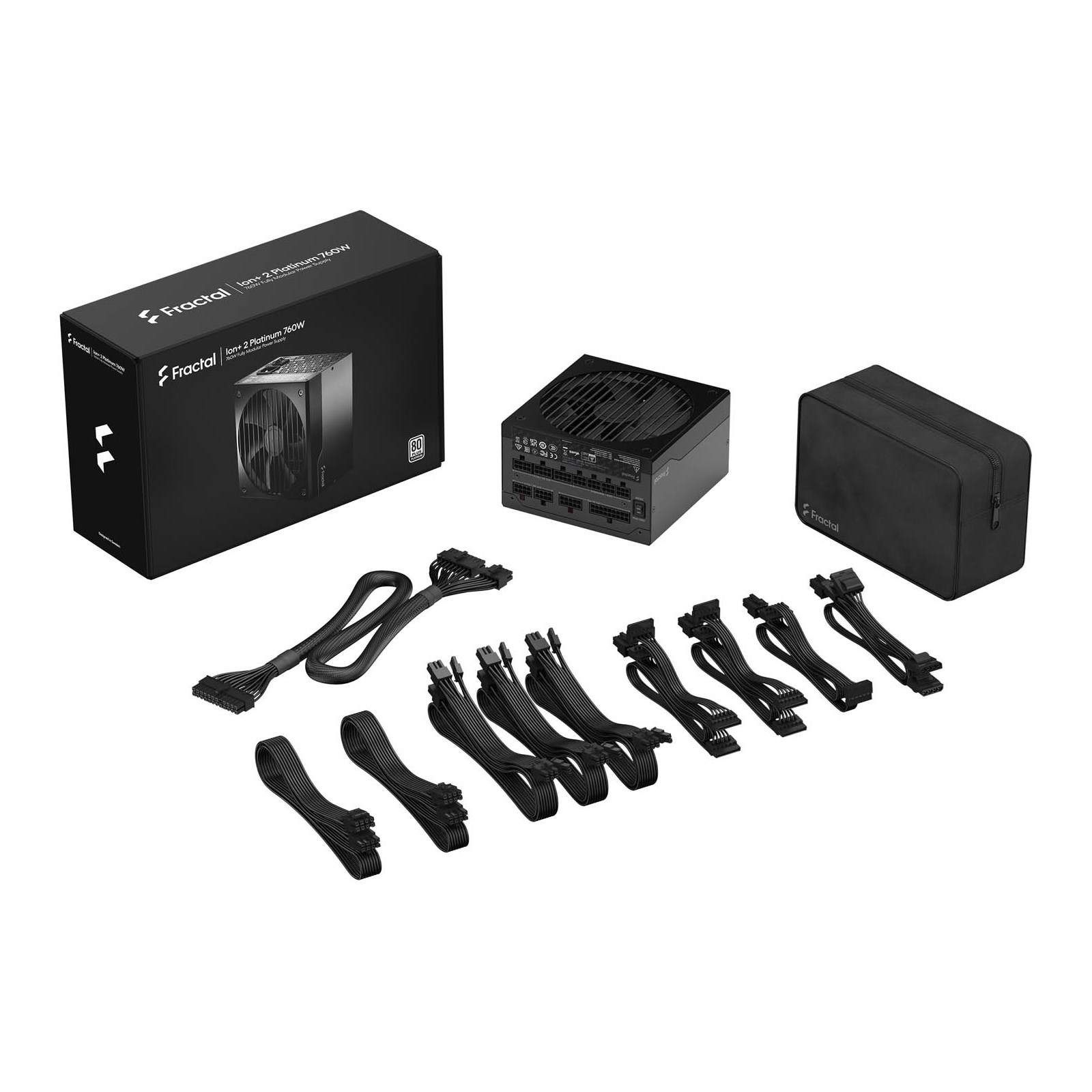

In The Box	Power Supply Power Supply storage bag Modular cable kit in storage bag Manual AC Power cord Velcro cable ties and mounting screw pack
Width	150 mm
Depth	150 m
Height	86 mm
Weight	2.53 kg

Warranty

10 Years

Key Features

Modular Cables	Modular
80Plus Rated	80 Plus Platinum
PSU Form Factor	ATX
PCI-E Connectors	6
Motherboard Power Connectors	4 + 4-Pin x 2
PCI-E Pin Type	6+2-Pin
PSU Depth	150 mm
