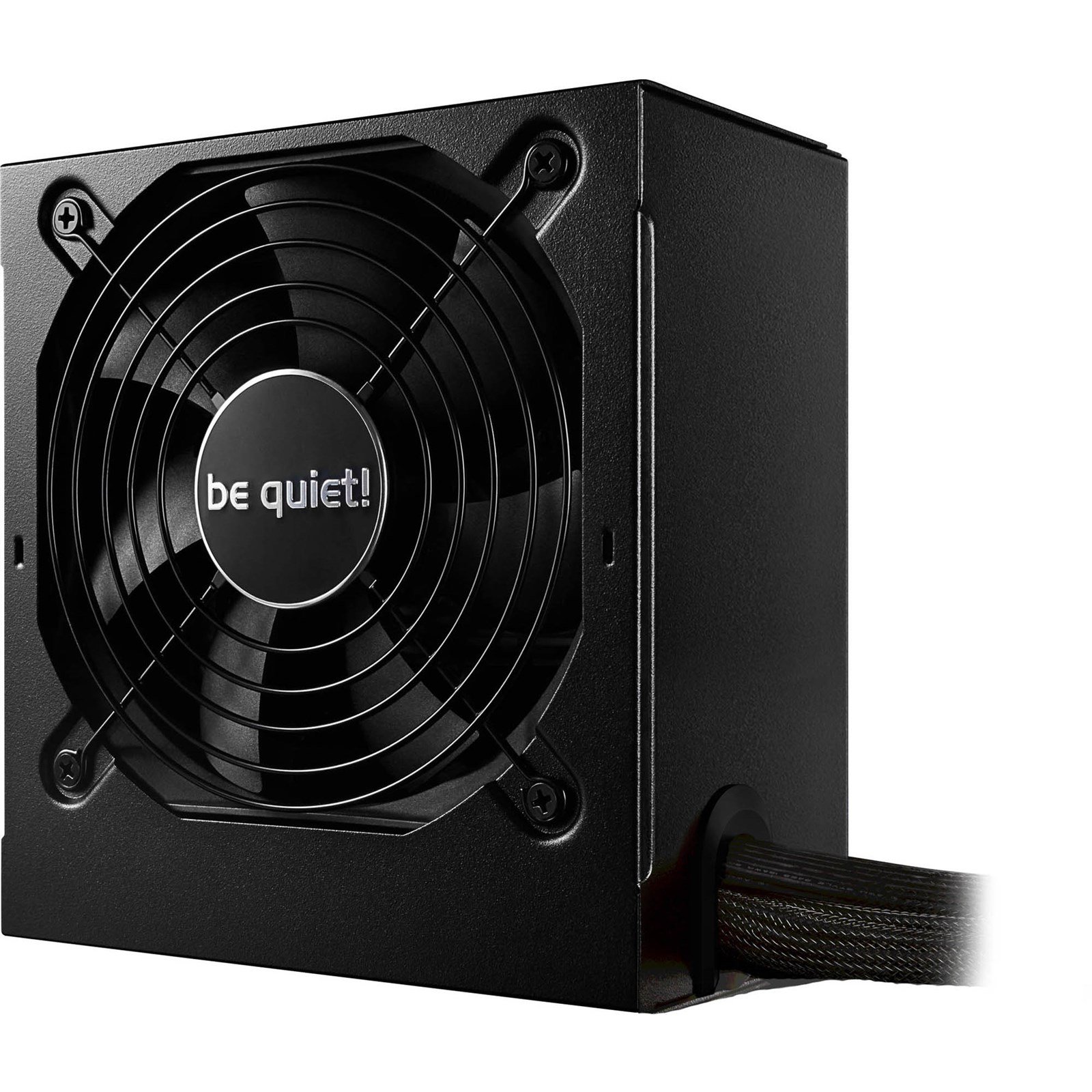

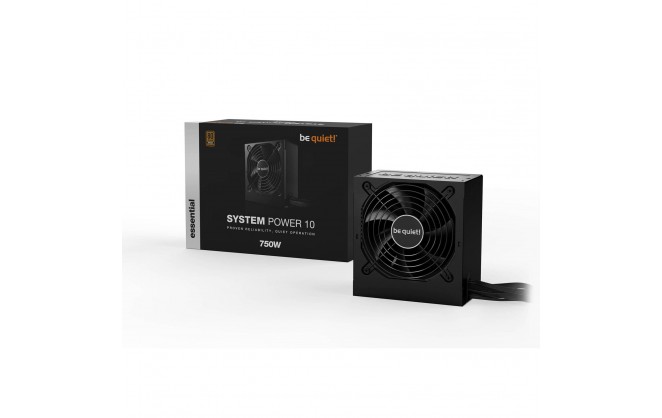

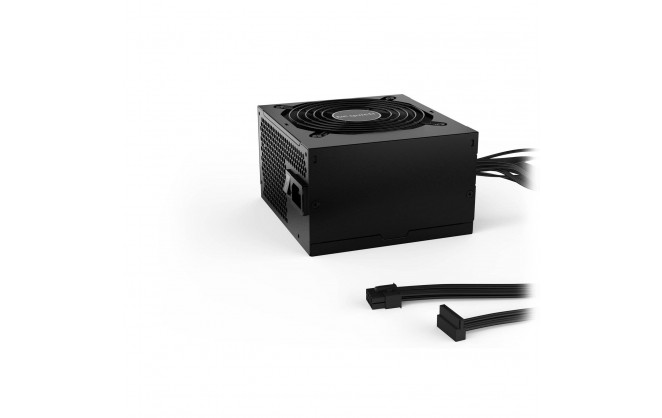

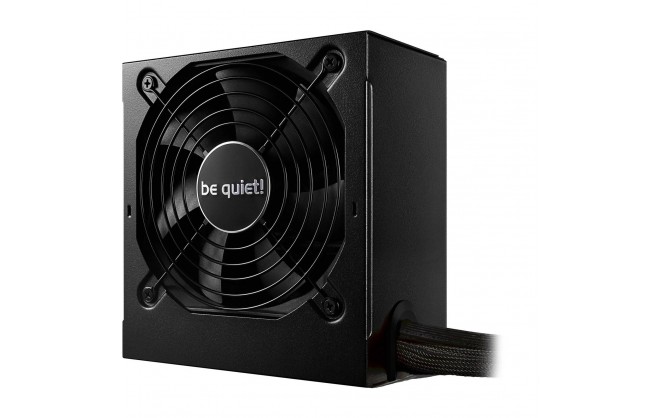

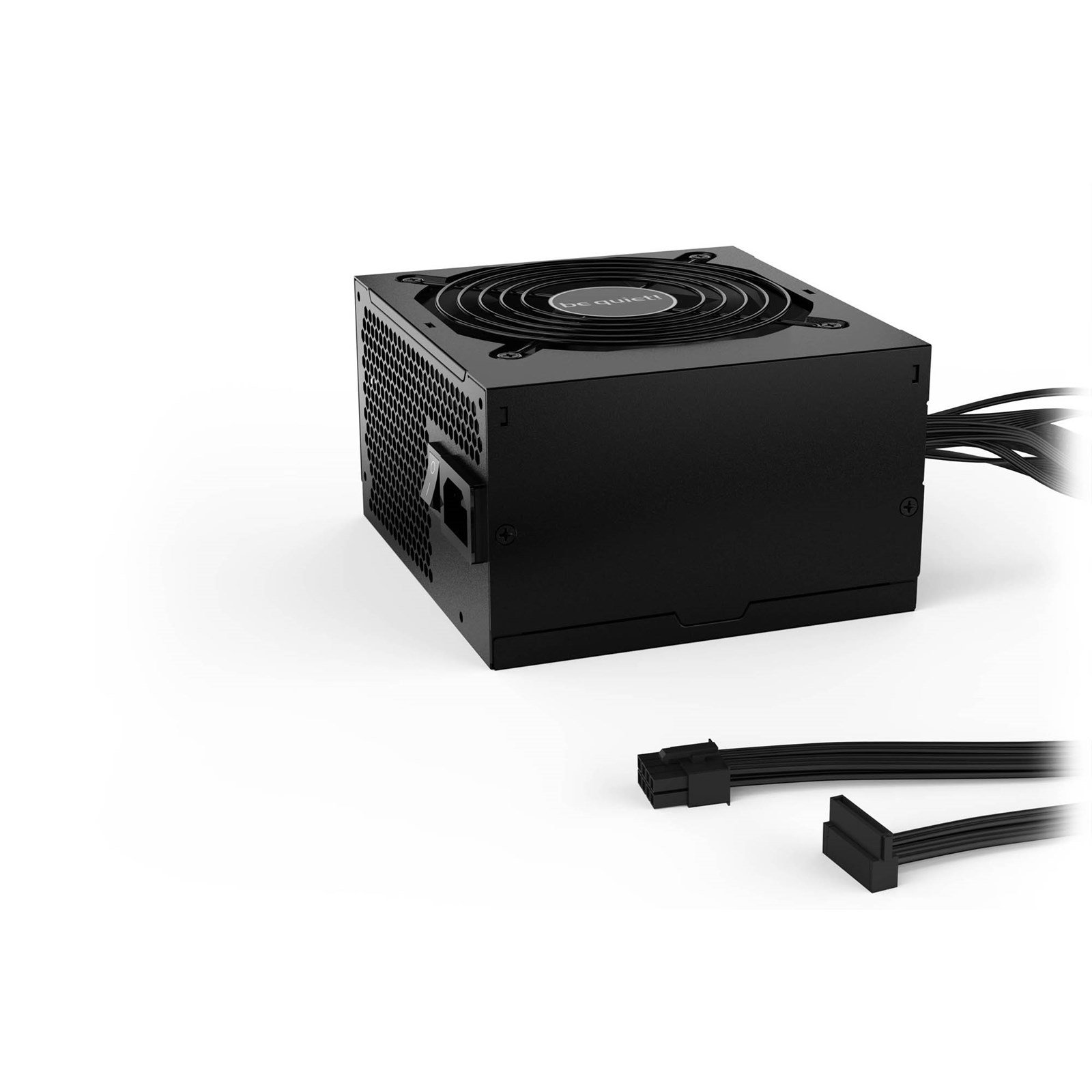

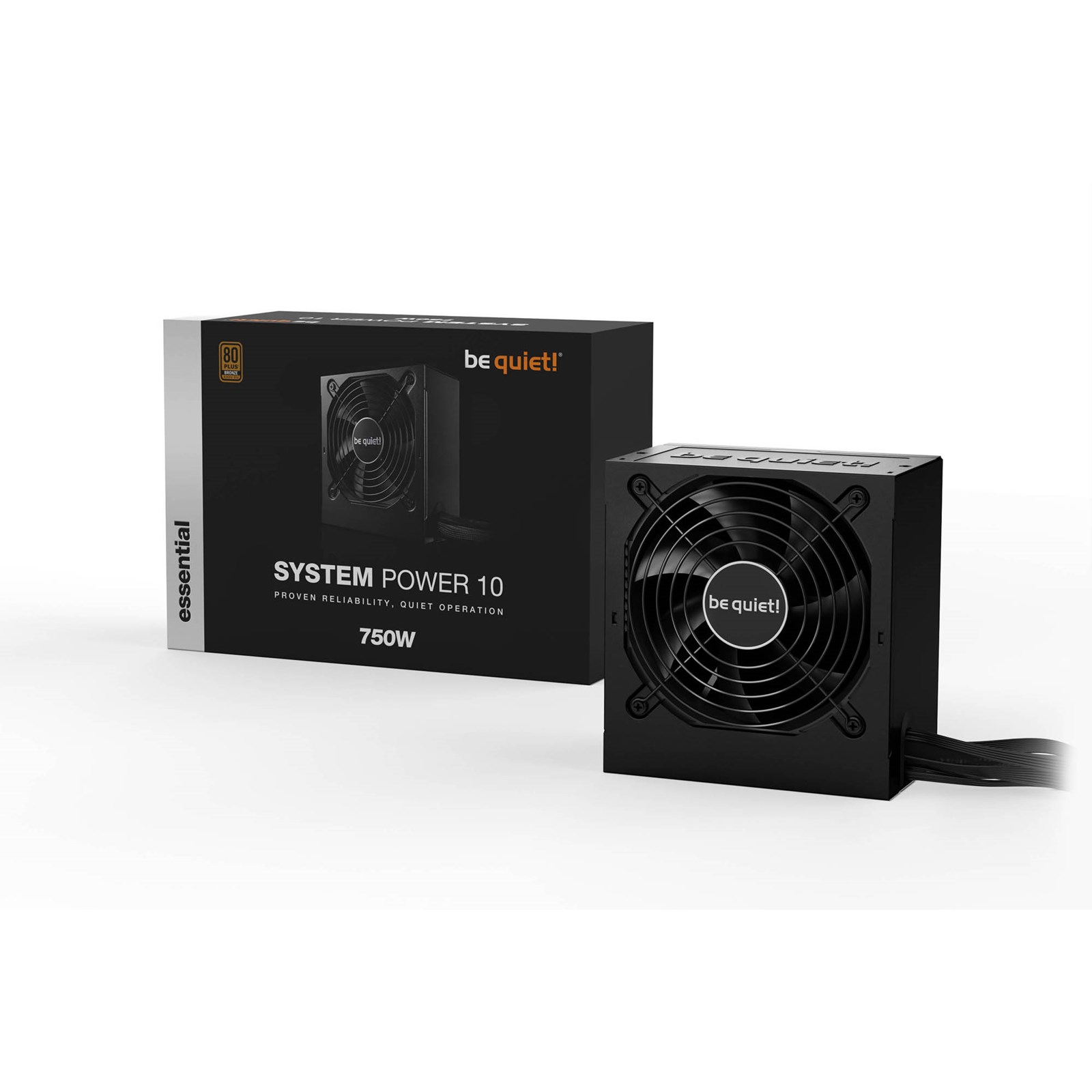

Be Quiet! System Power 10 750W Power Supply 80 Plus Bronze

Part Number: BN329
Manufacturer: BeQuiet!
Quickfind Code: 140446

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Capacity 750W
Connection Fully Wired
Form Factor ATX
Certification 80+ Bronze
Main Colour Black

+ Read More Information

VERY QUIET OPERATION

High-quality fan for low noise

System Power 10 750W is equipped with a temperature-controlled 120mm quality fan. It provides the low noise operation that be quiet! is famous for, offering remarkable quietness at this price-level.

HIGH PERFORMANCE FOR YOUR SYSTEM

Proven reliability for CPU and GPU

System Power 10 750W provides stable and dependable power for CPU and GPU. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load.

80 PLUS® BRONZE CERTIFICATION

Efficient operation

The 80 PLUS Bronze certification of System Power 10 750W Bronze with an efficiency rating of up to 89.1% is convincing evidence of this PSU’s power saving operation.

STRONG 12V RAIL

For a stable PCIe graphics support

System Power 10 750W provides enough power for demanding graphics cards. Safety protections defend against overcurrents, over- and undervoltages, overtemperature, short circuits and overloads, thus keeping your valuable components safe.

Main Features

Temperature-controlled 120mm quality fan reduces system noise
Rock-solid stability with a strong 12V-rail
Tight voltage regulation using DC-to-DC technology
Dependable operation to support powerful GPUs
Stand-by drain of less than 0.15 watts
80 PLUS Bronze efficiency (up to 89.1%)
Attractive black flat cables
Complete suite of top safety features
5-year manufacturer's warranty

Technical Specification

Be Quiet! System Power 10 750W Power Supply 80 Plus Bronze

Interfaces/Ports

SATA Connectors	6
CPU Connectors	1 x 4+4-pin EPS 1 x 8-pin EPS
PCI Connectors	4 x 6+2-pin PCIe
Motherboard Connectors	1 x 24-pin ATX
Molex Connectors

Compliance

ATX Spec	ATX12V v2.52
Standards	80 PLUS Bronze Certified CE, CB, TUV, CU (Russia), UKCA
Safety	OCP, OVP, UVP, SCP, OTP, OPP, SIP

Electrical

Voltage	200 ~ 240 V AC
Power	750 W
Frequency Range	50 Hz
Power Cord	No

Environmental

Operating Temperature

0 ~ 40 °C

Physical

Form Factor	ATX Power Supply
Case Colour	Black
In The Box	Power Supply Screws
Width	150 mm
Depth	140 mm
Height	86 mm
Weight	1.95 kg

Warranty

5 Years

Key Features

Modular Cables	No
80Plus Rated	80 Plus Bronze
PSU Form Factor	ATX
PCIe Connectors	4
Floppy Connector
Motherboard (EPS) Power Connectors	4+4-Pin + 8-Pin
PCIe Pin Type	6+2-Pin
PSU Depth	140 mm
ETA Efficiency Cert.	Bronze
Lambda Noise Cert.	Standard++
CPU Power Pins (female)
PCI Express Power Pins (female)
CPU Power Pins (male)	16
PCIe Power Pins (male)	32
12VHPVR 16-pin Connector	No
