be quiet! DARK POWER 14 1000W ATX 3.1 80+ Titanium Fully Modular PSU

Part Number: BP020EU
Manufacturer: BeQuiet!
Quickfind Code: 140573

Stock: In Stock

£155.89 ex. vat
£187.07 inc. vat

Product Features:

Condition: New
Capacity 1000W
Connection Fully Modular
Form Factor ATX 3.1
Certification 80+ Titanium
Main Colour Black

+ Read More Information

Product Description

The be quiet! Dark Power 14 1000W is a high-performance ATX 3.1 PSU designed for silent, efficient, and reliable power delivery. Featuring 80 PLUS Titanium and Cybenetics Titanium efficiency, it supports PCIe 5.1 GPUs, advanced overclocking, and comes with fully modular, sleeved cables for a clean, high-end build. Its active and semi-passive cooling modes, high-quality Japanese capacitors, and state-of-the-art technology make it perfect for gamers, enthusiasts, and workstation builds.

Key Features
• 80 PLUS Titanium efficiency (up to 95.5%)
• ATX 3.1 PSU supporting PCIe 5.1 GPUs and GPUs with 6+2-pin connectors
• Active and semi-passive cooling with a push-button switch
• Silent Wings 135 mm fan integrated into large heat sink
• Overclocking key for multi-rail or single-rail operation
• Full bridge + LLC + Synchronous Rectifier technology for high efficiency and stability
• Premium Japanese 105°C capacitors

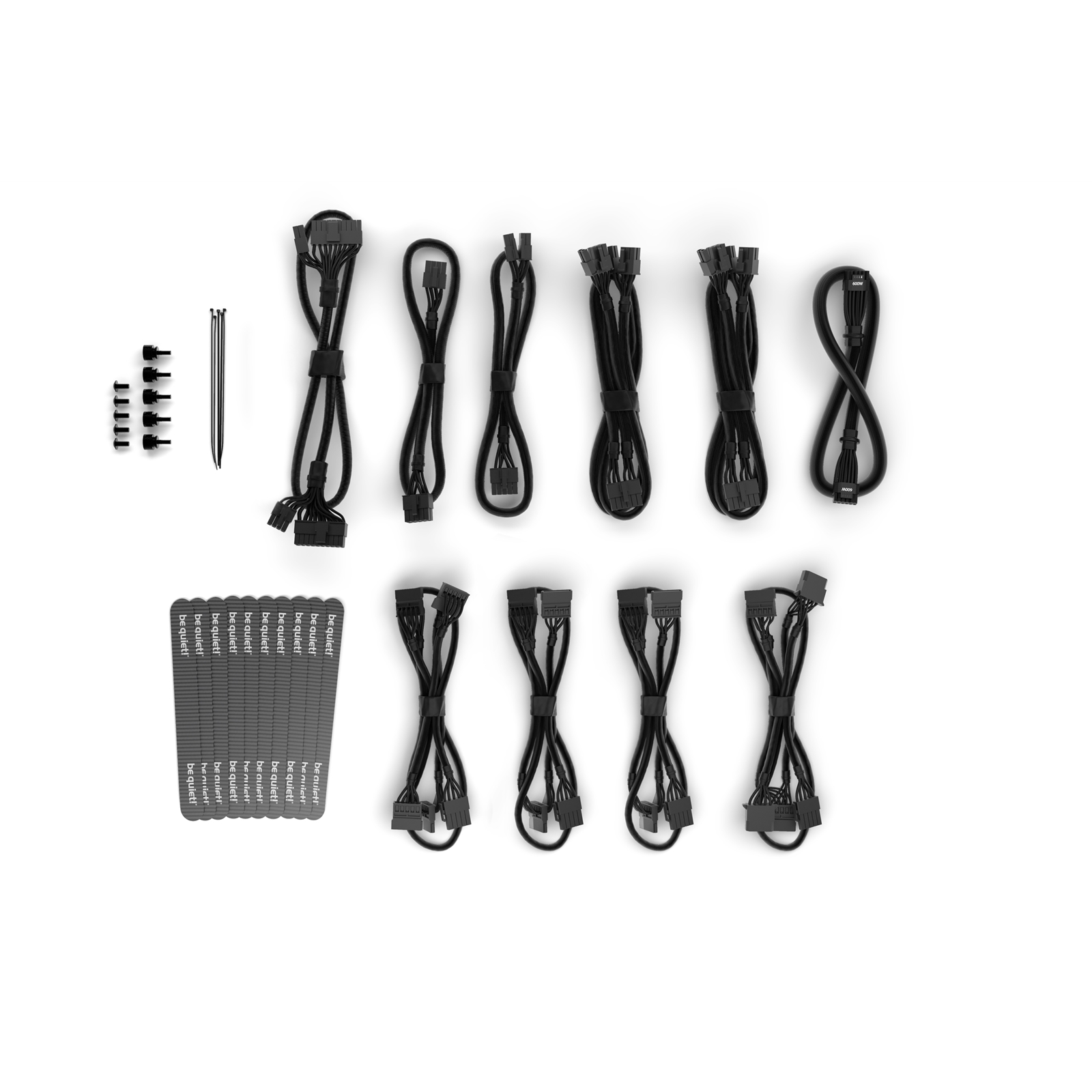

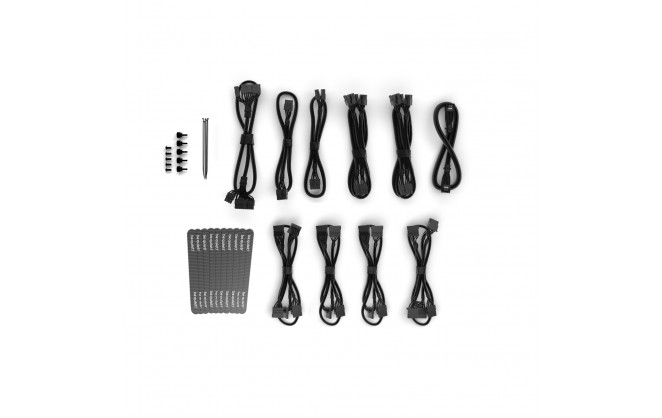

• Fully modular, sleeved cables up to 120 cm

Technical Specification

be quiet! DARK POWER 14 1000W ATX 3.1 80+ Titanium Fully Modular PSU

Model:
Dark Power 14 1000W

Output Power:
Continuous: 1000 W
Peak: 1300 W

Efficiency:
80 PLUS Titanium (up to 95.5%)
Efficiency at 2% load: 73.6%
Efficiency at 10% load: 91.7%
Efficiency at 20% load: 94.6%
Efficiency at 50% load: 95.5%
Efficiency at 100% load: 93.8%

Voltage Rails:
Multi-rail 12V (4 rails)
Overclocking key: Yes

ATX Form Factor:
ATX 3.1

Connectors:
• 1 x 20+4-pin ATX motherboard
• 1 x 4+4-pin CPU
• 1 x 8-pin CPU
• 1 x 12V-2x6 cables
• 4 x PCIe 6+2-pin
• 13 x SATA
• 2 x PATA
• Floppy: No

Fan:
135 mm Silent Wings
6-pole fan motor, fluid-dynamic bearing
Max. speed: 2100 rpm
Noise at 100% load: 18.2 dB(A)

Protection Features:
OTP, OCP, OPP, OVP, UVP, SIP

Input:
200–240 V AC, 50–60 Hz
Input current: 7 A
Power factor: >0.98

Dimensions & Weight:
175 x 150 x 86 mm
Weight: 2.3 kg

Modular Cables:
Fully modular, sleeved, flat cables
Max cable length: 105 cm
Motherboard cable length: 60 cm
