ASUS ROG Strix 1000W 80+ Platinum White Edition ATX 3.1 Fully Modular PSU

Part Number: 90YE00W4-B0NA00
Manufacturer: ASUS
Quickfind Code: 140552

Stock: In Stock

£155.59 ex. vat
£186.71 inc. vat

Product Features:

Condition: New
Capacity 1000W
Connection Fully Modular
Form Factor ATX 3.1
Certification 80+ Platinum
Main Colour White

+ Read More Information

Product Description

ROG Strix 1000W Platinum White Edition is a cool and quiet PSU with stable power delivery, engineered for efficiency with GaN MOSFET and GPU-FIRST intelligent voltage stabilizer in striking style.

Superior Stability.
Next-Level Efficiency
The ROG Strix Platinum White Edition PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring next-gen GaN MOSFET for superior power efficiency. The GPU-FIRST voltage sensing with patented-intelligent voltage stabilizer ensures a steady flow of power to the graphics card. Plus, it is ready for latest hardwares with ATX 3.1 compliance and a native 12V-2x6 connector. The ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.

GaN MOSFET
The ROG Strix Platinum White Edition PSU boasts innovative GaN MOSFET that delivers superior power efficiency by up to 30%, resulting in lower energy waste. Plus, the smaller size of GaN MOSFET allows for a more organized internal layout within the PSU. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation within the PSU.

High-performance Copper Pins
Upgraded PCIe® connectors featuring superior thermal conductivity ensure cooler operation and improved power delivery efficiency.
This translates to a significant 29% reduction in connector temperatures (up to 12.28°C), promoting optimal performance and stability for even the most demanding graphics cards.

Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

Etched Cables
Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.

Technical Specification

ASUS ROG Strix 1000W 80+ Platinum White Edition ATX 3.1 Fully Modular PSU

Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensions
160 x 150 x 86 mm
Efficiency
80Plus Platinum
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A 25A 83.3A 0.3A 3A
Combined Load
130W 130W 1000W 3.6W 15W
Total Output
1000W
Cable Connectors

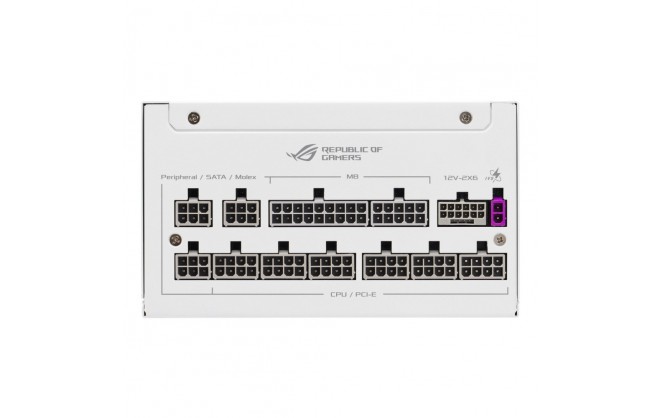

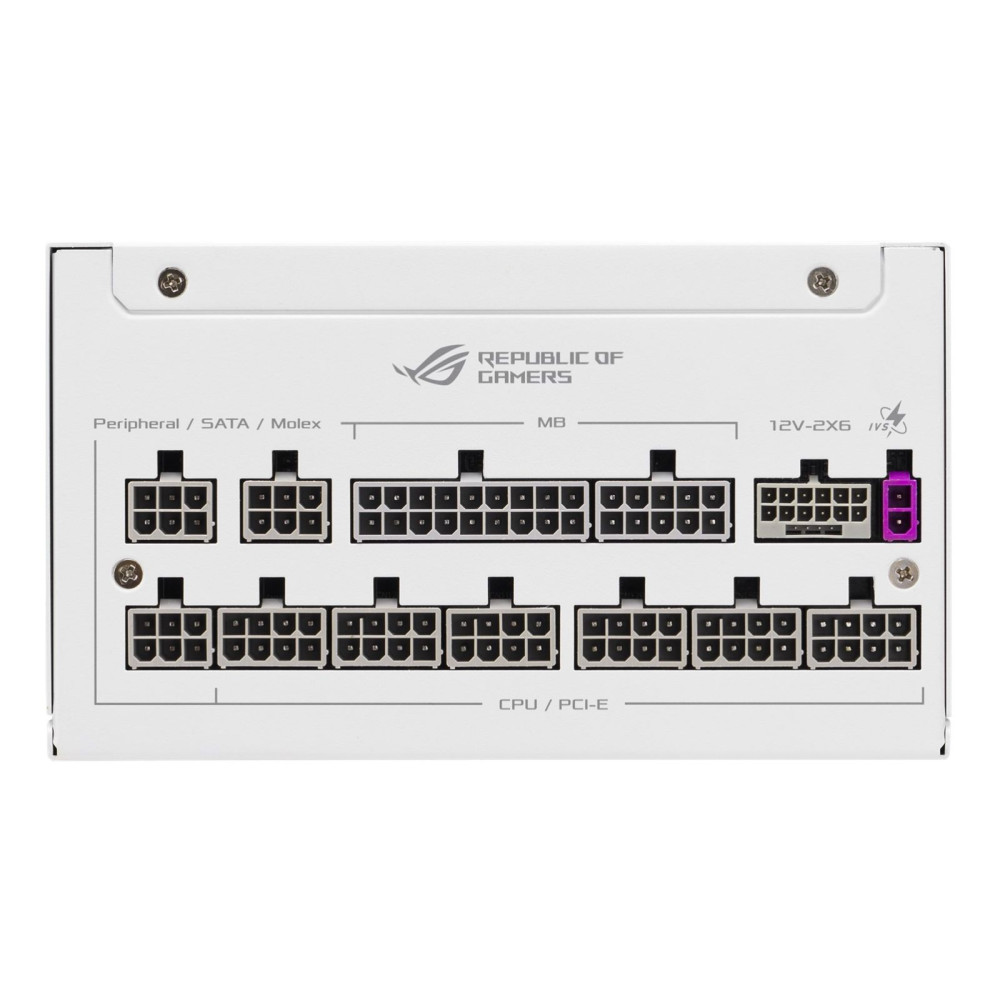

MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 6+2-pin x 4 SATA x 6 PERIPHERAL x 3
Package Contents
Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm) PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm) SATA 1-to-3 Cable x 2 (400+120+120mm) Peripheral 1-to-3 Cabel x 1 (400+150+150mm) ROG Strix DIY sticker x 1 User Manual x 1
Weight
1.81 kg (single PSU)
Cybenetics Noise Level Certification
A+
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
