Engineered to meet the power demands of high-end systems, the Antec High Current Gamer Gold power supply series boasts unparalleled stability and 80 PLUS® Gold-certified efficiency, thanks to the top-grade Japanese capacitors and Active PFC. Advanced thermal control with the Zero RPM mode enables optimal balance between silence and cooling, and a quiet 135 mm fluid dynamic bearing fan completes the package. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable. If loads of power, high-level engineering and extreme efficiency are what you’re after, the HCG Gold series is the ideal power supply in any situation.
Delivering up to 92% efficiency, the High Current Gamer Gold series utilizes active PFC, 100% Japanese capacitors, and provides efficiency during max and low loads—living up to the performance standards that we are known for.
Using 100% high-performance Japanese capacitors, the HCG Gold series ensures the tightest DC stability and regulation, for reliability that you and your system can count on.
A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.
HCG 1000 Gold delivers non-stop industrial class performance for high-end computer systems at up to 50°C ambient.
The whisper-quiet, 135mm fluid-dynamic bearing (FDB) fan provides high airflow with the durability and longevity that is a signature of Antec quality.

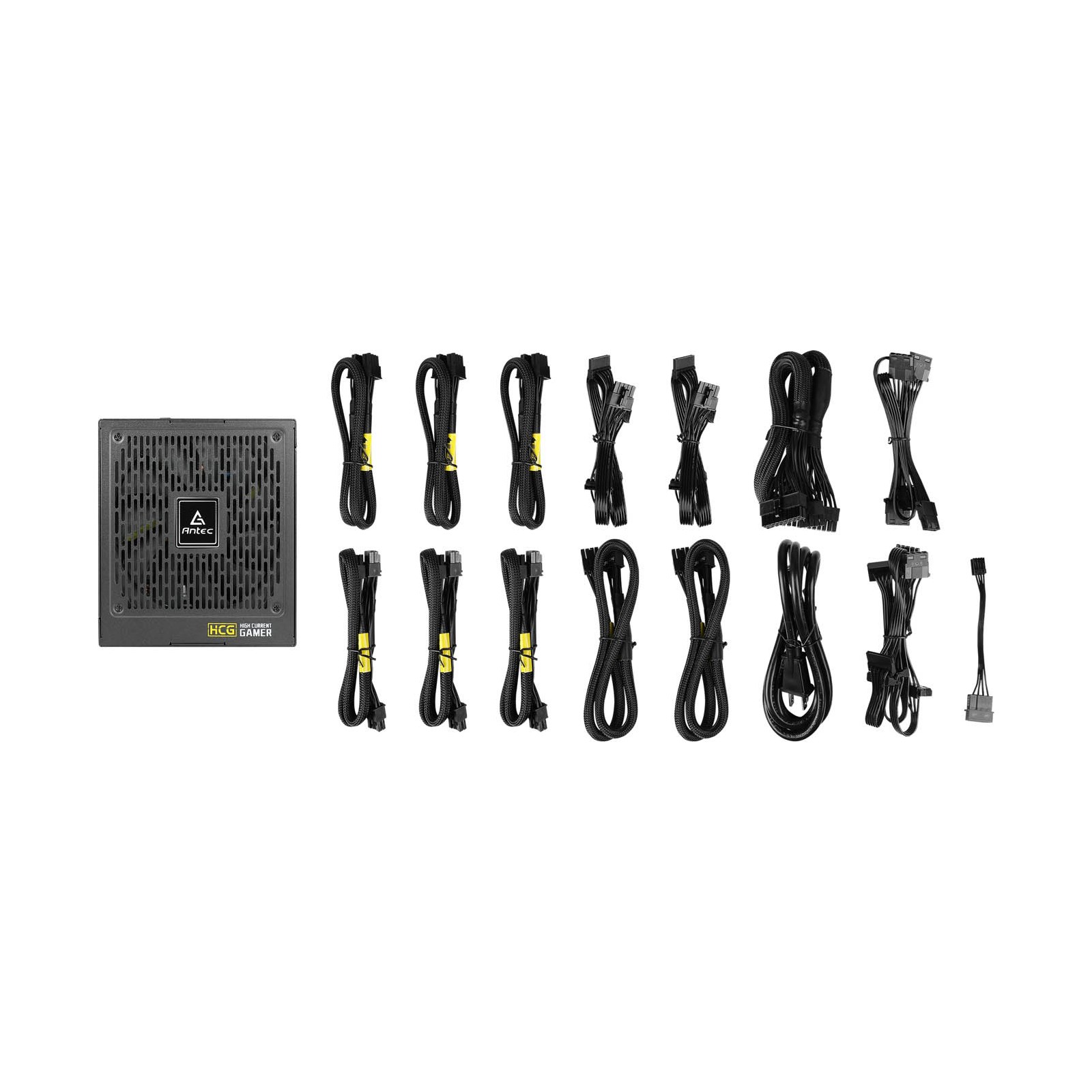

Allows you to use only the cables you need, which greatly simplifies installation and helps clear out space. And with a full-modular power supply, you can also improve your airflow, because excess cables can obstruct and reduce airflow.
Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes.
An extra capacitor located at the ends of 12V cables store power, preventing brownouts from sudden demand spikes-providing an extra power reserve where you need it, when you need it most.
Antec High Current Gamer 1000W Modular PSU
Interfaces/Ports
| SATA Connectors | 12 |
| CPU Connectors | 2 x 4+4-pin EPS |
| PCI Connectors | 8 x 6+2-pin PCIe |
| Motherboard Connectors | 1 x 24-pin ATX |
| Molex Connectors | 6 |
| Floppy Connectors | 1 x Floppy |
Compliance
| Standards | 80 PLUS Gold Certified cTUVus / TUV / CB / RCM / CE / EAC / CCC / BSMI / FCC / KR / BIS / UKCA / ICES |
| Safety | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
Electrical
| Voltage | 100 ~ 240 V AC |
| Power | 1000 W |
| Frequency Range | 50 ~ 60 Hz |
| Power Cord | Yes |
Environmental
| Operating Temperature | 0 ~ 50 °C |
Physical
| Form Factor | ATX Power Supply |
| Case Colour | Black |
| In The Box | Power Supply 4x Screws Modular Cables Power Cable |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 1.88 kg |
Warranty
| Warranty | 10 Years |
Key Features
| Modular Cables | Modular |
| 80Plus Rated | 80 Plus Gold |
| PSU Form Factor | ATX |
| PCI-E Connectors | 8 |
| Floppy Connector | 1 |
| Motherboard Power Connectors | 8 + 8-Pin |
| PCI-E Pin Type | 6+2-Pin |
| PSU Depth | 160 mm |
Item Details
| Manufacturer | Antec |
| Manufacturer Code | 0-761345-11774-6 |
| EAN | 0761345117746 |
| Condition | New |
