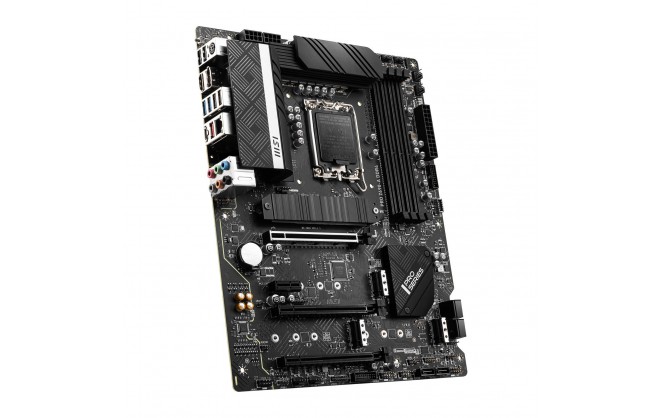

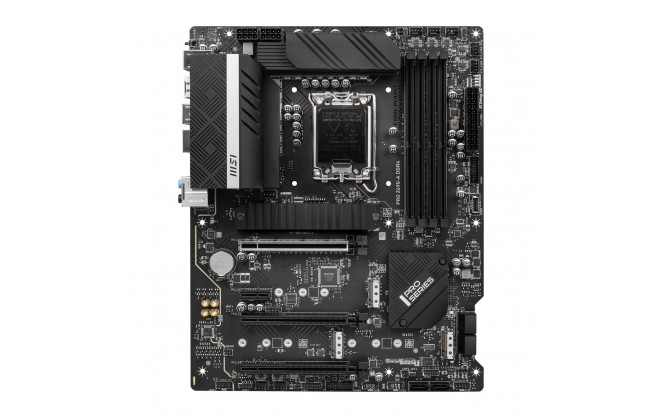

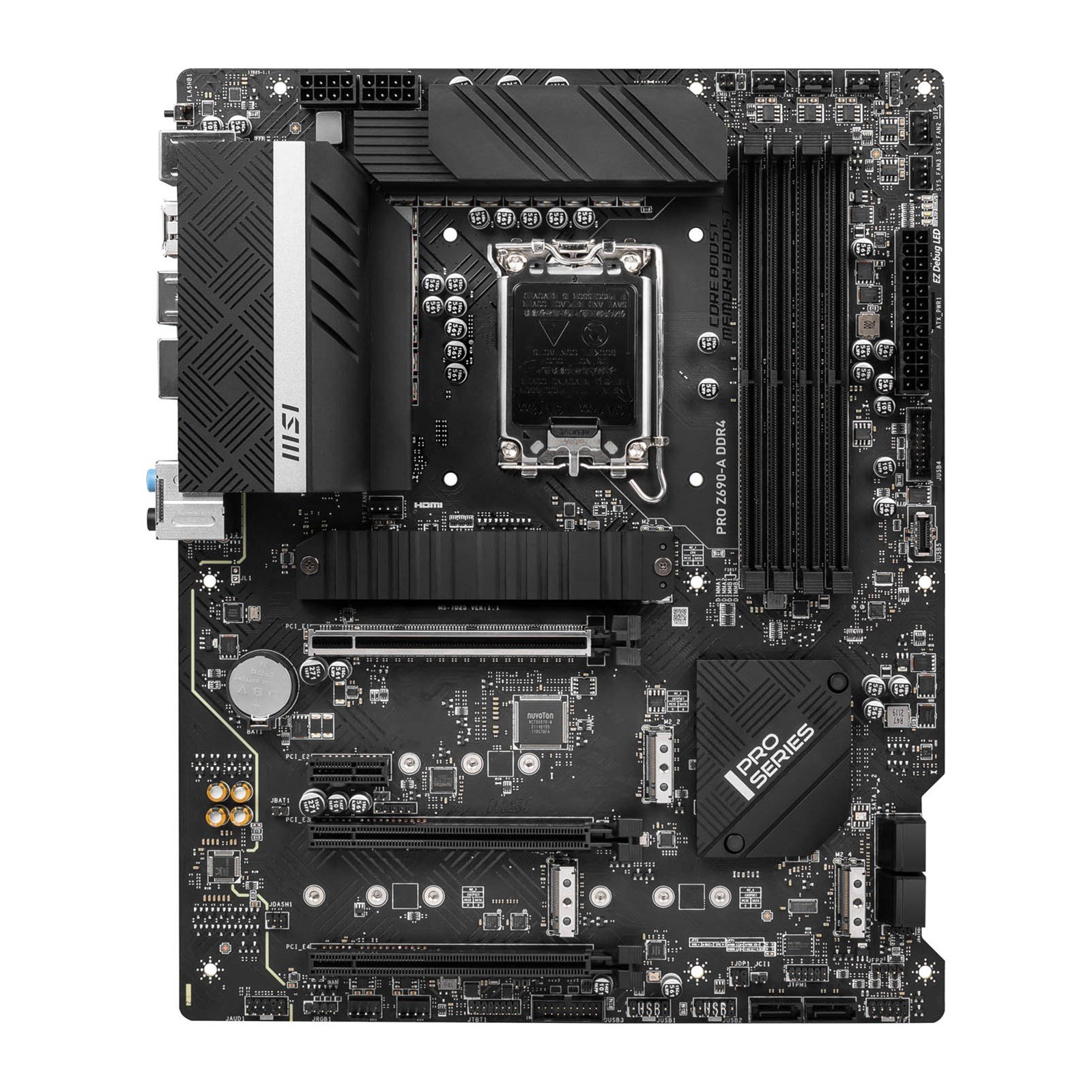

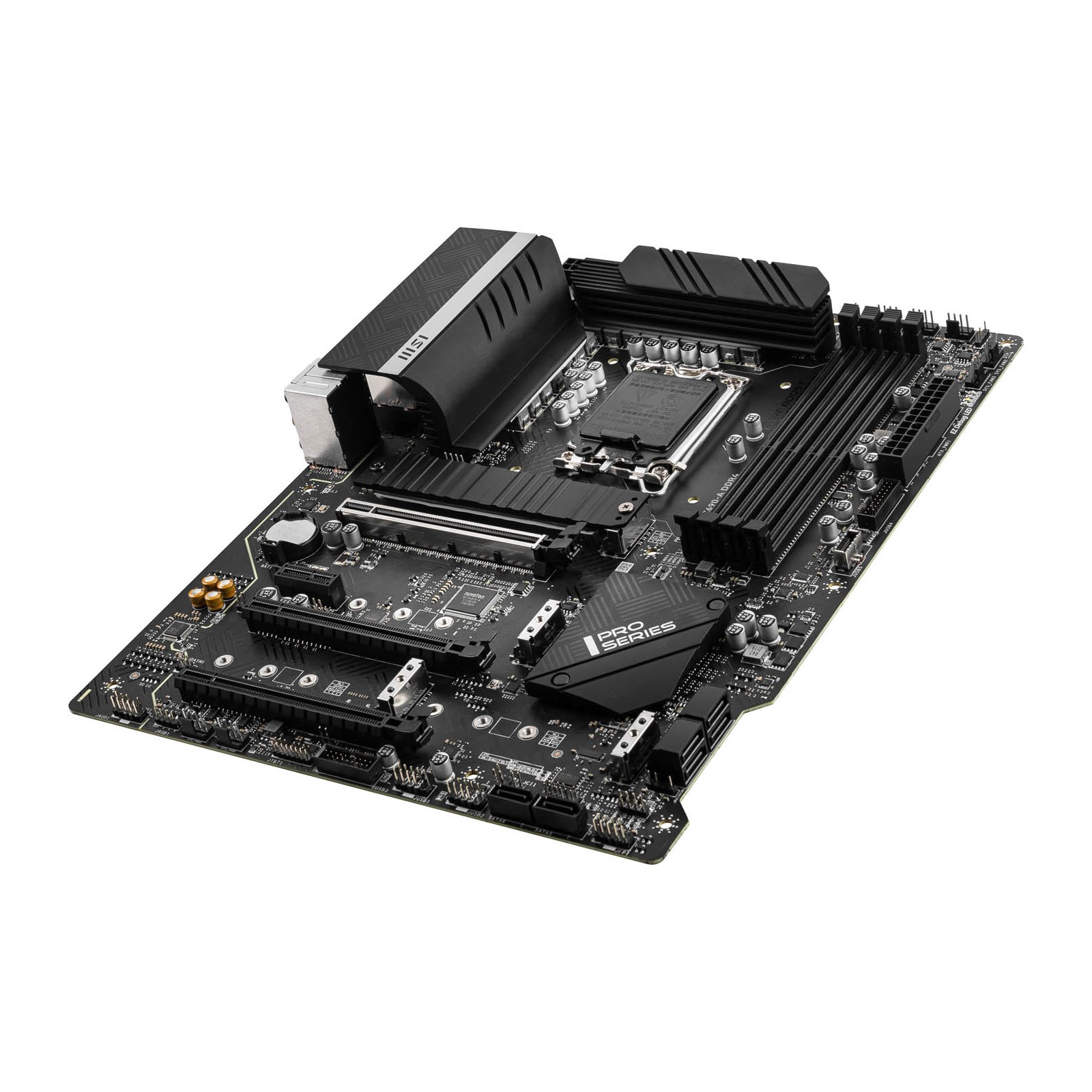

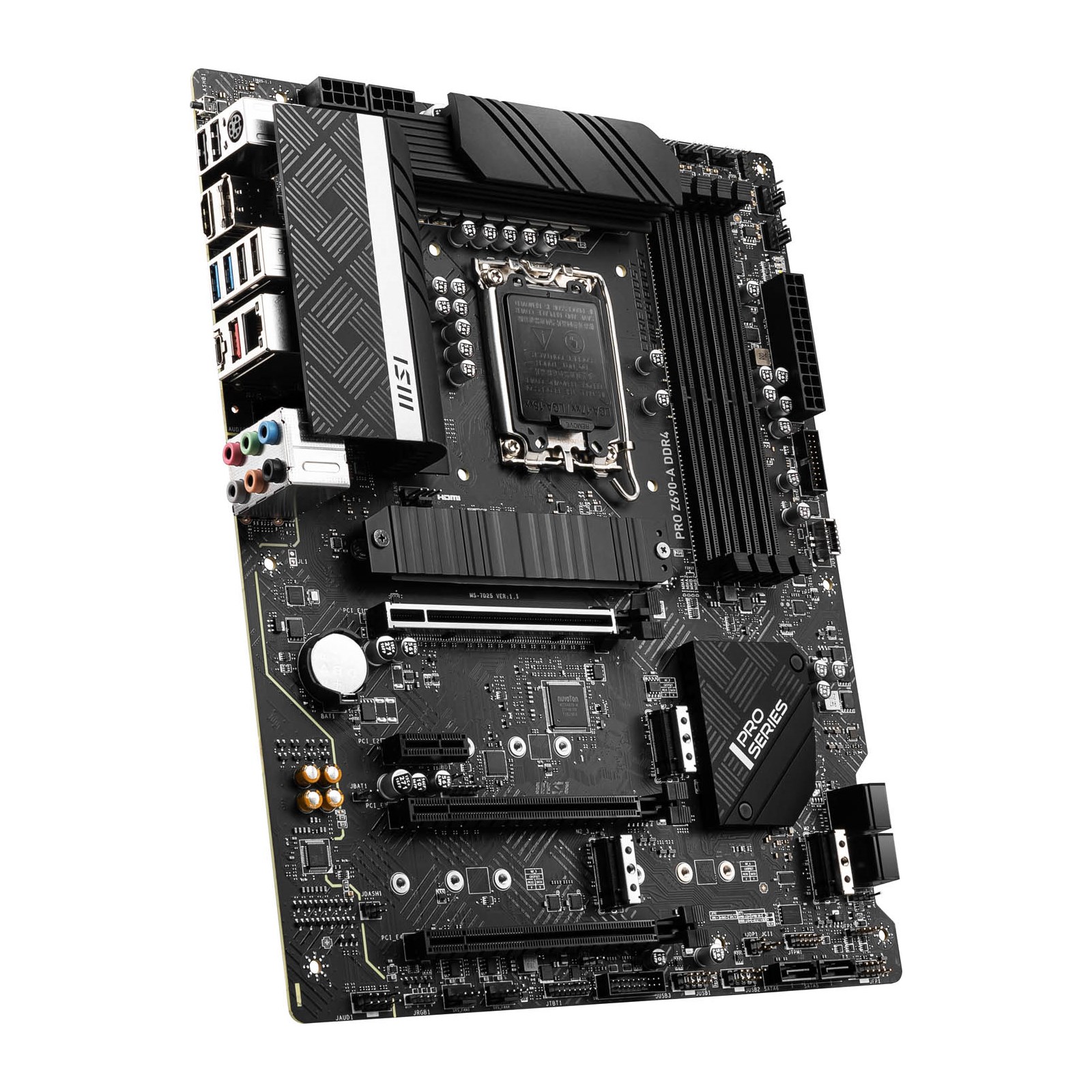

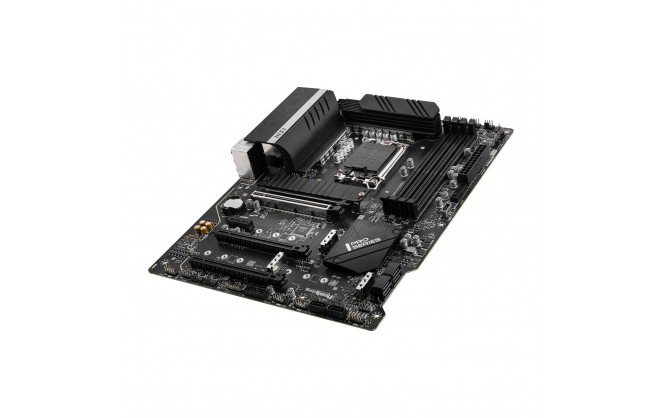

MSI PRO Z690-A DDR4 Intel Socket 1700 Motherboard

Contact for availability

Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
Supports DDR4 Memory, up to 5200+(OC) MHz
Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
Audio Boost: Reward your ears with studio grade sound quality
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	12th Gen Intel Core Processors
64-bit Support	Yes
Socket	LGA1700

Rear Panel I/O Ports

Internal I/O Connectors

SATA Connectors	6 x SATA III
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 2 x USB 3.0 headers (supports 4 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Water Pump fan header 6 x System fan headers
Thunderbolt Port(s)	1 x Thunderbolt header (supports RTD3)
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	1 x M.2, Type 2242/2260/2280/22110 (PCIe Gen4) 1 x M.2, Type 2242/2260/2280 (PCIe Gen4) 1 x M.2, Type 2242/2260/2280 (PCIe Gen3 or SATA) 1 x M.2, Type 2242/2260/2280 (PCIe Gen4 or SATA) 1 x Tuning Controller header 2 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header

Memory

Motherboard

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
2 x PCI Express 3.0 x16 slots (@ x4, x1)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC897

Warranty

3 Years

Network

System Requirements

Operating Systems Supported

Microsoft Windows 11 / 10 64-bit

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes
SLi/Crossfire Features	Supports AMD CrossFire Technology

Physical

Form Factor	ATX Motherboard
In The Box	MSI PRO Z690-A DDR4 Motherboard Quick Installation Guide M.2 Screw / Standoff Set 2 x M.2 Clips 2 x SATA Cables Product Registration Card I/O Shield Driver DVD
Width	305 mm
Length	244 mm

Key Features

On-board RGB Control	MSI Mystic Sync
Memory Speed	5200 MHz
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Firewire	No
Wireless Network	No
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	6 port(s)
Number of USB Ports	8 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	ATi CrossFire
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard Power Connectors	8 + 8-Pin
Motherboard Chipset	Intel Z690
Thunderbolt	No
Motherboard Model	MSI PRO Z690-A DDR4
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
