The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

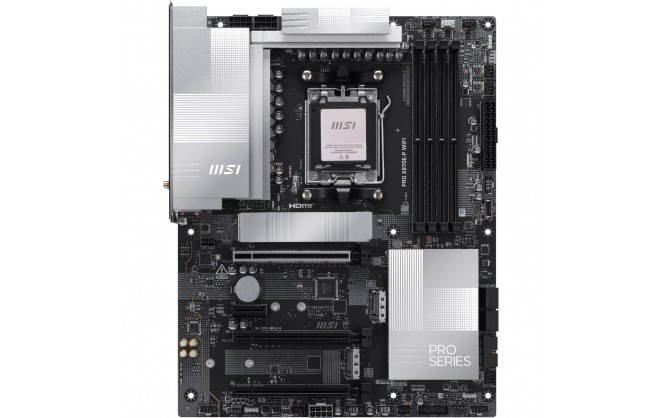

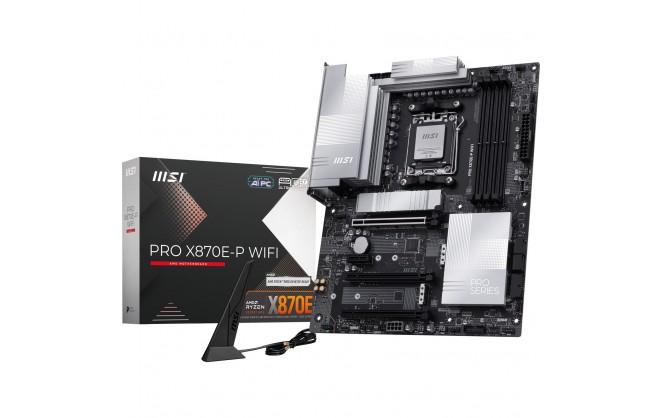

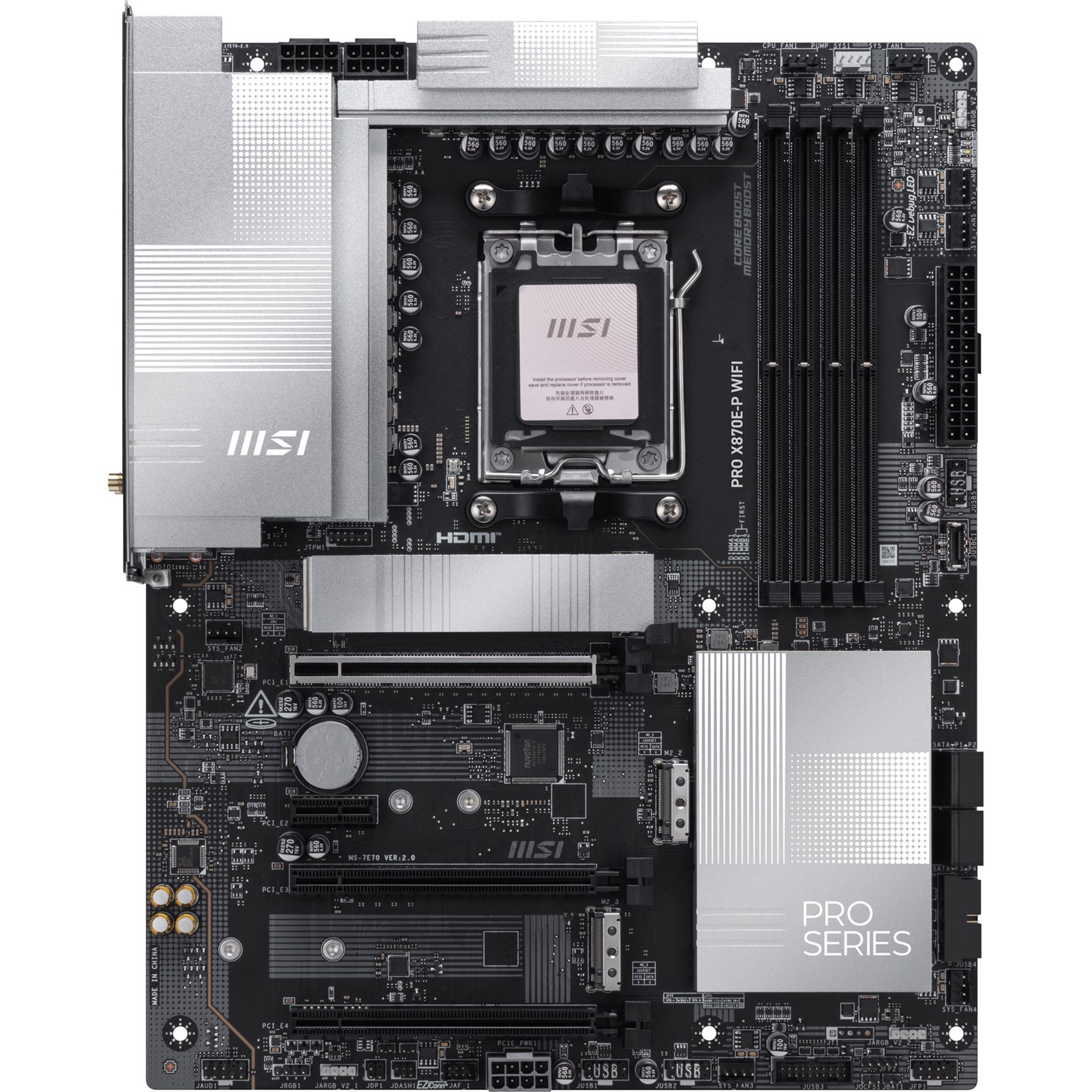

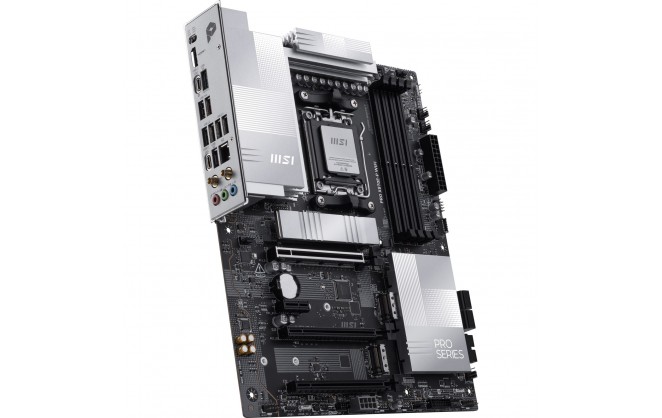

MSI PRO X870E-P WIFI ATX Socket AM5 Motherboard
CPU
| CPU Socket | Socket AM5 |
| CPU Brand | AMD |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | AMD |
| Supported Processors | AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors |
| 64-bit Support | Yes |
| Socket | AM5 |

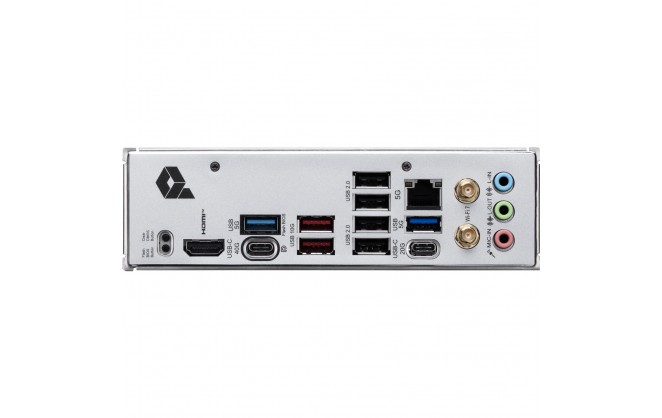

Rear Panel I/O Ports
| USB Ports | 1 x USB-C 4 1 x USB-C 3.2 2 x USB 3.1 2 x USB 3.0 4 x USB 2.0 |
| HDMI Port | 1 x HDMI 2.1 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
| Antenna Connector(s) | 2 x SMA Antenna |
Internal I/O Connectors
| SATA Connectors | 4 x SATA |
| USB Connectors | 1 x USB-C 3.1 header (supports 1 port) 2 x USB 3.0 headers (supports 4 ports) 3 x USB 2.0 headers (supports 6 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x Combo fan header 6 x System fan headers |
| Chassis Intrusion Connector | 1 x Chassis Intrusion header |
| TPM Header | 1 x TPM header |
| Power Connector Port | 1 x 24-pin ATX 2 x 8-pin EPS 1 x 8-pin PCIe |
| Other Connectors | 1 x M.2 slot, Tpye 2260/2280 (PCIe Gen5) 1 x M.2 slot, Tpye 2260/2280 (PCIe Gen4) 1 x M.2 slot, Tpye 2280/22110 (PCIe Gen4) 3 x 3-pin ARGB headers 1 x 4-pin RGB header |
Memory
| Memory Bus Speed | Up to 8200 MT/s |
| Memory Type | DDR5 |
| Maximum RAM | 256 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Northbridge | AMD X870E |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 5.0 x16 slot 1 x PCI Express 4.0 x16 slot (@ x4) 1 x PCI Express 3.0 x16 slot (@ x1) 1 x PCI Express 3.0 x1 slot |
Graphics Device
| Integrated Graphics Supported | Yes |
Warranty
| Warranty | 3 Years |
Sound
| Integrated Sound | Realtek ALC897 |
Network
| Integrated Network | Realtek 8126VB |
| Network Speeds Supported | Up to 5 Gbps |
| Wireless LAN | Yes - Wi-Fi 7 |
| Wireless Network Speed | Up to 5.8 Gbps |
| Bluetooth | Yes |
| Bluetooth Version | 5.4 |
System Requirements
| Operating Systems Supported | Microsoft Windows 11 |
System
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | ATX Motherboard |
| In The Box | Motherboard EU Regulatory Notice Quick Installation Guide EZ M.2 Clip II Remover 3 x EZ M.2 Clip II EZ Wi-Fi Antenna 2 x SATA Cables 1 to 2 EZ Conn-Cable (v1) |
| Width | 244 mm |
| Length | 305 mm |
Key Features
| RDIMM Memory Supported | No |
| RDIMM Memory Required | No |
| Wireless Network | Yes |
| Motherboard Width | 244 mm |
| Motherboard Height | 305 mm |
| Main Colour | Black |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 10 port(s) |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | ATX |
| Motherboard (EPS) Power Connectors | 2 x 8-Pin |
| Motherboard Chipset | AMD X870E |
| Thunderbolt | No |
| Motherboard Model | MSI PRO X870E-P WIFI |
| WiFi Speed | 5800 Mbps |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | MSI Mystic Sync |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Internal USB Type-C Header | Yes |
| Power Requirement (auto) | 70 W |
| Max Memory Speed Supported (Non-overclocked) | 5600 MT/s |
| Max Memory Speed Supported (overclocked) | 8200 MT/s |
| CPU Power Pins (female) | 16 |
| PCI Express Power Pins (female) | 8 |
| Total M.2 Slots | 3 |
| Maximum NVMe M.2 ports | 3 |
| SATA ports | 4 |
| No. of front USB2.0 ports supported | 6 |
| No. of front USB3.0 ports supported | 4 |
| No. of front USB-C ports supported | 1 |
| Back Connect Support | No |
Item Details
| Manufacturer | MSI |
| Manufacturer Code | PRO X870E-P WIFI |
| EAN | 4711377347600 |
