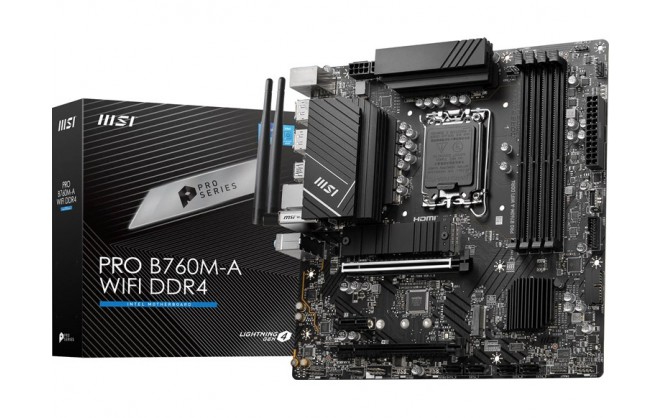

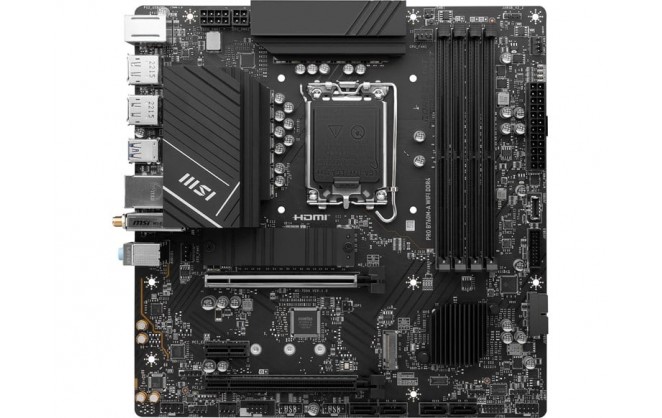

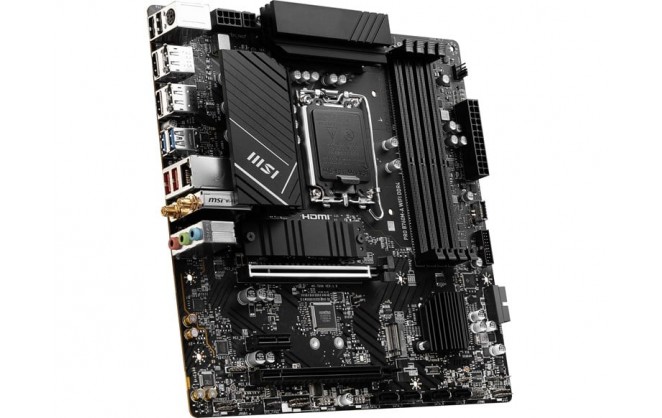

MSI PRO B760M-A WIFI DDR4 mATX Motherboard Intel LGA 1700 Socket

£109.99 ex. vat
£131.99 inc. vat

Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	2th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1700

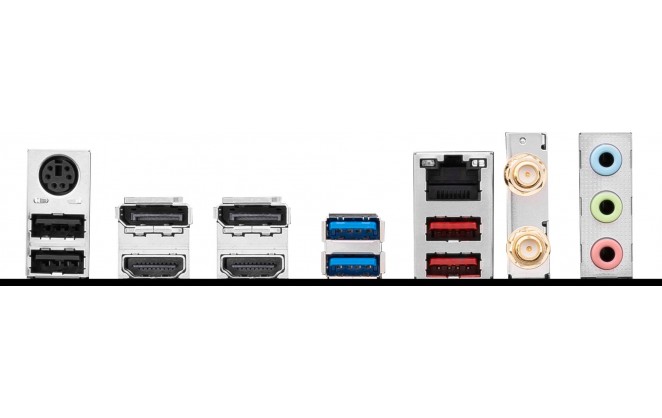

Rear Panel I/O Ports

Internal I/O Connectors

SATA Connectors	4x SATA III
USB Connectors	1x USB-C 3.2 Gen1 4x USB 3.2 Gen1 4x USB 2.0
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Pump fan header 2 x System fan headers
Serial Connectors	1 x COM header
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4) 1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4 or SATA) 2 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header

Memory

Motherboard

Expansion

Number of PCI Express Slots

2 x PCI Express 4.0 x16 slots (@ x16/x4)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC897

Warranty

3 Years

Network

System Requirements

Operating Systems Supported

Microsoft Windows 11 64-bit

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	mATX Motherboard
In The Box	Motherboard EU Regulatory Notice Quick Installation Guide 2 x M.2 Screw / Standoff Sets SATA Cable Wi-Fi Antenna I/O Shield
Width	243.84 mm
Length	243.84 mm

Key Features

Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network	Yes
Chipset Manufacturer	Intel
Number of PCI Slots	slot(s)
Number of PCI-X Slots	slot(s)
Main Colour
Socket(s)
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	6 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	mATX
Wake on LAN
Motherboard Power Connectors	8 + 8-Pin
Motherboard Chipset	Intel B760
Thunderbolt
Motherboard Model	MSI PRO B760M-A WIFI DDR4
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
Cooler Height	mm
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
Memory Speed	5333 MHz
Skip Audio Test
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Radiator Length	mm
Microsoft Processor List
Power Requirement (auto)	60 W
Cooler count
Max Memory Speed Supported (Non-overclocked)	2133 MHz
Max Memory Speed Supported (overclocked)	5333 MHz
CPU Power Pins (female)	16
PCI Express Power Pins (female)
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
Maximum SATA M.2 ports	1
PCI-e slots	3
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	4
No. of front USB-C ports supported	1
