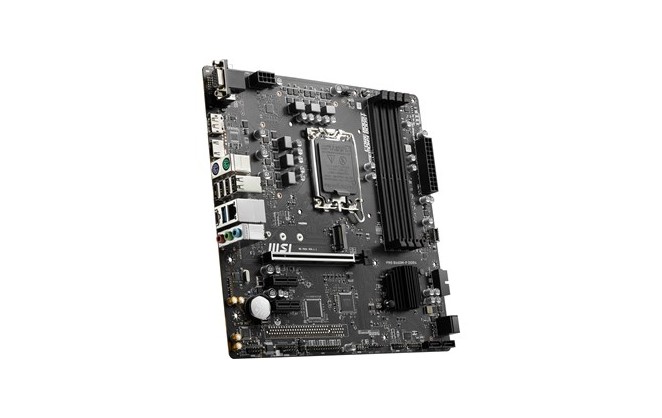

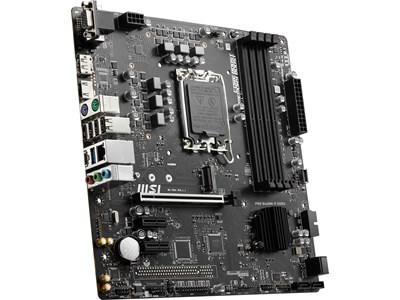

MSI PRO B660M-P DDR4 Intel Socket 1700 Motherboard

£103.89 ex. vat
£124.67 inc. vat

Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
Supports DDR4 Memory, up to 4600+(OC) MHz
Core Boost: With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1700

Rear Panel I/O Ports

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.0 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x System fan header
Parallel Connectors	1 x LPT header
Serial Connectors	1 x COM header
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4, PCIe Gen3 or SATA)

Memory

Motherboard

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot
2 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC897

Warranty

3 Years

Network

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	MicroATX Motherboard
In The Box	Motherboard Quick Installation Guide M.2 Clip 2 x SATA Cables Product Registration Card I/O Shield Driver DVD Case Badge
Width	244 mm
Length	244 mm

Key Features

Motherboard Model	MSI PRO B660M-P DDR4
WiFi Speed	Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
Cooler Height	mm
M.2 Support	Yes
On-board RGB Control	None
Memory Speed	4600 MHz
Skip Audio Test
RGB Header Type	None
Addressable RGB	No
Internal USB Type-C Header	Yes
Radiator Length	mm
Microsoft Processor List
Power Requirement (auto)	60 W
Cooler count
Max Memory Speed Supported (Non-overclocked)	3200 MHz
Max Memory Speed Supported (overclocked)	4600 MHz
CPU Power Pins (female)	8
PCI Express Power Pins (female)
Total M.2 Slots	1
Maximum NVMe M.2 ports	1
Maximum SATA M.2 ports	1
PCI-e slots	3
SATA ports	4
USB2.0 headers	1
USB3.0 headers	1
USB-C headers	1
Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network	No
Number of PCI Slots	slot(s)
Number of PCI-X Slots	slot(s)
Main Colour
Socket(s)
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	6 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	Yes
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	mATX
Wake on LAN
Motherboard Power Connectors	4 + 4-Pin
Motherboard Chipset	Intel B660
Thunderbolt
