£83.15 ex. vat
£99.78 inc. vat
Share:
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.

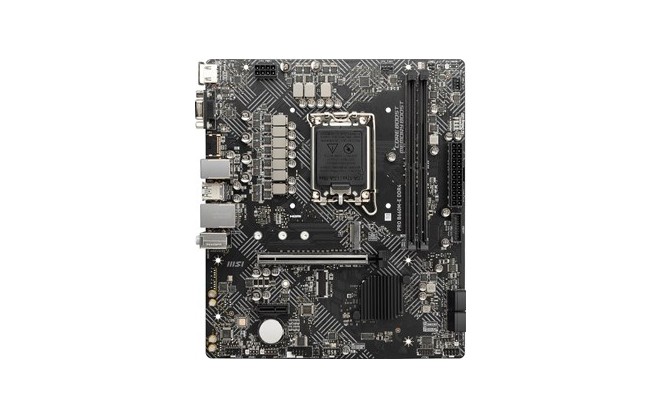

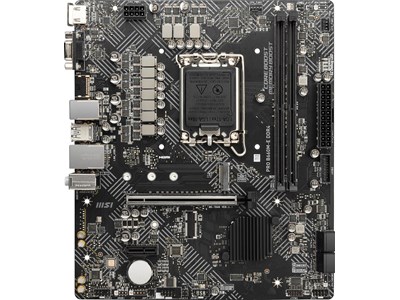

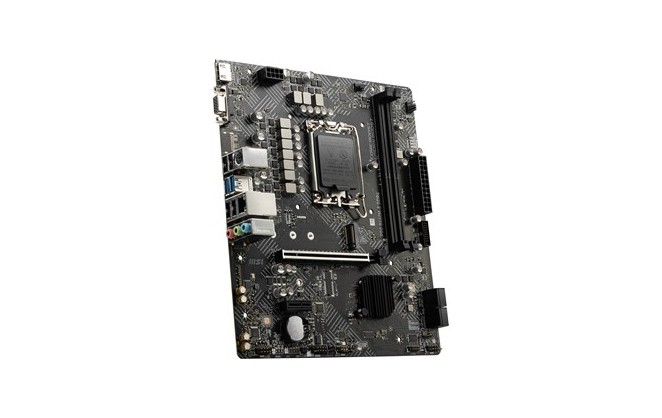

MSI PRO B660M-E DDR4 Intel Socket 1700 Motherboard
CPU
| CPU Socket | Socket 1700 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| 64-bit Support | Yes |
| Socket | LGA1700 |

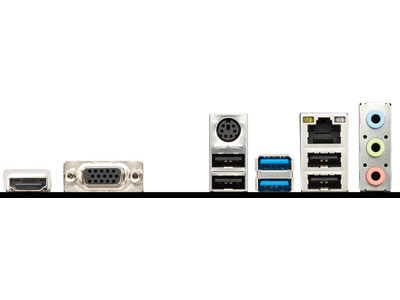

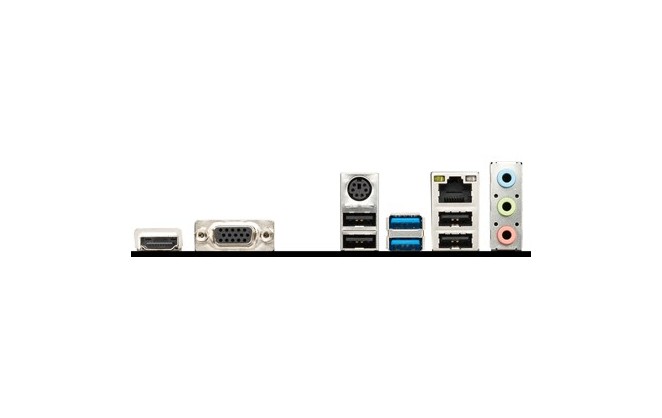

Rear Panel I/O Ports
| USB Ports | 2 x USB 3.0 4 x USB 2.0 |
| HDMI Port | 1 x HDMI 2.1 |
| VGA Port | 1 x D-Sub |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 4 x SATA III |
| USB Connectors | 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x System fan header |
| Chassis Intrusion Connector | 1 x Chassis Intrusion header |
| TPM Header | 1 x TPM header |
| Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS |
| Other Connectors | 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen3 or SATA) |
Memory
| Memory Bus Speed | Up to 4600+ MHz |
| Memory Type | DDR4 |
| Maximum RAM | 64 GB |
| Memory Slot | 2 x DIMM |
Motherboard
| Chipset Manufacturer | Intel |
| Northbridge | B660 |
| RAID Supported | No |
| RAID Format | RAID 0, 1, 5, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 4.0 x16 slot 1 x PCI Express 3.0 x1 slot |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek ALC892/897 |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Intel I219V |
| Network Speeds Supported | Up to 1 Gbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft Windows 11 / 10 64-bit |
System
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | MicroATX Motherboard |
| In The Box | MSI PRO B660M-E DDR4 Motherboard Quick Installation Guide M.2 Clip 2 x SATA Cables Product Registration Card I/O Shield Driver DVD MSI Case Badge |
| Width | 244 mm |
| Length | 211 mm |
Key Features
| Cooler Height | mm |
| M.2 Support | Yes |
| On-board RGB Control | None |
| Memory Speed | 4600 MHz |
| Skip Audio Test | |
| RGB Header Type | None |
| Addressable RGB | No |
| Internal USB Type-C Header | No |
| Radiator Length | mm |
| Microsoft Processor List | |
| Power Requirement (auto) | 60 W |
| Cooler count | |
| Max Memory Speed Supported (Non-overclocked) | 3200 MHz |
| Max Memory Speed Supported (overclocked) | 4600 MHz |
| CPU Power Pins (female) | 8 |
| PCI Express Power Pins (female) | |
| Total M.2 Slots | 1 |
| Maximum NVMe M.2 ports | 1 |
| Maximum SATA M.2 ports | 1 |
| PCI-e slots | 2 |
| SATA ports | 4 |
| USB2.0 headers | 1 |
| USB3.0 headers | 1 |
| Firewire | No |
| IDE/EIDE Supported | |
| SCSI/SAS Supported | |
| Wireless Network | No |
| Number of PCI Slots | slot(s) |
| Number of PCI-X Slots | slot(s) |
| Main Colour | |
| Socket(s) | |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 6 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | Yes |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | mATX |
| Wake on LAN | |
| Motherboard Power Connectors | 4 + 4-Pin |
| Motherboard Chipset | Intel B660 |
| Thunderbolt | No |
| Motherboard Model | MSI PRO B660M-E DDR4 |
| WiFi Speed | Mbps |
| USB 3.1 Support | No |
| Internal USB3.0 Header | Yes |
Graphics
| Graphics Chipset |
Item Details
| Manufacturer | MSI |
| Manufacturer Code | PRO B660M-E DDR4 |
| EAN | 4719072924935 |
| UPC | 824142278840 |
| Condition | New |
