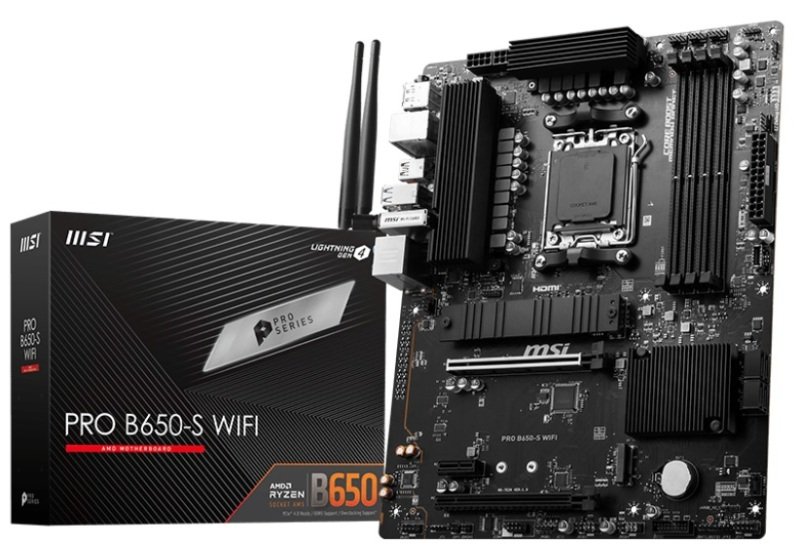

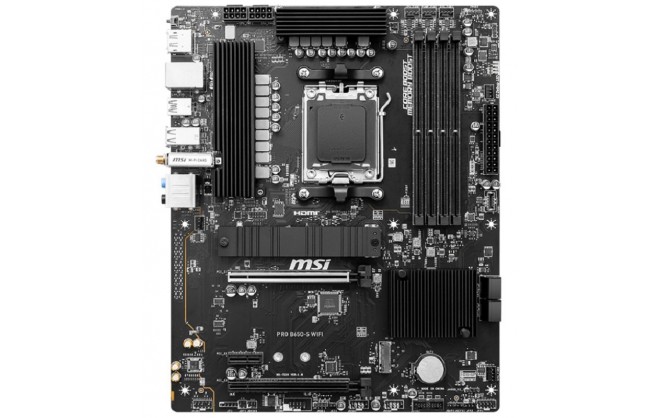

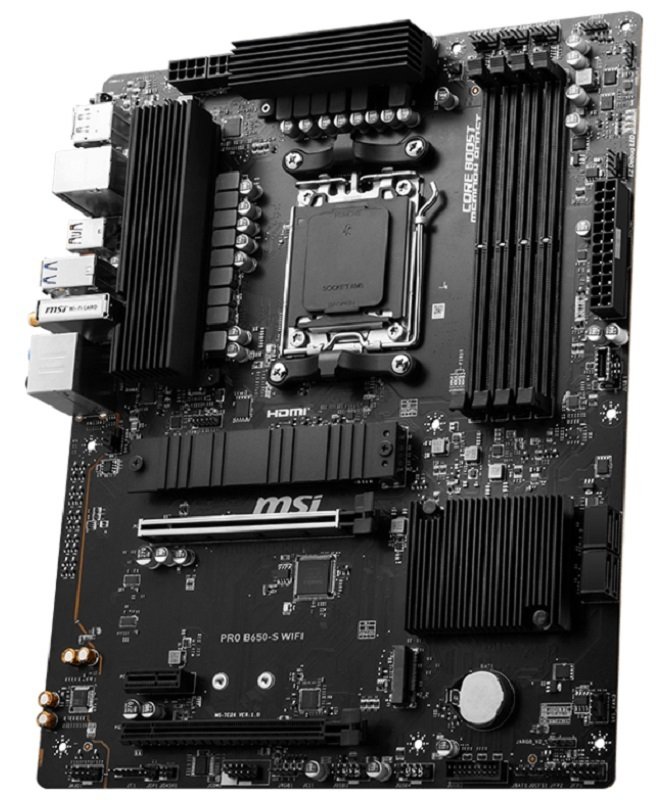

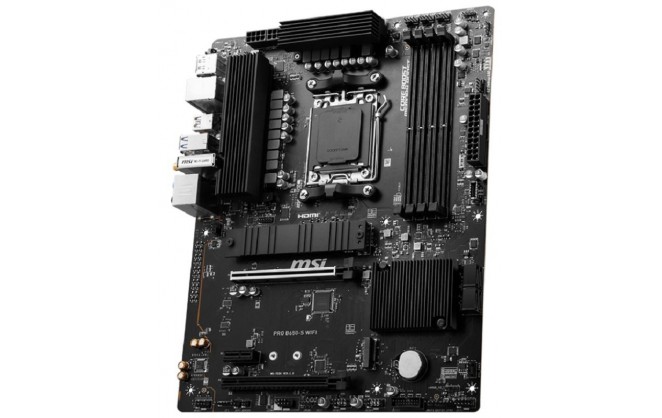

MSI PRO B650-S WIFI ATX AM5 Motherboard

Part Number: PRO B650-S WIFI
Manufacturer: MSI
Quickfind Code: 136120

Stock: In Stock

£124.82 ex. vat
£149.78 inc. vat

Product Features:

Condition: New
Socket Type AM5
Chipset B650
Form Factor ATX
Memory Type DDR5
CPU Type AMD

+ Read More Information

Product Description

Business Elegance

The PRO B650-S WIFI is a business-oriented ATX motherboard featuring the latest AMD B650 chipset that supports ample RAM capacity.

Supports AMD Ryzen 7000 Processors (Zen 4, AM5)
12 Duet Rail Power System with P-PAK
2 x PCI-e 4.0 x16 slots
4 x DDR5 DIMMs with Memory Boost: Dual Channel (192GB Max. / 7200MHz OC)
2 x Lightning Gen4 M.2 slots
7.1 HD Audio with Audio Boost
USB 3.2 Gen 2x2 Type-C (20Gbps)
2.5G LAN, AMD Wi-Fi 6E & Bluetooth 5.3

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today's performance limits.

Supports AMD Ryzen 7000 Processors

The PRO B650-S WIFI motherboard supports AMD Ryzen 7000 processors.

Form Factor: ATX Socket Type: AM5 Chipset: AMD B650

12+2 Duet Rail Power System with P-PAK

With its dual 8 pin power connectors and exclusive Core Boost technology, the PRO B650-S WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings:

1. Digital PWM IC 2. 12-Phase Duet-Rail CPU Power (P-PAK) 3. 2-Phase SOC Power 4. 1-Phase MISC Power

Integrated Cooling Features

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

Gen4 M.2 Connectors

The PRO B650-S WIFI motherboard features MSI's Gen4 M.2 slots:

2 x Gen4 x4 64Gb/s slots

Fortified PCIe 4.0 x16 slots

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

2 x PCI-e 4.0/3.0 x16 slots* (primary with Steel Armor)

1 x PCIe 3.0 x1 slot

*Supports x16/x4

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

4 x DDR5 Dual Channel (7200+ MHz OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 7200 MHz, supports AMD EXPO.

Wi-Fi 6E & Bluetooth 5.3

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.

USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

Technical Specification

MSI PRO B650-S WIFI ATX AM5 Motherboard

Product Description
Product Description	MSI PRO B650-S WIFI - motherboard - ATX - Socket AM5 - AMD B650
Product Type	Motherboard - ATX
Chipset Type	AMD B650
Processor Socket	1 x Socket AM5
Compatible Processors	Ryzen (supports Ryzen 7000 Series)
Max RAM Size	192 GB
RAM Supported	4 DIMM slots - DDR5, non-ECC, unbuffered
Storage Ports	4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports	1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio	HD Audio (8-channel)
LAN	2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
