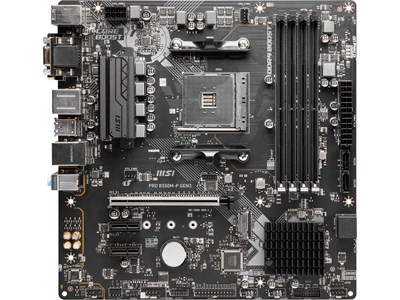

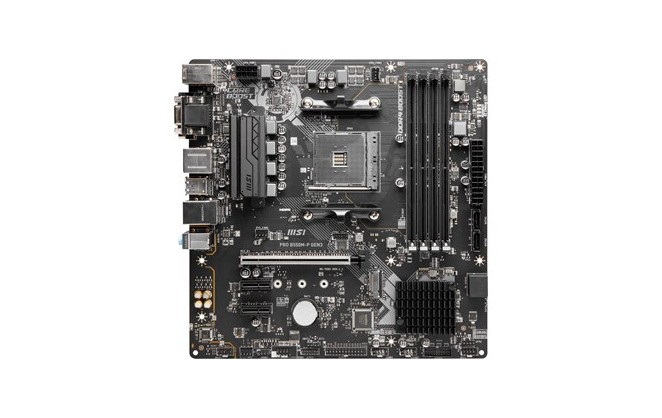

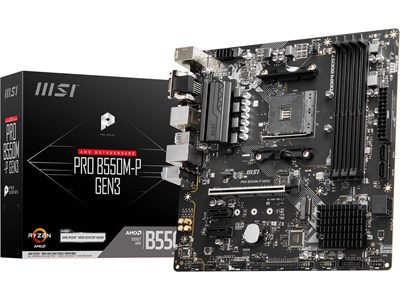

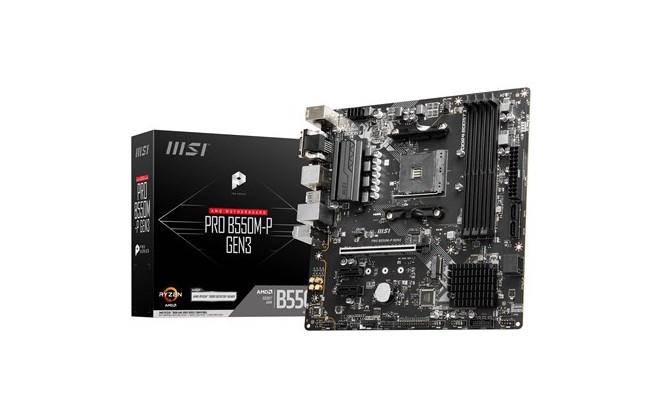

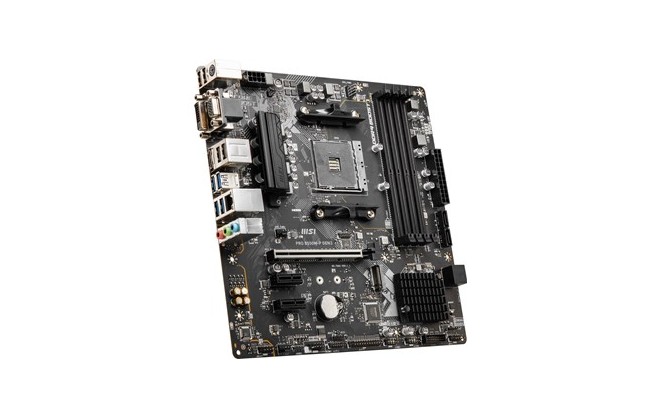

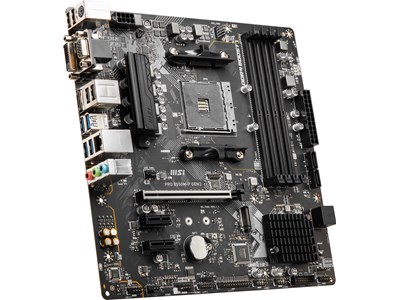

MSI PRO B550M-P GEN3 AMD Socket AM4 Motherboard

£77.98 ex. vat
£93.58 inc. vat

Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Supports DDR4 Memory, up to 4400(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Powerful Design: Core Boost, Digital PWM IC, DDR4 Boost
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
MSI Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

CPU

CPU Socket	Socket AM4
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
64-bit Support	Yes
Socket	AM4

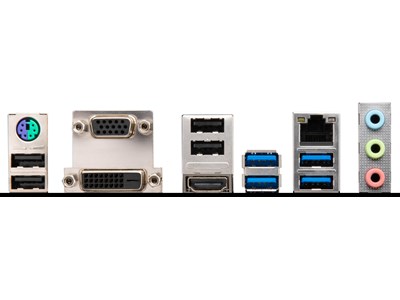

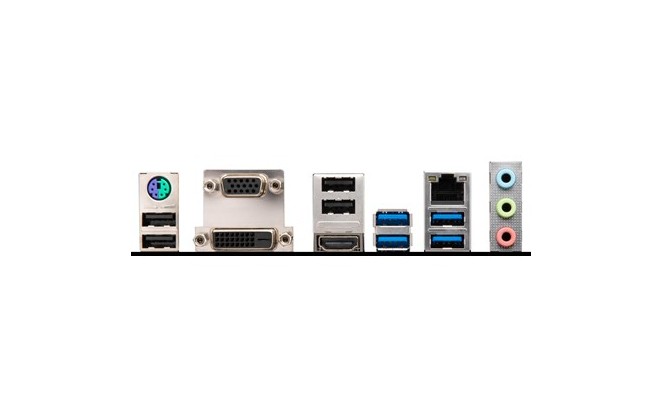

Rear Panel I/O Ports

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 2 x System fan headers
Parallel Connectors	1 x LPT header
Serial Connectors	1 x COM header
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen3 or SATA)

Memory

Motherboard

Expansion

Number of PCI Express Slots

1 x PCI Express 3.0 x16 slot
2 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC897

Warranty

3 Years

Network

System

BIOS	1x 256 Mb flash UEFI AMI BIOS ACPI 6.1, SMBIOS 2.8 Multi-language
Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	MicroATX Motherboard
In The Box	Motherboard Quick Installation Guide M.2 Screw/Standoff Set 2 x SATA Cables Product Registration Card MSI Case Badge I/O Shield
Width	244 mm
Length	244 mm

Key Features

Motherboard Model	MSI PRO B550M-P GEN3
WiFi Speed	Mbps
USB 3.1 Support	No
Internal USB3.0 Header	Yes
Cooler Height	mm
M.2 Support	Yes
On-board RGB Control	None
Memory Speed	4400 MHz
Skip Audio Test
RGB Header Type	None
Addressable RGB	No
Internal USB Type-C Header	No
Radiator Length	mm
Microsoft Processor List
Power Requirement (auto)	60 W
Cooler count
Max Memory Speed Supported (Non-overclocked)	3200 MHz
Max Memory Speed Supported (overclocked)	4400 MHz
CPU Power Pins (female)	8
PCI Express Power Pins (female)
Total M.2 Slots	1
Maximum NVMe M.2 ports	1
Maximum SATA M.2 ports	1
PCI-e slots	3
SATA ports	4
USB2.0 headers	2
USB3.0 headers	1
Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network	No
Number of PCI Slots	slot(s)
Number of PCI-X Slots	slot(s)
Main Colour
Socket(s)
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	8 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	Yes
DVI Connection	Yes
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	mATX
Wake on LAN
Motherboard Power Connectors	4 + 4-Pin
Motherboard Chipset	AMD B550
Thunderbolt
