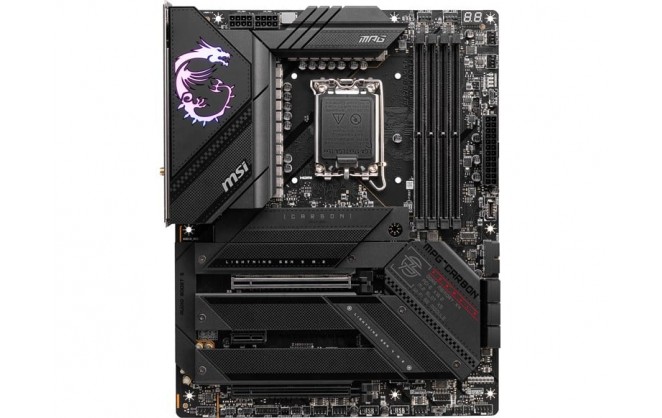

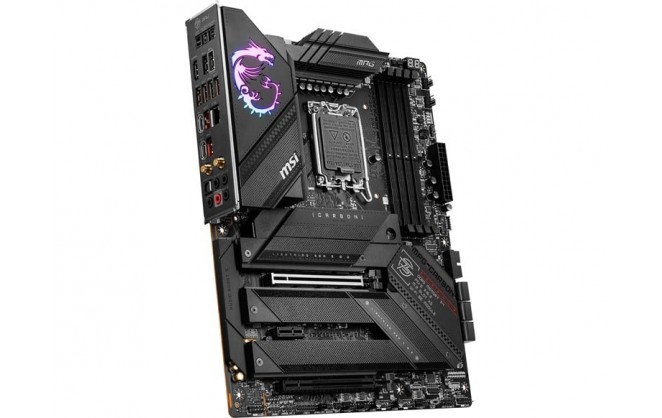

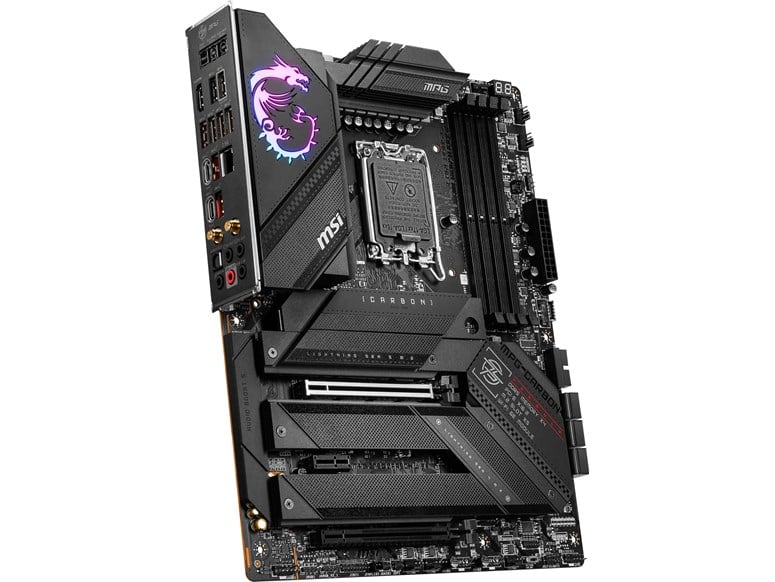

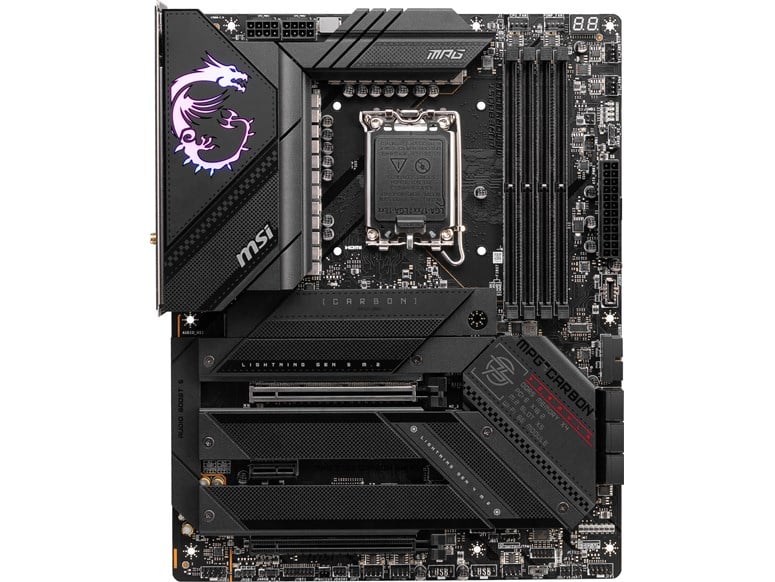

MSI MPG Z790 CARBON WIFI ATX Motherboard Intel LGA 1700 Socket

£296.77 ex. vat
£356.12 inc. vat

Supports 13th /12th Gen Intel Core / Pentium / Celeron processors for LGA 1700 socket
Supports DDR5 Memory, up to 7600+(OC) MHz
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
Enhanced Power Design: Direct 19+1+1 phases power, Core Boost, Memory Boost
Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 8-layer PCB made by server grade level material
Pre-installed I/O Shield: Better EMI protection and more convenience for installation

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1700

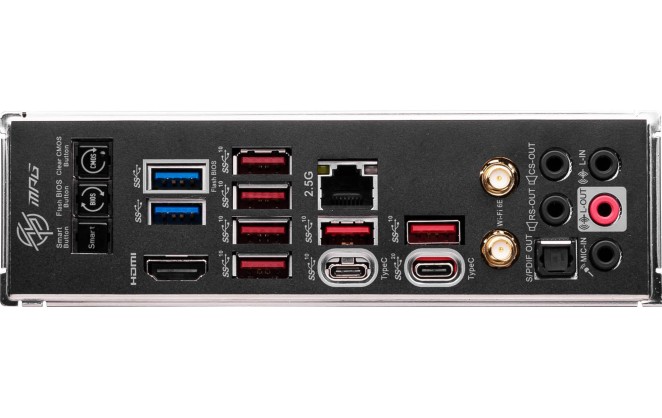

Rear Panel I/O Ports

Internal I/O Connectors

SATA Connectors	6 x SATA III
USB Connectors	1 x USB-C 3.2 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Pump fan header 5 x System fan headers
Thunderbolt Port(s)	1 x TBT header (supports RTD3)
Chassis Intrusion Connector	1 x Chassis Intrusion heaedr
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	1 x M.2 slot, Type 2260/2280/22110 (PCIe Gen5) 3 x M.2 slots, Type 2260/2280 (PCIe Gen4) 1 x M.2 slot, Type 2260/2280 (PCIe Gen4 or SATA) 2 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header 1 x Tuning Controller header

Memory

Motherboard

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC4080

Warranty

3 Years

Network

System Requirements

Operating Systems Supported

Microsoft Windows 11 64-bit

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard

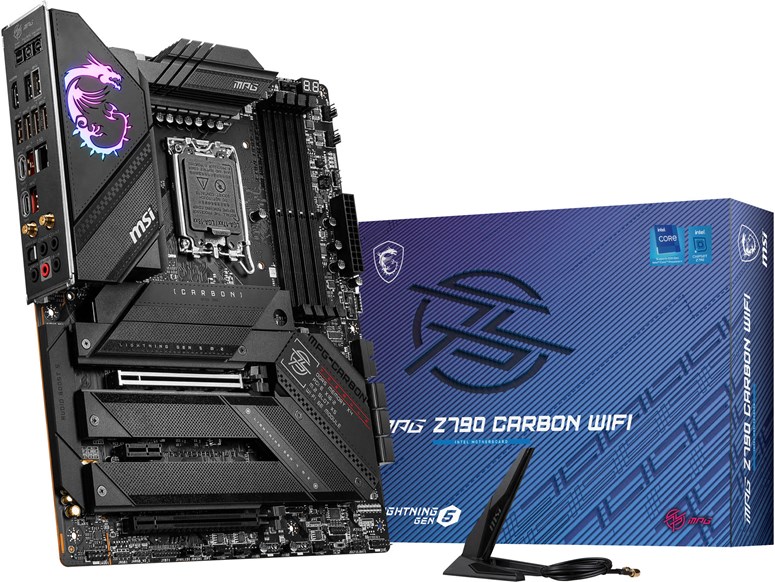

In The Box	Motherboard EU Regulatory Notice Quick Installation Guide 4 x EZ M.2 Clip Packages Wi-Fi Antenna Cable Stickers USB Drive 2 x SATA Cables JARGB Extension Cable JRGB Extension Cable (1 to 2)
Width	304.8 mm
Length	243.84 mm

Key Features

Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network	Yes
Chipset Manufacturer	Intel
Number of PCI Slots	slot(s)
Number of PCI-X Slots	slot(s)
Main Colour
Socket(s)
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	6 port(s)
Number of USB Ports	10 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ATX
Wake on LAN
Motherboard Power Connectors	8 + 8-Pin
Motherboard Chipset	Intel Z790
Thunderbolt	No
Motherboard Model	MSI MPG Z790 CARBON WIFI
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
Cooler Height	mm
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
Memory Speed	7600 MHz
Skip Audio Test
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Radiator Length	mm
Microsoft Processor List
Power Requirement (auto)	70 W
Cooler count
Max Memory Speed Supported (Non-overclocked)	5600 MHz
Max Memory Speed Supported (overclocked)	7600 MHz
CPU Power Pins (female)	16
PCI Express Power Pins (female)
Total M.2 Slots	5
Maximum NVMe M.2 ports	5
Maximum SATA M.2 ports	1
PCI-e slots
SATA ports	6
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
