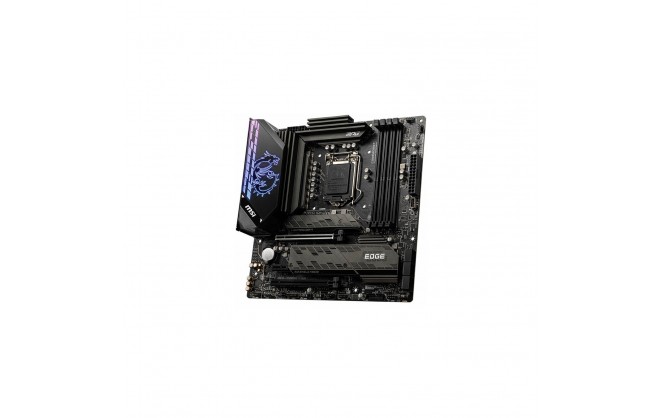

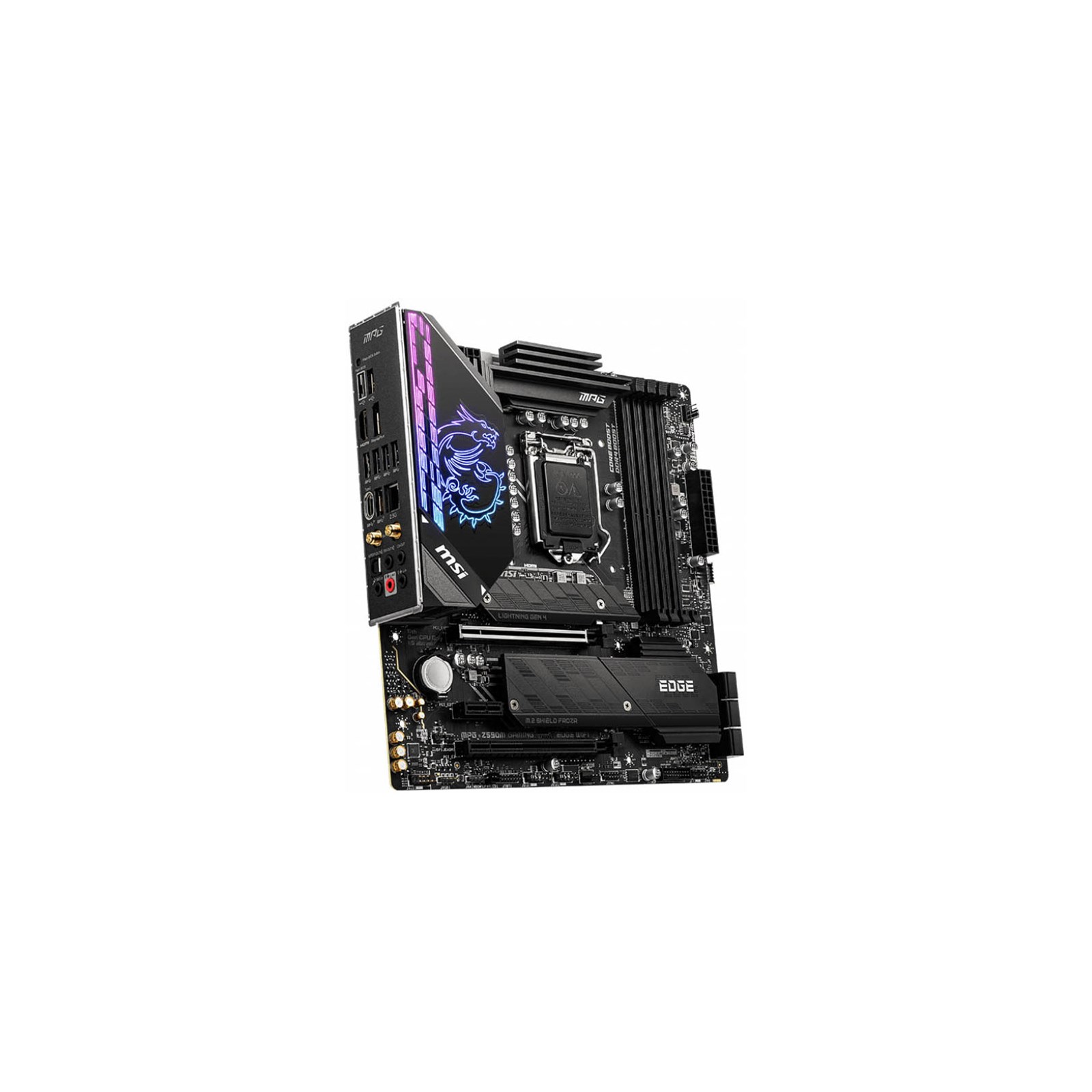

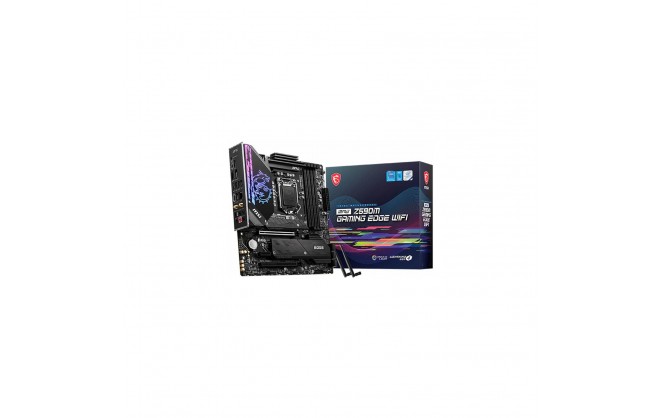

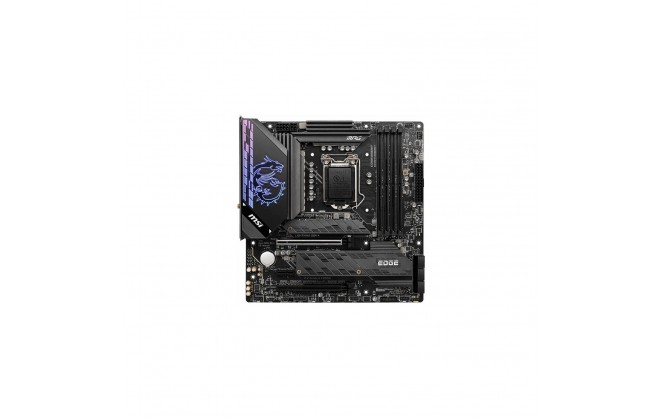

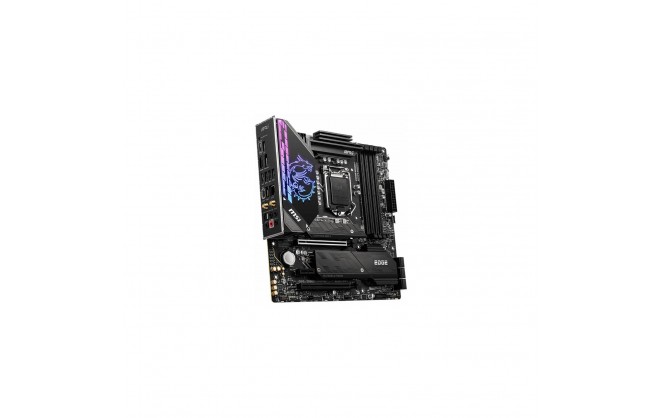

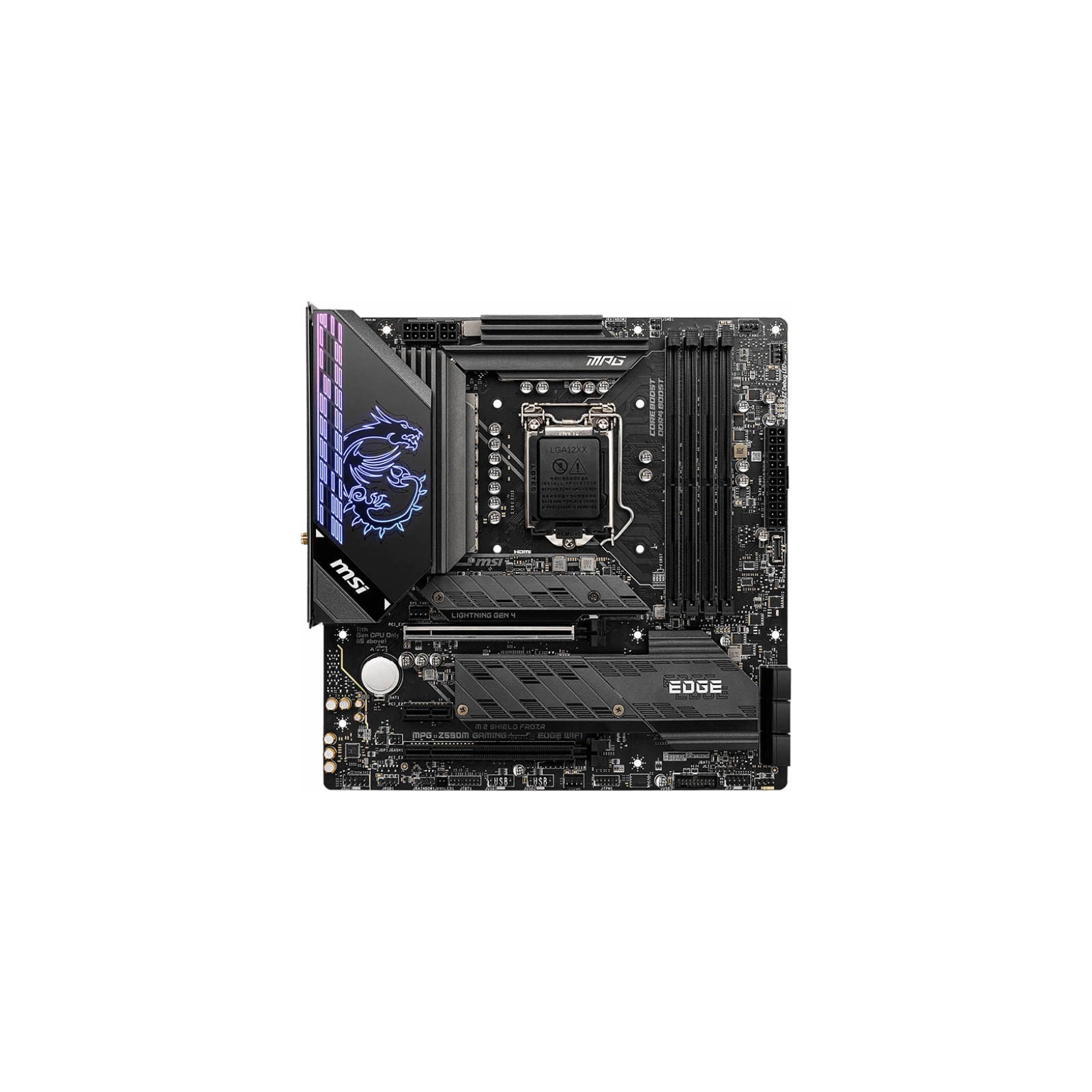

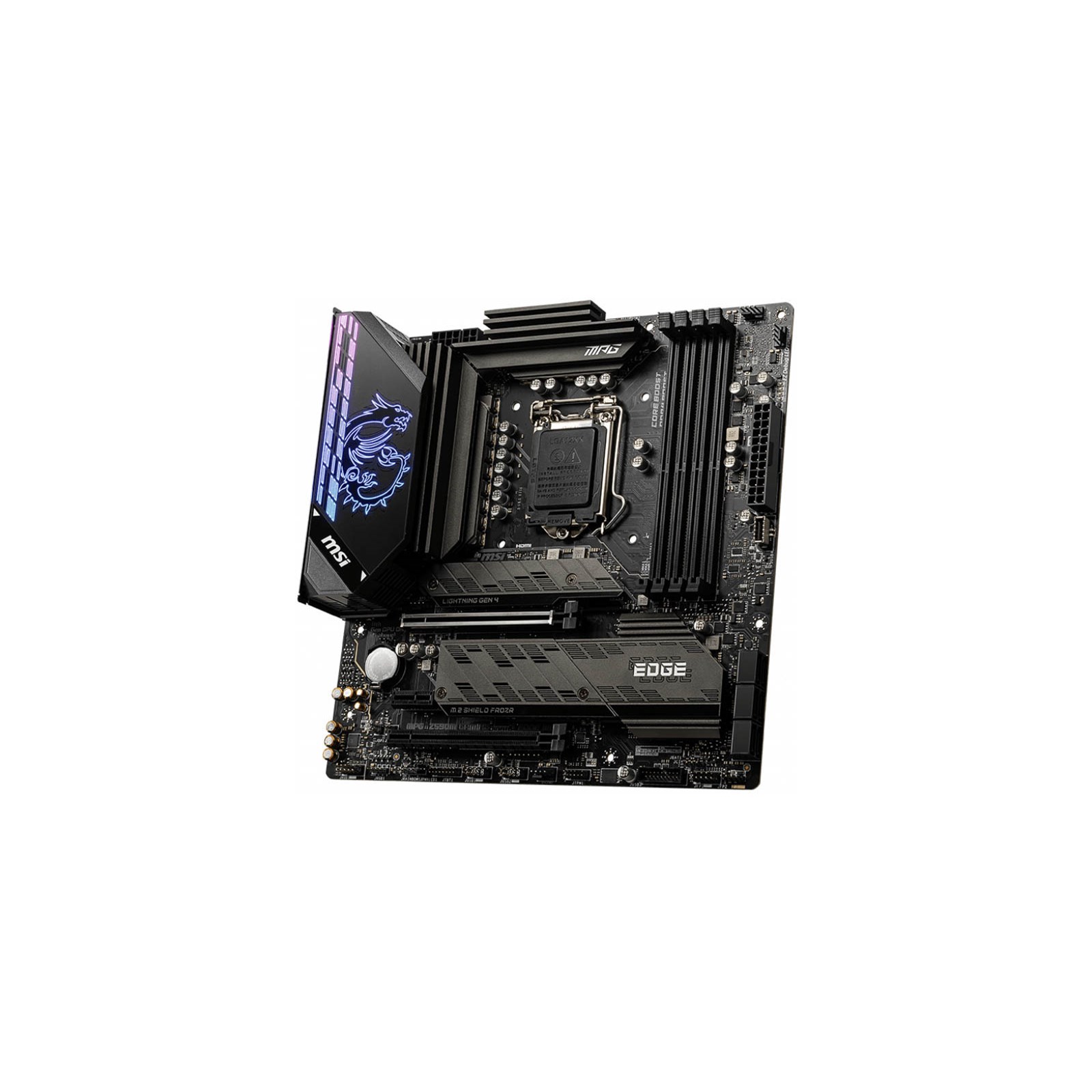

MSI MPG Z590M GAMING EDGE WIFI Intel Motherboard

Part Number: MPG Z590M GAMING EDGE WIFI
Manufacturer: MSI
Quickfind Code: 135751

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Form Factor mATX
CPU Type Intel
Memory Type DDR4
Socket Type 1200
Chipset Z590

+ Read More Information

Product Description

PREMIUM HARDWARE DESIGN

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

ENHANCED PERFORMANCE

High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.

CONNECTIVITY

MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.

Main Features

Supports 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 5333(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 2x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Technical Specification

MSI MPG Z590M GAMING EDGE WIFI Intel Motherboard

CPU

CPU Socket	Socket 1200
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1200

Rear Panel I/O Ports

USB Ports	1 x USB 3.2 Type-C 1 x USB 3.1 Type-A 4 x USB 3.0 2 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.0b
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antennas

Internal I/O Connectors

SATA Connectors	6 x SATA III
USB Connectors	1 x USB 3.1 Type-C header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Water Pump fan header 2 x System fan headers
Thunderbolt Port(s)	1 x TBT3 header
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS
Other Connectors	1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4) for 11th Gen Intel processors only 1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen3 or SATA) 1 x Tuning Controller header

Memory

Memory Bus Speed	2133/ 2666/ 2933/ 3200 MHz
Memory Type	DDR4
Maximum RAM	128 GB
Memory Slot	4 x DIMM

Motherboard

Chipset Manufacturer	Intel
Northbridge	Z590
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16
1 x PCI Express 3.0 x16 (@ x4)
1 x PCI Express 3.0 x1

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC4080

Warranty

3 Years

Network

Integrated Network	Intel I225-V
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes (Wi-Fi 6)
Wireless Network Speed	Up to 2.4 Gbps
Bluetooth	Yes
Bluetooth Version	5.2

System Requirements

Operating Systems Supported

Microsoft Windows 10 64-bit

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes
SLi/Crossfire Features	Supports 2-Way AMD CrossFire Technology

Physical

Form Factor	MicroATX Motherboard
Width	MPG Z590M GAMING EDGE WIFI Motherboard Wi-Fi Antenna User Manual Quick Installation Guide Case Badge M.2 Screw / Standoff Sets Screwdrivers USB Drive Cleaning Brush 2 x SATA Cables Cable Stickers MPG Stickers Reward Program / Shout Out Flyer Registration Card Product Catalog mm
Length	244 mm

Key Features

WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	None
Memory Speed	5333 MHz
RGB Header Type	None
Addressable RGB	No
Firewire	No
Wireless Network	Yes
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	6 port(s)
Number of USB Ports	8 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	ATi CrossFire
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	mATX
Motherboard Power Connectors	4 + 8-Pin
Motherboard Chipset	Intel Z590
Thunderbolt	No
Motherboard Model	MSI MPG Z590M GAMING EDGE WIFI
