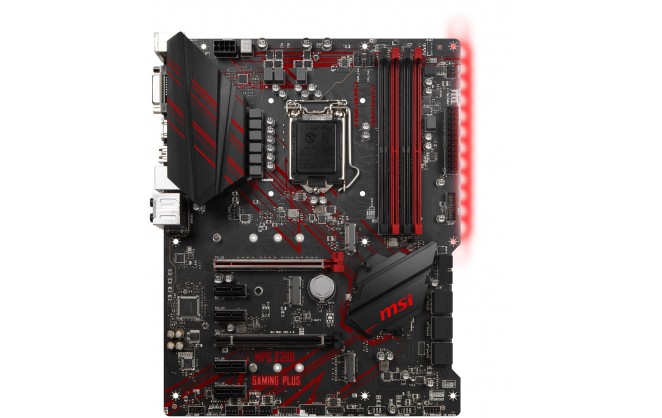

MSI MPG Z390 GAMING PLUS 1151 9th Gen DDR4 ATX Retail Motherboard

£169.99 ex. vat
£203.99 inc. vat

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
Supports DDR4 Memory, up to 4400(OC) MHz
Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2
Set Core Power Free: Extended Heatsink Design, Core Boost, Game Boost, DDR4 Boost
Intel CNVi Ready: Supports Intel CNVi Wi-Fi module, IEEE802.11 AC wave2, providing a high speed wireless network connection
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface.

CPU

CPU Socket	Socket 1151
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors
64-bit Support	Yes
Socket	LGA1151

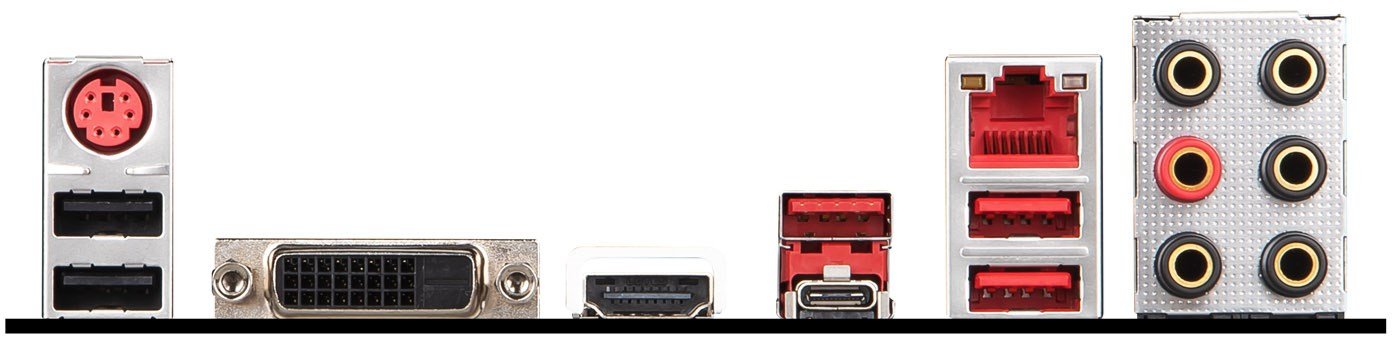

Rear Panel I/O Ports

USB Ports	1 x USB 3.1 Type-C 1 x USB 3.1 Type-A 2 x USB 3.0 2 x USB 2.0
HDMI Port	1 x HDMI
Keyboard/Mouse Combo Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Digital Port	1 x DVI-D
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	4 x 3.5mm Jacs
Microphone In Port	1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors	6 x SATA III
USB Connectors	2 x USB 3.0 2 x USB 2.0
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan 1 x Water Pump 5 x System fans
Serial Connectors	1 x COM
Chassis Intrusion Connector	1 x Chassis Intrusion
TPM Header	1 x TPM
Power Connector Port	1 x 20+4-pin ATX 1 x 4+4-pin EPS
Other Connectors	1 x M.2, Key M (Type 2242/2260/2280/22110) 1 x M.2, Key M (Type 2242/2260/2280) 1 x M.2, Key E (Type 2230) for Wi-Fi Modules 2 x RGB LED connectors

Memory

Memory Bus Speed	4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
Memory Type	DDR4
Maximum RAM	64 GB
Memory Slot	4 x DIMM

Motherboard

Expansion

Number of PCI Express Slots

2 x PCI Express 3.0 x16
4 x PCI Express 3.0 x4

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek® ALC892

Network

System Requirements

Operating Systems Supported

Microsoft® Windows® 10 64-bit

System

Jumpers	1 x Clear CMOS
Drivers	Included
SLi/Crossfire Features	Supports 2-Way AMD CrossFire™ Technology

Physical

Form Factor	ATX Motherboard
In The Box	MSI MPG Z390 GAMING PLUS Motherboard User Guide Quick Installation Guide Standoff Notice Warranty Card Support DVD I/O Shield 2 x SATA Cables
Width	305 mm
Length	244 mm

Key Features

Skip Audio Test	No
RGB Header Type	None
Addressable RGB	No
Firewire	No
Wireless Network	No
Main Colour	Black
Socket(s)	LGA 1151
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	6 port(s)
Number of USB Ports	6 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	ATi CrossFire
VGA Connection	No
DVI Connection	Yes
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ATX
Motherboard Power Connectors	4 + 4-Pin
Motherboard Chipset	Intel Z390
Thunderbolt	No
Motherboard Model	MSI MPG Z390 GAMING PLUS
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	None
Memory Speed	4400 MHz
