MSI MPG B860I EDGE TI WIFI ITX Socket 1851 Motherboard

Part Number: MPG B860I EDGE TI WIFI
Manufacturer: MSI
Quickfind Code: 136467

Stock: In Stock

£171.48 ex. vat
£205.78 inc. vat

Product Features:

Condition: New
Socket Type 1851
Chipset B860
Form Factor mITX
Memory Type DDR5
CPU Type Intel

+ Read More Information

Perform in Style

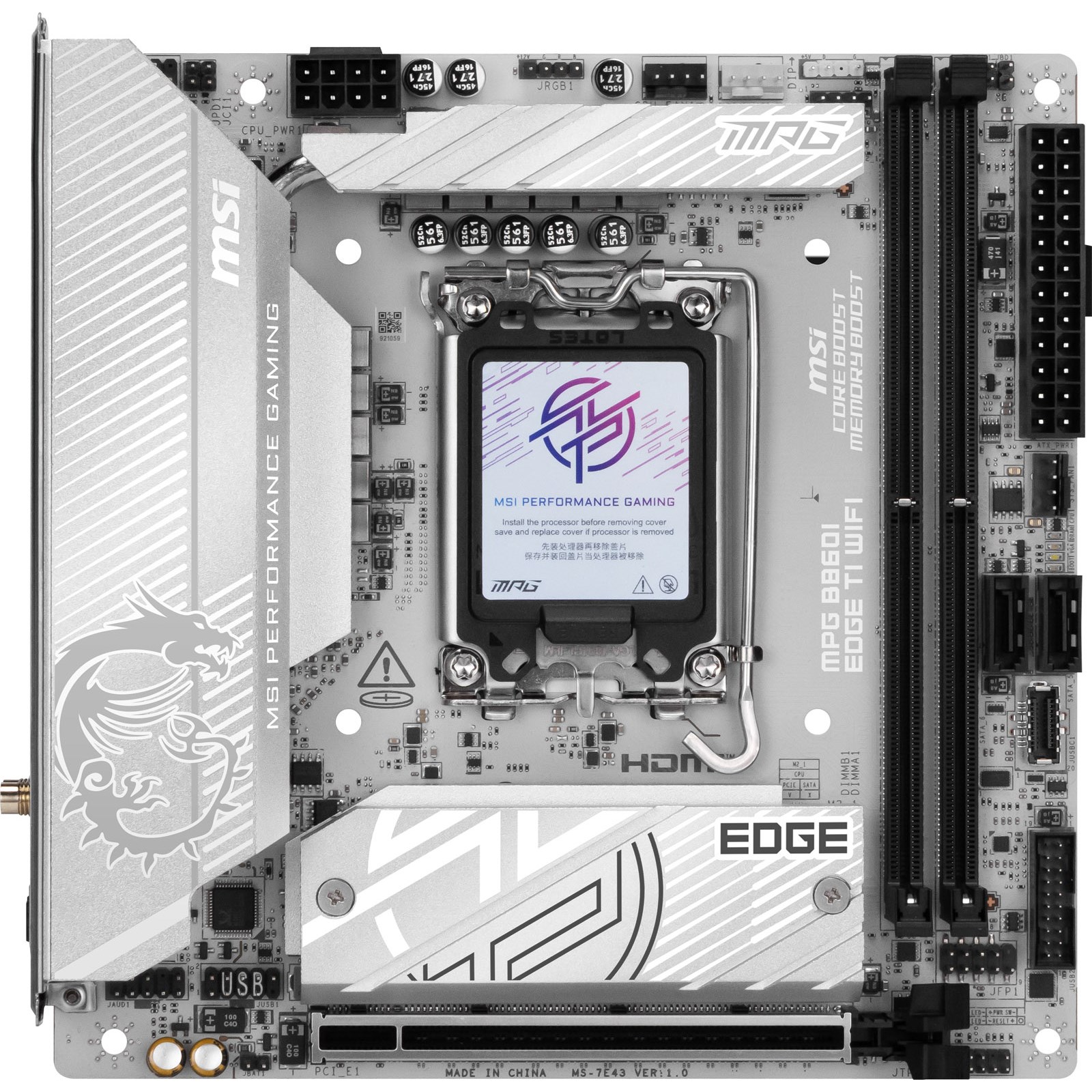

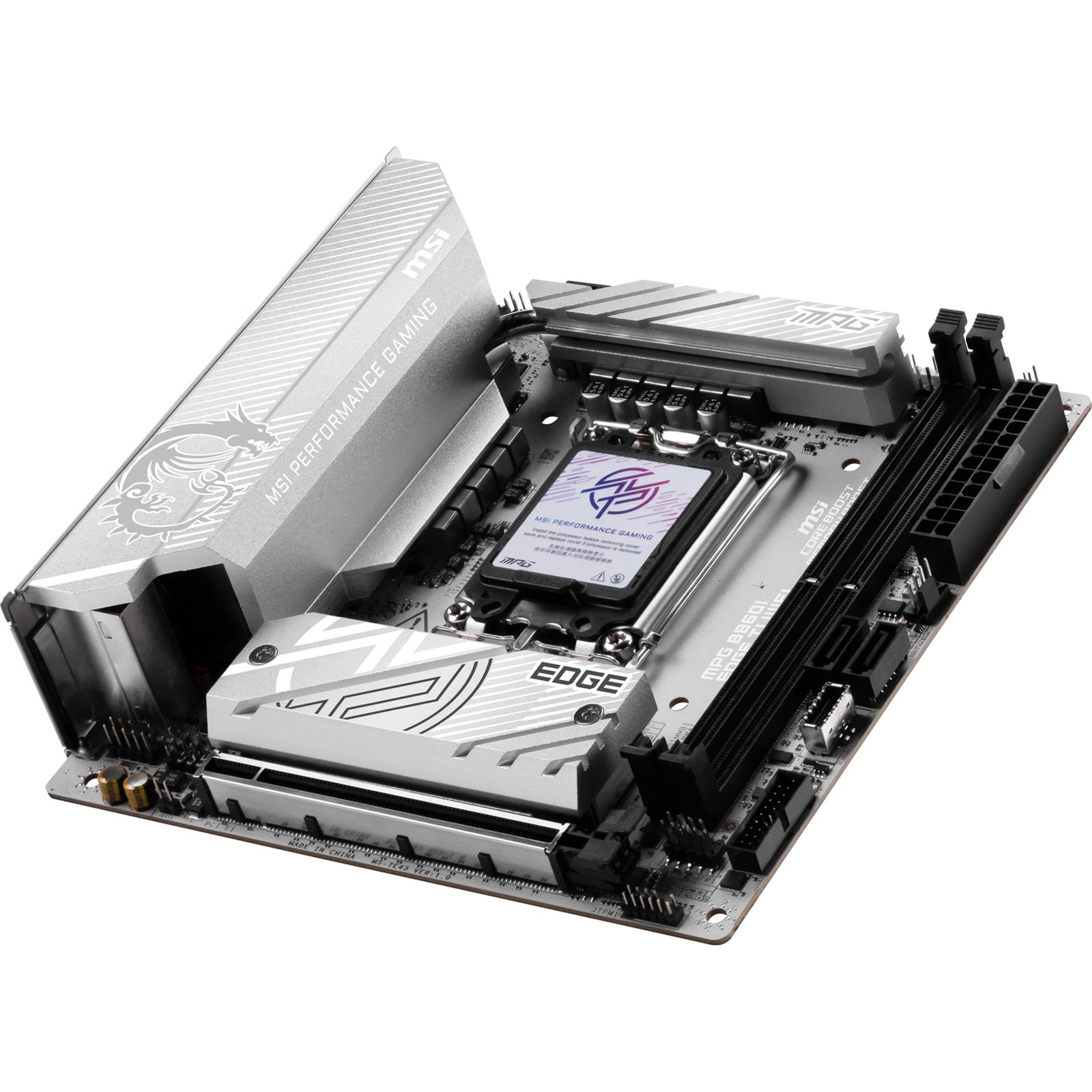

The MPG B860I EDGE TI WIFI is a gaming oriented Mini-ITX motherboard with a direct 8 phases power design, constructed around the latest Intel B860 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, 5G LAN, Thunderbolt 4, Wi-Fi 7, DDR5 and premium Frozr design that delivers both performance and style.

Supports Intel Core Ultra Processors (Series 2)

The MPG B860I EDGE TI WIFI motherboard supports Intel Core Ultra Processors (Series 2).

Form Factor: Mini-ITX
Socket Type: LGA 1851
Chipset: Intel B860

Ultra Power - Direct 8-phase power design with 110A Smart Power Stage

With exclusive Core Boost technology and EZ OC Tuning functions, the MPG B860I EDGE TI WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

Digital PWM IC

Direct 8-phase power design (110A / SPS)

1-Phase SA Power

1-Phase GT Power

1-Phase VNNAON Power

Frozr Design

Frozr Guard: Extended Heatsink design, Heat-pipe, 7W/mK MOSFET thermal pads and M.2 Shield Frozr for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

2 x DDR5 Dual Channel (8600+ MT/s OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

Memory Extension Mode: Provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance.

XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 8600+ MT/s, supports Intel XMP.

Fortified PCIe 5.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.

1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor*)

*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen5 M.2 Connector

The MPG B860I EDGE TI WIFI motherboard features MSI's M.2 slots:

1 x Gen5 x4 128Gbps slot (with M.2 Shield Frozr)

1 x Gen4 x4 64Gbps slot

EZ DIY

The DIY Friendly designs optimize the assemble process and experience.

EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.

EZ Front Panel Cable: Provides an easier way to connect the case front panel to the motherboard, allowing you to pre-connect the front panel cables outside the case.

EZ System Command: The Clear CMOS button allows you to reset and clear BIOS settings, while the Flash BIOS Button lets you update the BIOS without powering on the system.

Ultra Connect

5G LAN: An Intel Killer 5G LAN controller delivers a premium network gaming experience.

Wi-Fi 7: Features the full-speed Intel Killer Wi-Fi 7 (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.

Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K@60Hz display support.*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Main Features

Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, up to 8600+ MT/s (OC)
Ultra Performance: Direct 8+1+1+1 Power Phases, Core Boost, Memory Boost, 12-layer PCB made by 1oz thickened copper and server-grade level material
Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
EZ DIY: EZ Antenna, EZ Button and EZ Debug LED
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
Ultra Connect: Thunderbolt 4 and Intel Killer 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Technical Specification

MSI MPG B860I EDGE TI WIFI ITX Socket 1851 Motherboard

CPU

CPU Socket	Socket 1851
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	Intel Core Ultra Processors (Series 2)
64-bit Support	Yes
Socket	LGA1851

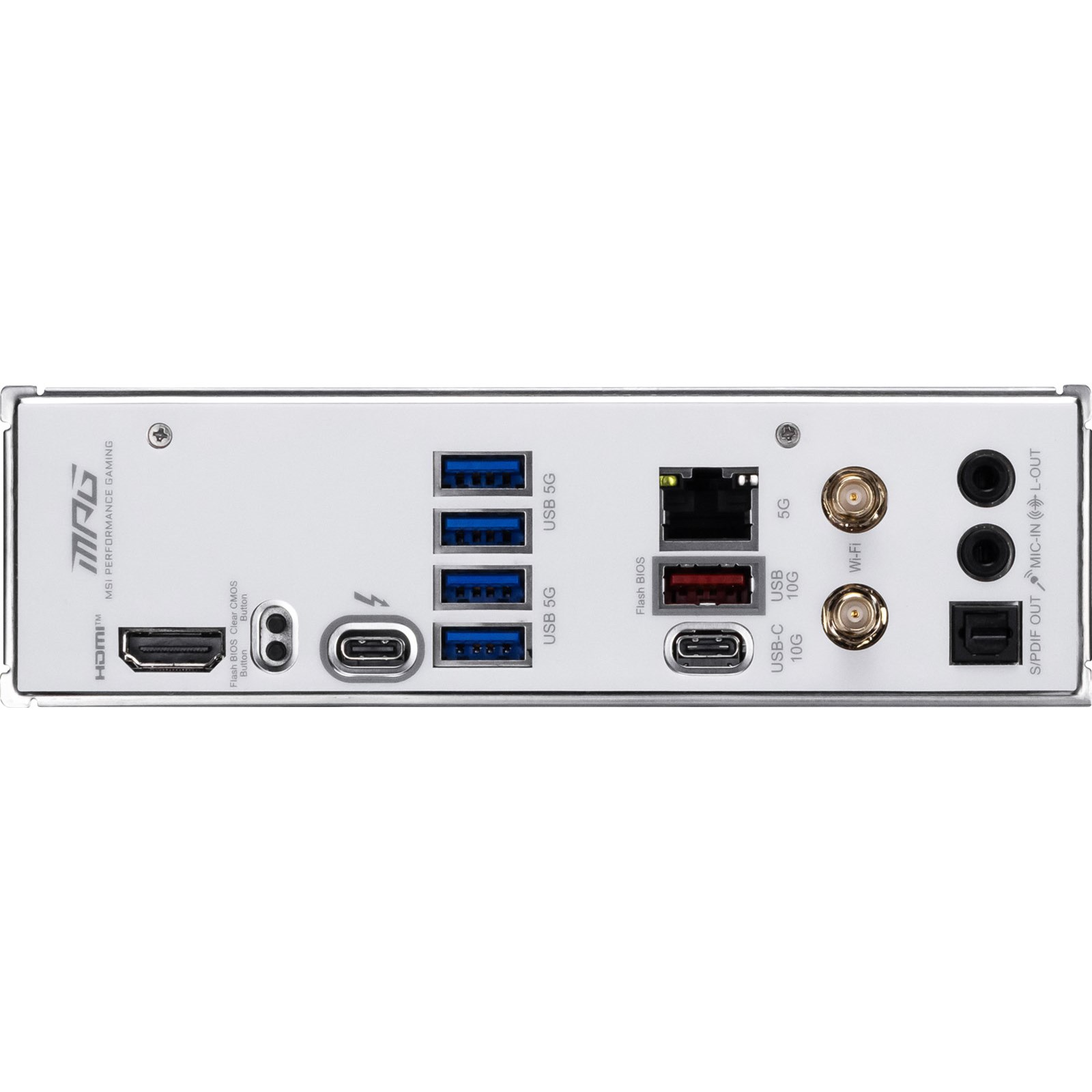

Rear Panel I/O Ports

USB Ports	1 x Thunderbolt 4 1 x USB-C 3.1 1 x USB 3.1 4 x USB 3.0
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	2 x SATA
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Combo fan header 1 x System fan header
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Type 2280 (PCIe Gen5) 1 x M.2 slot, Type 2280 (PCIe Gen4 or SATA) 1 x 3-pin ARGB header 1 x 4-pin RGB header

Memory

Memory Bus Speed	Up to 8600 MT/s
Memory Type	DDR5
Maximum RAM	128 GB
Memory Slot	2 x DIMM

Motherboard

Northbridge	Intel B860
RAID Supported	Yes
RAID Format	RAID 0, 1
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC897

Network

Integrated Network	Killer E5000B
Network Speeds Supported	Up to 5 Gbps
Wireless LAN	Yes - Wi-Fi 7
Wireless Network Speed	Up to 5.8 Gbps
Bluetooth	Yes
Bluetooth Version	5.4

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	Mini-ITX Motherboard

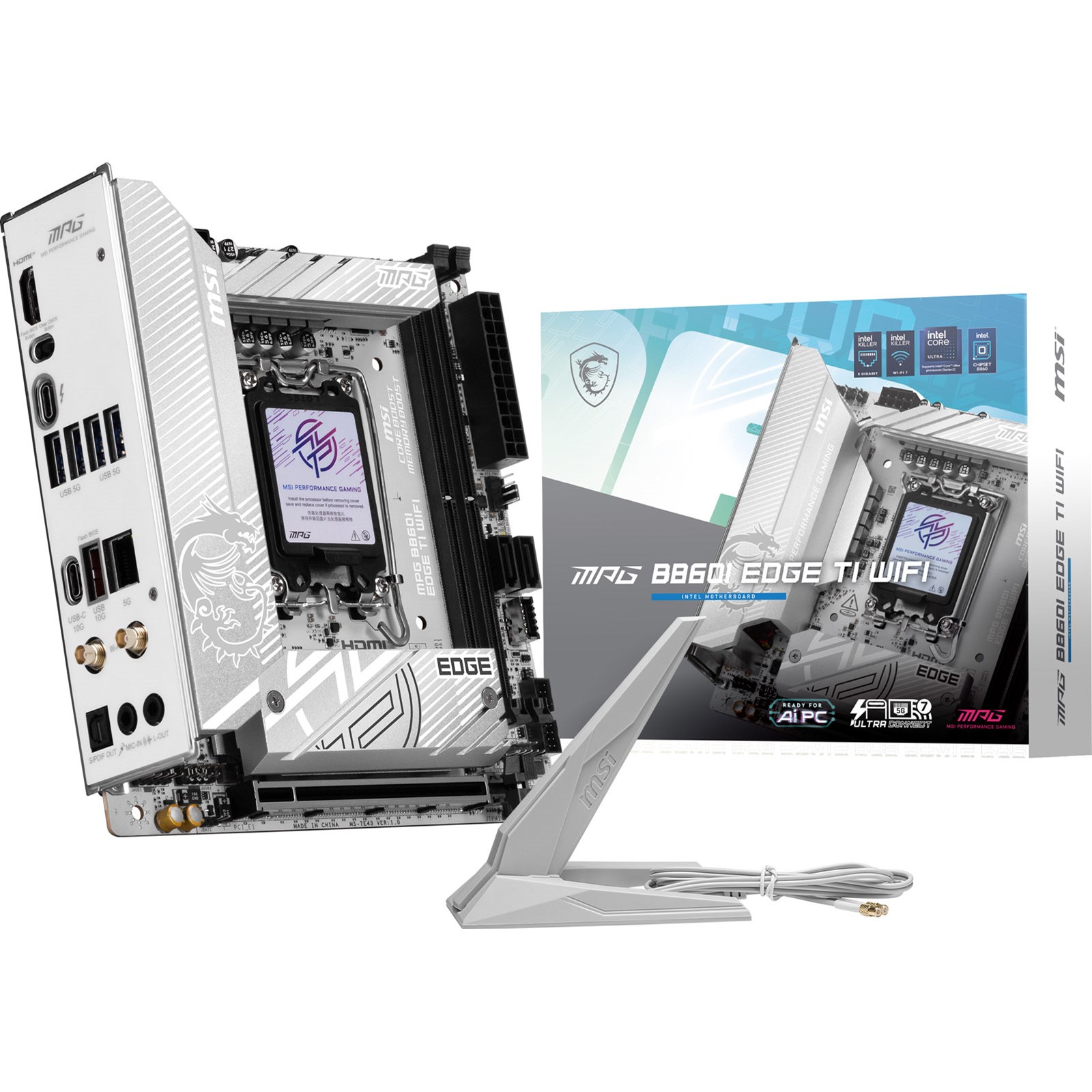

In The Box	Motherboard EU Regulatory Notice Quick Installation Guide Cable Stickers EZ Wi-Fi Antenna SATA Cable M.2 Screw ARGB Extension Cable EZ Front Panel Cable
Width	170 mm
Length	170 mm

Key Features

Wireless Network	Yes
Motherboard Width	170 mm
Motherboard Height	170 mm
Main Colour	White
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	2 port(s)
Number of USB Ports	6 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ITX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	Intel B860
Thunderbolt	Yes
Motherboard Model	MSI MPG B860I EDGE TI WIFI
WiFi Speed	5800 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	30 W
Max Memory Speed Supported (Non-overclocked)	6400 MT/s
Max Memory Speed Supported (overclocked)	8600 MT/s
CPU Power Pins (female)	8
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
Maximum SATA M.2 ports	1
SATA ports	2
No. of front USB2.0 ports supported	2
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
