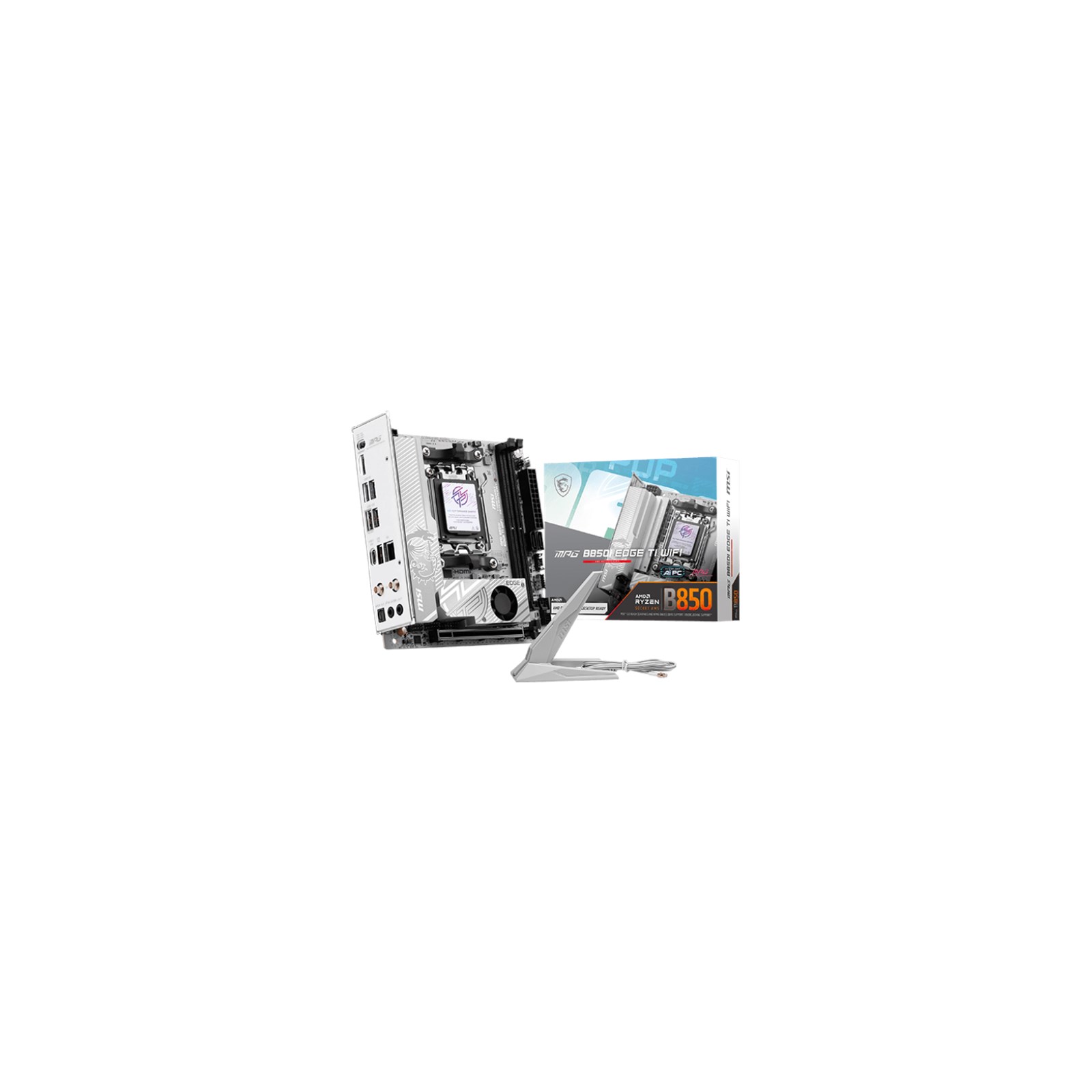

MSI MPG B850I EDGE TI WIFI ITX Socket AM5 Motherboard

Part Number: MPG B850I EDGE TI WIFI
Manufacturer: MSI
Quickfind Code: 136459

Stock: In Stock

£216.56 ex. vat
£259.87 inc. vat

Product Features:

Condition: New
Socket Type AM5
Chipset B850
Form Factor mITX
Memory Type DDR5
CPU Type AMD

+ Read More Information

Product Description

MPG B850I EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme X870 ITX motherboard for AMD Ryzen™ 9000 series processors.

Main Features

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
Ultra Performance: Direct 8+2+1 Power Design, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
EZ DIY: EZ Antenna, EZ Conn-Design and EZ Front Panel Cable
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
High-speed Connectivity: 5G LAN with Wi-Fi 7 Solution and USB 20Gbps- The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Technical Specification

MSI MPG B850I EDGE TI WIFI ITX Socket AM5 Motherboard

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
64-bit Support	Yes
Socket	AM5

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.2 3 x USB 3.1 2 x USB 3.0
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antennas

Internal I/O Connectors

SATA Connectors	2 x SATA
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Combo fan header 1 x System fan header
Chassis Intrusion Connector	1 x Chassis Intrusion header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Type 2280 (PCIe Gen5) 1 x M.2 slot, Type 2280 (PCIe Gen4) 1 x 3-pin ARGB header

Memory

Memory Bus Speed	Up to 8200 MT/s
Memory Type	DDR5
Maximum RAM	128 GB
Memory Slot	2 x DIMM

Motherboard

Northbridge	AMD B850
RAID Supported	Yes
RAID Format	RAID 0, 1
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC4080

Network

Integrated Network	Realtek 8126
Network Speeds Supported	Up to 5 Gbps
Wireless LAN	Yes - Wi-Fi 7
Wireless Network Speed	Up to 5.8 Gbps
Bluetooth	Yes
Bluetooth Version	5.4

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	Mini-ITX Motherboard
In The Box	Motherboard EU Regulatory Notice Quick Installation Guide Cable Sticker EZ Wi-Fi Antenna SATA Cable 3 x M.2 Screws ARGB Extension Cable 1 to 3 EZ Conn-Cable (v2) EZ Front Panel Cable
Width	170 mm
Length	170 mm

Key Features

RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	Yes
Motherboard Width	170 mm
Motherboard Height	170 mm
Main Colour	White
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	2 port(s)
Number of USB Ports	6 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ITX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	AMD B850
Thunderbolt	No
Motherboard Model	MSI MPG B850I EDGE TI WIFI
WiFi Speed	5800 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	30 W
Max Memory Speed Supported (Non-overclocked)	5600 MT/s
Max Memory Speed Supported (overclocked)	8200 MT/s
CPU Power Pins (female)	8
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
SATA ports	2
No. of front USB2.0 ports supported	2
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
