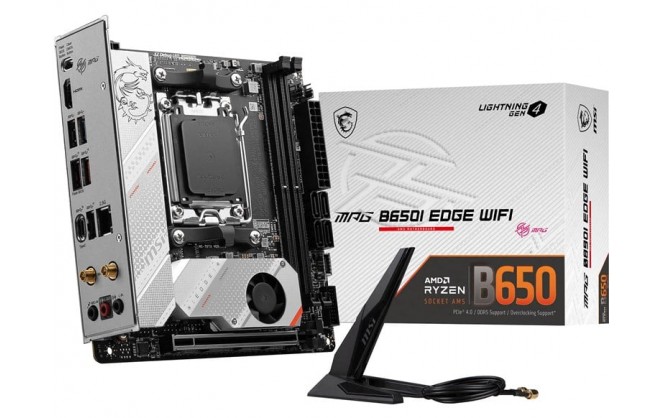

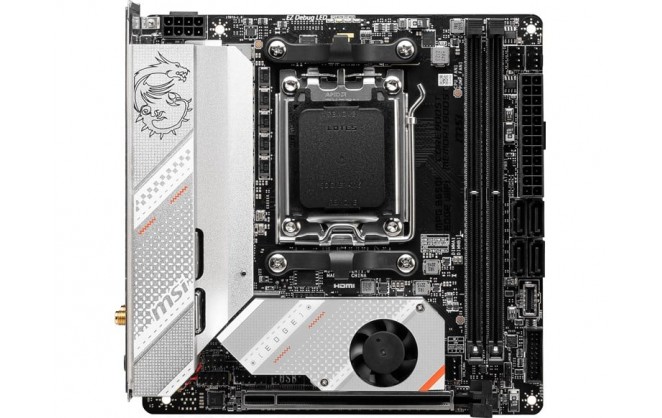

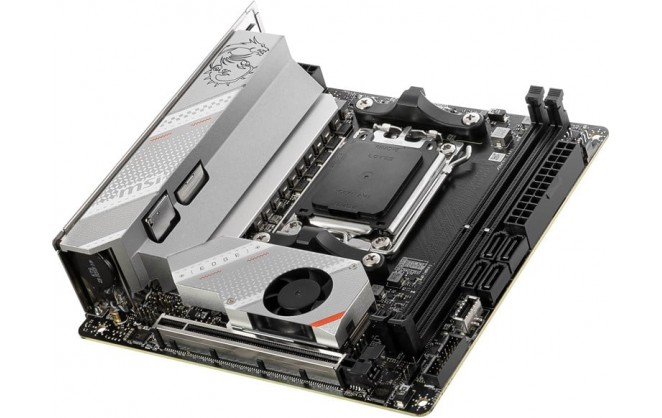

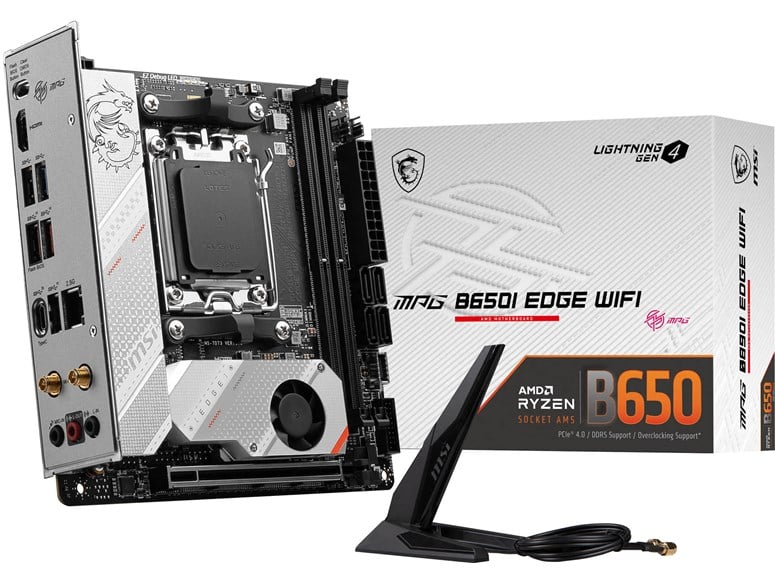

MSI MPG B650I EDGE WIFI ITX Motherboard AMD Socket AM5

  • Part Number: MPG B650I EDGE WIFI
  • Manufacturer: MSI
  • Quickfind Code: 135909

  • Stock: In Stock

£164.48 ex. vat
£197.38 inc. vat


Product Features:
  • Condition: New
  • Socket Type AM5
  • Chipset B650
  • Form Factor mITX
  • Memory Type DDR5
  • CPU Type AMD
+ Read More Information

Share:

Product Description

Main Features

  • Supports AMD Ryzen 7000 Series Desktop Processors
  • Supports DDR5 Memory, up to 6600+(OC) MHz
  • Enhanced Power Design: Direct 8+2+1 VRM power, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 10-layer PCB made by 2oz thickened copper and server grade level material
  • 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • DIY Friendly Design: Flash BIOS Button, Pre-installed I/O Shield, Steel Armor
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Technical Specification

MSI MPG B650I EDGE WIFI ITX Motherboard AMD Socket AM5

CPU

CPU SocketSocket AM5
CPU BrandAMD
Installed Processors (Max)0 (1)
Supported Processor ManufacturerAMD
Supported ProcessorsAMD Ryzen 7000 Series Desktop Processors
64-bit SupportYes
SocketAM5

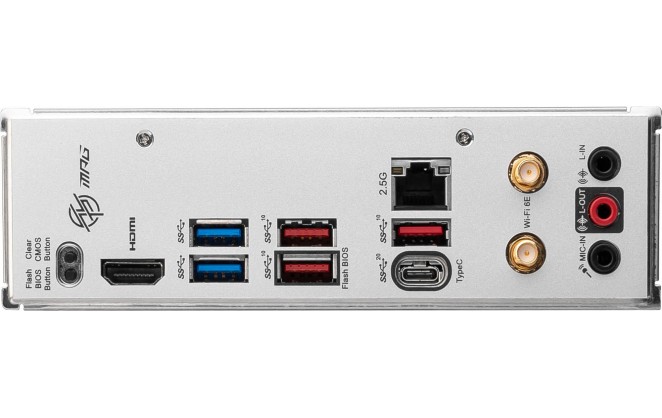

Rear Panel I/O Ports

USB Ports1 x USB-C 3.2
3 x USB 3.1
2 x USB 3.0
HDMI Port1 x HDMI 2.1
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack
Antenna Connector(s)2 x SMA Antenna

Internal I/O Connectors

SATA Connectors4 x SATA III
USB Connectors1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x Pump fan header
1 x System fan header
Chassis Intrusion Connector1 x Chassis Intrusion header
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors2 x M.2 slots, Type 2260/2280 (PCIe Gen4)
1 x 3-pin ARGB LED header

Memory

Memory Bus SpeedUp to 6600 (OC) MHz
Memory TypeDDR5
Maximum RAM64 GB
Memory Slot2 x DIMM

Motherboard

NorthbridgeB650
RAID SupportedYes
RAID FormatRAID 0, 1, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 5.0 x16 slot

Graphics Device

Integrated Graphics SupportedYes

Sound

Integrated SoundRealtek ALC4080

Warranty

Warranty3 Years

Network

Integrated NetworkRealtek RTL8125BG
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANYes (Wi-Fi 6E)
Wireless Network SpeedUp to 2.4 Gbps
BluetoothYes
Bluetooth Version5.2

System Requirements

Operating Systems SupportedMicrosoft Windows 11 64-bit

System

Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorMini-ITX Motherboard
In The BoxMotherboard
EU Regulatory Notice
Quick Installation Guide
M.2 Screw Package
Wi-Fi Antenna
Cable Stickers
2 x SATA Cables
Rainbow RGB LED Extension Cable
Width170 mm
Length170 mm

Key Features

Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless NetworkYes
Chipset ManufacturerAMD
Number of PCI Slotsslot(s)
Number of PCI-X Slotsslot(s)
Main Colour
Socket(s)
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports6 port(s)
SATA III SupportYes
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionNo
Motherboard Form FactorITX
Wake on LAN
Motherboard Power Connectors8-Pin
Motherboard ChipsetAMD B650
ThunderboltNo
Motherboard ModelMSI MPG B650I EDGE WIFI
WiFi Speed2400 Mbps
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
Cooler Heightmm
M.2 SupportYes
On-board RGB ControlMSI Mystic Sync
Memory Speed6600 MHz
Skip Audio Test
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
Radiator Lengthmm
Microsoft Processor List
Power Requirement (auto)30 W
Cooler count
Max Memory Speed Supported (Non-overclocked)4800 MHz
Max Memory Speed Supported (overclocked)6600 MHz
CPU Power Pins (female)8
PCI Express Power Pins (female)
Total M.2 Slots2
Maximum NVMe M.2 ports2
PCI-e slots
SATA ports4
No. of front USB2.0 ports supported2
No. of front USB3.0 ports supported2
No. of front USB-C ports supported1

Graphics

Graphics Chipset

Item Details

ManufacturerMSI
Manufacturer CodeMPG B650I EDGE WIFI
EAN4711377010146
ConditionNew
