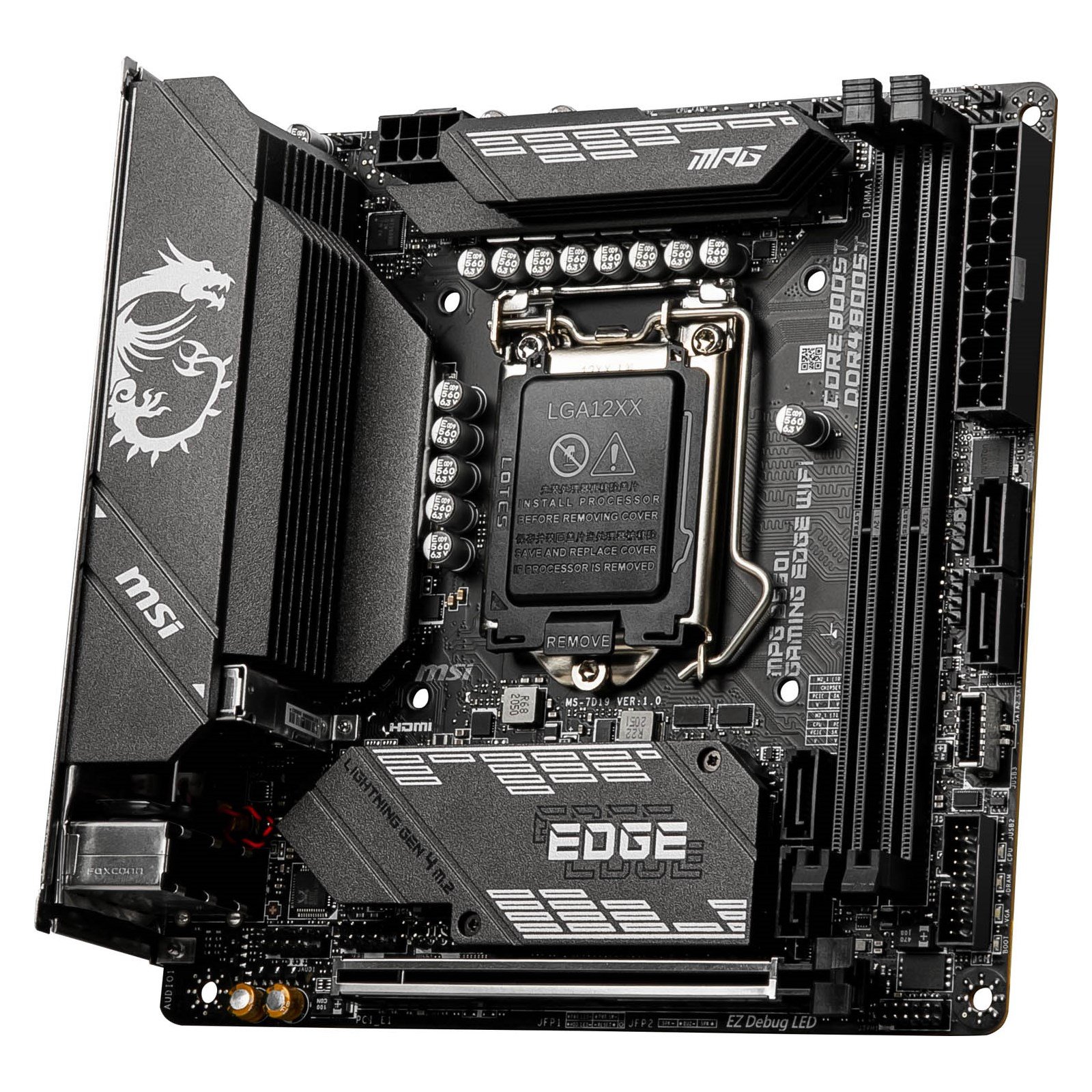

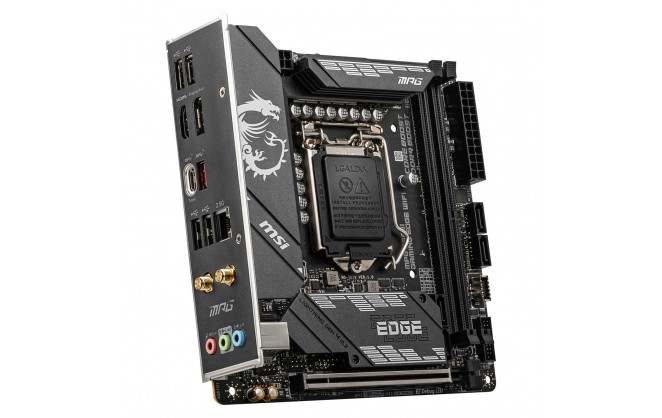

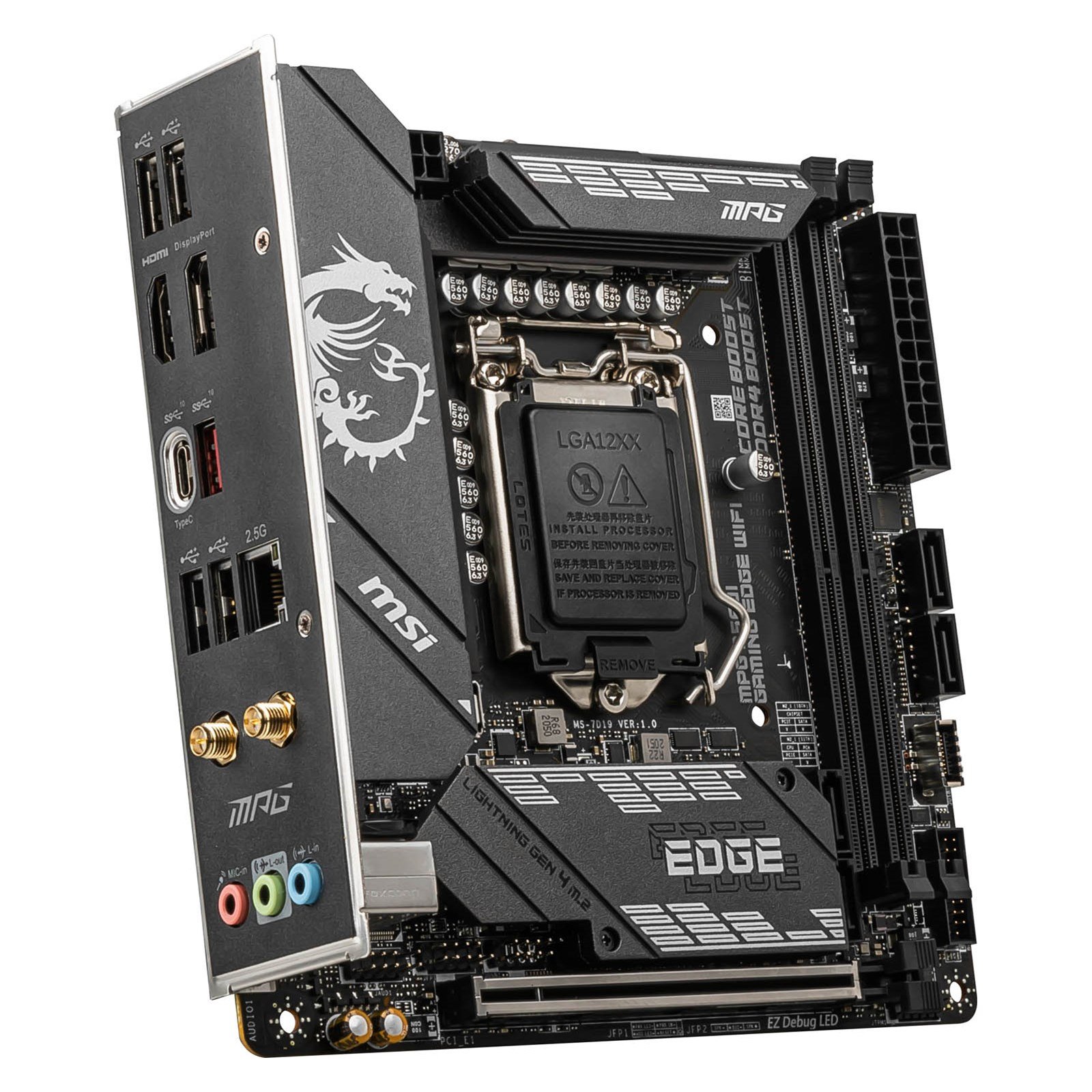

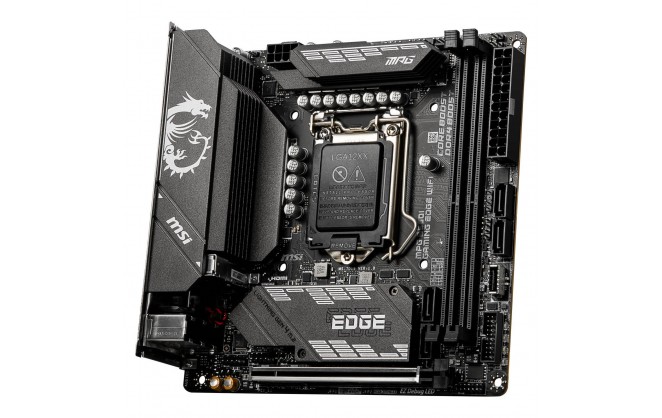

MSI MPG B560I GAMING EDGE WIFI Intel Motherboard

  • Part Number: MPG B560I GAMING EDGE WIFI
  • Manufacturer: MSI
  • Quickfind Code: 135739
  • Stock: Out Stock

Contact for availability

Product Features:
  • Condition: New
  • Socket Type 1200
  • Chipset B560
  • Form Factor mITX
  • Memory Type DDR4
  • CPU Type Intel
+ Read More Information

Share:

Product Description

PREMIUM HARDWARE DESIGN

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

ENHANCED PERFORMANCE

High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.

CONNECTIVITY

MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.

Main Features

  • Supports 11th and 10th Gen Intel Core / Pentium / Celeron processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5200(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
  • Enhanced Power Design: 6+2+1 direct power design, 8-pin CPU power connectors, Core Boost, DDR4 Boost
  • Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • High Quality PCB: 8-layer PCB made by 2oz thickened copper material
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Technical Specification

MSI MPG B560I GAMING EDGE WIFI Intel Motherboard

CPU

CPU SocketSocket 1200
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported Processors11th Gen Intel Core Processors, 10th Gen Intel Core Processors, Pentium Gold and Celeron Processors
64-bit SupportYes
SocketLGA1200

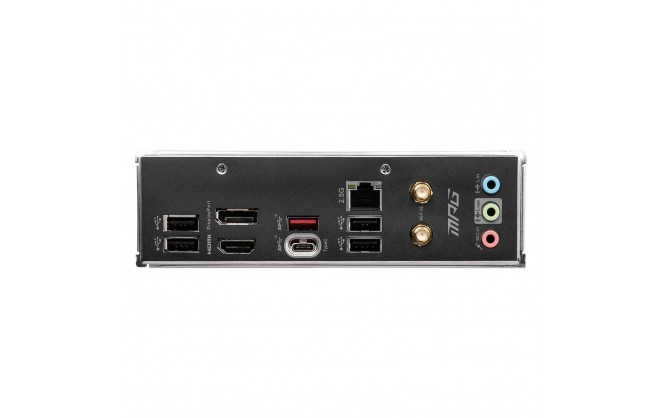

Rear Panel I/O Ports

USB Ports1 x USB 3.1 Type-C
1 x USB 3.1 Type-A
4 x USB 2.0
DisplayPorts1 x DisplayPort 1.4
HDMI Port1 x HDMI 2.0b
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack
Antenna Connector(s)2 x SMA Antennas

Internal I/O Connectors

SATA Connectors4 x SATA III
USB Connectors1 x USB 3.0 Type-C header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x Water Pump fan header
1 x System fan header
Chassis Intrusion Connector1 x Chassis Intrusion header
TPM Header1 x TPM header
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors1 x M.2 slot, M Key, Type 2280 (PCIe Gen4, PCIe Gen3 or SATA)
1 x M.2 slot, M Key, Type 2280 (PCIe Gen3)
1 x 3-pin ARGB LED header
1 x 4-pin RGB LED header

Memory

Memory Bus Speed2133/ 2666/ 2933/ 3200 MHz
Memory TypeDDR4
Maximum RAM64 GB
Memory Slot2 x DIMM

Motherboard

Chipset ManufacturerIntel
NorthbridgeB560
RAID SupportedNo
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 4.0 x16 slot

Graphics Device

Integrated Graphics SupportedYes

Sound

Integrated SoundRealtek ALC897

Warranty

Warranty3 Years

Network

Integrated NetworkRealtek RTL8125B
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANYes (Wi-Fi 6)
Wireless Network SpeedUp to 2.4 Gbps
BluetoothYes
Bluetooth Version5.2

System Requirements

Operating Systems SupportedMicrosoft Windows 10 64-bit

System

Jumpers1 x Clear CMOS
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorMini-ITX Motherboard

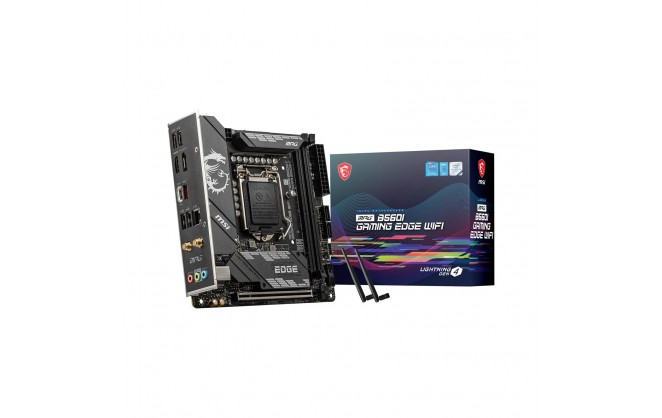

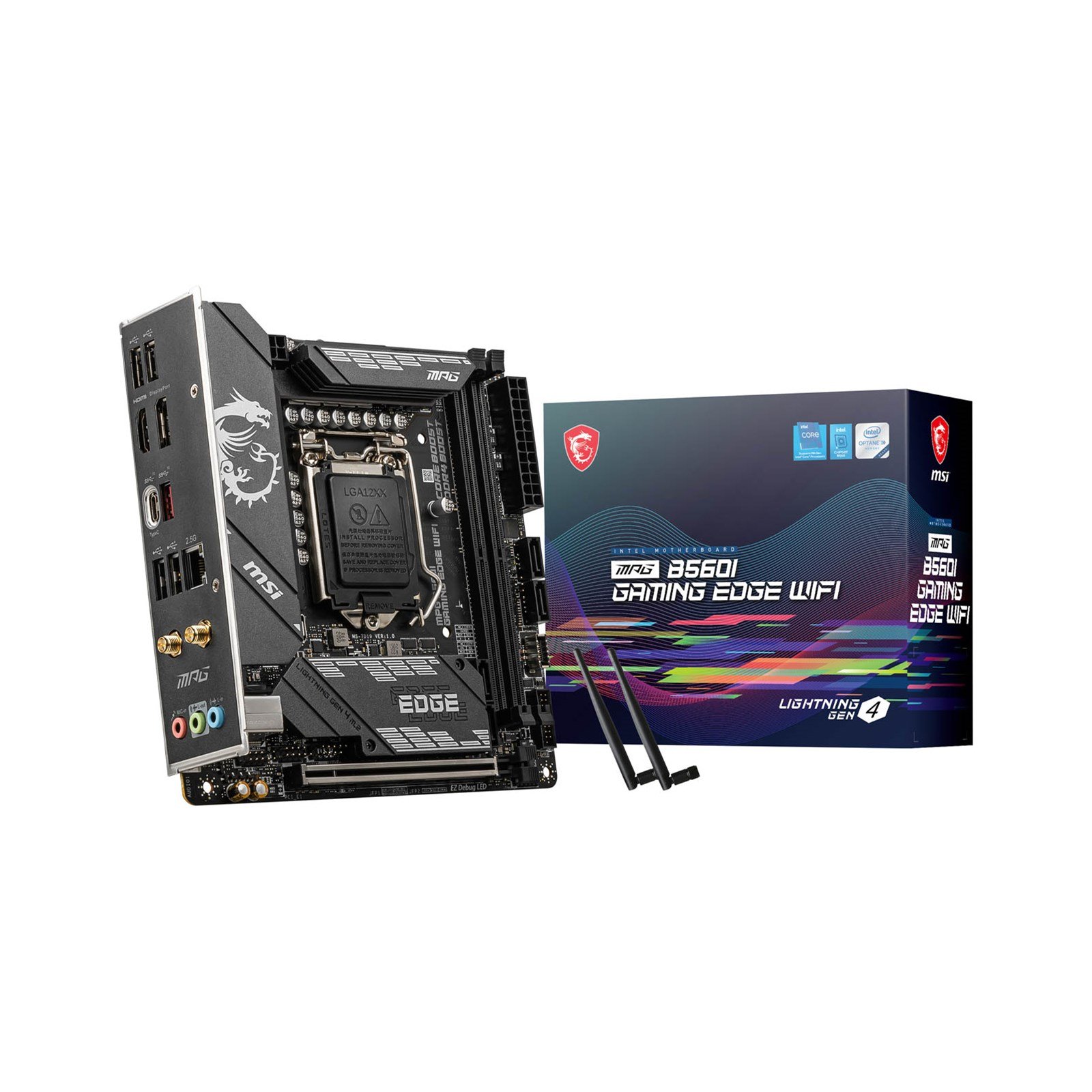

In The BoxMPG B560I GAMING EDGE WIFI Motherboard
Wi-Fi Antenna
User Manual
Quick Installation Guide
M.2 Screw / Standoff Sets
Screwdrivers
Driver DVD
Cleaning Brush
2 x SATA Cables
Rainbow RGB LED Extension Cable
MPG Stickers
Case Badge
Reward Program / Shout Out Flyer
Registration Card
Product Catalog
Width170 mm
Length170 mm

Key Features

Memory Speed3200 MHz
RGB Header Type3-Pin ARGB
Addressable RGBYes
FirewireNo
Wireless NetworkYes
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports6 port(s)
SATA III SupportYes
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactorITX
Motherboard Power Connectors4 + 4-Pin
Motherboard ChipsetIntel B560
ThunderboltNo
Motherboard ModelMSI MPG B560I GAMING EDGE WIFI
WiFi Speed2400 Mbps
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlMSI Mystic Sync

Item Details

ManufacturerMSI
Manufacturer CodeMPG B560I GAMING EDGE WIFI
EAN4719072810580
UPC824142246016
ConditionNew
