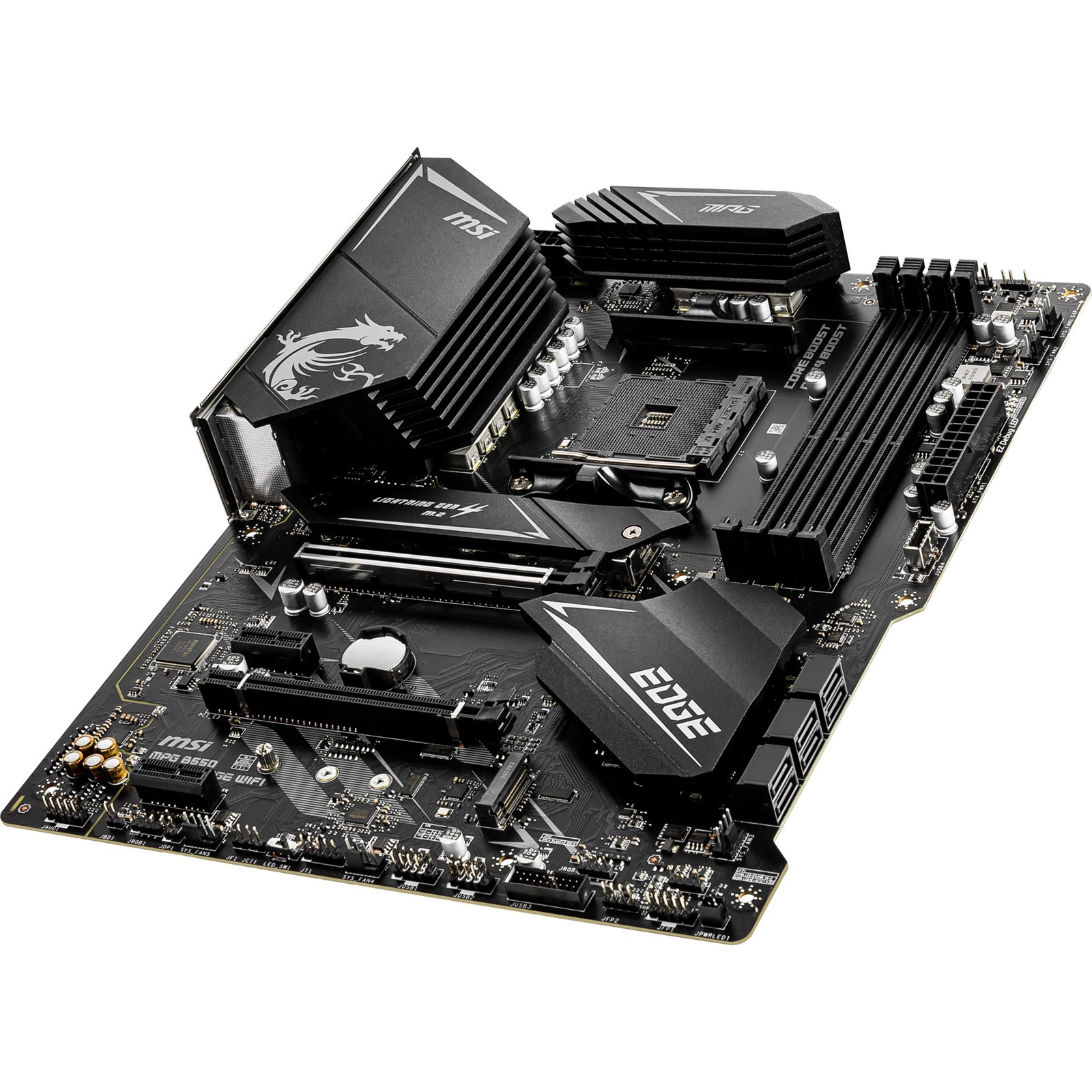

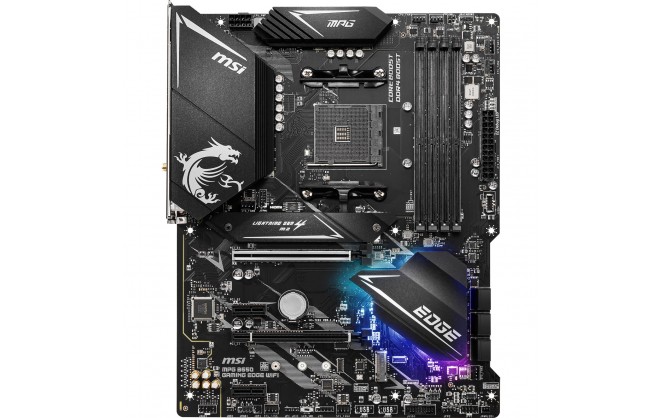

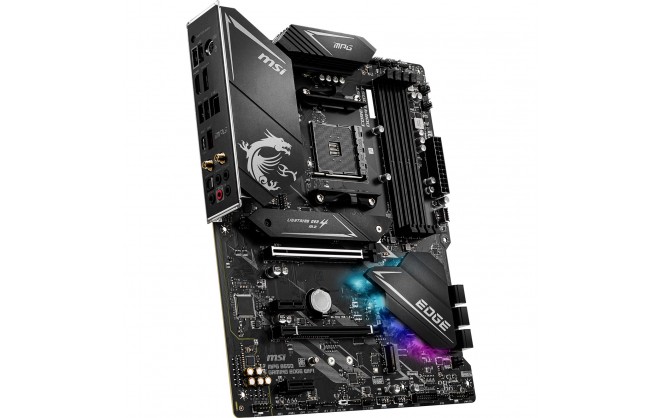

MSI MPG B550 GAMING EDGE WIFI ATX Retail Motherboard

£144.99 ex. vat
£173.99 inc. vat

Support for 3rd Gen AMD Ryzen Processors and future AMD Ryzen processors with BIOS update
Supports DDR4 Memory, up to 5100+(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
Enhanced Power Design: 10+2+1 Duet Rail Power Design, Core Boost, DDR4 Boost
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mK and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience
2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

CPU

CPU Socket	Socket AM4
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
64-bit Support	Yes
Socket	AM4

Rear Panel I/O Ports

USB Ports	1 x USB 3.1 Type-C 1 x USB 3.1 Type-A 2 x USB 3.0 2 x USB 2.0
DisplayPorts	1 x DisplayPort
HDMI Port	1 x HDMI
Antenna Connectors	2 x SMA Antenna
Keyboard/Mouse Combo Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out

Internal I/O Connectors

SATA Connectors	6 x SATA III
USB Connectors	1 x USB 3.0 Type-C header 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Water Pump fan header 6 x System fan headers
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 20+4-pin ATX 1 x 4+4-pin EPS
Other Connectors	1 x M.2, Socket 3, M Key (Type 2242/2260/2280/22110) 1 x M.2, Socket 3, M Key (Type 2242/2260/2280) 2 x RGB LED headers 2 x Addressable LED headers

Memory

Motherboard

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16
1 x PCI Express 3.0 x16 (@ x4)
2 x PCI Express 3.0 x1

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC1200

Warranty

3 Years

Network

System Requirements

Operating Systems Supported

Microsoft Windows 10 64-bit

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes
SLi/Crossfire Features	Supports 2-Way AMD CrossFire Technology

Physical

Form Factor	ATX Motherboard
In The Box	MPG B550 GAMING EDGE WIFI Motherboard User Manual Quick Installation Guide SATA Cable Labels Product Registration Card MSI Product Catalog Case Screw Guide 2 x SATA Cables 1 x Rainbow RGB LED Extension Cable Promotion Card MSI Case Badge Driver DVD
Width	305 mm
Length	244 mm

Key Features

Motherboard Model	MSI MPG B550 GAMING EDGE WIFI
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
Memory Speed	5100 MHz
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Firewire	No
Wireless Network	Yes
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	6 port(s)
Number of USB Ports	6 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	ATi CrossFire
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard Power Connectors	4 + 4-Pin
Motherboard Chipset	AMD B550
Thunderbolt	No
