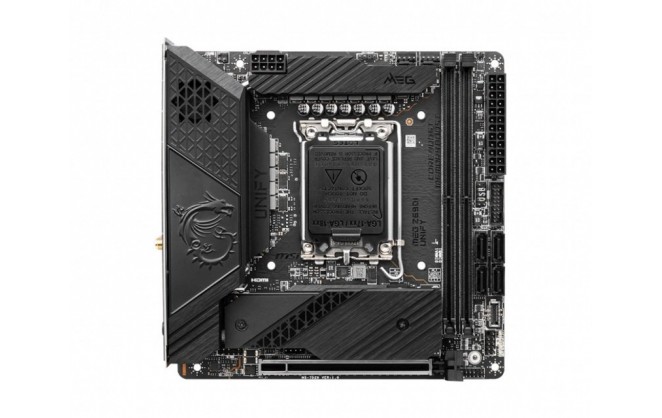

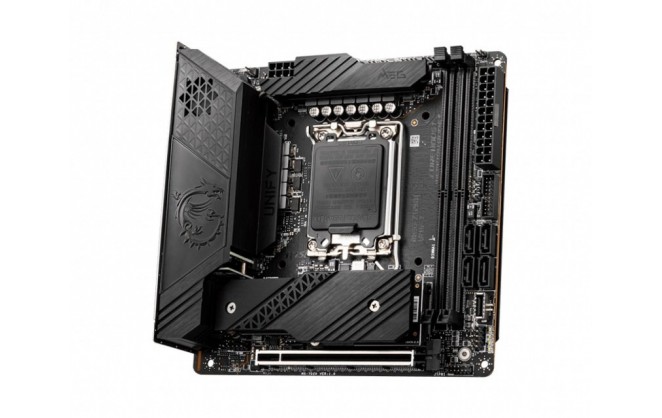

MSI MEG Z690I UNIFY Intel Socket 1700 Motherboard

Contact for availability

Supports 12th Gen Intel Core / Pentium Celeron processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5-6800+MHz(OC)
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
Dedicated for Extreme OC: The top-notch R&D design and exclusive 2 DIMM solution for an even clearer DDR5 memory signal to explore the boundaries of memory overclocking, deliver the world class memory performance.
Extreme Power Design: Premium digital PWM, direct 10+1+1 phases with 105A Smart Power Stage and Titanium Choke III to unleash the true power of your processors.
Triple M.2 Connectors : Onboard triple M.2 connectors for the maximum storage performance with dual Lightning Gen 4 solution.
Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
12 Layer Server Grade PCB Design: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	12th Gen Intel Core Processors, Pentium Gold and Celeron processors
64-bit Support	Ye s
Socket	LGA1700

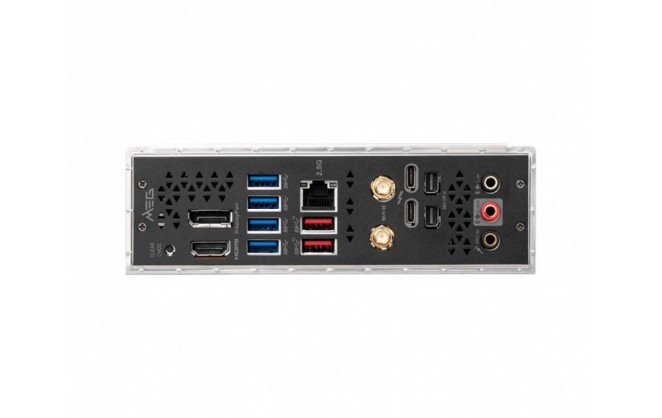

Rear Panel I/O Ports

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.2 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Water Pump fan header 1 x System fan header
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	2 x M.2 slots, Key M, Type 2280 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2280 (PCIe Gen3 or SATA) 1 x 3-pin ARGB LED header

Memory

Motherboard

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC4080

Warranty

3 Years

Network

System Requirements

Operating Systems Supported

Microsoft Windows 11 / 10 64-bit

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	Mini-ITX Motherboard

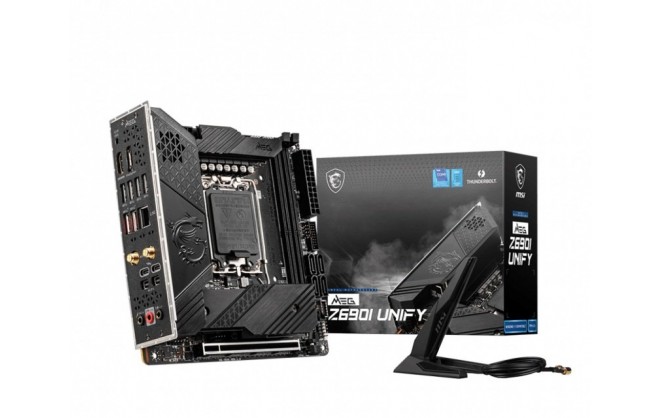

In The Box	MSI MEG Z690I UNIFY Motherboard USB Drive Cleaning Brush Wi-Fi Antenna Case Badge User Manual Quick Installation Guide MEG Stickers Cable Stickers Reward Program / Shout Out Flyer Product Catalog Registration Card DP to Mini DP Cable EZ Front Panel Cable Rainbow RGB LED Extension Cable 2 x SATA Cables M.2 Screws
Width	170 mm
Length	170 mm

Key Features

RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Firewire	No
Wireless Network	Yes
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	6 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ITX
Motherboard Power Connectors	8-Pin
Motherboard Chipset	Intel Z690
Thunderbolt	Yes
Motherboard Model	MSI MEG Z690I UNIFY
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
Memory Speed	6800 MHz
