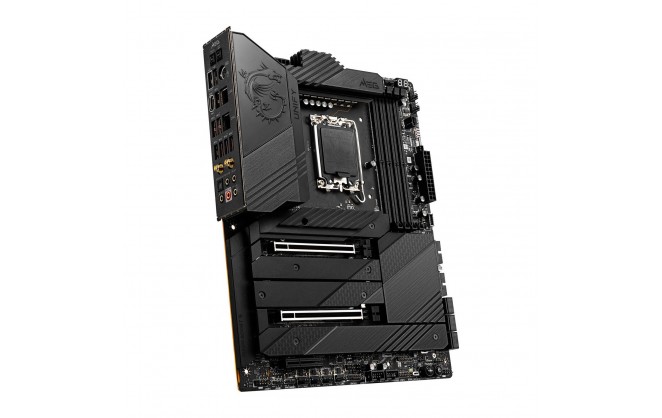

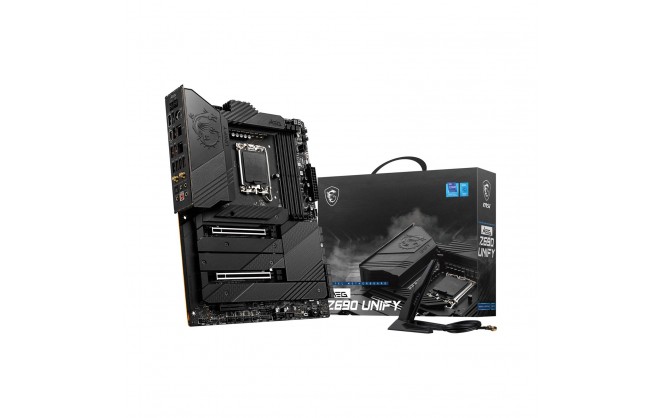

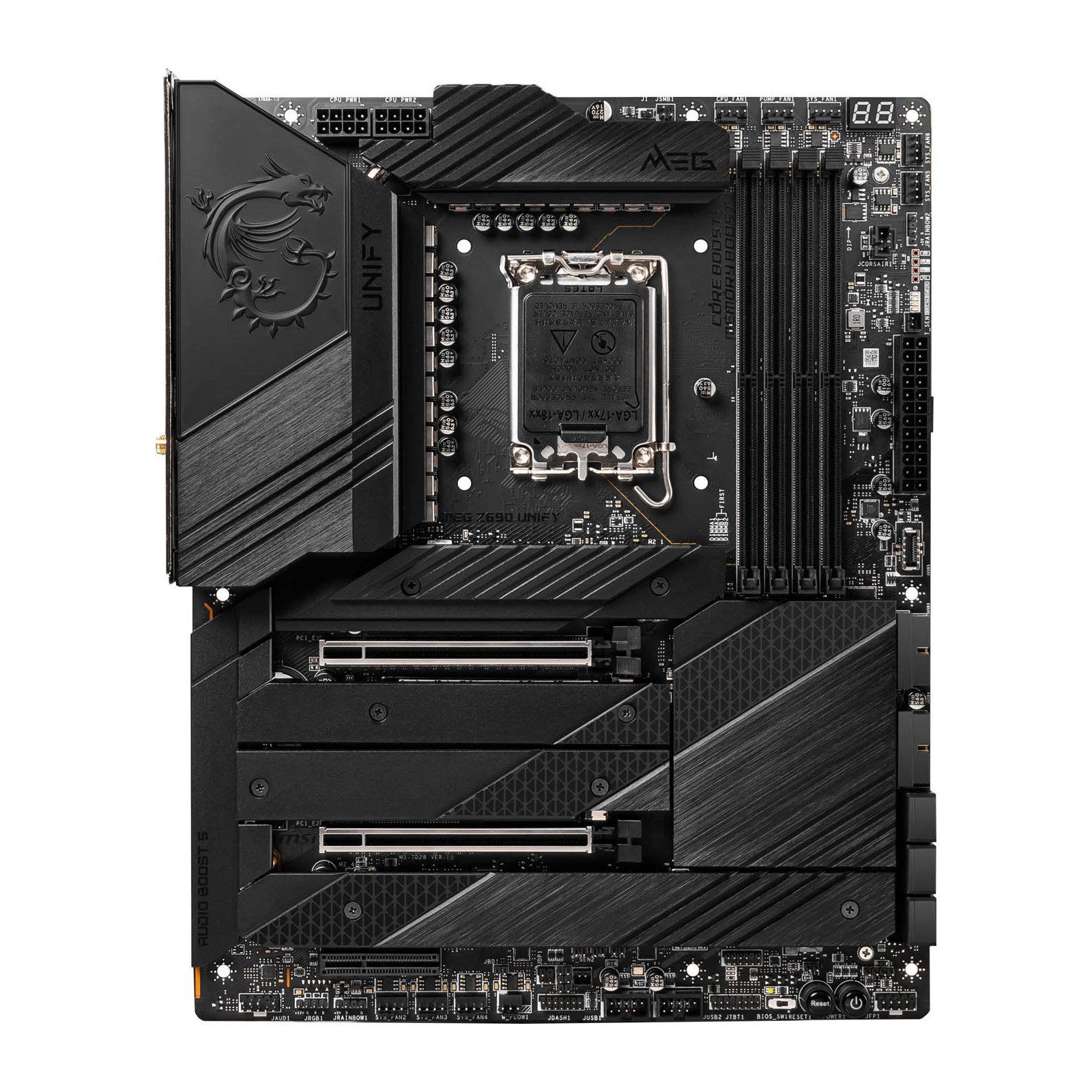

MSI MEG Z690 UNIFY Intel Socket 1700 Motherboard

  • Part Number: MEG Z690 UNIFY
  • Manufacturer: MSI
  • Quickfind Code: 135789
  • Stock: In Stock

£475.89 ex. vat
£571.07 inc. vat

Product Features:
  • Condition: New
  • Socket Type 1700
  • Chipset Z690
  • Form Factor ATX
  • Memory Type DDR5
  • CPU Type Intel
+ Read More Information

Share:

Product Description

Main Features

  • Supports 12th Gen Intel Core / Pentium Celeron processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5-6666+MHz(OC)
  • Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, it is ready to deliver the world class memory performance.
  • Quintuple M.2 Connectors: Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. Double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Extreme Power Design: Premium digital PWM, direct 19+2 phases with 105A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the true power of your processors.
  • Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
  • Dual 2.5G LAN with latest Wi-Fi 6E: Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
  • Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, Front & Rear USB 3.2 Gen 2x2 20G.
  • 8 Layer Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
  • Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.
Technical Specification

MSI MEG Z690 UNIFY Intel Socket 1700 Motherboard

CPU

CPU SocketSocket 1700
CPU BrandIntel
Installed Processors (Max)0 (1)
Supported Processor ManufacturerIntel
Supported Processors12th Gen Intel Core Processors
64-bit SupportYes
SocketLGA1700

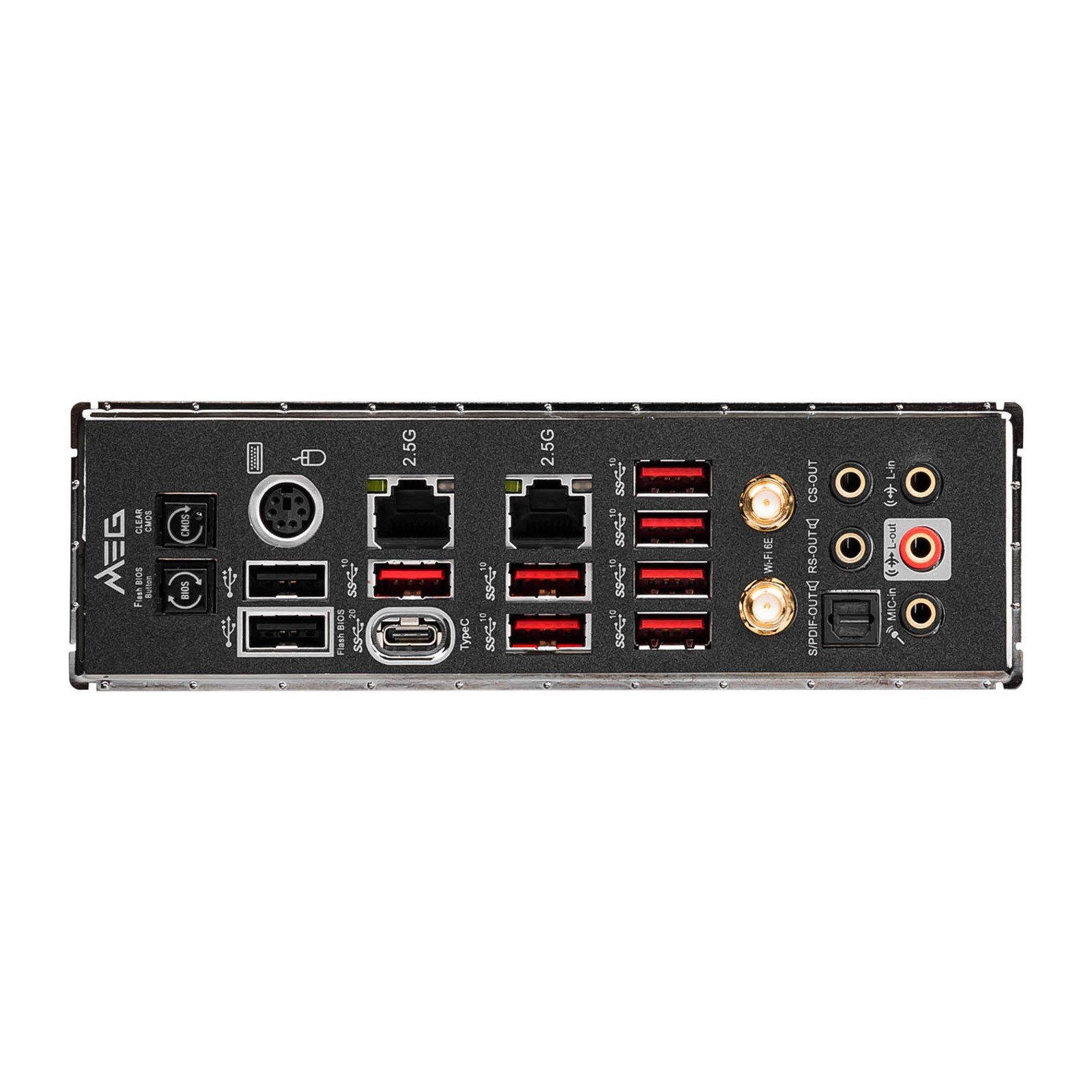

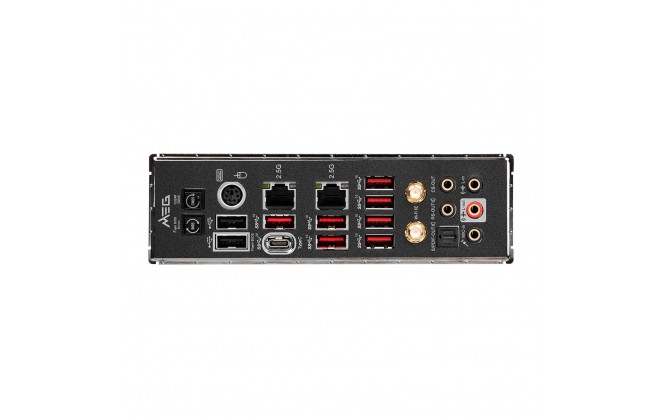

Rear Panel I/O Ports

USB Ports1 x USB-C 3.2
6 x USB 3.1
2 x USB 2.0
Keyboard/Mouse Combo Port1 x PS/2
RJ-45 Ports2 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports3 x 3.5mm Jacks
Microphone In Port1 x 3.5mm Jack
S/PDIF Port1 x S/PDIF Optical Out
Antenna Connector(s)2 x Antenna

Internal I/O Connectors

SATA Connectors6 x SATA III
USB Connectors1 x USB-C 3.2 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x Water Pump fan header
6 x System fan headers
Thunderbolt Port(s)1 x Thunderbolt header (supports RTD3)
Chassis Intrusion Connector1 x Chassis Intrusion header
TPM Header1 x TPM header
Power Connector Port1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors3 x M.2 slots, Type 2260/2280 (PCIe Gen4)
1 x M.2 slot, Type 2260/2280/22110 (PCIe Gen4 or SATA)
1 x M.2 slot, Type 2260/2280 (PCIe Gen3)
1 x Tuning Controller header
2 x 3-pin ARGB LED header
1 x 4-pin RGB LED header
1 x 3-pin JCORSAIR LED header

Memory

Memory Bus SpeedUp to 6666+ MHz (OC)
Memory TypeDDR5
Maximum RAM128 GB
Memory Slot4 x DIMM

Motherboard

Chipset ManufacturerIntel
NorthbridgeZ690
RAID SupportedYes
RAID FormatRAID 0, 1, 5, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots2 x PCI Express 5.0 x16 slots (@ x16, x8/x8)
1 x PCI Express 3.0 x4 slot

Graphics Device

Integrated Graphics SupportedNo

Sound

Integrated SoundRealtek ALC4080

Warranty

Warranty3 Years

Network

Integrated Network2 x Intel I225V
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANYes (Wi-Fi 6E)
Wireless Network SpeedUp to 2.4 Gbps
BluetoothYes
Bluetooth Version5.2

System Requirements

Operating Systems SupportedMicrosoft Windows 11 / 10 64-bit

System

Software Included (may be trial or restricted)Yes
DriversYes
SLi/Crossfire FeaturesSupports NVIDIA SLI Technology
Supports AMD CrossFire Technology

Physical

Form FactorATX Motherboard
In The BoxMSI MEG Z690 UNIFY Motherboard
USB Drive
Cleaning Brush
Wi-Fi Antenna
Case Badge
User Manual
Quick Installation Guide
MEG Stickers
Cable Stickers
Reward Program / Shout Out Flyer
Product Catalog
Registration Card
M.2 Screw / Standoff Sets
2 x EZ M.2 Clips
Screwdrivers
EZ Front Panel Cable
1-to-2 RGB LED Extension Y Cable
CORSAIR RGB LED Extension Cable
Rainbow RGB LED Extension Cable
4 x SATA Cables
Width305 mm
Length244 mm

Key Features

Motherboard ModelMSI MEG Z690 UNIFY
WiFi Speed2400 Mbps
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlMSI Mystic Sync
Memory Speed6666 MHz
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
FirewireNo
Wireless NetworkYes
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports6 port(s)
Number of USB Ports10 port(s)
SATA III SupportYes
USB 3.0 SupportYes
Multi GPU SupportBoth
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionNo
DisplayPort ConnectionNo
Motherboard Form FactorATX
Motherboard Power Connectors8 + 8-Pin
Motherboard ChipsetIntel Z690
ThunderboltNo

Item Details

ManufacturerMSI
Manufacturer CodeMEG Z690 UNIFY
EAN4719072886509
UPC824142270301
ConditionNew
