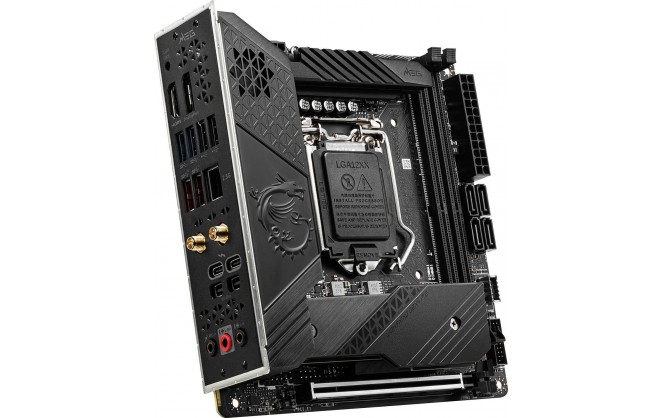

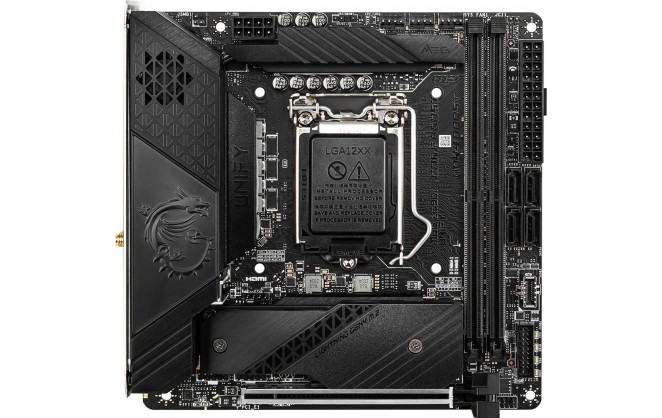

MSI MEG Z590I UNIFY Intel Socket 1200 Motherboard

Contact for availability

Supports 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 5600(OC) MHz
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
Extreme Power Design: INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors.
Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Frozr ensure the extreme performance with low temp.
2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
Twin M.2 Connectors : Onboard dual M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution.
10 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Pre-installed I/O Shield: Better EMI protection and more convenience for installation

CPU

CPU Socket	Socket 1200
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron processors
64-bit Support	Yes
Socket	LGA1200

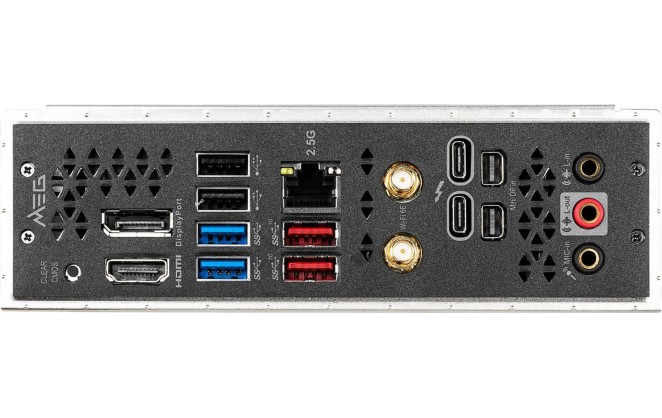

Rear Panel I/O Ports

USB Ports	2 x Thunderbolt 4 (USB-C) 2 x USB 3.1 2 x USB 3.0 2 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4 2 x Mini DisplayPort IN
HDMI Port	1 x HDMI 2.0b
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x SMA Antennas

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB 3.1 Type-C header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Water Pump fan header 1 x System fan header
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 20+4-pin ATX
Other Connectors	1 x M.2, Type 2280 (PCIe Gen4 or PCIe Gen3) 1 x M.2, Type 2280 (PCIe Gen3) 1 x 3-pin ARGB LED header

Memory

Motherboard

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC1220P

Warranty

3 Years

Network

System Requirements

Operating Systems Supported

Microsoft Windows 10 64-bit

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	Mini-ITX Motherboard

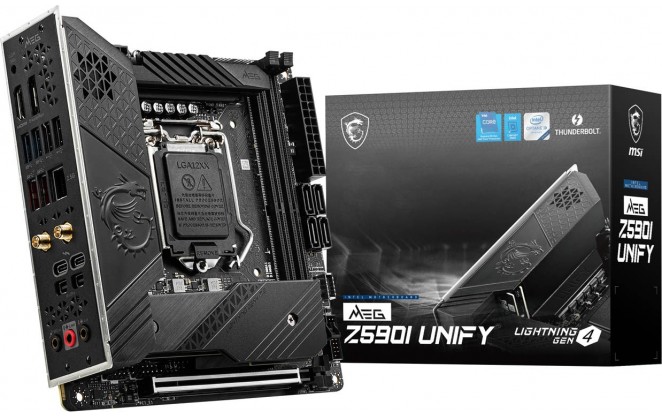

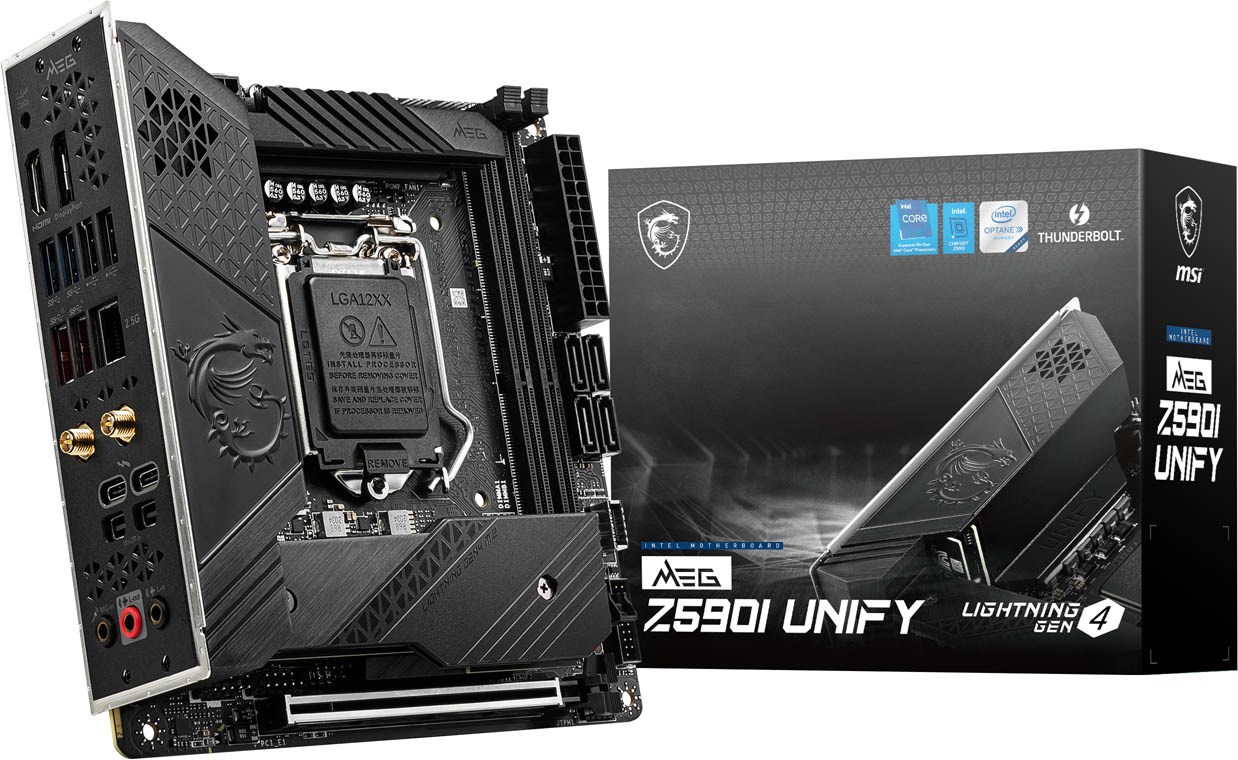

In The Box	MEG Z590I UNIFY Motherboard Wi-Fi Antenna User Manual Quick Installation Guide USB Drive MEG Stickers Reward Program / Shout Out Flyer Cable Stickers Product Catalog Registration Card Cleaning Brush Screwdrivers Case Badge 2 x SATA Cables Rainbow RGB LED Extension Cable DisplayPort to Mini DisplayPort Cable M.2 Screw / Standoff Sets
Width	170 mm
Length	170 mm

Key Features

Memory Speed	5600 MHz
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Firewire	No
Wireless Network	Yes
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	6 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ITX
Motherboard Power Connectors	8-Pin
Motherboard Chipset	Intel Z590
Thunderbolt	Yes
Motherboard Model	MSI MEG Z590I UNIFY
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
