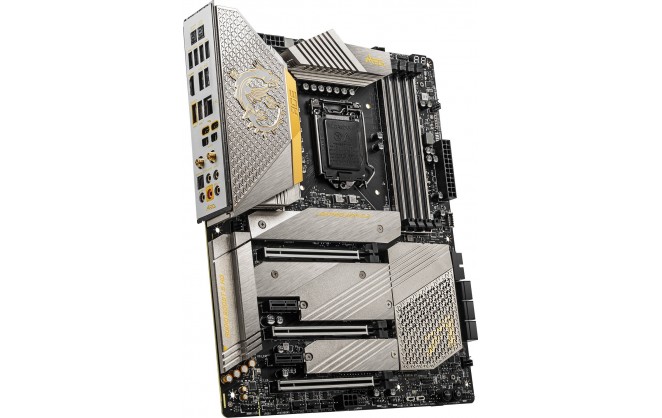

MSI MEG Z590 ACE GOLD EDITION Intel Motherboard
CPU
| CPU Socket | Socket 1200 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 11th Gen Intel Core Processors, 10th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| 64-bit Support | Yes |
| Socket | LGA1200 |

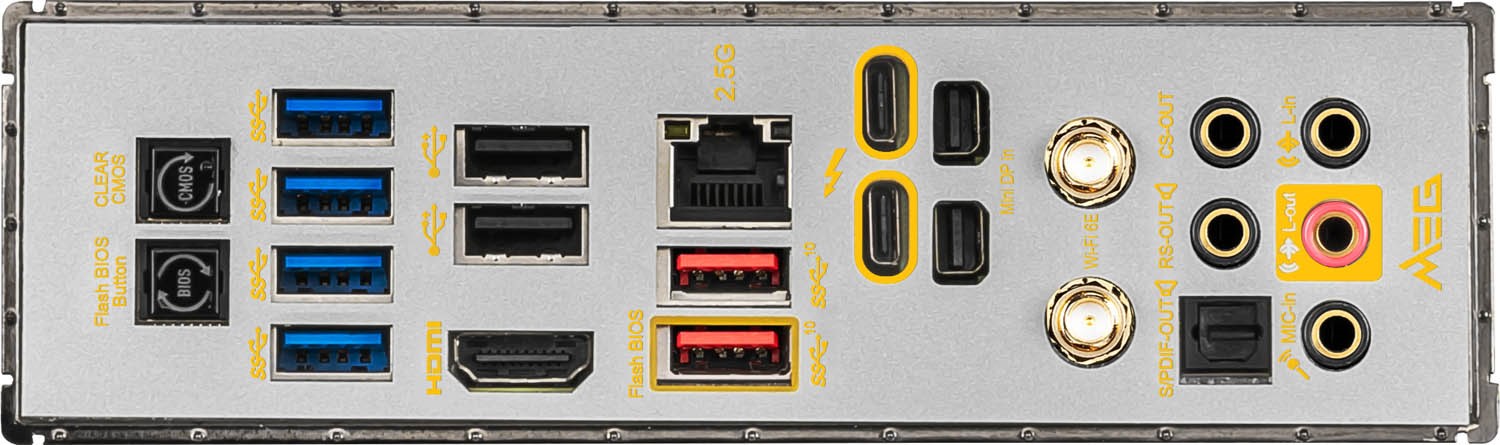

Rear Panel I/O Ports
| USB Ports | 2 x Thunderbolt 4 / USB4 2 x USB 3.1 4 x USB 3.0 2 x USB 2.0 |
| DisplayPorts | 2 x Mini DisplayPort INPUTS |
| HDMI Port | 1 x HDMI 2.0b |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 3 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
| S/PDIF Port | 1 x S/PDIF Out |
| Antenna Connector(s) | 2 x SMA Antennas |
Internal I/O Connectors
| SATA Connectors | 6 x SATA III |
| USB Connectors | 1 x USB 3.1 Type-C header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x Water Pump fan header 6 x System fan headers |
| Chassis Intrusion Connector | 1 x Chassis Intrusion header |
| TPM Header | 1 x TPM header |
| Power Connector Port | 1 x 24-pin ATX 2 x 8-pin EPS 1 x 6-pin PCIe |
| Other Connectors | 1 x M.2, Key M, Type 2242/2260/2280/22110 (PCIe Gen4) for 11th Gen processors only 1 x M.2, Key M, Type 2242/2260/2280 (PCIe Gen3) 2 x M.2, Key M, Type 2242/2260/2280 (PCIe Gen3 or SATA) 1 x Tuning Controller header 2 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header 1 x JCORSAIR LED header |
Memory
| Memory Bus Speed | Up to 5600 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 128 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Chipset Manufacturer | Intel |
| Northbridge | Z590 |
| RAID Supported | Yes |
| RAID Format | RAID 0, RAID 1 and RAID 10 for SATA storage devices RAID 0 and RAID 1 for M.2 NVMe storage devices |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 2 x PCI Express 4.0 x16 slots (@ x16/x0 or x8/x8) 1 x PCI Express 3.0 x16 slot (@ x4) 2 x PCI Express 3.0 x1 slots |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek ALC4082 + ESS SABRE9018Q2C |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Intel I-225V |
| Network Speeds Supported | Up to 2.5 Gbps |
| Wireless LAN | Yes (Wi-Fi 6) |
| Wireless Network Speed | Up to 2.4 Gbps |
| Bluetooth | Yes |
| Bluetooth Version | 5.2 |
System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
System
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
| SLi/Crossfire Features | Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology |
Physical
| Form Factor | ATX Motherboard |
| In The Box | Motherboard Wi-Fi Antenna Case Badge USB Drive Wiping Cloth User Manual Quick Installation Guide Cleaning Brush Screwdrivers MEG Stickers Reward Program / Shout Out Flyer Cable Stickers Product Catalog Registration Card M.2 Screw / Standoff Sets DP to Mini DP Cable Thermistor Cable 1-to-2 RGB LED Extension Y Cable CORSAIR RGB LED Extension Cable Rainbow RGB LED Extension Cable 4 x SATA Cables |
| Width | 305 mm |
| Length | 244 mm |
Key Features
| Motherboard Chipset | Intel Z590 |
| Thunderbolt | Yes |
| Motherboard Model | MSI MEG Z590 ACE GOLD EDITION |
| WiFi Speed | 2400 Mbps |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | MSI Mystic Sync |
| Memory Speed | 5600 MHz |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Power Requirement (auto) | 70 W |
| Max Memory Speed Supported (Non-overclocked) | 2933 MHz |
| Max Memory Speed Supported (overclocked) | 5600 MHz |
| CPU Power Pins (female) | 16 |
| Total M.2 Slots | 4 |
| Maximum NVMe M.2 ports | 4 |
| Maximum SATA M.2 ports | 2 |
| SATA ports | 6 |
| USB2.0 headers | 4 |
| USB3.0 headers | 2 |
| USB-C headers | 1 |
| Firewire | No |
| Wireless Network | Yes |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 6 port(s) |
| Number of USB Ports | 8 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | Both |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | ATX |
| Motherboard Power Connectors | 8 + 8-Pin |
Item Details
| Manufacturer | MSI |
| Manufacturer Code | MEG Z590 ACE GOLD EDITION |
| EAN | 4719072830397 |
| UPC | 824142252628 |
| Condition | New |
