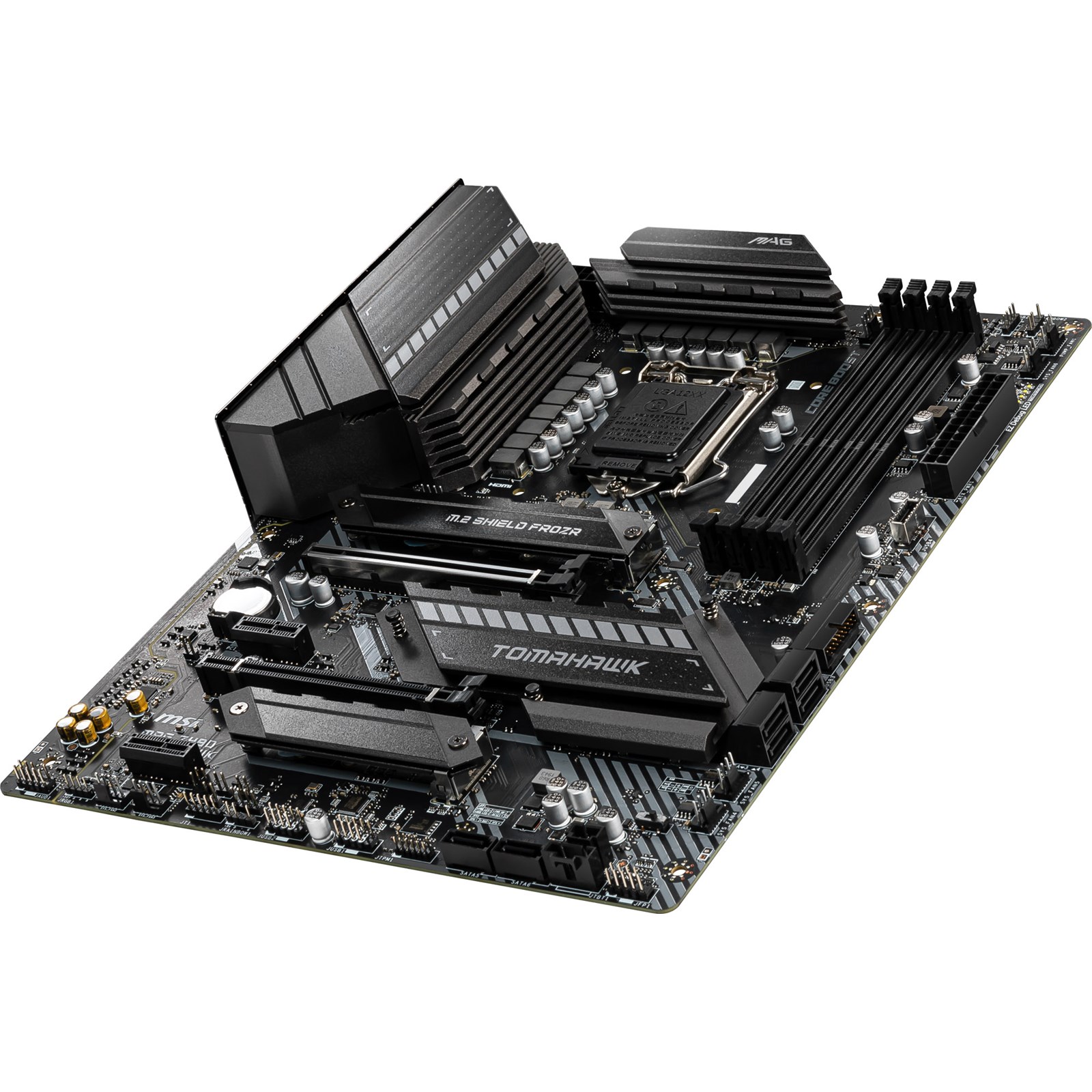

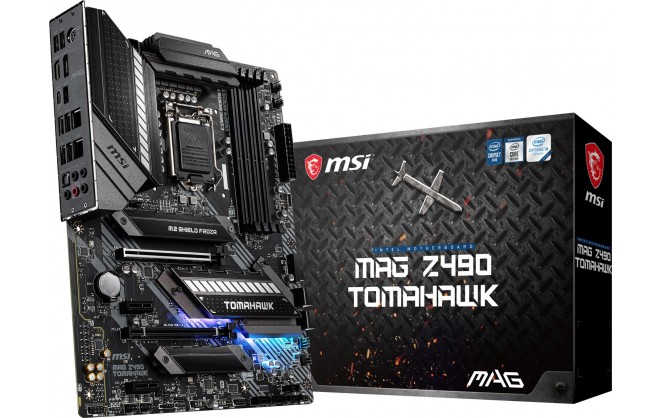

MSI MAG Z490 TOMAHAWK Intel Motherboard

£169.99 ex. vat
£203.99 inc. vat

Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
Ready 4 the Future: Support Lightning Gen 4 Solution for the future
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
Audio Boost: Reward your ears with studio grade sound quality
Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire

CPU

CPU Socket	Socket 1200
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	10th Gen Intel Core and Pentium Gold / Celeron processors
64-bit Support	Yes
Socket	LGA1200

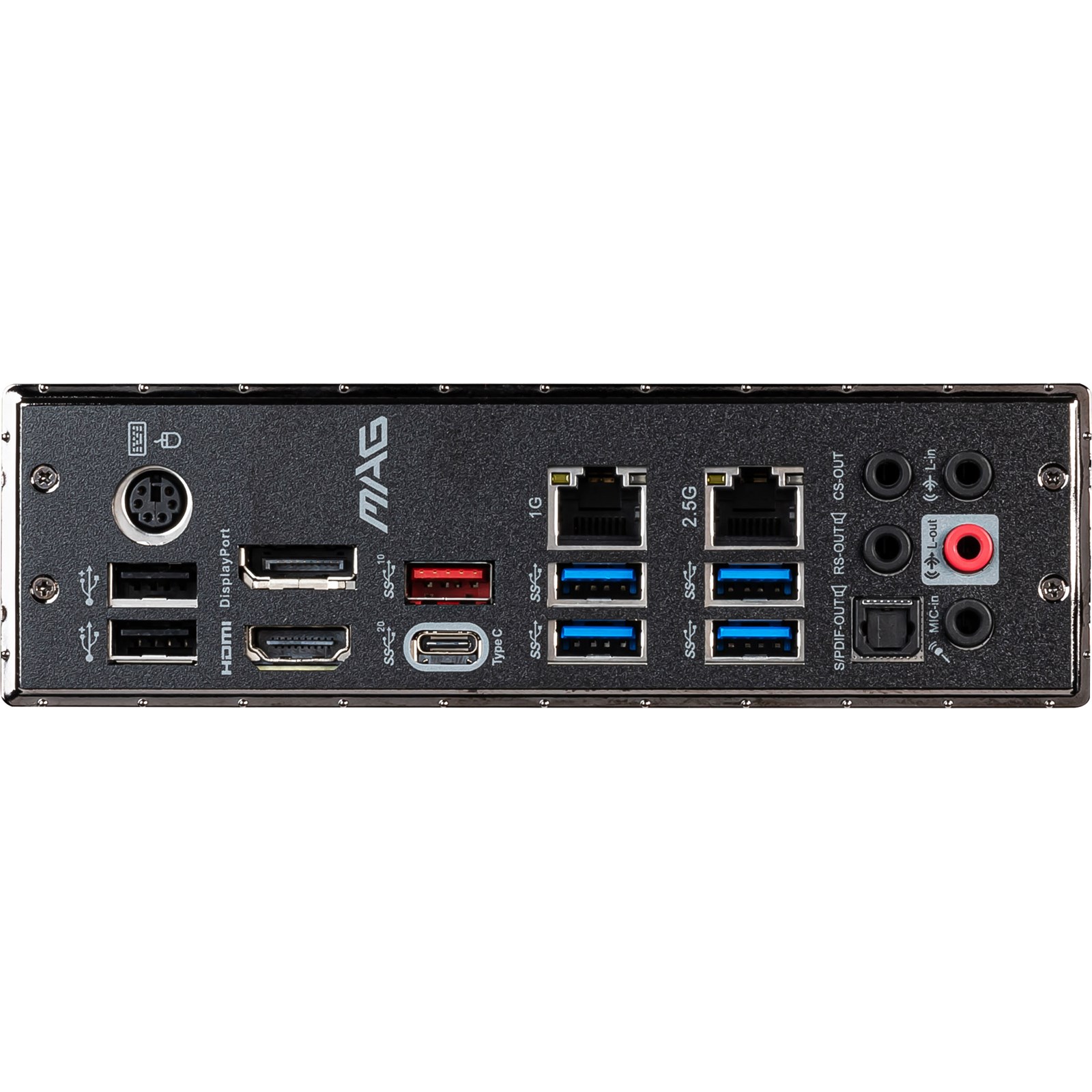

Rear Panel I/O Ports

Internal I/O Connectors

SATA Connectors	6 x SATA III
USB Connectors	1 x USB 3.0 Type-C header 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Water Pump header 6 x System fan headers
Serial Connectors	1 x COM header
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 20+4-pin ATX 1 x 4+4-pin EPS 1 x 4-pin EPS
Other Connectors	1 x M.2, Socket 3, M Key (Type 2242/2260/2280/22110) 1 x M.2, Socket 3, M Key (Type 2242/2260/2280) 2 x RGB LED headers 2 x RAINBOW LED headers 1 x TBT header

Memory

Motherboard

Expansion

Number of PCI Express Slots

1 x PCI Express 3.0 x16
1 x PCI Express 3.0 x16 (@ x4)
2 x PCI Express 3.0 x1

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC1200-VD1 Codec

Warranty

3 Years

Network

Integrated Network	Realtek RTL8125B-CG Intel I219V
Network Speeds Supported	Realtek RTL8125B-CG: Up to 2.5Gbps Intel I219V: Up to 1Gbps
Wireless LAN	No
Bluetooth	No

System Requirements

Operating Systems Supported

Microsoft Windows 10 64-bit

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes
SLi/Crossfire Features	Supports 2-Way AMD CrossFire Technology

Physical

Form Factor	ATX Motherboard
In The Box	MAG Z490 TOMAHAWK User Manual Quick Installation Guide MSI Case Badge Product Registration Card MSI Product Catalog Driver DVD Promotion Card 2 x SATA Cables
Width	305 mm
Length	244 mm

Key Features

M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
Memory Speed	4800 MHz
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Firewire	No
Wireless Network	No
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	6 port(s)
Number of USB Ports	8 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	ATi CrossFire
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard Power Connectors	4 + 8-Pin
Motherboard Chipset	Intel Z490
Thunderbolt	No
Motherboard Model	MSI MAG Z490 TOMAHAWK
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
