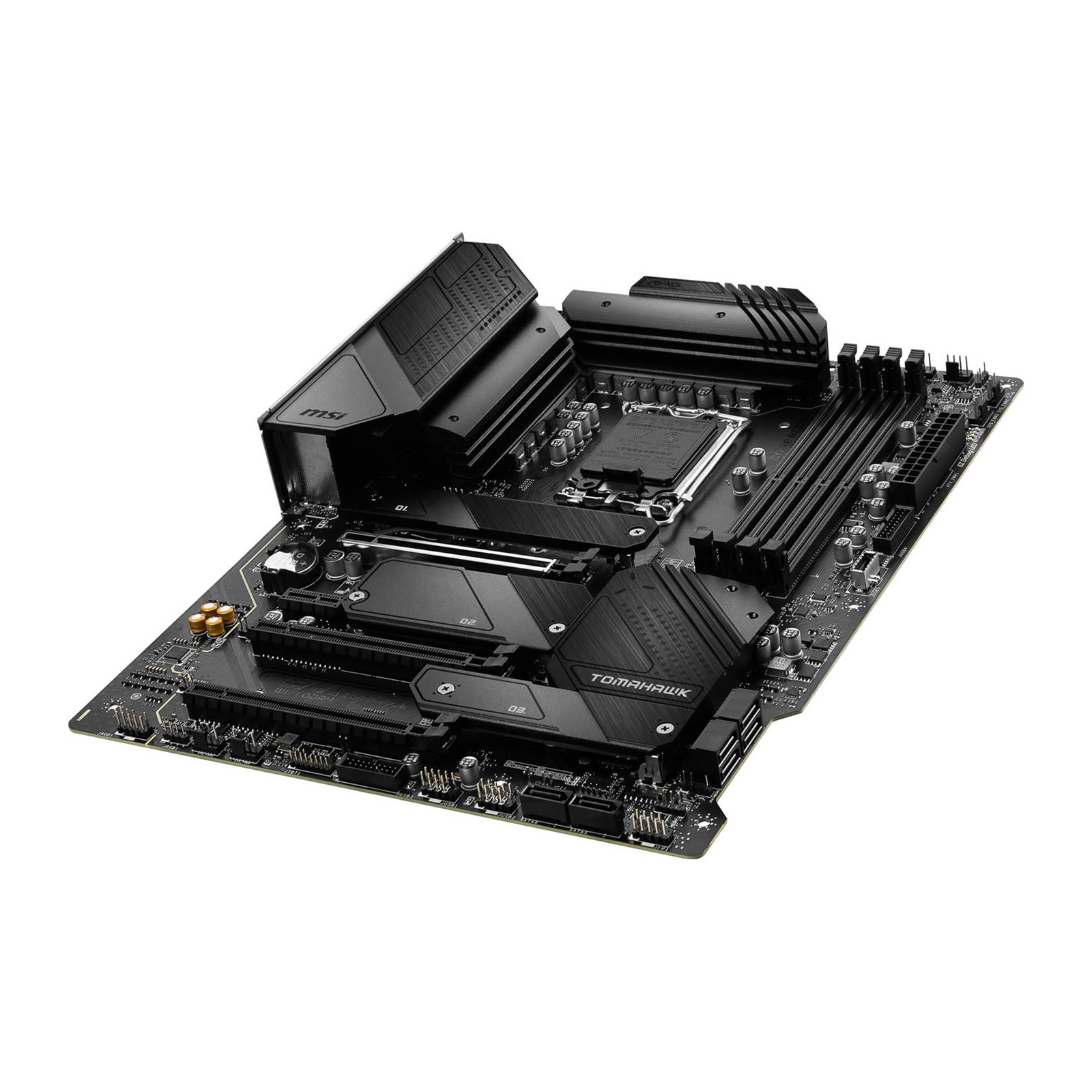

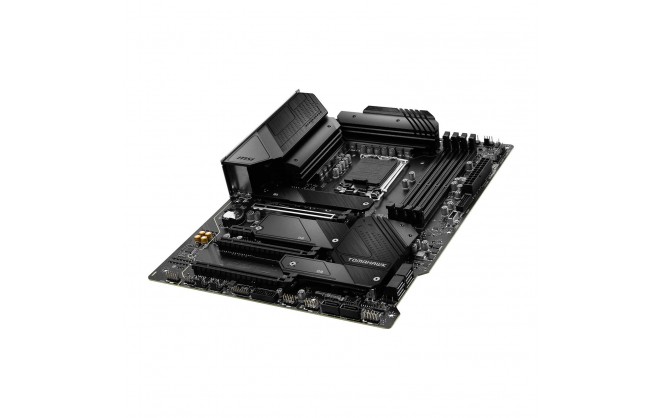

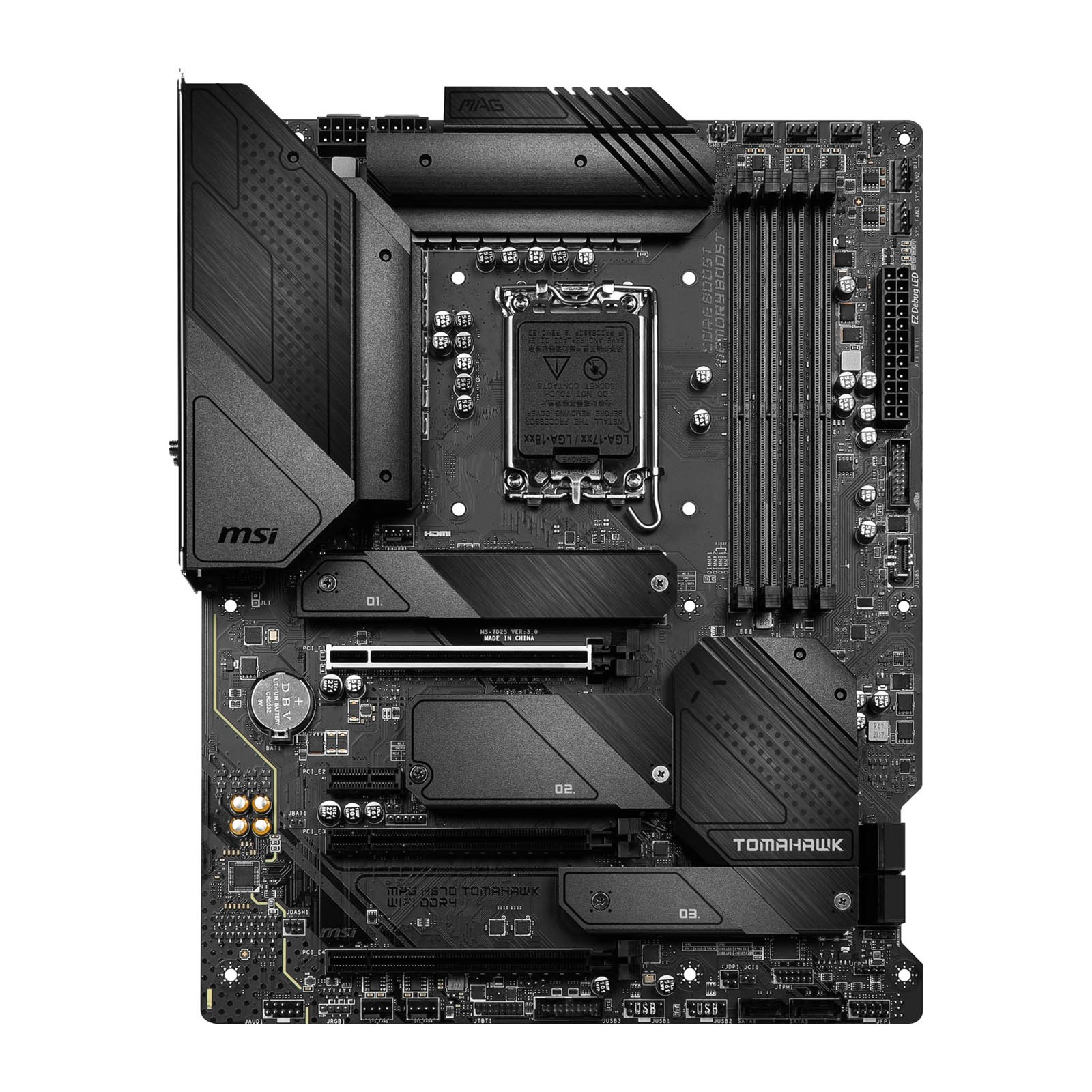

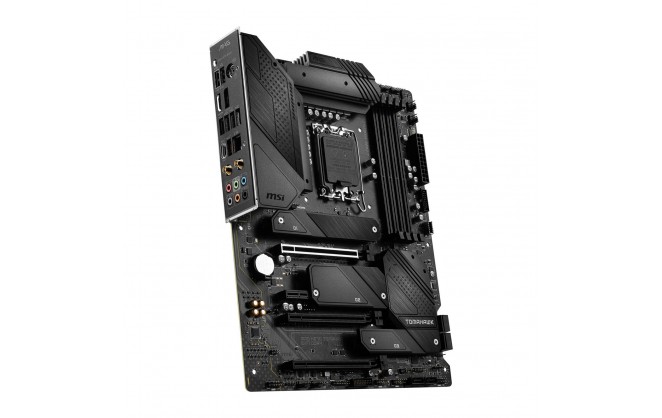

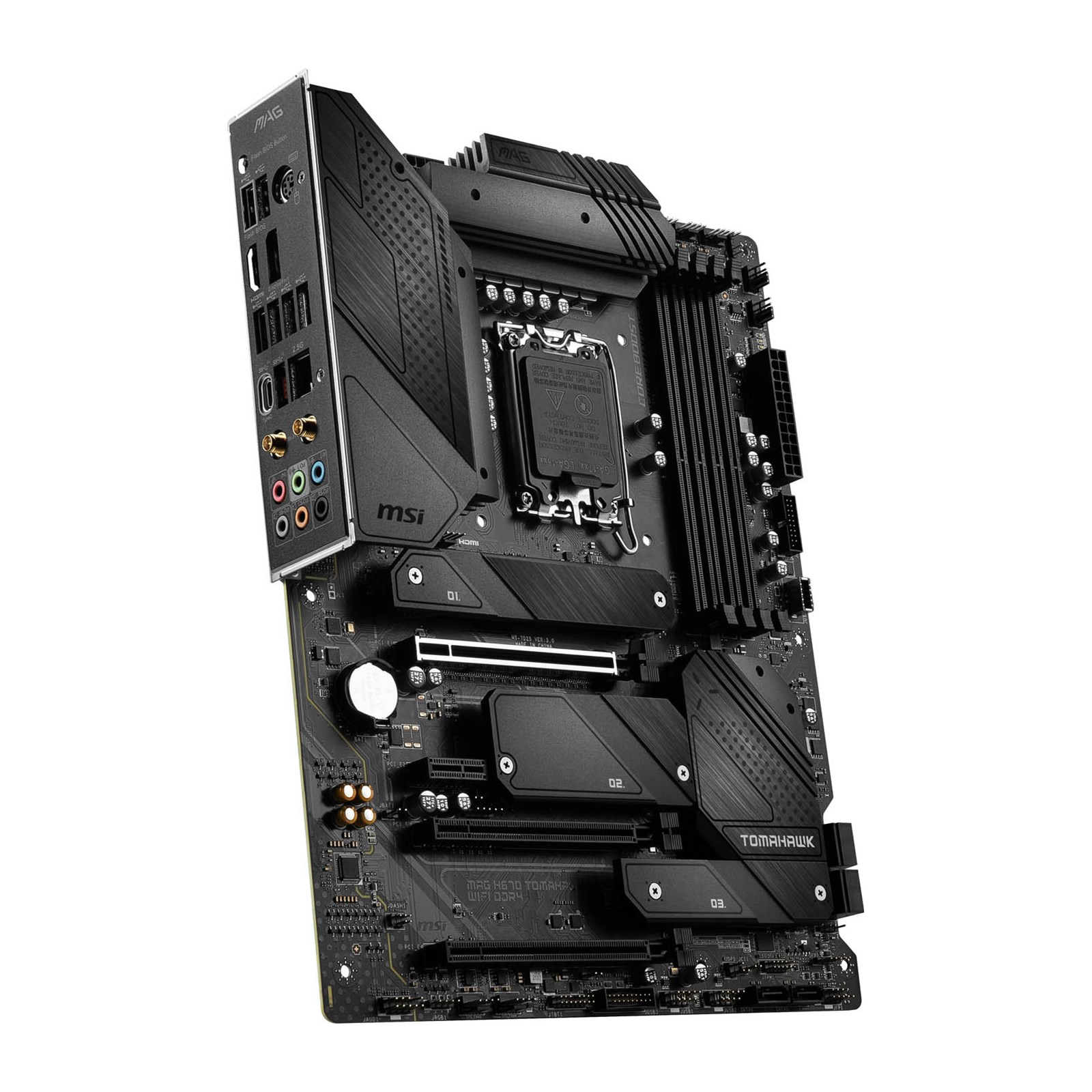

The MAG H670 TOMAHAWK WIFI DDR4 is a gaming oriented ATX motherboard constructed around the latest Intel H670 chipset that balances value with cutting-edge hardware.
The MAG H670 TOMAHAWK WIFI DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: ATX
Socket Type: LGA 1700
Chipset: Intel H670
With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG H670 TOMAHAWK WIFI DDR4 is able to sustain heavy CPU power loads to support system-demanding game settings:
1. Digital PWM IC
2. 1-Phase AUX Power
3. 1-Phase GT Power
4. 14 Duet Rail CPU Power System
VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.
PCB Cooling: Premium 6-layer server grade PCB printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
* 1 x PCI-e 5.0 x16 slot (with Steel Armor)
* 1 x PCI-e 3.0 x16 slot (CrossFire supported)
The MAG H670 TOMAHAWK WIFI DDR4 motherboard features MSI's latest M.2 slots (Intel Optane supported):
* 3 x Gen4 x4 64Gb/s slot
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability.
2.5G LAN: A 2.5Gbps LAN controller delivers a premium network gaming experience.
USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.
Wi-Fi 6: The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
MSI MAG H670 TOMAHAWK WIFI DDR4 Intel Motherboard
CPU
| CPU Socket | Socket 1700 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 12th Gen Intel Core Processors |
| 64-bit Support | Yes |
| Socket | LGA1700 |
Rear Panel I/O Ports
| USB Ports | 1 x USB-C 3.1 1 x USB 3.1 6 x USB 2.0 |
| DisplayPorts | 1 x DisplayPort 1.4 |
| HDMI Port | 1 x HDMI 2.1 |
| Keyboard/Mouse Combo Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 4 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
| Antenna Connector(s) | 2 x SMA Antenna |
Internal I/O Connectors
| SATA Connectors | 6 x SATA III |
| USB Connectors | 1 x USB-C 3.1 header (supports 1 port) 2 x USB 3.0 headers (supports 4 ports) 2 x USB 2.0 headers (supports 4 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x Water Pump fan header 6 x System fan headers |
| Thunderbolt Port(s) | 1 x TBT header (supports RTD3) |
| Chassis Intrusion Connector | 1 x Chassis Intrusion header |
| TPM Header | 1 x TPM header |
| Power Connector Port | 1 x 24-pin ATX 2 x 8-pin EPS |
| Other Connectors | 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4 or SATA) 2 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header 1 x Tuning Controller header |
Memory
| Memory Bus Speed | 4800+ MHz |
| Memory Type | DDR4 |
| Maximum RAM | 128 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Chipset Manufacturer | Intel |
| Northbridge | H670 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 5, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 5.0 x16 slot 2 x PCI Express 3.0 x16 slots (@ x4, x1) 1 x PCI Express 3.0 x1 slot |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek ALC897 |
Warranty
| Warranty | 3 Years |
Network
| Integrated Network | Intel I225V |
| Network Speeds Supported | Up to 2.5 Gbps |
| Wireless LAN | Yes (Wi-Fi 6) |
| Wireless Network Speed | Up to 2.4 Gbps |
| Bluetooth | Yes |
| Bluetooth Version | 5.2 |
System Requirements
| Operating Systems Supported | Microsoft Windows 11 / 10 64-bit |
System
| Jumpers | 1 x Clear CMOs |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
| SLi/Crossfire Features | Supports AMD CrossFire Technology |
Physical
| Form Factor | ATX Motherboard |
| In The Box | MSI MAG H670 TOMAHAWK WIFI DDR4 Motherboard Quick Installation Guide Wi-Fi Antenna 2 x SATA Cables EZ M.2 Clip USB Drive MAG Stickers MSI Case Badge Product Registration Card |
| Width | 305 mm |
| Length | 244 mm |
Key Features
| WiFi Speed | 2400 Mbps |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | MSI Mystic Sync |
| Memory Speed | 4800 MHz |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Firewire | No |
| Wireless Network | Yes |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 6 port(s) |
| Number of USB Ports | 8 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | ATi CrossFire |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | ATX |
| Motherboard Power Connectors | 8 + 8-Pin |
| Motherboard Chipset | Intel H670 |
| Thunderbolt | No |
| Motherboard Model | MSI MAG H670 TOMAHAWK WIFI DDR4 |
Item Details
| Manufacturer | MSI |
| Manufacturer Code | MAG H670 TOMAHAWK WIFI DDR4 |
| EAN | 4719072924911 |
| Condition | New |
