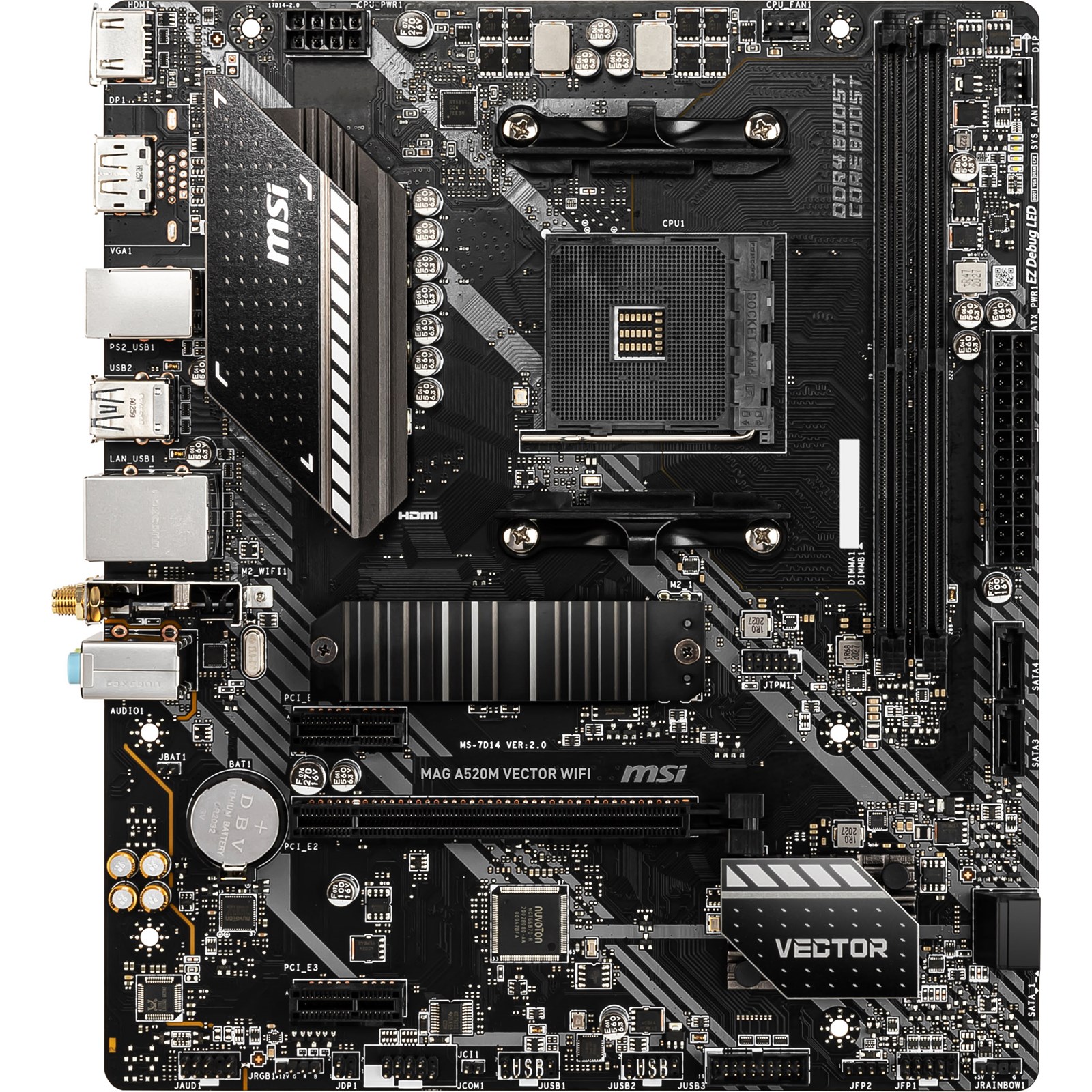

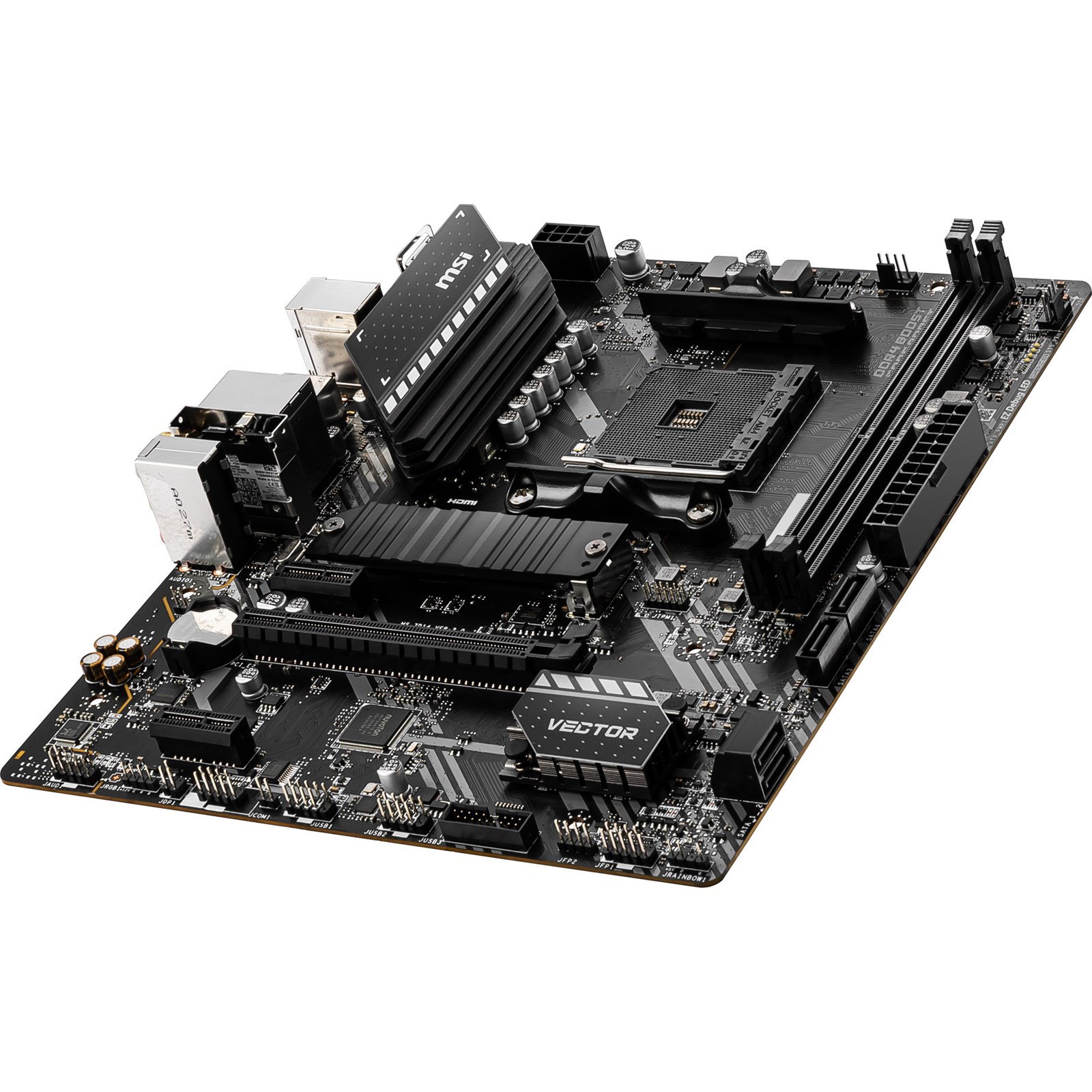

MSI MAG A520M VECTOR WIFI mATX Socket AM4 Motherboard

  • Part Number: MAG A520M VECTOR WIFI
  • Manufacturer: MSI
  • Quickfind Code: 136460

  • Stock: In Stock

£64.56 ex. vat
£77.47 inc. vat


Product Features:
  • Condition: New
  • Socket Type AM4
  • Chipset A520
  • Form Factor mATX
  • Memory Type DDR4
  • CPU Type AMD
+ Read More Information

Share:

Product Description

Main Features

  • Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
  • Supports DDR4 Memory, up to 4600(OC) MHz
  • Extended Heatsink Design: Leading heatsink design, extended for maximum cooling and performance
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance
  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
Technical Specification

MSI MAG A520M VECTOR WIFI mATX Socket AM4 Motherboard

CPU

CPU SocketSocket AM4
CPU BrandAMD
Installed Processors (Max)0 (1)
Supported Processor ManufacturerAMD
Supported Processors3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
64-bit SupportYes
SocketAM4

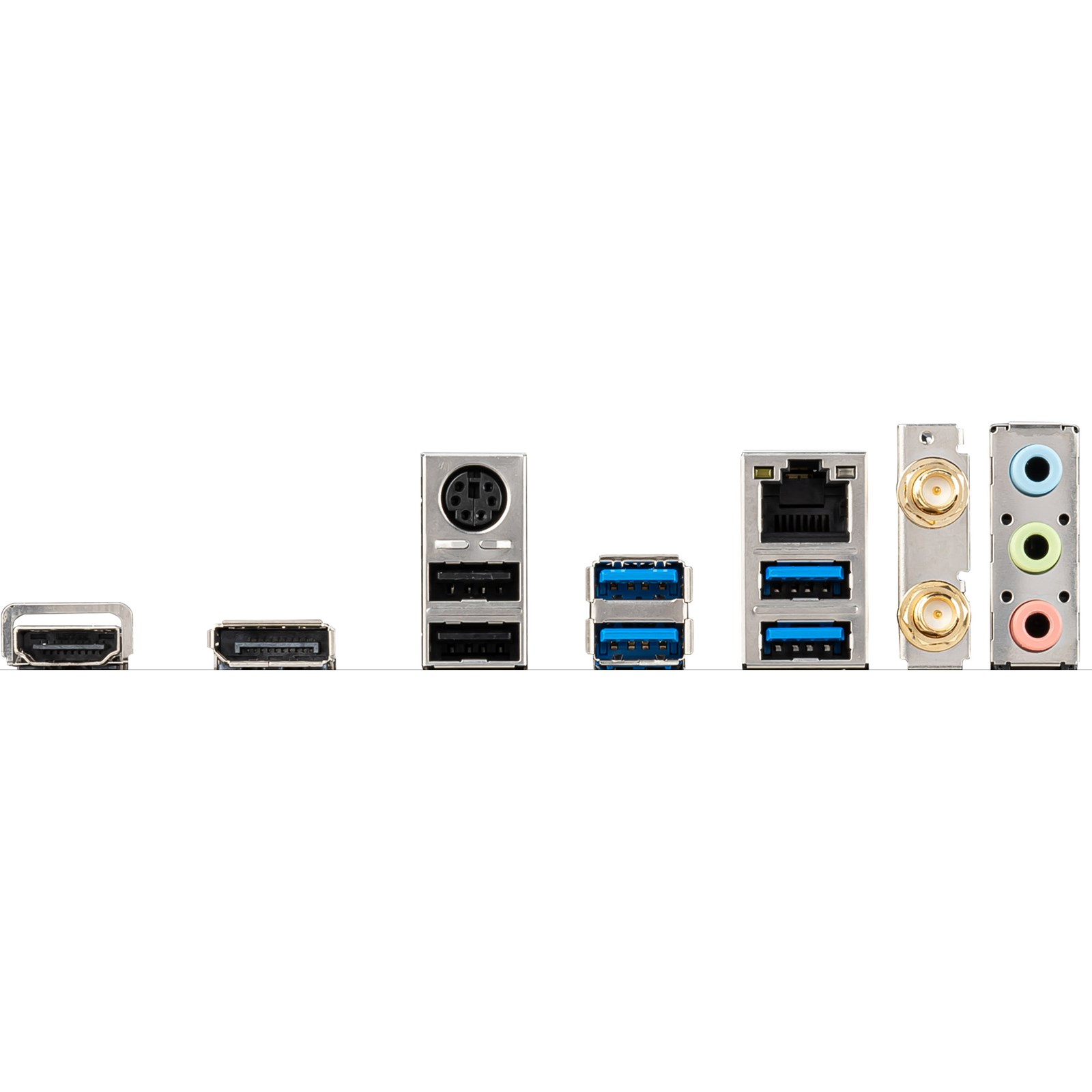

Rear Panel I/O Ports

USB Ports4 x USB 3.0
2 x USB 2.0
DisplayPorts1 x DisplayPort
HDMI Port1 x HDMI 2.1
Keyboard/Mouse Combo Port1 x PS/2
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack
Antenna Connector(s)2 x SMA Antenna

Internal I/O Connectors

SATA Connectors4 x SATA III
USB Connectors1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x System fan header
Chassis Intrusion Connector1 x Chassis Intrusion header
TPM Header1 x TPM header
Power Connector Port1 x 20+4-pin ATX
1 x 4+4-pin EPS
Other Connectors1 x M.2, Socket 3, M Key (Type 2242/2260/2280)
1 x ARGB LED header
1 x RGB LED header

Memory

Memory Bus Speed2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz
Memory TypeDDR4
Maximum RAM64 GB
Memory Slot2 x DIMM

Motherboard

Chipset ManufacturerAMD
NorthbridgeA520
RAID SupportedYes
RAID FormatRAID 0, 1, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 3.0 x16
2 x PCI Express 3.0 x1

Graphics Device

Integrated Graphics SupportedYes

Warranty

Warranty3 Years

Sound

Integrated SoundRealtek ALC892

Network

Integrated NetworkRealtek RTL8111H
Network Speeds Supported10/100/1000 Mbps
Wireless LANYes
Wireless Network SpeedUp to 433 Mbps
BluetoothYes

System Requirements

Operating Systems SupportedMicrosoft Windows 10 64-bit

System

Jumpers1 x Clear CMOS

Physical

Form FactorMicroATX Motherboard

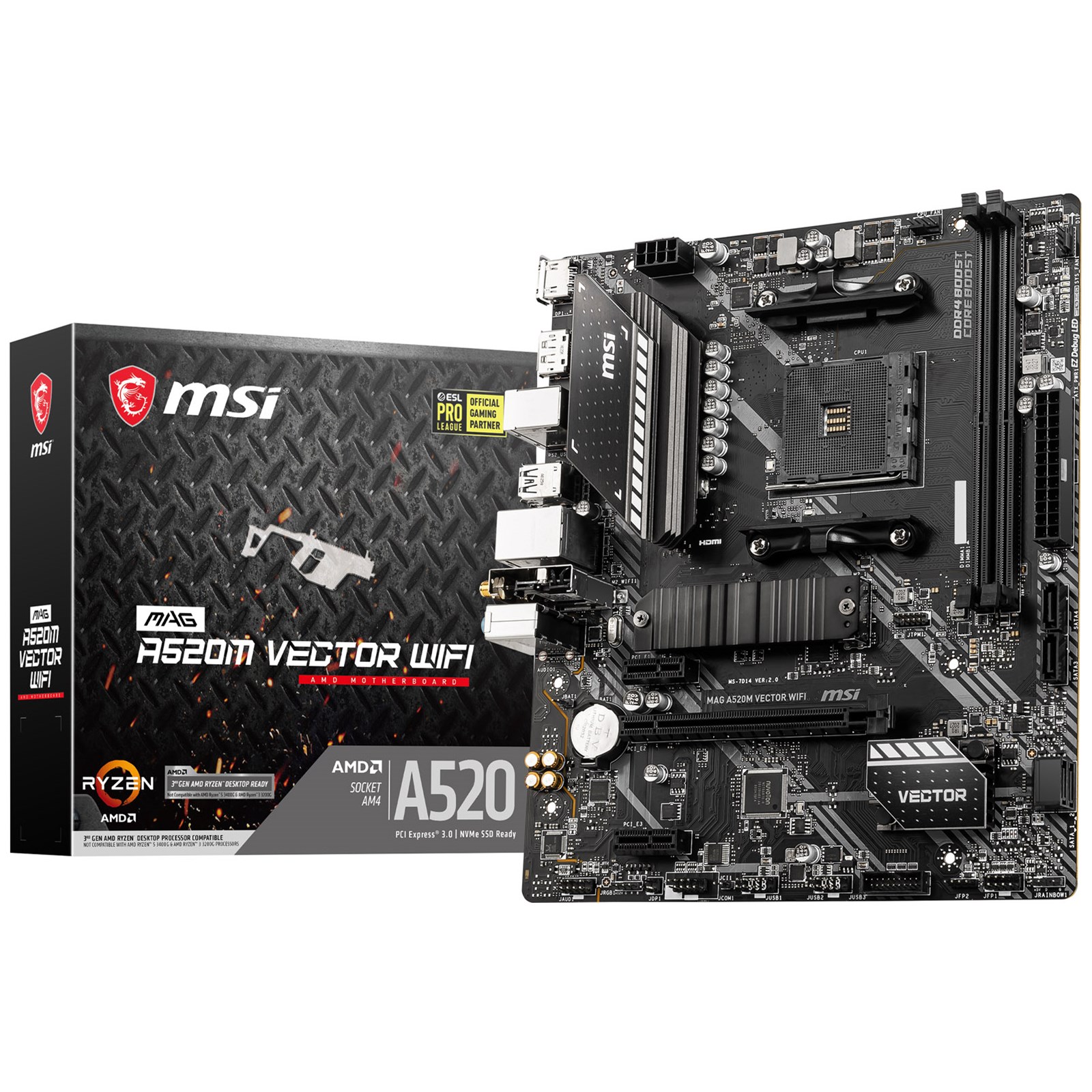

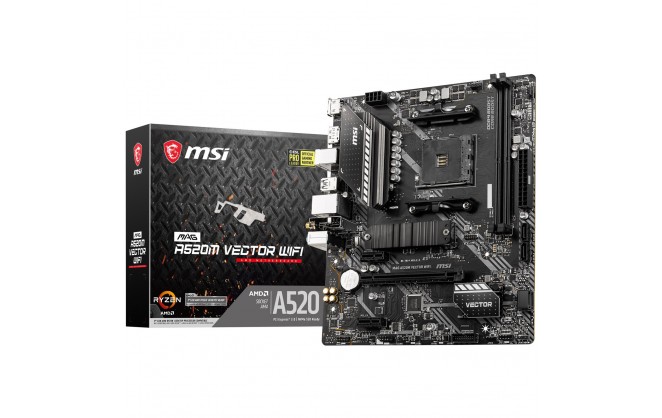

In The BoxMotherboard
User Manual
Quick Installation Guide
Wi-Fi Antenna
2 x SATA Cables
MSI Case Badge
Driver DVD
I/O Shield
MSI Product Catalog
Product Registration Card
Width244 mm
Length210 mm

Key Features

FirewireNo
RDIMM Memory SupportedNo
RDIMM Memory RequiredNo
Wireless NetworkYes
Motherboard Width210 mm
Motherboard Height244 mm
mSATA SupportedNo
U.2 SupportedNo
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports6 port(s)
SATA III SupportYes
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionYes
Motherboard Form FactormATX
Motherboard (EPS) Power Connectors4+4-Pin
Motherboard ChipsetAMD A520
ThunderboltNo
Motherboard ModelMSI MAG A520M VECTOR WIFI
WiFi Speed433 Mbps
USB 3.1 SupportNo
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlMSI Mystic Sync
Memory Speed4600 MT/s
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderNo
Power Requirement (auto)60 W
Max Memory Speed Supported (Non-overclocked)3200 MT/s
Max Memory Speed Supported (overclocked)4600 MT/s
CPU Power Pins (female)8
Total M.2 Slots1
Maximum NVMe M.2 ports1
Maximum SATA M.2 ports1
SATA ports4
No. of front USB2.0 ports supported4
No. of front USB3.0 ports supported2

Item Details

ManufacturerMSI
Manufacturer CodeMAG A520M VECTOR WIFI
EAN4719072752583
