MPG Z790 EDGE Ti Max Wifi Title

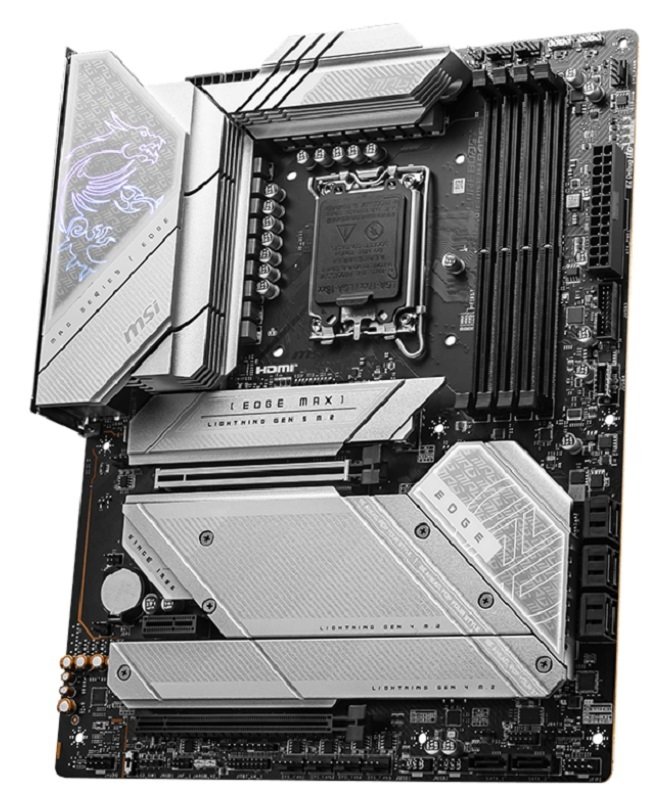

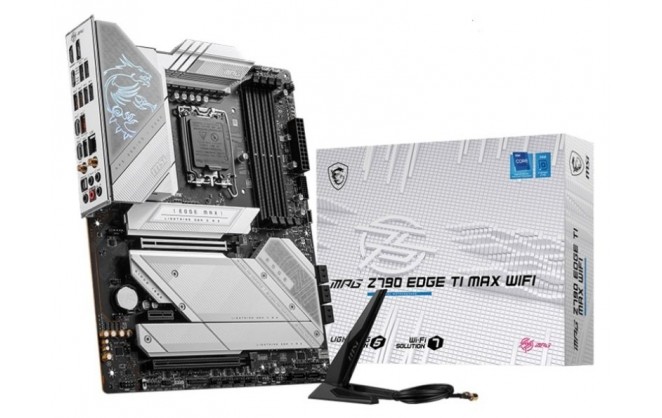

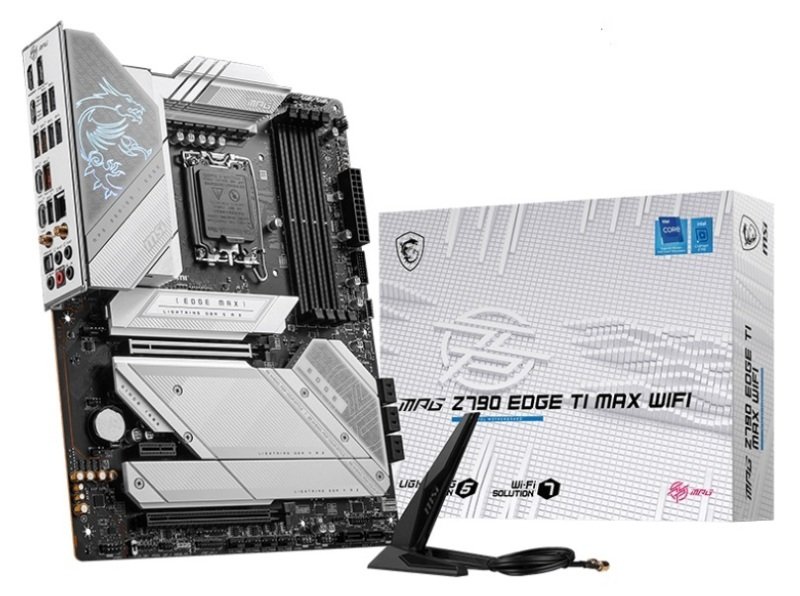

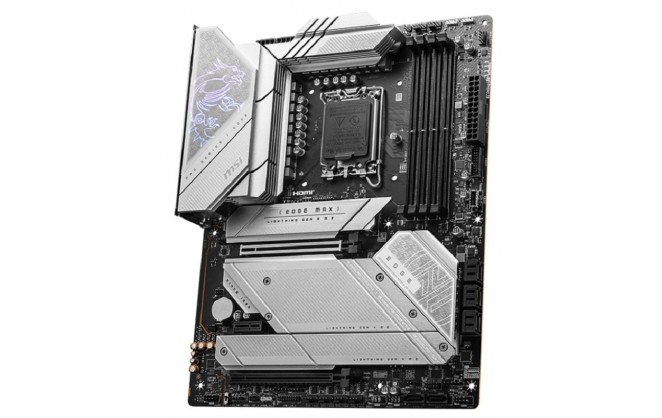

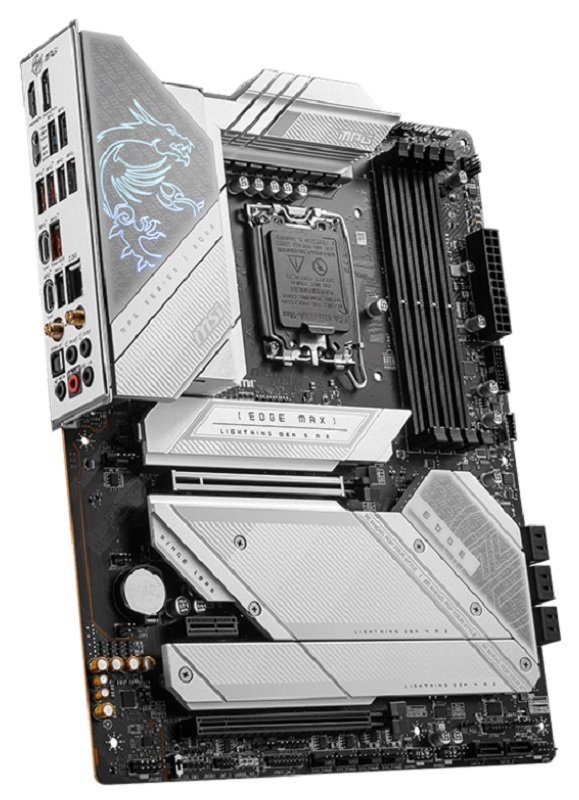

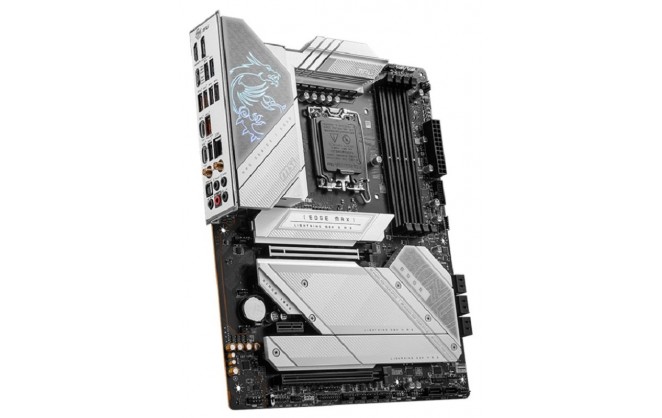

MPG Z790 EDGE TI MAX WIFI is covered with a silver-white color scheme for white PC build lovers to show off different personalities. It is also powerful because it features Wi-Fi 7 solution, an optimized DDR5 circuit, and the latest PCIe 5.0 M.2 with Screwless M.2 Shield Frozr, and this is the best white Z790 ATX motherboard for Intel® 14th Gen and 13th Gen Core processors.
BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Direct Touch Heat-pipe
Connecting two MOS heatsinks to enlarge the surface of heat dissipation.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
Enhanced M.2 Thermal
Double-sided M.2 Shield Frozr and Enlarged heatsink desing keep PCIe 5.0 M.2 SSD safe while preventing throttling.
Enlarged PCH Heatsink
The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
MSI Intel MPG Z790 EDGE TI MAX WIFI Socket 1700 DDR5 ATX Motherboard
CPU
| CPU Socket | Socket 1700 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
| 64-bit Support | Yes |
| Socket | LGA1700 |

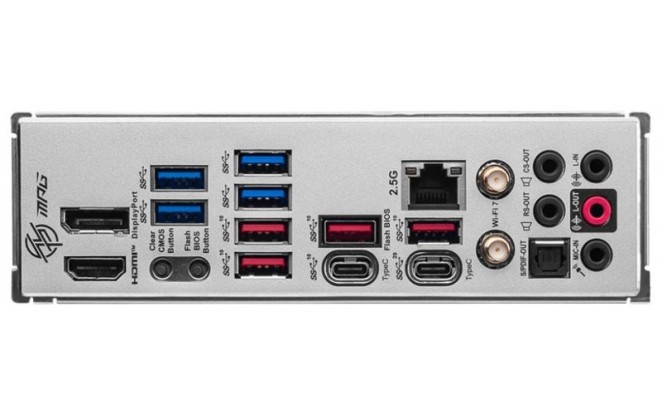

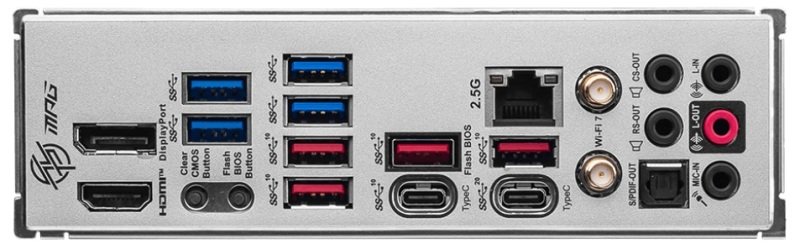

Rear Panel I/O Ports
| USB Ports | 1 x USB-C 3.2 1 x USB-C 3.1 4 x USB 3.1 4 x USB 3.0 |
| DisplayPorts | 1 x DisplayPort 1.4 |
| HDMI Port | 1 x HDMI 2.1 |
| RJ-45 Ports | 1 x RJ-45 |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 3 x 3.5mm Jacks |
| Microphone In Port | 1 x 3.5mm Jack |
| S/PDIF Port | 1 x S/PDIF Optical Out |
| Antenna Connector(s) | 2 x SMA Antenna |
Internal I/O Connectors
| SATA Connectors | 8 x SATA III |
| USB Connectors | 1 x USB-C 3.1 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 5 x System fans |
| Thunderbolt Port(s) | 1 x USB4 card connector (JTBT) |
| Chassis Intrusion Connector | 1 x Chassis Intrusion header |
| Power Connector Port | 1 x 24-pin ATX 2 x 8-pin EPS |
| Other Connectors | 1 x M.2 slot, Type 2260/2280/22110 (PCIe Gen5) 2 x M.2 slots, Type 2260/2280 (PCIe Gen4) 1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4) 1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4 or SATA) 3 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header 1 x Tuning Controller header |
Memory
| Memory Bus Speed | Up to 7800 MT/s |
| Memory Type | DDR5 |
| Maximum RAM | 256 GB |
| Memory Slot | 4 x DIMM |
Motherboard
| Northbridge | Intel Z790 |
| RAID Supported | Yes |
| RAID Format | RAID 0, 1, 5, 10 |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 5.0 x16 slot 1 x PCI Express 4.0 x16 slot (@ x4) 1 x PCI Express 3.0 x1 slot |
Graphics Device
| Integrated Graphics Supported | Yes |
Warranty
| Warranty | 3 Years |
Sound
| Integrated Sound | Realtek ALC4080 |
Network
| Integrated Network | Intel |
| Network Speeds Supported | Up to 2.5 Gbps |
| Wireless LAN | Yes - Wi-Fi 7 |
| Wireless Network Speed | Up to 5.8 Gbps |
| Bluetooth | Yes |
| Bluetooth Version | 5.4 |
System Requirements
| Operating Systems Supported | Windows 11 |
System
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | ATX Motherboard |
| In The Box | Motherboard EU Regulatory Notice Quick Installation Guide 3 x EZ M.2 Clip Packages Wi-Fi Antenna Cable Stickers Shout out Flyer ARGB & Fan Extension Y-Cable USB Drive Front Panel Cable 2 x SATA Cables |
| Width | 244 mm |
| Length | 305 mm |
Key Features
| Wireless Network | Yes |
| Motherboard Width | 244 mm |
| Motherboard Height | 305 mm |
| Main Colour | White |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 8 port(s) |
| Number of USB Ports | 10 port(s) |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| DisplayPort Connection | Yes |
| Motherboard Form Factor | ATX |
| Motherboard (EPS) Power Connectors | 2 x 8-Pin |
| Motherboard Chipset | Intel Z790 |
| Thunderbolt | No |
| Motherboard Model | MSI MPG Z790 EDGE TI MAX WIFI |
| WiFi Speed | 5800 Mbps |
| USB 3.1 Support | Yes |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | MSI Mystic Sync |
| RGB Header Type | 3-Pin ARGB |
| Addressable RGB | Yes |
| Internal USB Type-C Header | Yes |
| Power Requirement (auto) | 70 W |
| Max Memory Speed Supported (Non-overclocked) | 5600 MT/s |
| Max Memory Speed Supported (overclocked) | 7800 MT/s |
| CPU Power Pins (female) | 16 |
| Total M.2 Slots | 5 |
| Maximum NVMe M.2 ports | 5 |
| SATA ports | 8 |
| No. of front USB2.0 ports supported | 4 |
| No. of front USB3.0 ports supported | 2 |
| No. of front USB-C ports supported | 1 |
Item Details
| Manufacturer | MSI |
| Manufacturer Code | MPG Z790 EDGE TI MAX WIFI |
| EAN | 4711377132848 |
